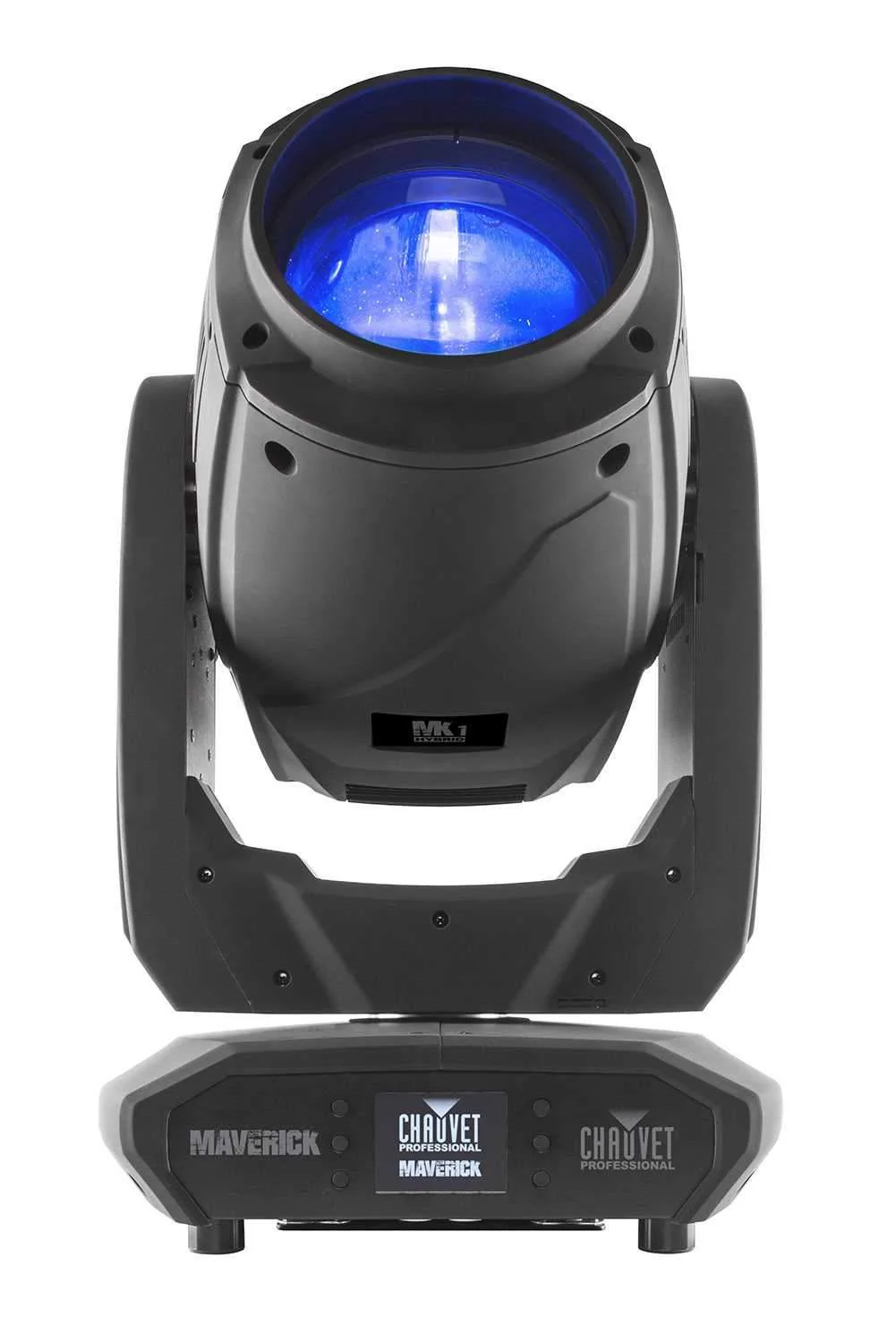

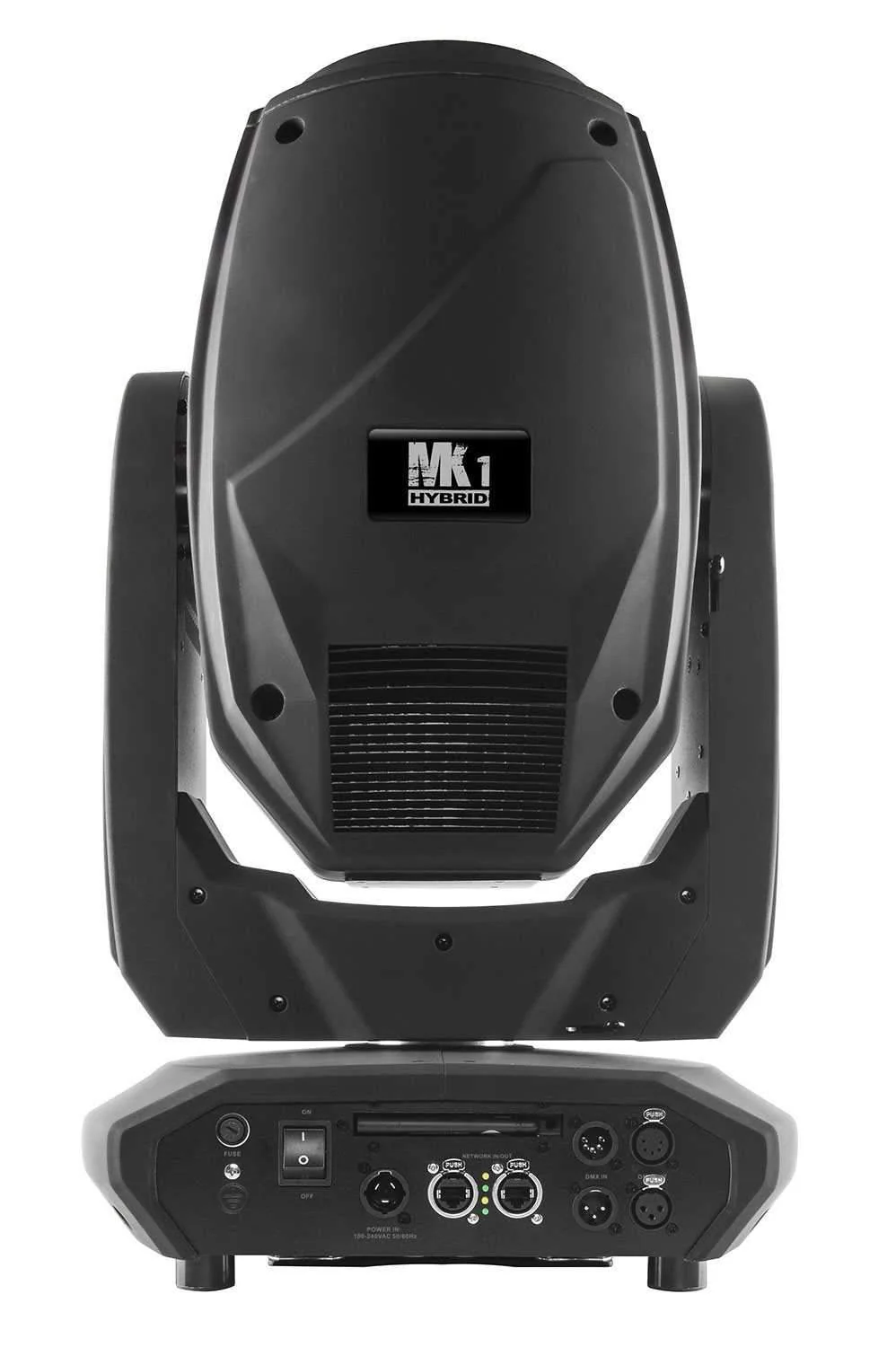

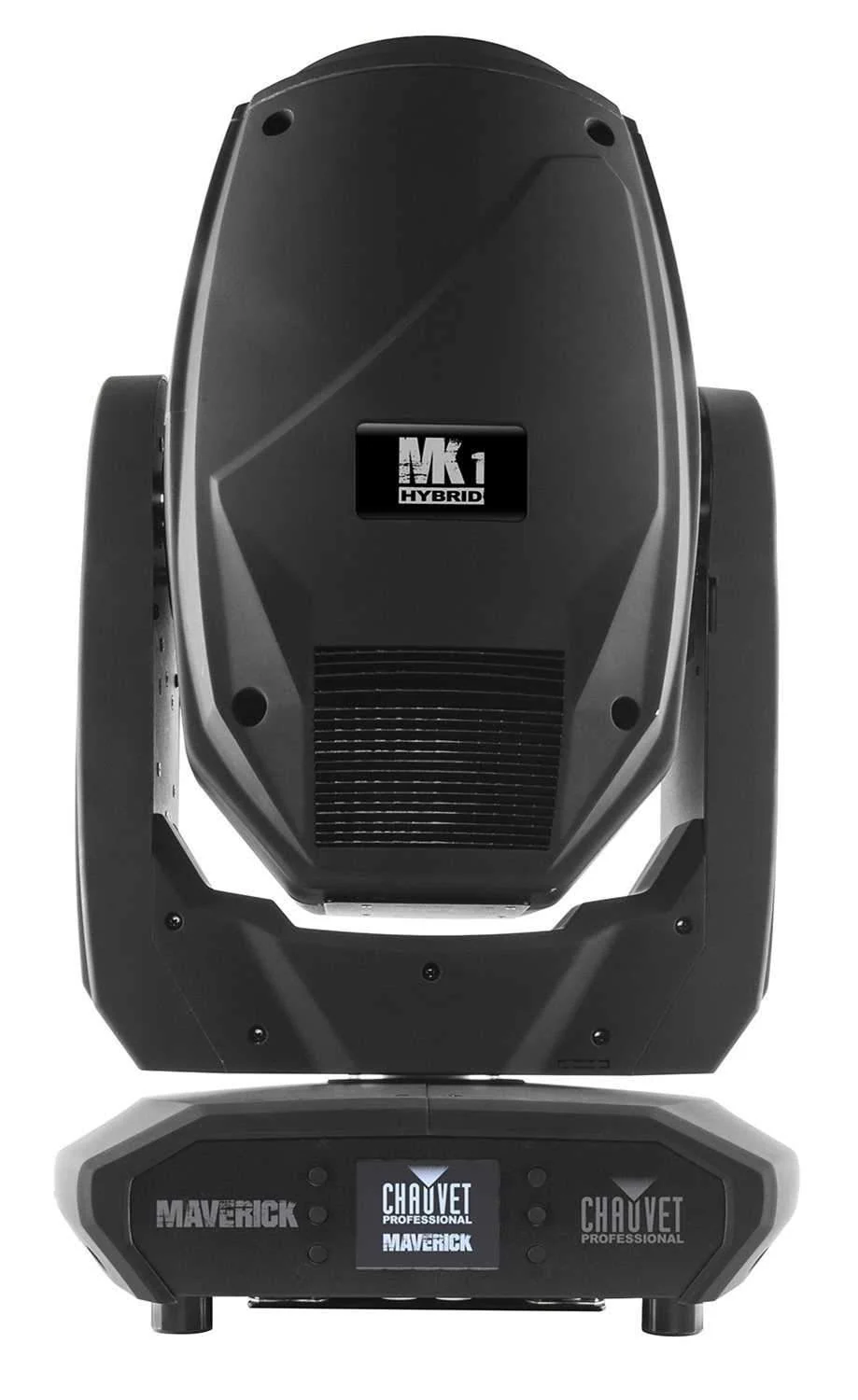

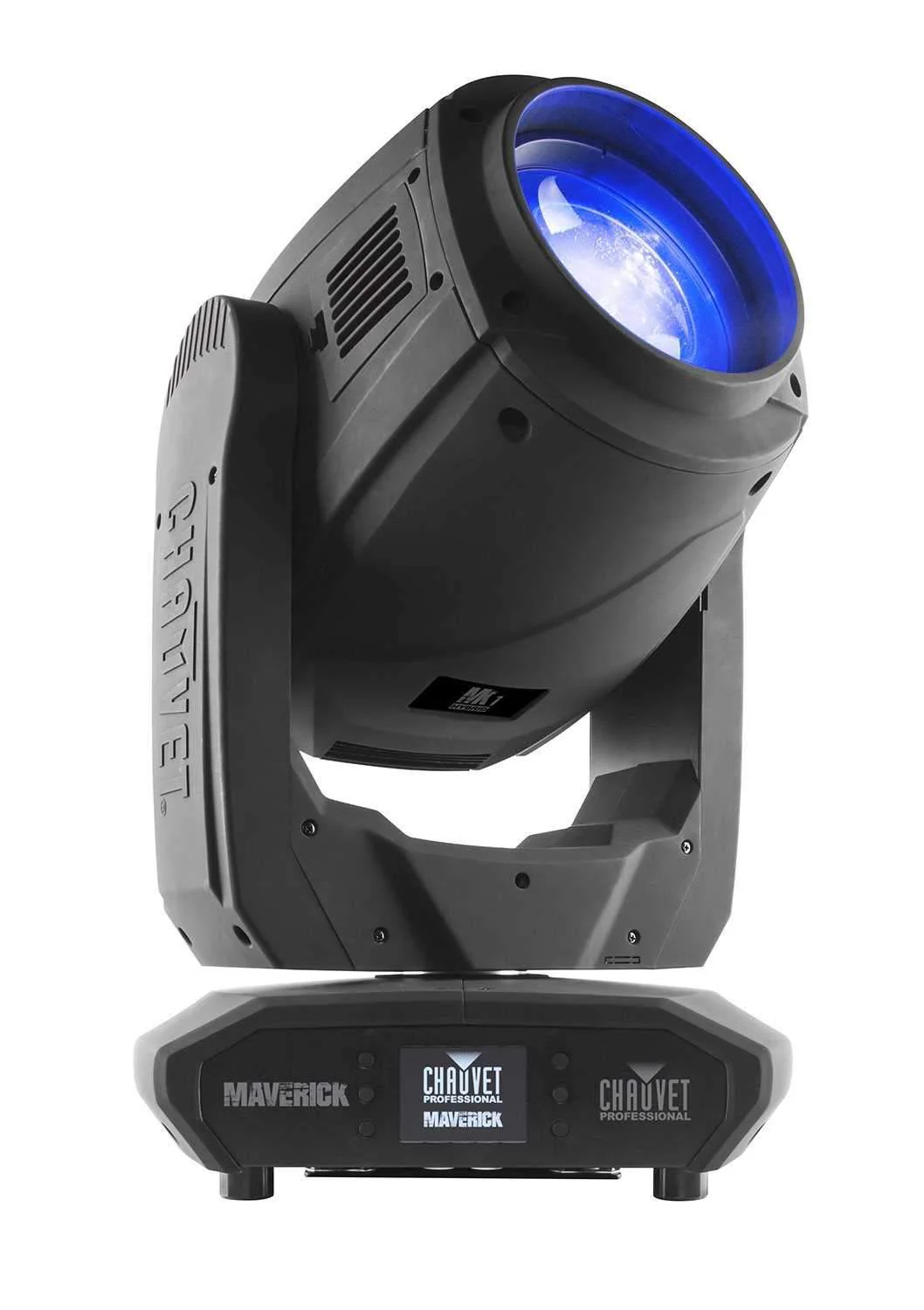

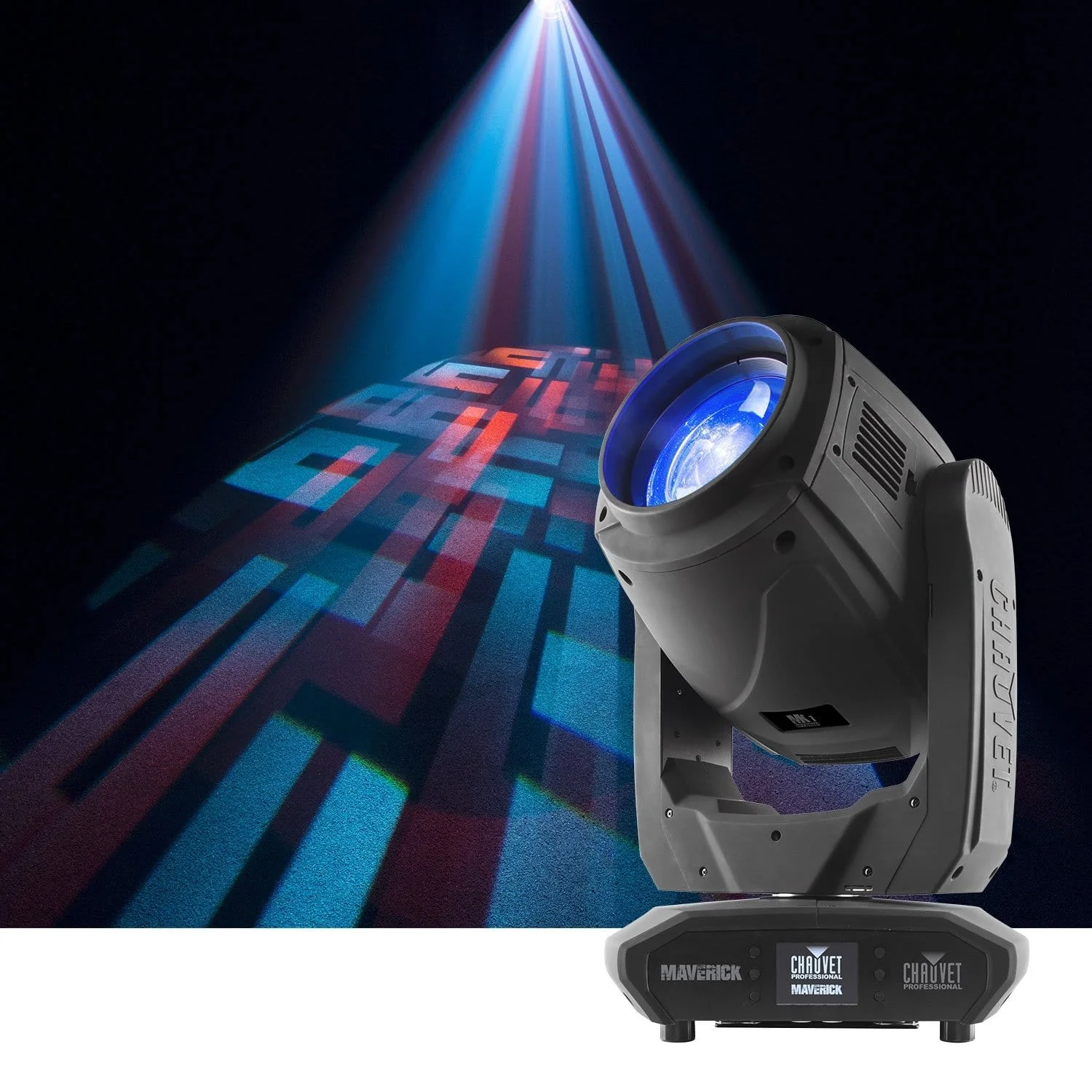

Chauvet Maverick MK 1 Hybrid 440-Watt Moving Head

Maverick MK1 Hybrid puts a world of options at your fingertips with advanced optics, overlapping 8 and 4-facet prisms, a versatile gobo package, a 3° to 18° zoom range in spot mode and 19° to 41° in wash mode, and a robust CMY color system. Powered by a 440W Osram Sirius reflector lamp, this supercharged hybrid awaits your command to dazzle with stunning output and effects. Choose from DMX, sACN, Art-Net, or W-DMX for control.

Features:

• Fully featured, high powered spot/beam combination fixture with CMY color mixing and overlapping prisms
• Fast and precise movement of pan and tilt functions
• Variable CMY color mixing and static colors to create a wide range of color options
• Individually controllable and overlappable 8 and 4-facet prisms
• Frost and beam flattening options for even light distribution
• Zoom angle of 3° to 18° in spot mode and 19° to 41° in wash mode for multiple coverage options
• Tight 1° beam for extremely focused areal effects
• 6 rotating and 18 static gobos for massive visual impact
• DMX , W-DMX, sACN, and Art-Net for full flexibility of control options
• True 1 compatible power input
• Battery backup display with auto rotate depending on fixture orientation.

Specifications:

• Light source: Osram Sirius 440W lamp, 7000K (color temperature), 1,500 hours life expectancy
• Color temperature (at full): 6207K
• Beam angle: 1° to 6° (spot mode)
• Field angle: 3° to 18° (spot mode)
• Beam angle: 1° (beam mode)
• Field angle: 2° (beam mode)
• Beam angle: 9° to 22° (wash mode)
• Field angle: 19° to 41° (wash mode)
• Zoom angle (spot mode): 3° to 18°
• Zoom angle (wash mode): 19° to 41°
• Illuminance (2°): 212,100 lux @ 15 m
• Illuminance (3°): 123,200 lux @ 15 m
• Illuminance (18°): 25,800 lux @ 5 m
• Illuminance (19°): 16,000 lux @ 5 m
• Illuminance (41°) : 2,235 lux @ 5 m
• Pan and tilt: 540°/270°
• Pan and tilt ranges: 540°, 360°, 180° pan / 270°, 180°, 90° tilt
• Colors: 15 + white, split colors
• Colors: CMY flags, CTO
• Gobos (1): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 18 + open (18 metal), continuous scroll at variable speeds
• Gobo size: gobo wheel 1 (rotating): 22 mm (outside), 13 mm (image), 1.1 mm (maximum thickness)
• Effect wheel: 1 effect
• Framing shutters: no
• Dimmer: motorized
• Shutter/strobe: motorized
• Zoom: motorized
• Focus: motorized
• Frost: motorized
• Prism (1): 4 facets, motorized, rotating
• Prism (2): 8 facets, motorized, rotating
• Move-in-black: yes
• Exterior color: black
• Housing material: high-impact flame-retardant polymer
• Power connection: Edison (local) plug to Seetronic Powerkon IP65
• Power input: seetronic powerkon IP65
• Data connectors: 3 and 5-pin XLR
• Cable length (power): 5' / 1.5m
• Control protocol: Art-Net, DMX, W-DMX, sACN
• DMX channels: 27 or 30
• Art-Net channels: 27 or 30
• Modes/personalities: 2 personalities (27, 30)
• Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and current: 670W, 5.45 A @ 120V, 60 Hz
• Power and current: 648W, 3.12 A @ 208V, 60 Hz
• Power and current: 651W, 2.81 A @ 230V, 50 Hz
• CE, METIP rating: IP20, dry location
• Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• What's included: Maverick MK1 Hybrid moving head, Seetronic Powerkon IP65, power cord, omega bracket with mounting hardware
• Compatible accessories (optional): professional clamps: CTC-50HC, CTC-50HCN; safety cable: SC-07DMX cables
• Dimensions: 15.51" x 12.09" x 24.76" / 394 mm x 307 mm x 629 mm
• Weight: 66.7 lbs. / 30.3 kg
