Chauvet Legend-5000X DMX Moving Head

The Legend 5000 features a 575-watt discharge lamp, a second color wheel equipped with a mechanical iris and a user selectable 16-bit or 8-bit pan/tilt resolution. Multiple gobos, colors and prisms can be layered to produce impressive scenic effects.

• 14 or 16 channel DMX-512 moving yoke
• Pan: 570° / tilt: 270°
• Variable strobe/shutter
• Color wheel
  - 11 colors plus white
  - Split colors
  - Rainbow color spin at variable speeds
• Second color wheel
  - 11 colors plus white
  - 1 CT filter, 4 solid, 4 split-colors & 2 quad-colors
  - Rainbow color spin at variable speeds

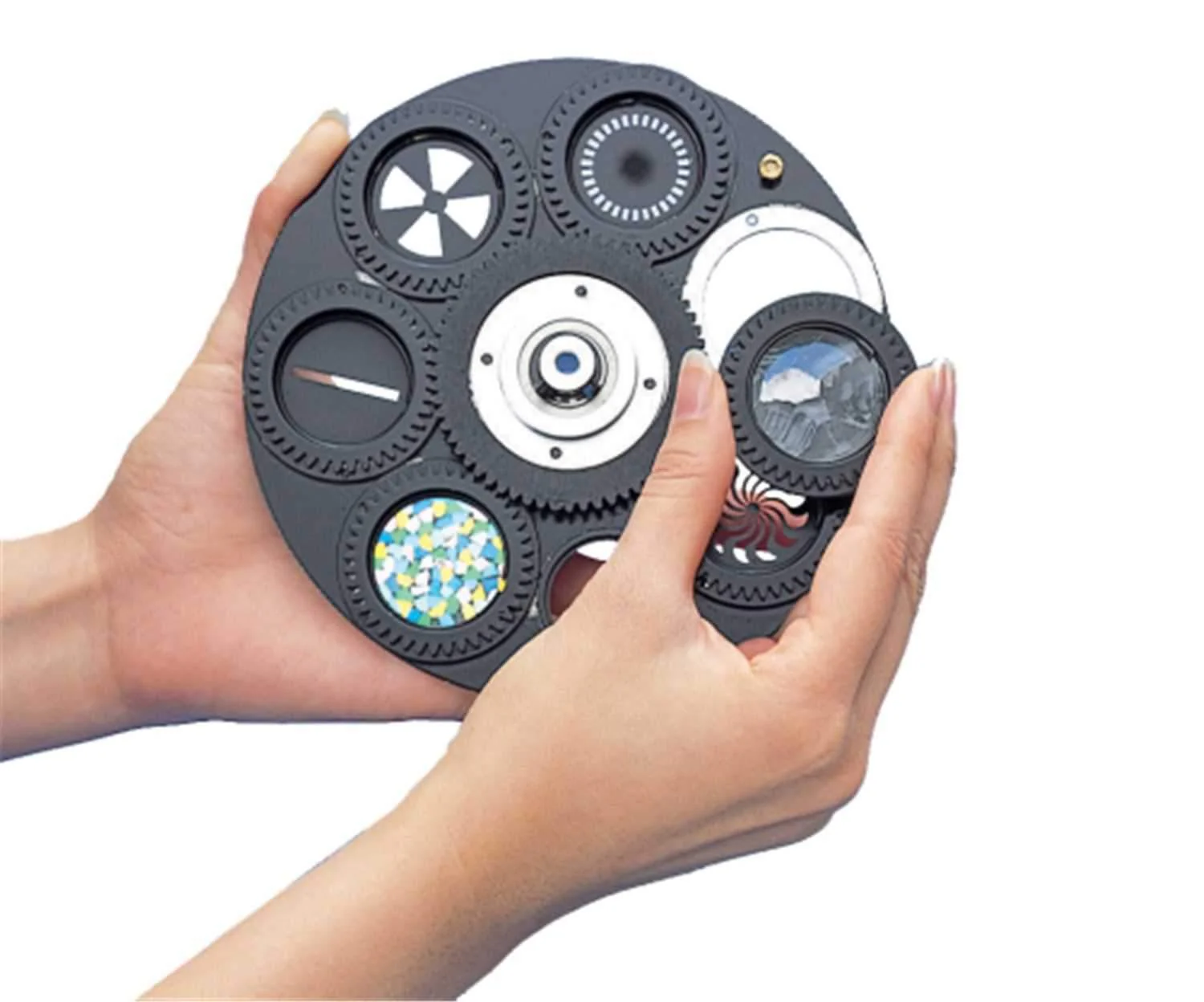

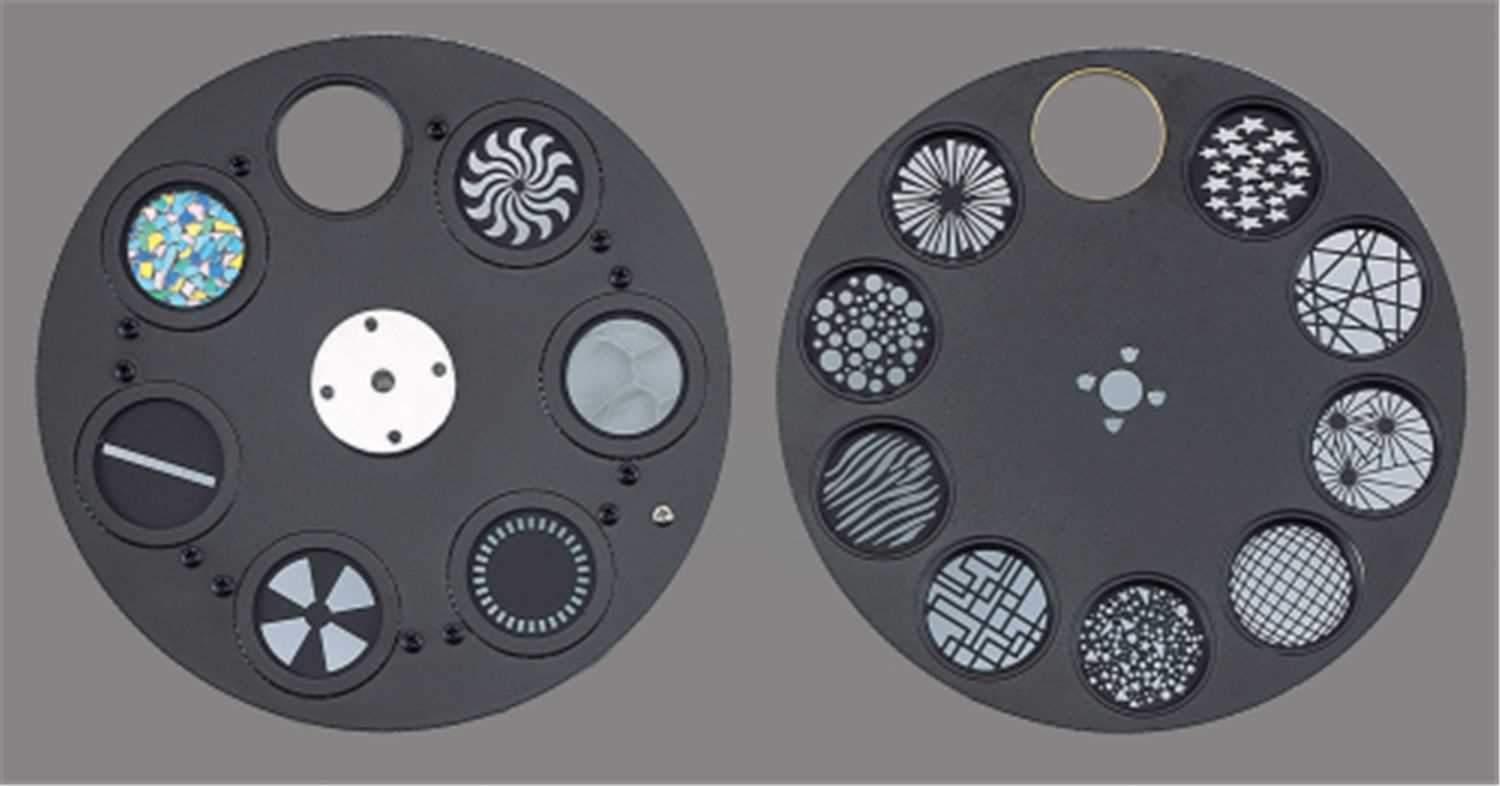

• Static gobo wheel
  - 9 interchangeable gobos plus open
  - Gobo wheel spin in both directions at variable speeds
• Indexing rotating gobos
  - 6 interchangeable rotating + open
  - 5 metal, 1 glass gobo
  - Additional : 9 metal gobos
  - Gobos fully indexed
  - Rotating gobo wheel spin at variable speeds
  - Gobo Bounce
• 3-facet, high-speed rotating prism in both directions at variable speeds
• Variable motorized iris (with pulse and random effect)
• Variable motorized focus
• Variable motorized dimmer (0 – 100%)
• Remote fixture reset, lamp on/off and vector speed channel

• Automatic pan & tilt correction
• Micro-stepping motors
• Lamp use timer
• LED display
• Display on/off setting
• Built in demo programs
• User-selectable 16bit or 8bit pan/tilt resolution
• Removable air filter
• Thermal switch
• Fan cooled

• Beam angle: 15°
• Footcandles: 10,250 @ 1 meter
• Lux: 110,290 @ 1 meter
• Light Source : HMI575/GS 575W 6000°K 1,000hrs
• Current draw: (peak 936W @ 120V) (inrush 1320W @ 120V)
• Power: Switchable (internal) 100V, 115V, 200V, 230V – 50/60Hz
• Weight: 79.5lbs (32.4kgs)
• Size: 16in x 16in x 24in (406mm x 406mm x 609mm)
• 2-year limited warranty
