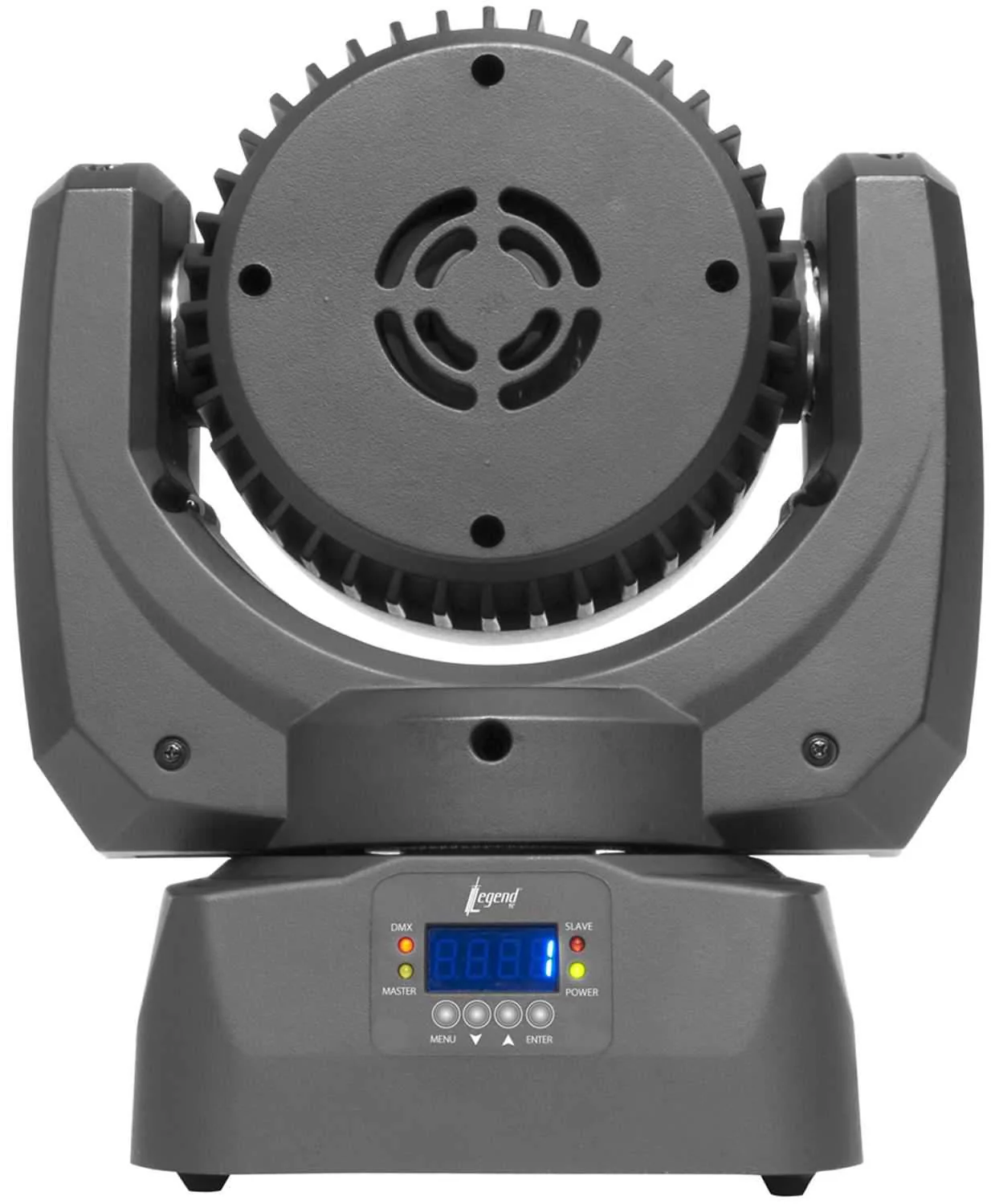

Chauvet Legend 412 12 x 10W RGBW LED Moving Head

Legend 412 is an innovative, high performance moving yoke wash with 12 cutting edge CREE quad-color RGBW LEDs controllable in quadrants. Nimble and ultra-compact, this multi-purpose unit is capable of an excellent wash, dynamic chases and pixel mapping. White emitters make for better color rendering, while the calibration of LEDs ensures uniform output.

• DMX channels: 12 or 28
• Operating modes: 12 channel - basic operation; 28 channel - advanced operation with quadrant control
• Pan: 630°
• Tilt: 200°
• RGBW quad color LEDs
• Electronic shutter
• Electronic dimmer
• All functions reset over DMX
• Move in black over DMX or on display
• Movement macros with speed adjustment
• Color macros with speed adjustment
• Electronic power supply
• IEC power cable
• Fast movement
• Bright quad color LEDs
• Quadrant control of output
• Strobe macros with quadrant strobe
• Flicker free operation for HD cameras

• DMX connectors: 5-pin
• Pan & tilt: 630° / 200°
• Light source: 12 (10W) quad color LEDs 50,000 hrs
• Configuration: 12 RGBW (700 mA per die)
• Strobe rate: 1 - 30 Hz
• Beam angle: 12°
• Field angle: 23°
• Illuminance: 1,500 @ 5 m
• AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)
• Power Consumption 120 V, 60 Hz: 144 W, 1.8 A (operating)
• Power Consumption 230 V, 50 Hz: 139 W, 0.5 A (operating)
• Dimensions: 5.5 x 10.1 x 12 in (140 x 256 x 304 mm)
• Weight: 10.1 lbs (4.58 kg)
• Power Connection: IEC
• Certification: CE
• Environment: IP20, indoor/dry
