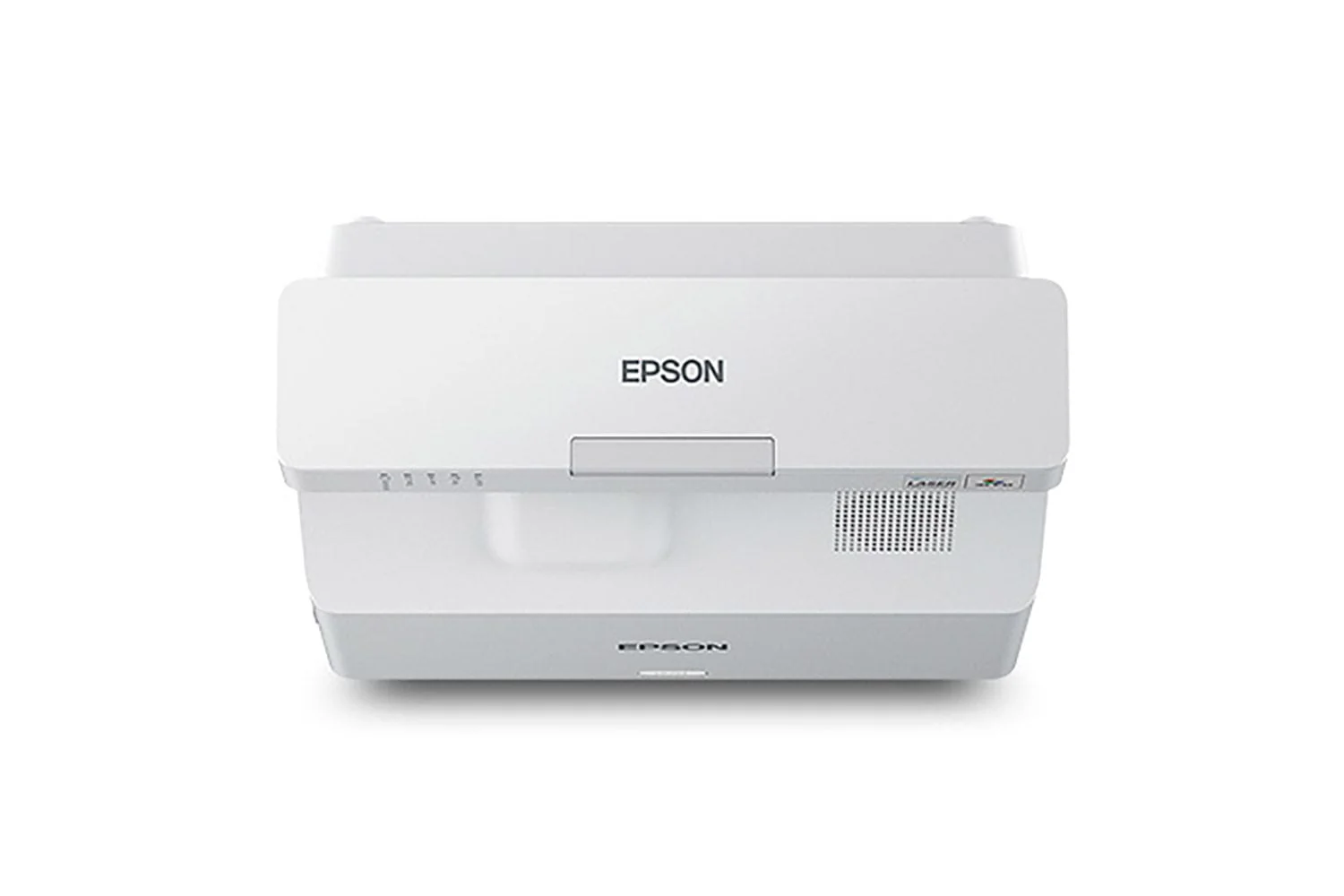

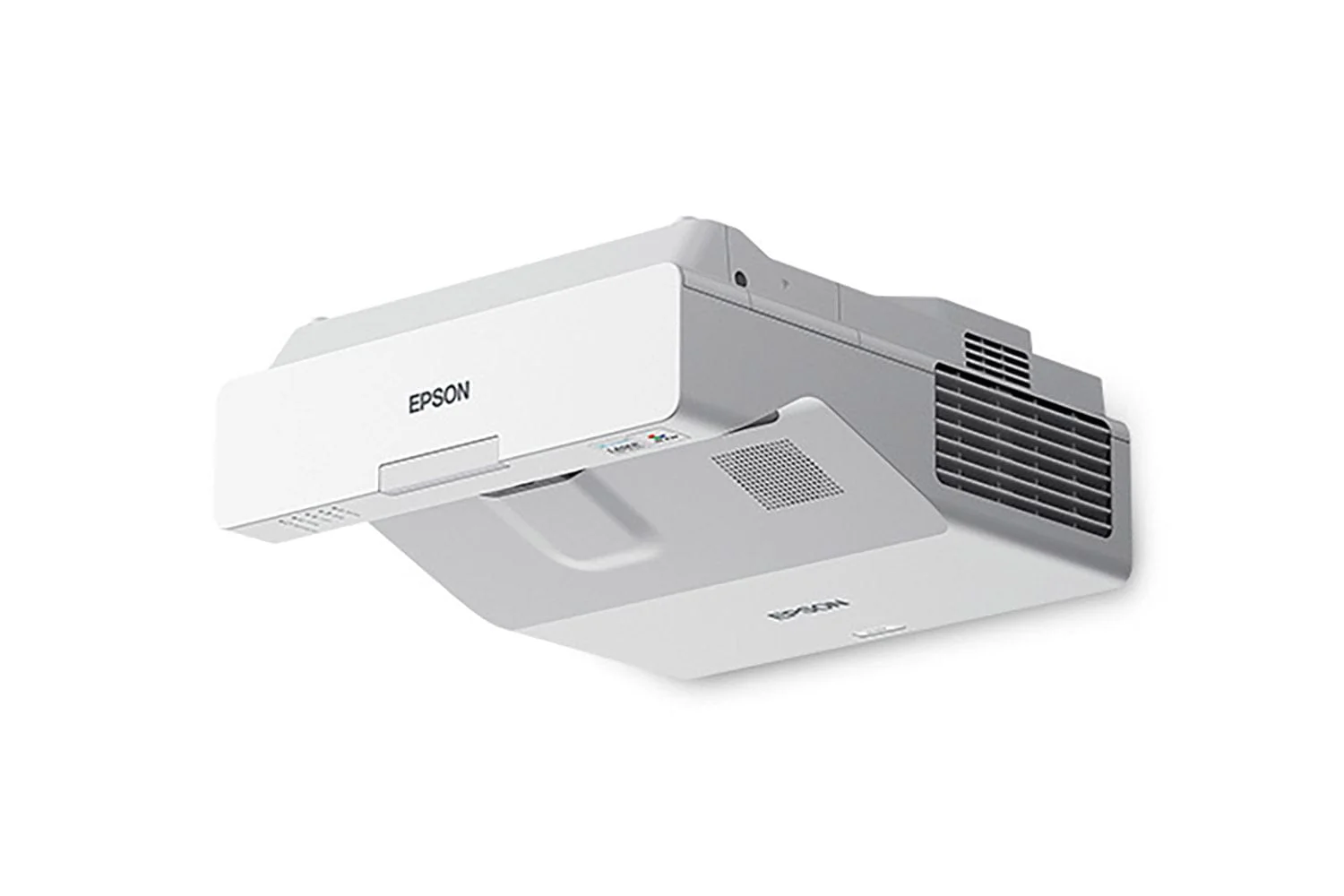

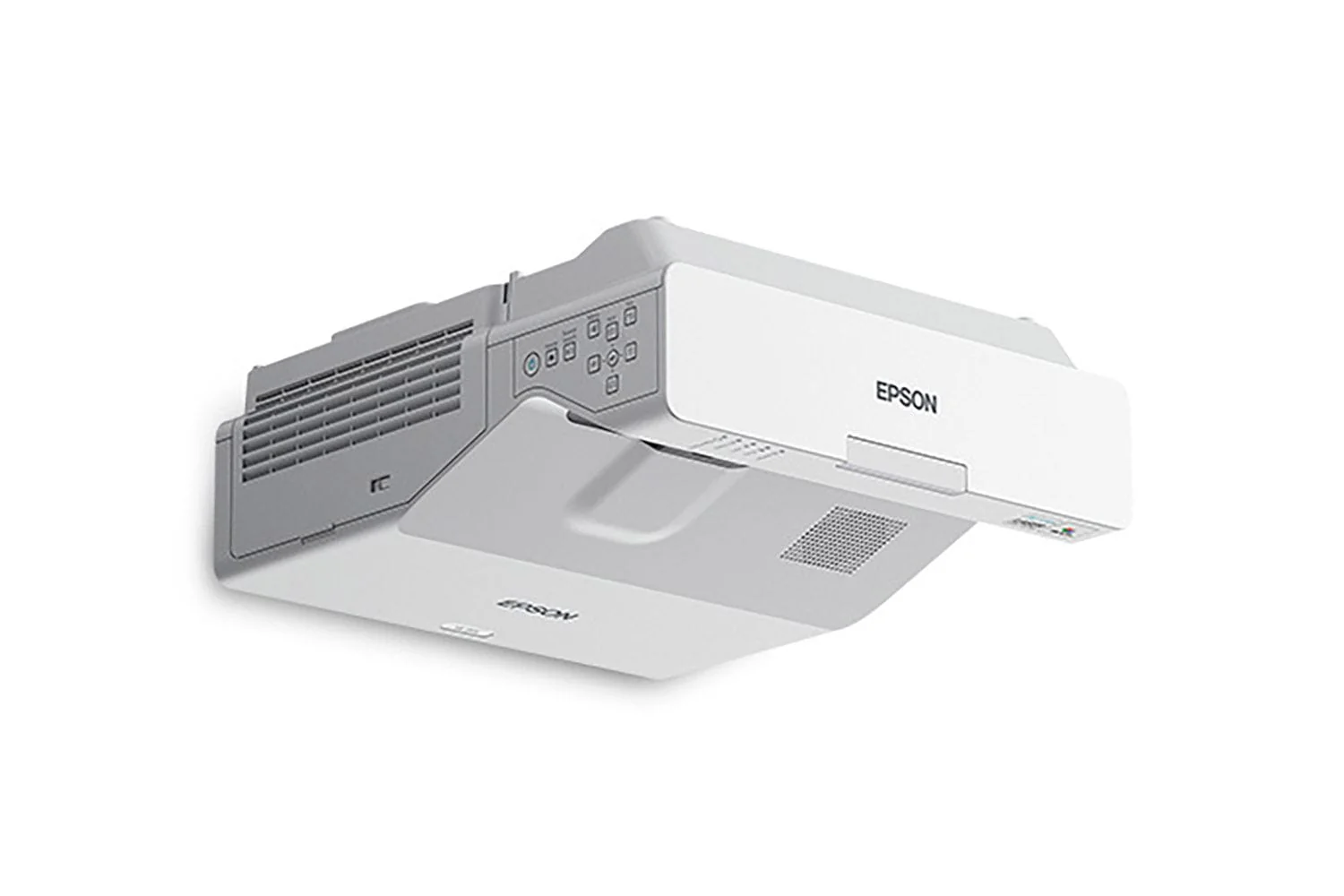

EPSON V11HA08520 PowerLite 750F Projector

Display bright images up to 120" (16:9) for optimal visibility with this budget-friendly versatile projector.

Project vivid, colorful, impactful images up to 110" (16:6) or 120" (16:9) with the PowerLite 750F ultra short-throw laser projector. Featuring 3,600 lumens of brightness[1], Full HD 1080p and built-in split screen[2] and edge blending technology, this budget-friendly projector makes it easy to display larger-than-life images for maximum visibility from nearly anywhere any room. Offering built-in 5GHz wireless and Miracast support, the PowerLite 750F enhances in-class collaboration by allowing for convenient content sharing from up to 50 connected devices simultaneously[3]. For added convenience, this projector offers a long-lasting virtually maintenance-free 20,000-hour laser light source with no lamps to replace[4].

• 3,600 lumens of color and white brightness[1]
• Full HD 1080p resolution; project up to 110" (16:6) or 120" (16:9) diagonal
• 20,000-hour laser light source with no lamps[4]
• Convenient ultra short-throw design
• Built-in wireless; share from up to 50 devices[3]
• Built-in edge blending and split screen[2] features for easy, scalable projection
• Content management software and creative content app for easy creation and management of content for digital signage

• Simple, flexible installation — 360-degree placement capabilities; mount or place the projector in any position or angle, from landscape to portrait
• Free downloadable content management software and app included[5] — create amazing effects and experiences with our easy-to-use, free content management software for digital signage; creative content projection app lets you easily create custom content, plus upload and playback directly from the projector

Eco Features

• Recyclable product[6]
• RoHS compliant
• Epson America, Inc. is a SmartWaySM Transport Partner[7]

What's In The Box:

• PowerLite 750F Laser Projector
• Quick Setup Guide
• Projector Remote Control
• 2x AA Batteries
• Power Cable
• Projector feet

Specifications

• General:
• Projection System: RGB liquid crystal shutter projection system
• Driving Method: Poly-Silicon TFT Active Matrix
• Pixel Number: 2,073,600 dots (1920 x 1080) x 3 chips
• Color Brightness[1]: Color Light Output: 3,600 lumens
• White Brightness[1]: White Light Output: 3,600 lumens
• Aspect Ratio Supports: 4:3, 16:10, 16:9*, 16:6*, 21:9*
• * With vertical image shift control within letterbox area
• Image Size:
• 54" to 98" at 4:3
• 60" to 110" at 16:6
• 65" to 120" at 16:9
• 65" to 110" at 16:10
• Display Resolution: 1080p (1920 x 1080)
• Light Source: Laser Diode
• Light Light Source Life[2]:
• Normal Mode: Up to 20,000 hours
• Extended Mode: Up to 30,000 hours
• Throw Ratio Range: 0.26 (Zoom: Wide), 0.36 (Zoom: Tele)
• Size (Projected Distance):
• 65" – 120" [0.37 m – 0.70 m] (Zoom: Wide) 16:9
• 60" – 110" [0.37 m – 0.69 m] (Zoom: Wide) 16:6
• Keystone Correction Manual:
• Vertical: ±3 degrees
• Horizontal: ±3 degrees
• Native Contrast Ratio:
• 1440:1(*)
• (Color Mode: Dynamic, Power Consumption: Normal, Zoom: Wide)
• (*) This is the standard number. This is not the guaranteed performance.
• Dynamic Contrast Ratio: Over 2,500,000:1
• Color Reproduction: Up to 1.07 billion colors
• Foot Adjuster:
• Vertical: -0.8 to +0.8 degrees
• Horizontal: -0.8 to +0.8 degrees
• Modes:
• Dynamic
• Presentation
• Cinema
• sRGB
• DICOM SIM
• Multi-Projection
• Projection Lens:
• Type: Digital zoom, Focus (Manual)
• F-Number:1.6
• Focal Length: 3.7 mm
• Zoom Ratio: 1 – 1.35 (Digital zoom)
• Software:
• In addition to compatibility with Epson’s standard suite of software, this product has a direct playback function via USB.
• Works with:
• - Epson Projector Content Manager Software (Visit our support pages for the latest version)
• - Epson Creative Projection application

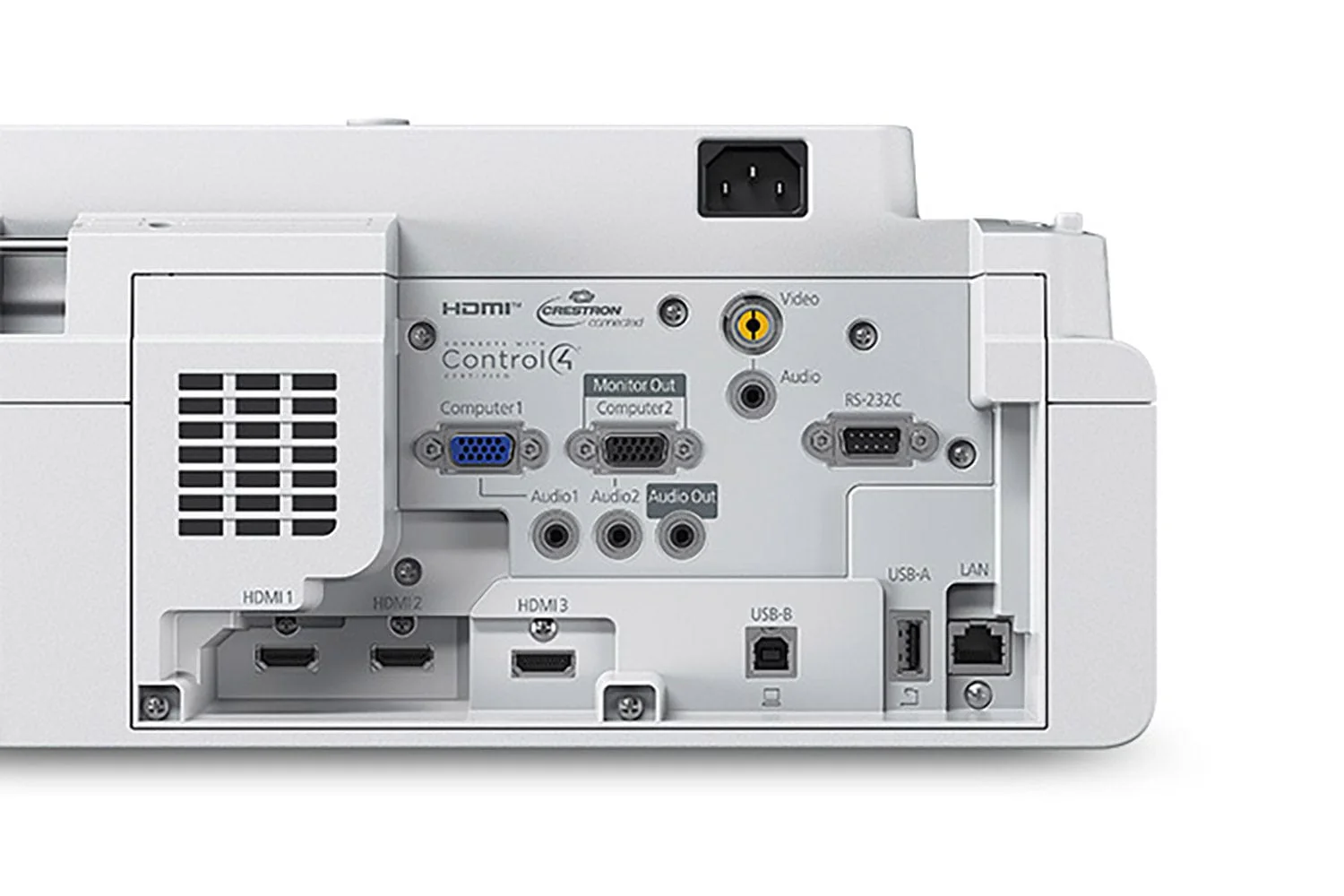

• Interfaces:
• 3x HDMI® (with CEC Control)
• 1x Analog D-sub 15-pin (in)
• 1x RCA Composite
• 1x Analog D-sub 15-pin (input/monitor out)
• 3x Stereo Mini In
• 1x Stereo Mini Out
• 1x RS232C control port
• 1x USB Connector Type A: For saving and reading data,
• document camera
• 1x USB-A type for wireless adapter
• 1x USB Connector Type B: For USB Display
• 1x Wired LAN RJ-45
• Wireless support for built-in WLAN adapter: Wireless 802.11b/g/n/ac
• IEEE 802.11b (2.4GHz): 11 Mbps*
• IEEE 802.11g (2.4GHz): 54 Mbps*
• IEEE 802.11n (2.4GHz): 72.2 Mbps*
• IEEE 802.11a (5GHz): 54 Mbps*
• IEEE 802.11n (5GHz): 150.0 Mbps*
• IEEE 802.11ac (5GHz): 325 Mbps*
• Other:
• Operating Temperature: 41 ˚F to 104 ˚F (0 ˚C to 40 ˚C) (20% – 80% humidity, no condensation)
• Power Supply Voltage: 100 V – 240 V AC ±10%, 50/60 Hz
• Auto Power On: Signal Detection on HDMI/Plug-In Detection (HDMI, USB, VGA 15-pin, BNC)
• Sleep Mode: Yes (with timer)
• Power Consumption:
• Normal Mode: 267 W
• Quiet Mode: 206 W
• Standby Mode: 2.0 W
• Energy-Saving Mode: 0.5 W
• Fan Noise:
• Normal Mode: 36 dB
• Quiet Mode: 26 dB
• Security: Enterprise Level Security Encryption
• Country of Origin: China
• Dimensions (W x D x H:
• Projector (Including Feet): 14.1" x 6.4" x 15.6"
• Weight: 12.5 lb
• Remote Control:
• Features: Source Search, HDMI, Computer, USB, LAN, Keystone, Effect, USB Viewer, ID, Default, User, E-Zoom, Color Mode, Aspect, A/V Mute, Split, Freeze, Home
• Operating Angle:
• Front: Right/Left: -30 degrees to +30 degrees
• Upper/Lower: 0 degrees to +60 degrees
• Rear: Right/Left: -55 degrees to +55 degrees
• Upper/Lower: +75 degrees to +15 degrees
• Operating Distance: 20 ft (6 m)
• Eco Features:
• RoHS compliant
• Recyclable product[6]
• Epson America, Inc. is a SmartWay® Transport Partner[7]
• Support:
• Epson ConnectionSM:
• Pre-sales support: U.S. and Canada (800) 463-7766
• Internet website: www.epson.com
• Service Programs: 3-year projector limited warranty or 20,000 hours, whichever comes first Epson Road Service program dedicated toll-free support (U.S. and Canada only)

Notes:

[1] Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

[2] No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

[3] For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

[4] Split Screen feature requires remote control. Consult your user manual for input combinations.

[5] Internet connection required for download. Data usage fees may apply.

[6] For convenient and reasonable recycling options, visit www.epson.com/recycle

[7] SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
