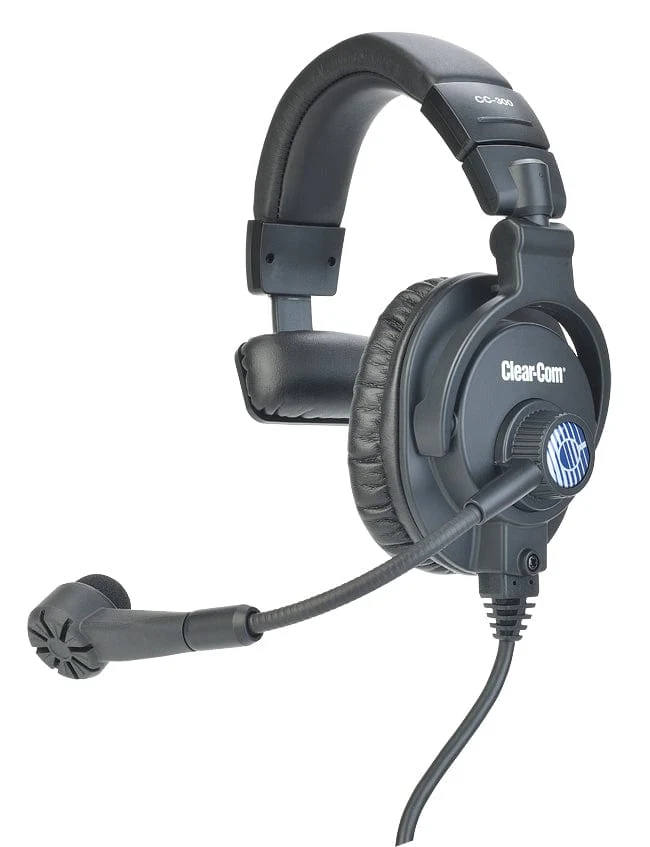

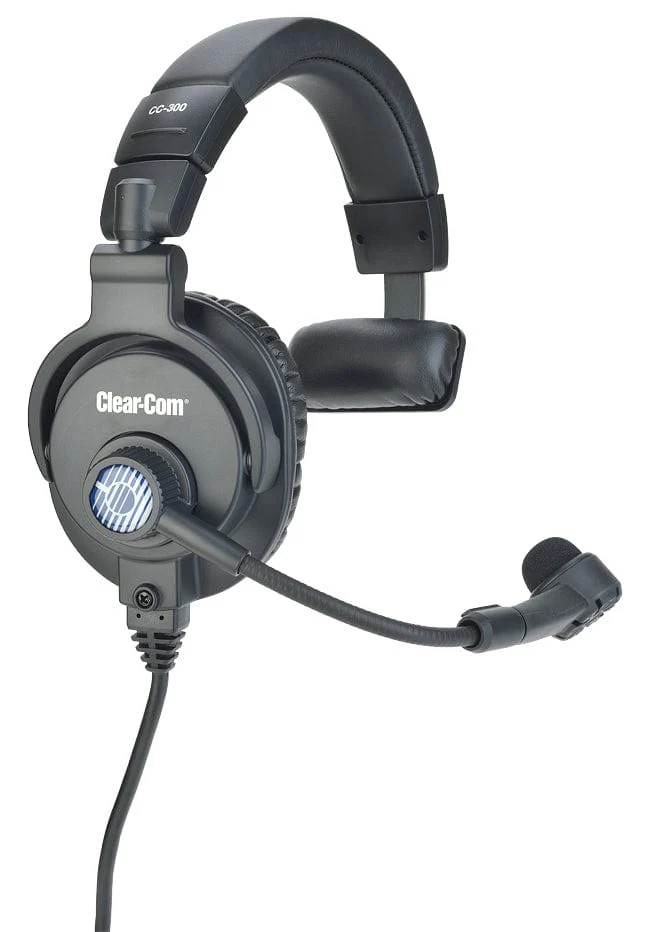

Clear-Com CC300 Single-Ear Intercom Headset

The CC-300 (single-ear) headsets feature high performance headphones and cardioid dynamic microphone that provide high quality audio.

• High quality dynamic cardioid microphone
• High ambient-noise attenuation headphones
• Microphone: 300Hz – 20kHz frequency response
• Headphone: 40Hz – 20kHz frequency response
• Cushioned with soft leatherette padding
• Flexible gooseneck microphone positioning
• 300-degrees boom mic rotation for ON/OFF mic-mute switch
• Rugged design

Specifications

• Headphone
• Type: Closed-back
• Driver: 40mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
• Frequency Response: 40Hz v- 20kHz
• Microphone
• Element: Dynamic
• Polar Pattern: Hyper-cardioid
• Frequency Response: 300Hz – 20kHz
• Sensitivity
• Microphone Open Circuit Sensitivity: -61dB
• ±3.5dB (0dB=1V/1Pa, at 1kHz , typical)
• Headphone Sensitivity
• CC-300: 102dB ±3dB (SPL) /1mW at 1kHz typical)
• CC-400: 98dB ±3dB (SPL) /1mW at 1kHz typical)
• Impedance
• CC-300: 400Ω ±30%; at 1kHz typical
• CC-400: 200Ω ±30%; at 1kHz typical
• Microphone: 200Ω ±30%; at 1kHz typical
• Connector
• Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR
• Dimensions
• Packaging for CC-300 and CC-400:
• 4.8 x 13 x 10.43in (WxHxD)
• (122 x 330 x 265mm)
• Weight
• CC-300: 8.6oz (245g) without 8-pin cable assembly and M3*18mm SCREW
• CC-400: 11.1oz (315g) without 8-pin cable assembly and M3*18mm SCREW
