Yorkville YXL15P 1000 Watt 15” Full Range Active Loudspeaker FOH / Monitor Combo

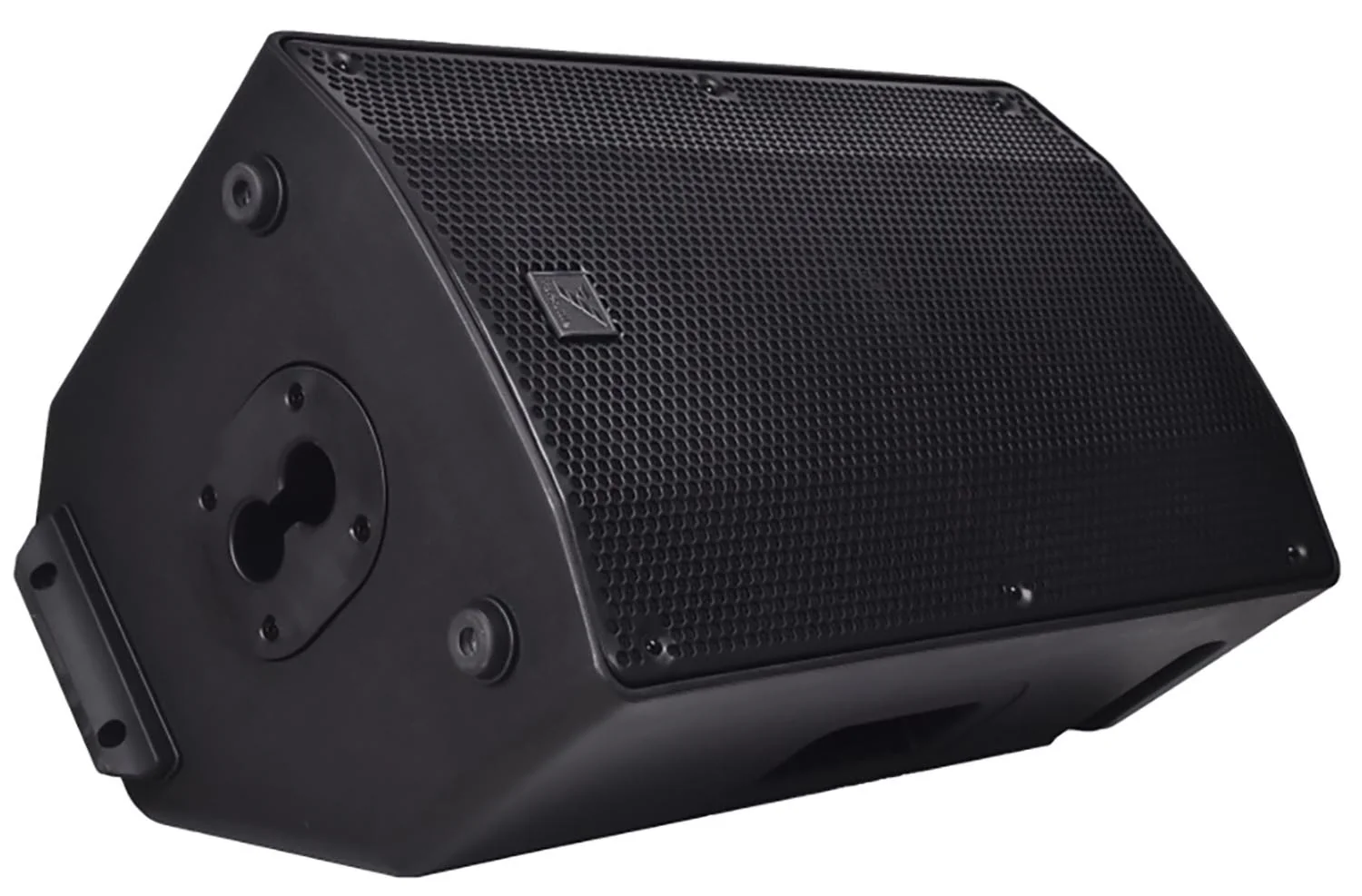

The YXL series is Yorkville Sound’s most affordable and versatile speaker lineup, and the YXL15P is the largest and most powerful YXL loudspeaker. Designed with the DJ and musician in mind, each YXL powered speaker can be used vertically on the floor or a speaker stand, or wedged as a stage monitor.

 YXL powered speakers feature an advanced acoustic package, a 3-channel mixer, Bluetooth® audio streaming, and three selectable voicing modes. With powerful features and simple, intuitive controls, YXL delivers clear sound, exceptional value, and the best price-to-performance ratio of any Yorkville Sound PA series.

Features

• 1000 W Peak Power (500 W Program)
• 15” Woofer with 2” Voice Coil
• 1” Compression Driver

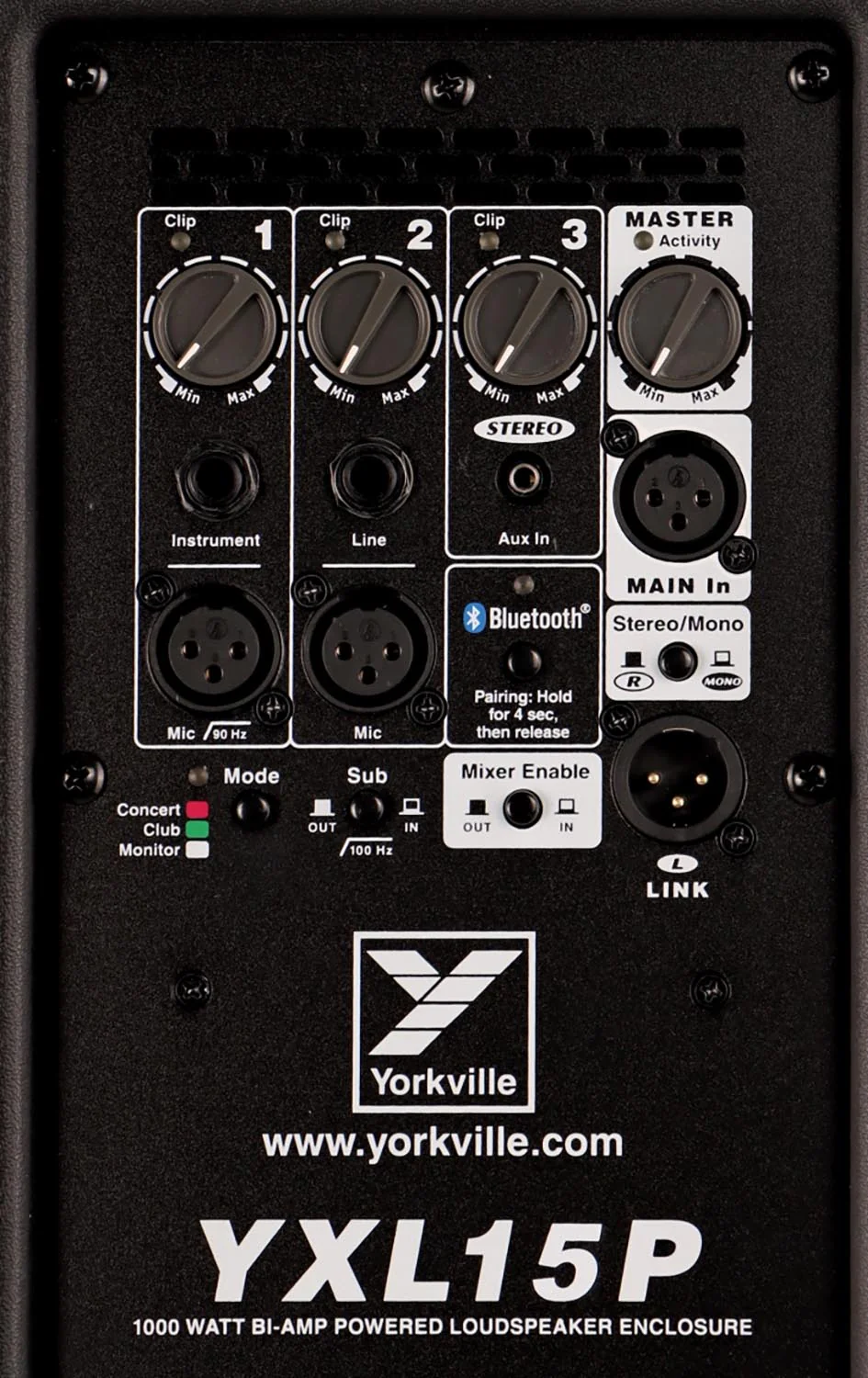

• Integrated 3-Channel Mixer with 2x 1/4", 2x XLR, and 1/8" Inputs
• Bluetooth® Streaming
• Concert, Club, and Monitor Voicing Modes
• Polypropylene Cabinet Construction

Specifications

System Type	Powered Loudspeaker
Power Rating	1000 W Peak (500 W Program)
Max SPL	127 dB Continuous
Frequency Response (Hz +/- 3dB)	45 Hz - 16 kHz
Dispersion (H x V)	90° x 40°
Crossover Frequency	1.6 kHz
HF Program Power (Watts)	100 W Peak (50 W Program)
HF Horn	Integrated into Baffle
LF Driver(s)	15” with 2.5” Voice Coil
LF Program Power(Watts)	900 W Peak (450 W Program)
HF Amplifier Type	Class A/B
LF Amplifier Type	Class D
Cooling Scheme	Speed-Controlled Fan
In / Out Connections	1x Main In (XLR), 1x Link (XLR)
Channel 1 Input	1x XLR, 1x 1/4" (Line)
Channel 1 Controls	Level Control
Channel 2 Input	1x XLR, 1x 1/4" (Instrument)
Channel 2 Controls	Level Control
Channel 3 Input	1/8", Bluetooth® Streaming
Channel 3 Controls	Level Control
Level Controls	3x Channels, 1x Master
EQ Controls	Concert, Club, and Monitor Voicing Modes
Limiter	Multiband Excursion, RMS, Rail
Other Controls / Features	Sub Mode HP Filter, Mixer In / Out Stereo / Mono Out 3.5mm Aux In Bluetooth Streaming
Bar Handles	3 (1x Each Side, 1x Back)
Flypoints	2 (2x Top, 1x Pullback)
Flying Hardware	M8 Metric Threading
Pole Mount Adapter (1 3/8	Dual Angle (1x Bottom)
Enclosure Materials	Polypropylene
Dimensions (DWH)	14.8” x 17” x 27.4” (37.5 cm x 43.2 cm x 70.4 cm)
Weight	45 lbs / 20.4 kg
