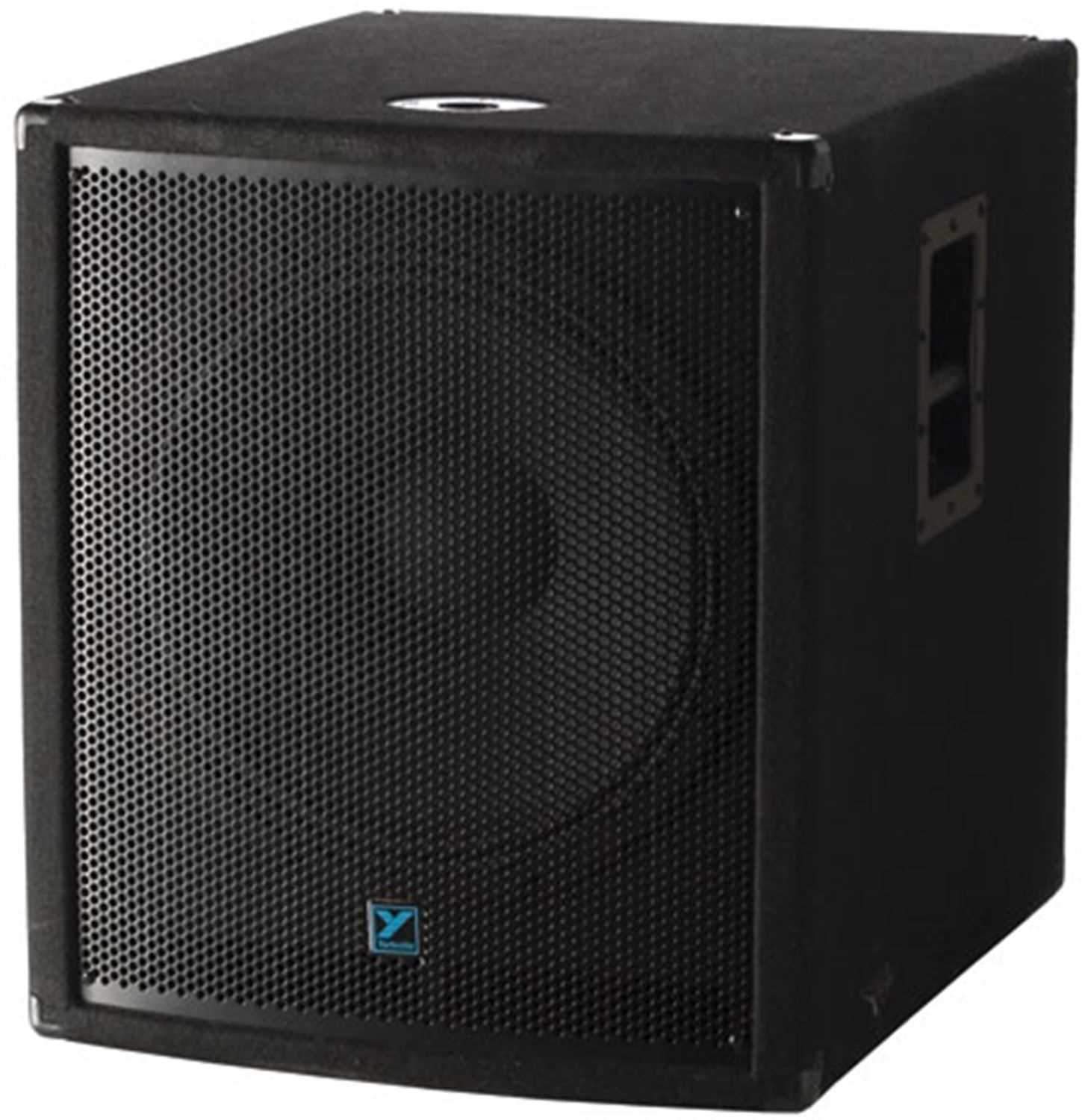

Yorkville YX18S 18" 400W Passive Subwoofer

The passive YX18S uses the tried and true vented 18-inch front loaded bass reflex subwoofer design. The internal passive crossover allows the 400-watt YX18S to be added to any system without additional external processing.

Solid plywood cabinet construction ensures the YX18S will remain rattle and buzz-free at the high volumes a subwoofer must endure. Integrated pole mount adaptor allows full range loudspeakers like the YX15 or YX15P to be raised above the crowd easily and effectively with a simple subwoofer stand or speaker pole.

Designed with working musicians in mind, the YX18S offers rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker.

• System Type: Subwoofer
• Active or Passive: Passive
• Program Power (Watts): 400
• Nominal Impedance (Ohms): 6
• Sensitivity (dB @1Watt/1m): 98
• Max SPL (dB): 124
• Frequency Response (Hz +/- 3db): 45 - 150
• Crossover Frequency (Hz): 150
• LF Driver(s): 18 inch
• LF Program Power(Watts): 400
• Inputs - 1/4" Jacks: 2
• Inputs - Speakon 4-pin: 2
• Other Controls / Features: Built-in passive low-pass filter for Plug-and-play simplicity
• Corners: Metal
• Feet: Plastic Glides
• Wheels: No
• Bar Handles: 2 (Side)
• Pole Mount Adapter (1 3/8"-3.5cm): Yes (Top)
• Enclosure Materials 15mm (5/8inch): Plywood
• Grille: Custom Punched Black Perforated Metal
• Covering / Finish: Black Ozite
• Dimensions (DWH xbackW, inches): 26 x 22 x 25
• Dimensions (DWH xbackW, cm): 66 x 55.9 x 63.5
• Weight (lbs/kg): 74 / 33.6
