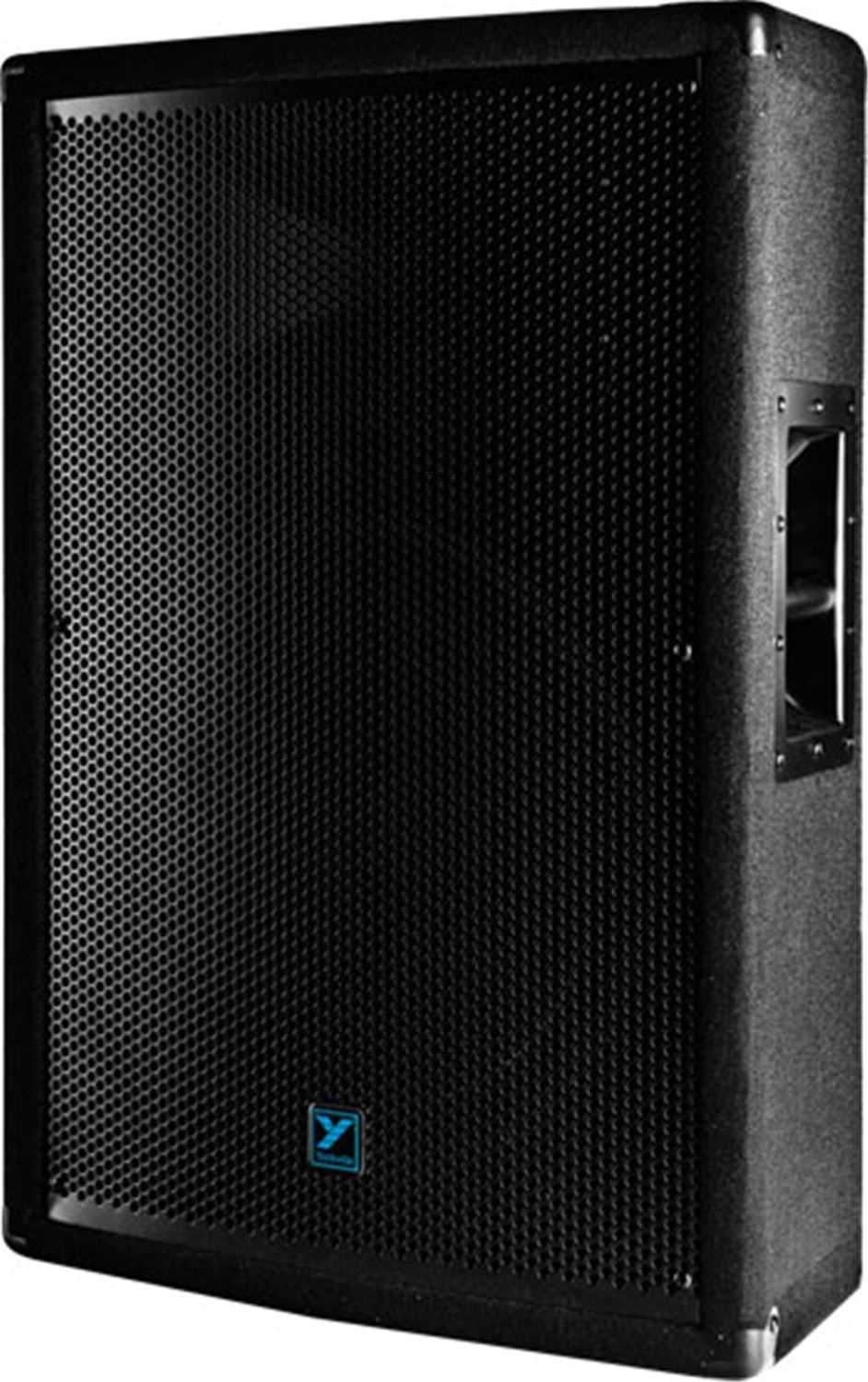

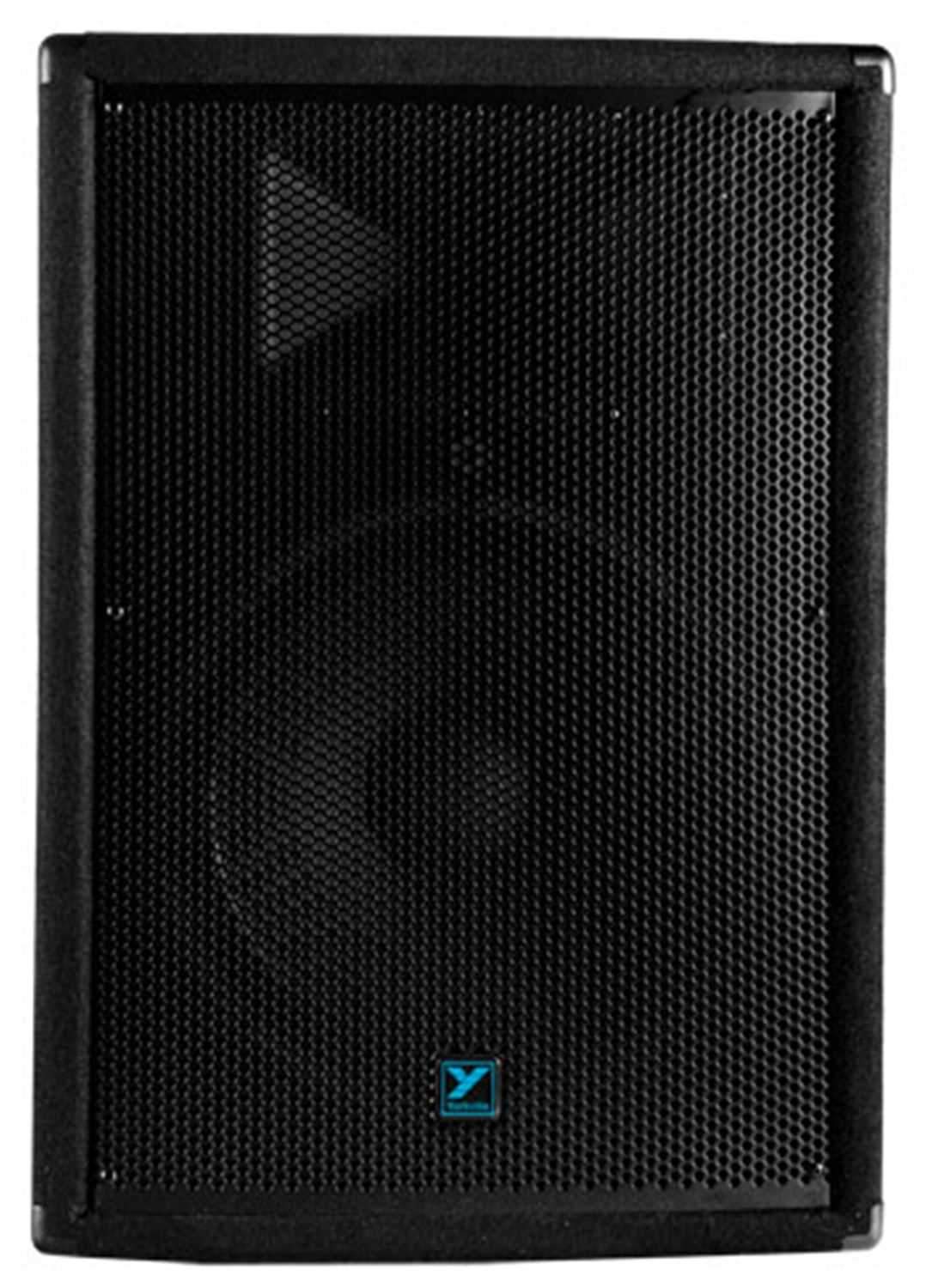

Yorkville YX150 15" 400W 2-Way Passive Speaker +

Designed for any PA application where higher power and maximum clarity is required, the passive 400-watt YX150 uses a single 15-inch woofer and 2-inch Neodymium compression driver mounted on a custom 90º x 40º ABS horn to deliver a full 50Hz to 20kHz frequency response with unmatched linearity.

Yorkville's tried and true dual-bulb CTL™ protection system protects the horn driver’s aluminum diaphragm ensuring unmatched reliability in the field. The YX150 is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX150 offers rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components.

A modified trapezoidal shape ensures the YX150 can function equally as well as a front-of-house or monitor speaker. Two Speakon™ and two 1/4-inch parallel inputs are provided ensuring maximum connectivity in virtually any PA application.

• 400 Watts
• 15-inch Woofer
• 2-inch Neodymium Compression Driver
• Designed as Front-of-House or Monitor Loudspeaker
• Innovative Dual-bulb CTL™ High Frequency Protection
• 90º x 40º Custom ABS Waveguide Horn
• Solid Plywood Cabinet Construction
• Speakon™ & 1/4-inch Inputs
• All-Metal Grille, Integrated Bar Handles & Stand Mount
• 122dB Max SPL

• System Type: 2-Way
• Active or Passive: Passive
• Program Power (Watts): 400
• Biampable: No
• Nominal Impedance (Ohms): 8
• Sensitivity (dB @1Watt/1m): 98
• Max SPL (dB): 122
• Frequency Response (Hz +/- 3db): 50 - 20k
• Crossover Frequency (Hz): 1200
• Driver Configuration: 15 inch / 2 inch
• HF Driver(s): 2 inch Mylar (1-inch Throat)
• HF Dispersion (°H x °V): 90 x 40
• HF Protection: Dual Bulb CTL™
• LF Driver(s): 15 inch Ceramic
• LF Program Power(Watts): 400
• Inputs - 1/4" Jacks: 2
• Inputs - Speakon 4-pin: 2
• Corners: Metal
• Feet: Plastic Glides
• Bar Handles: 2 (Side)
• Pole Mount Adapter (1 3/8"-3.5cm): Yes
• Enclosure Materials: 15mm (5/8inch) Plywood
• Grille: Custom Punched Black Perforated Metal
• Covering / Finish: Black Ozite
• Dimensions (DWH xbackW, inches): 15.9 x 20.3 x 28.9 x 7.5
• Dimensions (DWH xbackW, cm): 40 x 51 x 73 x 19
• Weight (lbs/kg): 52 / 23.6
