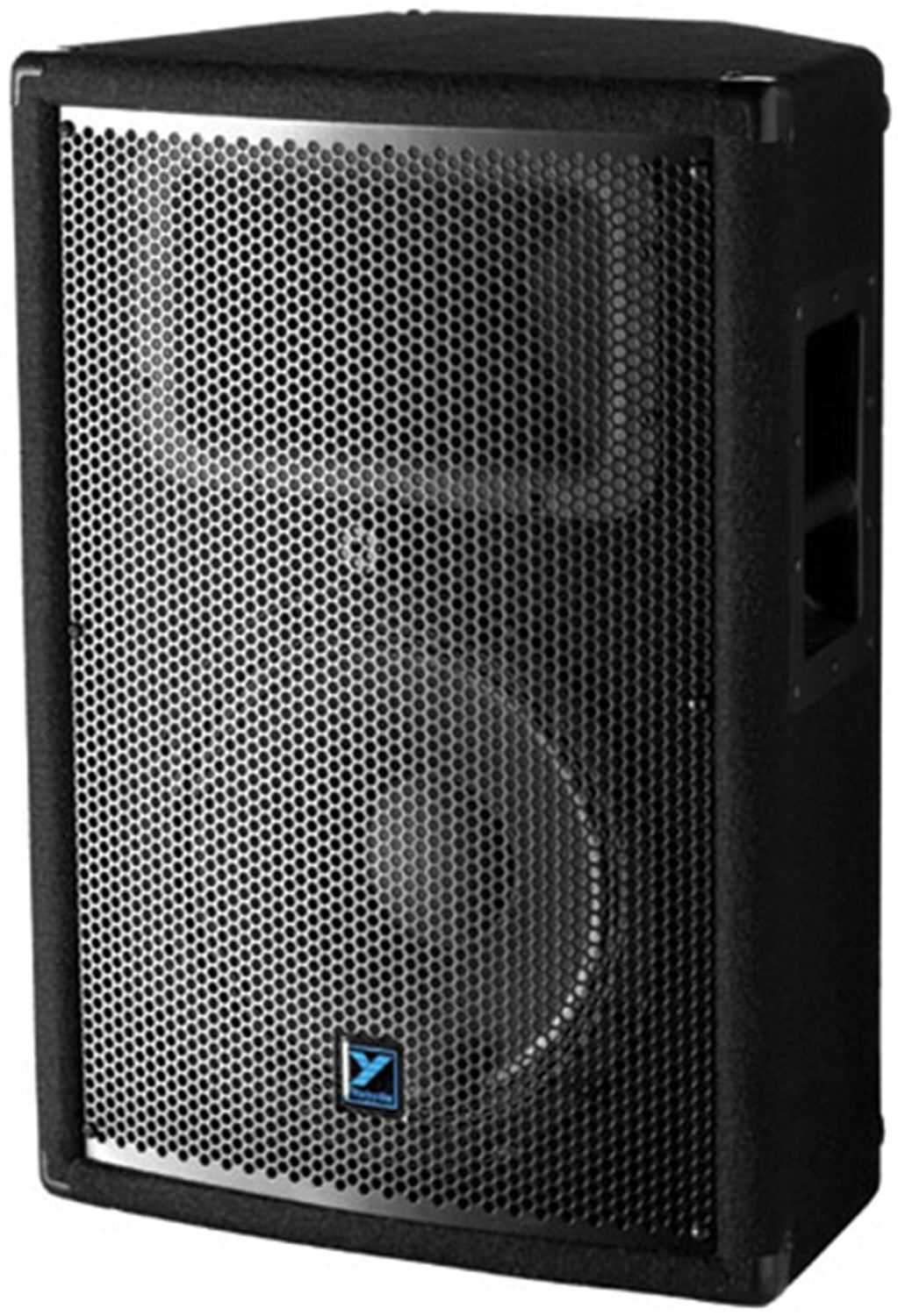

Yorkville YX12 12" 200W 2-Way Passive Speaker
Yorkville YX12 12" 200W 2-Way Passive Speaker
The YX12 delivers outstanding performance in a highly versatile full range loudspeaker. Engineered in North America, the YX12 benefits from Yorkville's forty plus years of PA enclosure design experience in the creation of this compact general-purpose passive loudspeaker enclosure.
The YX12 cabinet uses a single 12-inch driver and an injection molded 90 x 40 degree horn with 1-inch throat and 1.4-inch Celestion neodymium compression driver. Yorkville’s tried and true dual-bulb CTL™ protection system protects the horn driver’s aluminum diaphragm ensuring unmatched reliability in the field. The YX12 is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

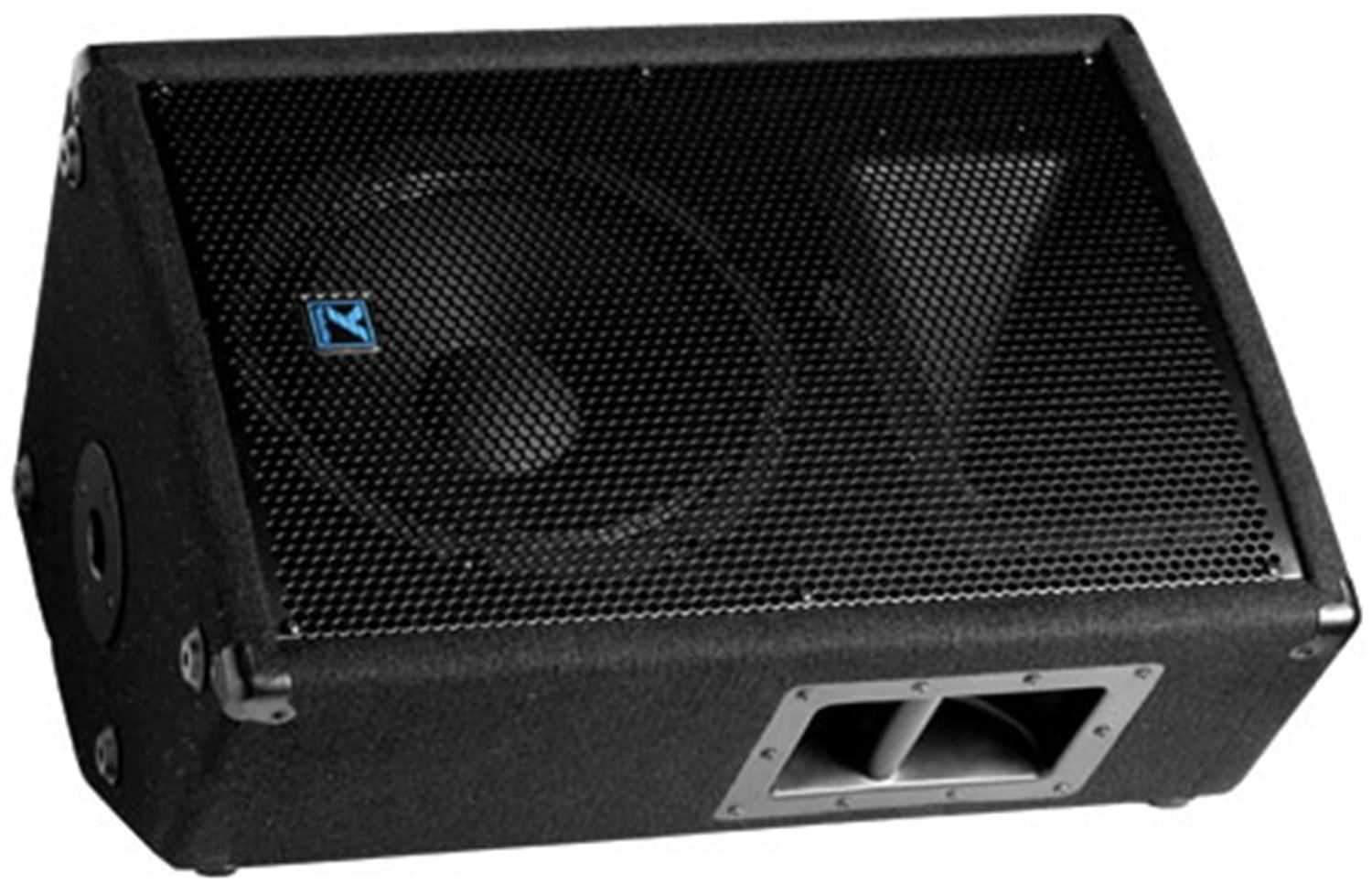

Designed with working musicians in mind, the YX12 offers rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape ensures the YX12 can function equally as well as a front-of-house or monitor speaker.
Specifications:- System Type: 2-Way
- Active or Passive: Passive
- Program Power (Watts): 200
- Biampable: No
- Nominal Impedance (Ohms): 8
- Sensitivity (dB @1Watt/1m): 99
- Max SPL (dB): 122
- Frequency Response (Hz +/- 3db): 65 - 20k
- Crossover Frequency (Hz): 1800
- Driver Configuration: 12 inch / 1.4 inch
- HF Driver(s): 1.4 inch Aluminum (1 inch Throat)
- HF Horn Injection Molded: ABS
- HF Dispersion (°H x °V): 90 x 40
- HF Protection: CTL™
- LF Driver(s): 12 inch Ceramic
- LF Program Power(Watts): 200
- Inputs - 1/4" Jacks: 2
- Inputs - Speakon 4-pin: 2
- Corners: Metal
- Feet: Plastic Glides
- Bar Handles: 2 (Side)
- Pole Mount Adapter (1 3/8"-3.5cm): Yes
- Enclosure Materials 15mm (5/8inch): Plywood
- Grille: Custom Punched Black Perforated Metal
- Covering / Finish: Black Ozite
- Dimensions (DWH xbackW, inches): 13.75 x 18 x 25.5 x 8.5
- Dimensions (DWH xbackW, cm): 34.9 x 45.7 x 64.8 x 21.6
- Weight (lbs/kg): 37 / 16.8
