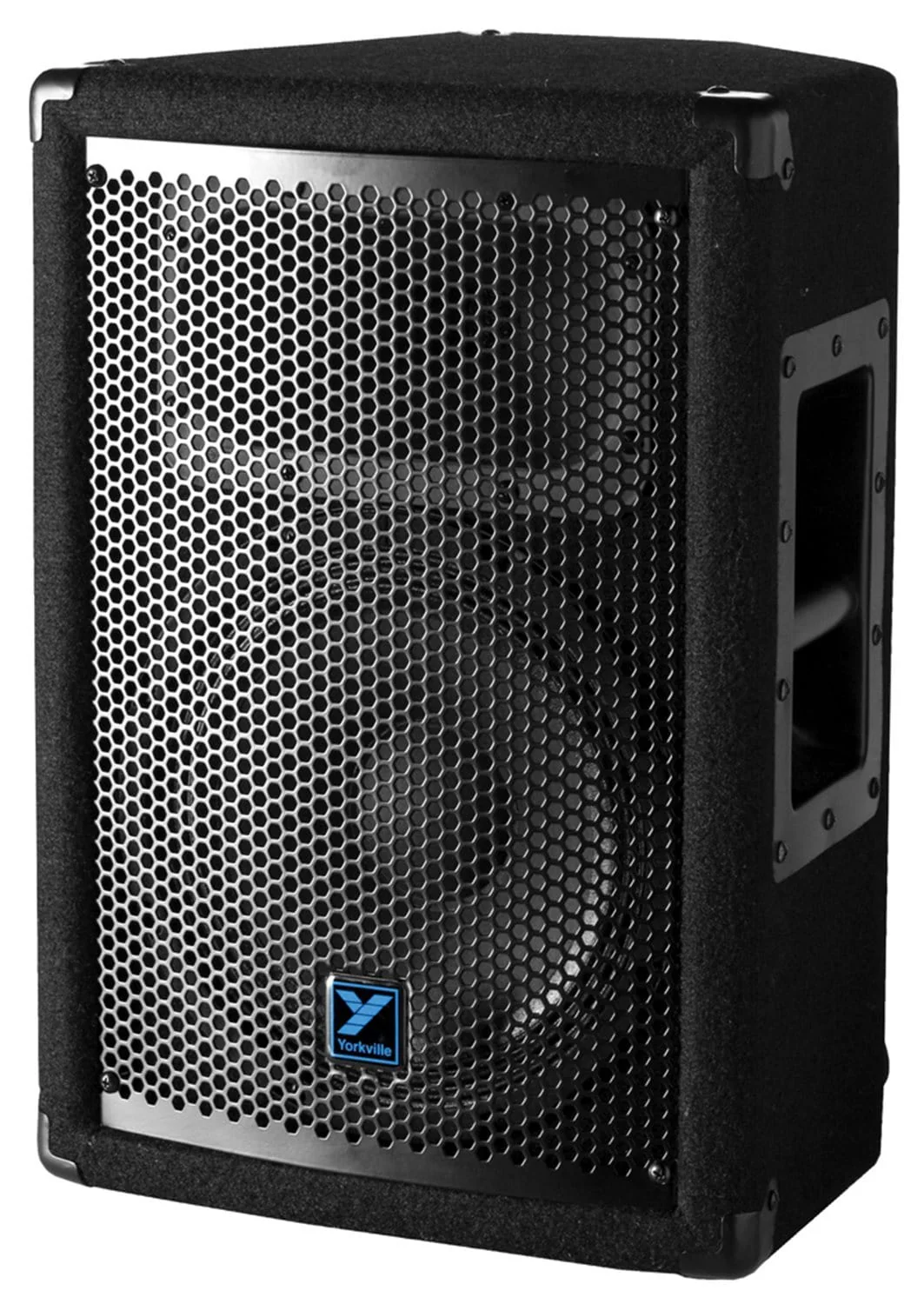

Yorkville YX10P 10-Inch Powered Speaker

The most compact powered speaker in the line, the YX10P is an ideal solution for small PA applications where a simple playback solution is all that is needed. Integrated two channel mixer allows the YX10P to operate as a standalone PA for conferences, presentations and public address applications.

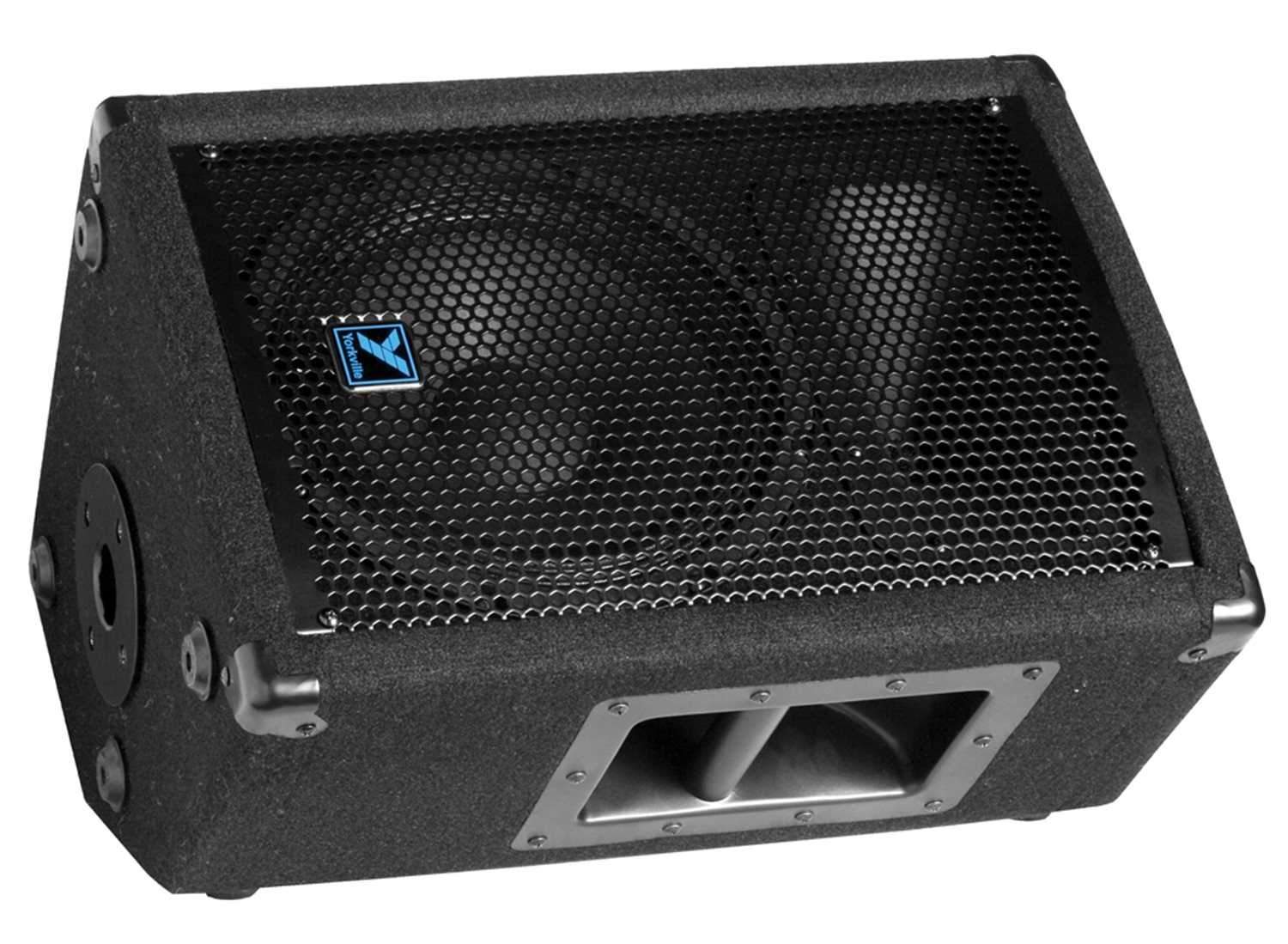

Versatile input section allows direct connect via XLR, ¼" and 1/8th" TRS to microphones, instruments and iPods. Modified trapezoidal shape allows the YX10P to be used as a powered low profile wedge monitor as well as a front-of-house cabinet making an extremely versatile PA solution for rental houses.

The YX10P can be easily combined with the YX10SP powered subwoofer for larger PA applications where space is at a premium; yet additional bottom end may be required.

The YX Series cabinets use injection molded horns with 1" throat and 1.4" Celestion neodymium compression drivers. Yorkville's tried and true dual-bulb CTL protection system protects the horn driver's aluminum diaphragm ensuring unmatched reliability in the field. These cabinets are built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX Series offers rugged 5/8" plywood cabinet construction, all-metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape on select cabinets ensures the YX Series can function equally as well as a front-of-house or monitor speaker.

• 170-watt integrated amplifier
• Bi-amplified power module
• High power 10" woofer
• Max SPL 119dB (Continuous)
• 90 x 40 custom ABS waveguide horn
• 1.4" aluminum diaphragm horn driver (1" throat)
• ¼", XLR and 1/8" TRS inputs
• Solid plywood cabinet construction
• All metal grille, integrated bar handles & stand mount

• System type active loudspeaker
• Active loudspeakers
• Program Power: 170-Watts
• Max SPL: 119 dB
• Frequency Response (Hz +/- 3dB): 70Hz - 20kHz
• Crossover Frequency (Hz): 3.5kHz
• Driver Configuration: 10" / 1"
• HF drivers 1.4" aluminum diaphragm / 1" exit
• HF program power: 20-watts
• HF dispersion: 90° x 40° (°H x °V)
• HF protection peak: limiter
• LF drivers: 10" ceramic magnet
• LF program power: 150-watts
• LF protection: peak limiter
• Total power: 170-watts
• Power switch: yes - back
• Power consumption (typ/max): 120 / 200VA
• Inputs: XLR / 1/4" TRS / 1/8th" (3.5mm) TRS

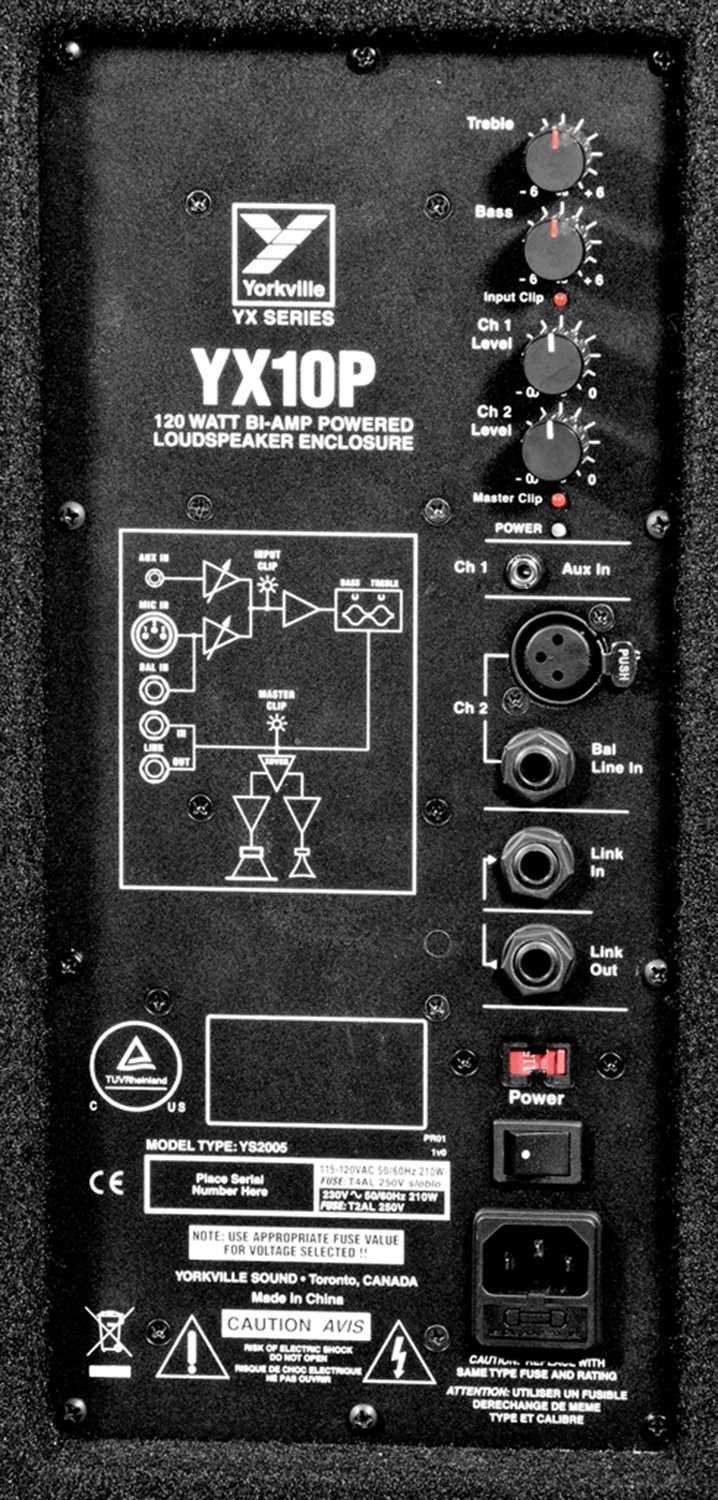

• Mixer controls: independent gain controls (inputs 1 and 2), global bass/ treble control, link input and output
• Level controls: yes
• EQ controls: yes - bass / treble controls
• Bar handles: 1
• Pole mount adapter: (1 3/8"-3.5cm) yes
• Enclosure materials: 5/8" / 15 mm plywood
• Baffle material: 5/8" / 15 mm plywood
• Grille: custom punched black perforated metal
• Finish: black ozite
• Dimensions: 12" x 13.5" x 19" x 5.75" / 30.5cm x 34.3cm x 48.3cm x 14.6cm (DxWxHxbackW)
• Weight: 28 lbs. / 12.7 kg.
