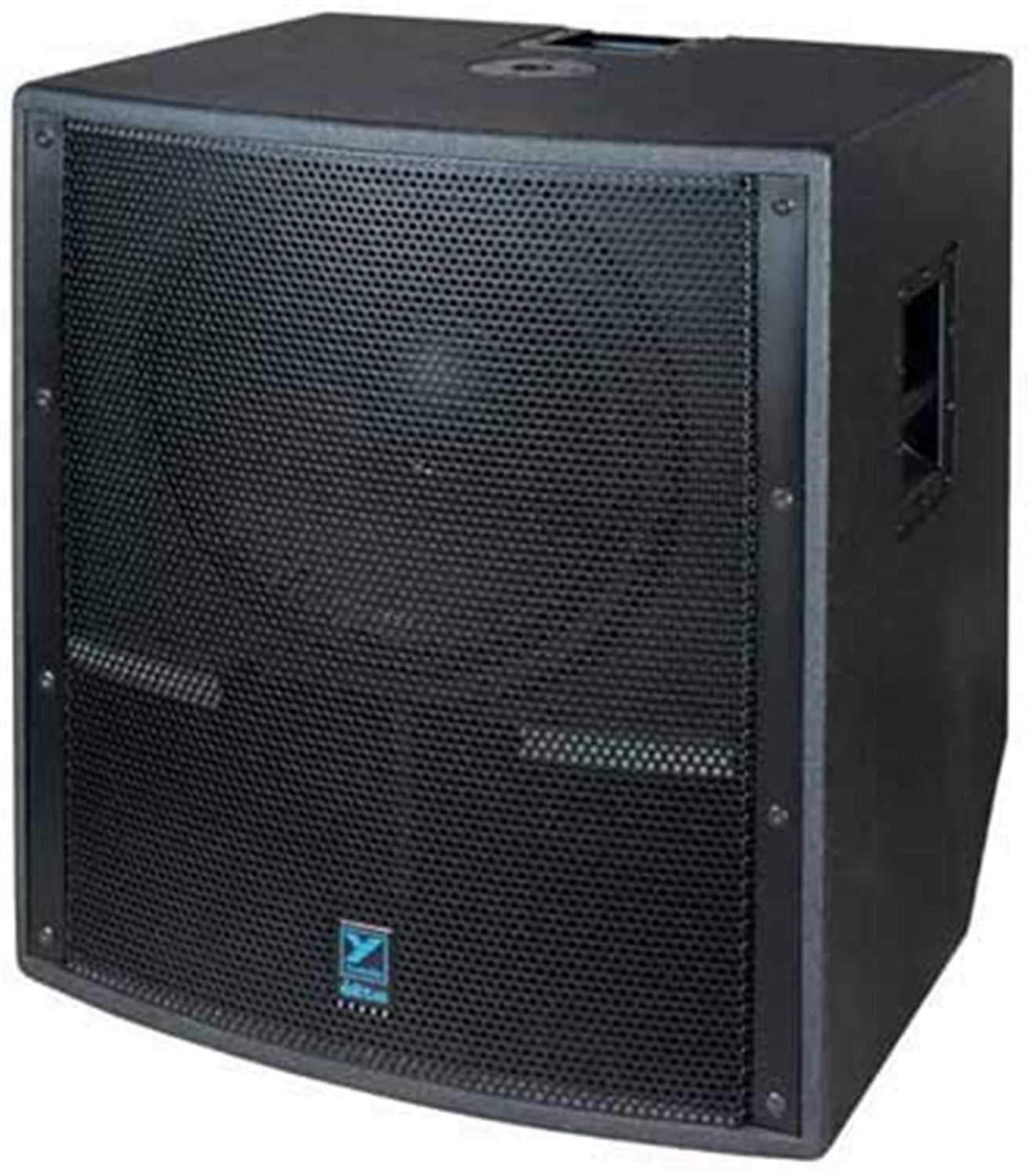

Yorkville LS808 18" 800W Passive Subwoofer*

First choice in passive subwoofers, the LS808 combines an 800-Watt cast-frame, neodymium-based 18-inch bass driver with a rear-loaded bass horn enclosure made from 15mm birch ply covered in rugged black carpeting (a black ultrathane-painted version – LS800PB – is also available). The result is an exceptionally efficient sub (105dB@1W@1m) with bass response down to 45Hz and capable of hitting maximum sound-pressure levels of 134dB. Rugged durability backed by a 2/10-year warranty further ensures years of reliable service.

Inputs include parallel pairs of 1/4 inch jacks and Speakons . Additionally, the Speakon connectors are wired to a configuration switch which allows instant reversal of pinouts for easy hook-ups using optional four wire Speakon cables.

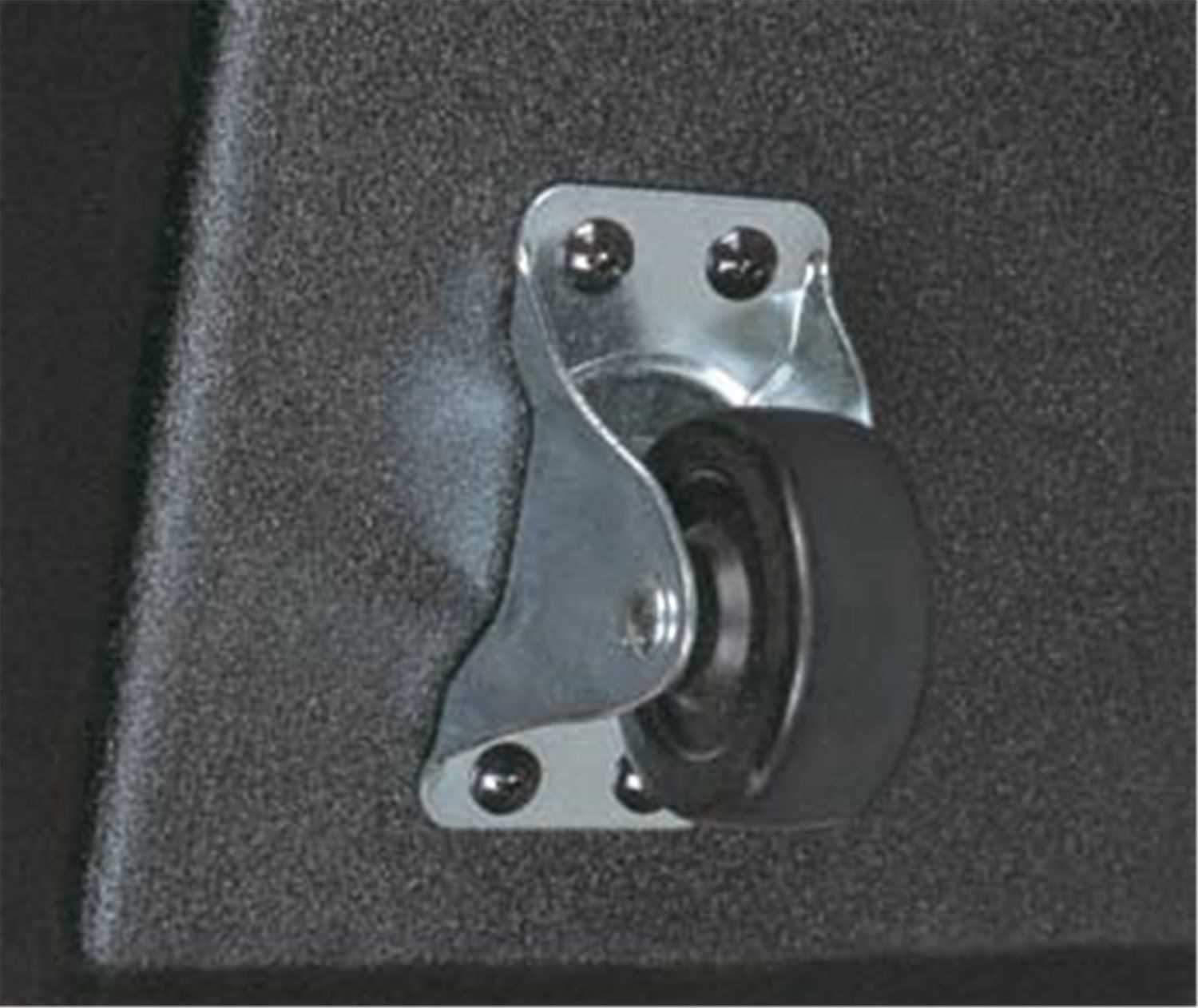

Hardware includes four steel inset handles, a steel top-mounted pole-stand adapter, a heavy-gauge curved steel grill and tilt-back wheels.

The LS608 and LS808 include flush, top-mounted stand adapters so that optional speaker poles may be used to mount full range enclosures above – avoiding the need for separate tripod stands. The LS608 and LS808 both feature dual, side-mounted, inset carry handles making it easier for two people to carry them. The LS808, LS1004 and LS1208 have tilt-back wheels and top/rear mounted corner handles for better maneuverability and stacking (wheels don't fall in the handles!!).

• System Type: Rear Horn-Loaded Subwoofer
• Active or Passive: Passive
• Program Power (Watts): 800
• Nominal Impedance (Ohms): 8
• Sensitivity (dB @1Watt/1m): 105
• Max SPL (dB): 134
• Frequency Response (Hz +/- 3db): 45 - 180
• Driver Configuration: 18 inch
• LF Driver(s): 18 inch, Ceramic Magnet, 4 inch voicecoil
• LF Program Power(Watts): 800
• LF Impedance(Ohms): 8
• Inputs - 1/4" Jacks: 2
• Inputs - Speakon 4-pin: 2
• Other Controls / Features: Speakon connectors feature a configuration switch which allows instant reversal of Speakon jack pinouts for easy single wire hook-up using optional four wire Speakon cables.
• Corners: Black Steel
• Bar Handles; 2 Side
• Pole Mount Adapter (1 3/8"-3.5cm): 1 Top
• Enclosure Materials 15mm (5/8inch): 11-ply Russian Birch
• Grille: Heavy gauge perforated metal
• Covering / Finish: Black Ozite (Carpet)
• Optional Covering / Finishes: Black Ultrathane Paint (LS808B)
• Dimensions (DWH xbackW, inches): 23 x 27.5 x 32
• Dimensions (DWH xbackW, cm): 58.4 x 70 x 81.3
• Weight (lbs/kg): 116.6 / 52.9
