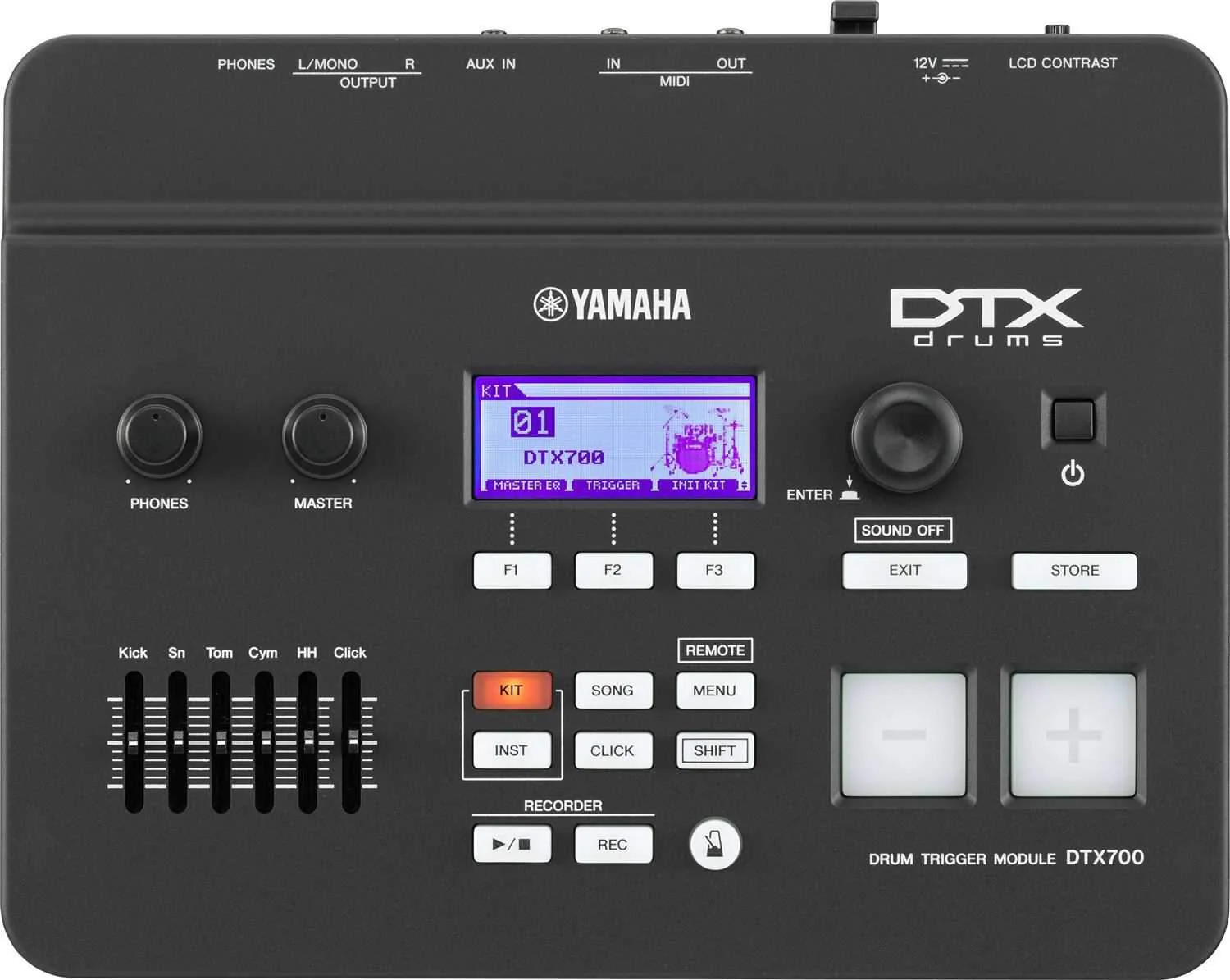

Yamaha DTX700 Drum Trigger Module For 700 Series

• Width: 277 mm (10-29/32 inch)
• Height: 213 mm (8-25/64 inch)
• Depth: 95 mm (2-3/4 inch)
• Weight: 1.5 kg (3.31 lbs)

• Maximum Polyphony: 64 notes
• Voices: Drum and percussion: 1,268, Melodies: 128
• Effects: Reverb: 6, Chorus: 6, Variation: 42, Kit EQ: 4 band, Master EQ: 3 bands
• Drum kits: Preset: 50, User: 10 * all of which may be edited and overwritten

• Note Capacity: Approx. 152,000 notes<
• Note Resolution: 480 ppq (parts per quarter note)
• Song recording type: Real-time replace
• Song tracks: 1 track
• Songs: Demo: 2, Practice: 44, Pad: 17, User: 30 all of which may be edited and overwritten
• Sequence formats: Proprietary, SMF format 0
• Click: Tempo: 30 to 300 BPM, Tap Tempo supported.
• Beat: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
• Timing: Accents, Quarter note, Eighth note, Sixteenth note, Triplet
• Training Functions: Measure break, Groove check, Rhythm gate

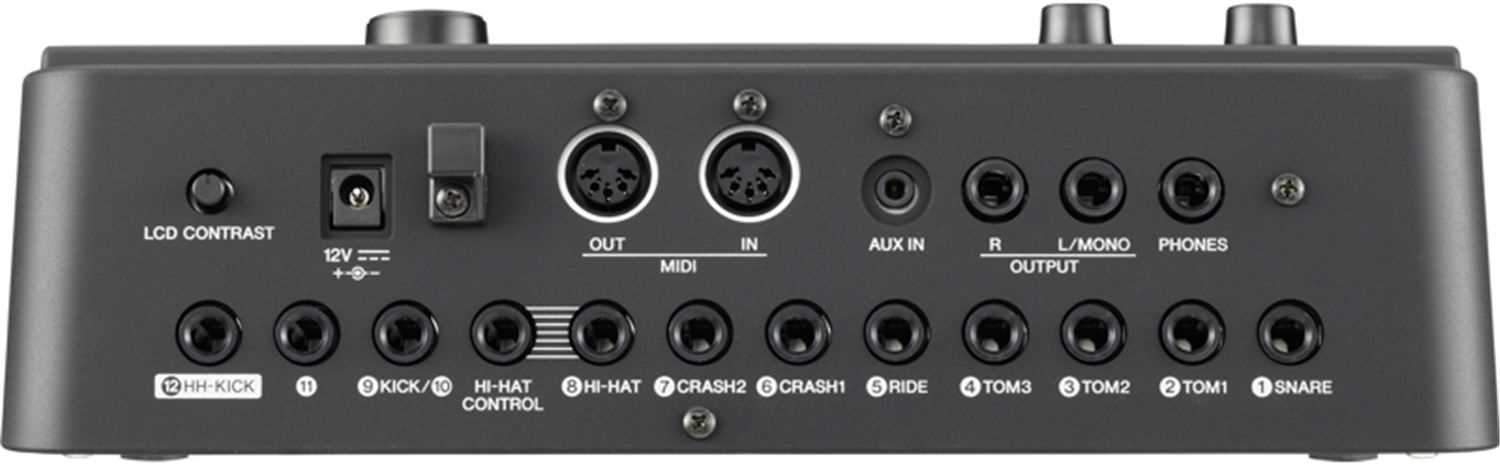

• USB TO DEVICE/TO HOST
• OUTPUT [L/MONO] (Standard mono phone)
• OUTPUT [R] (Standard mono phone)
• Trigger Input 1 to 8, 11 (Standard stereo phone
• L: Trigger Input
• R: Rim Switch)
• Trigger Input 9 and 10 (Standard stereo phone
• L: Trigger Input
• R: Trigger Input)
• HH-KICK (Standard stereo phone)
• HI-HAT CONTROL (Standard stereo phone)
• AUX IN (Stereo Mini)
• PHONES (Standard stereo phone)
• MIDI IN/OUT

Accessories: Power Adaptor

• Samples: 500
• Sample Data Bits: 16 bits
• Sampling Time: Mono/Stereo: 44.1kHz: 23 sec., 22.05kHz: 46 sec., 11.025kHz: 1 min. 32 sec., 5.5125kHz: 3 min. 4 sec.
• Sample formats: WAV, AIFF
