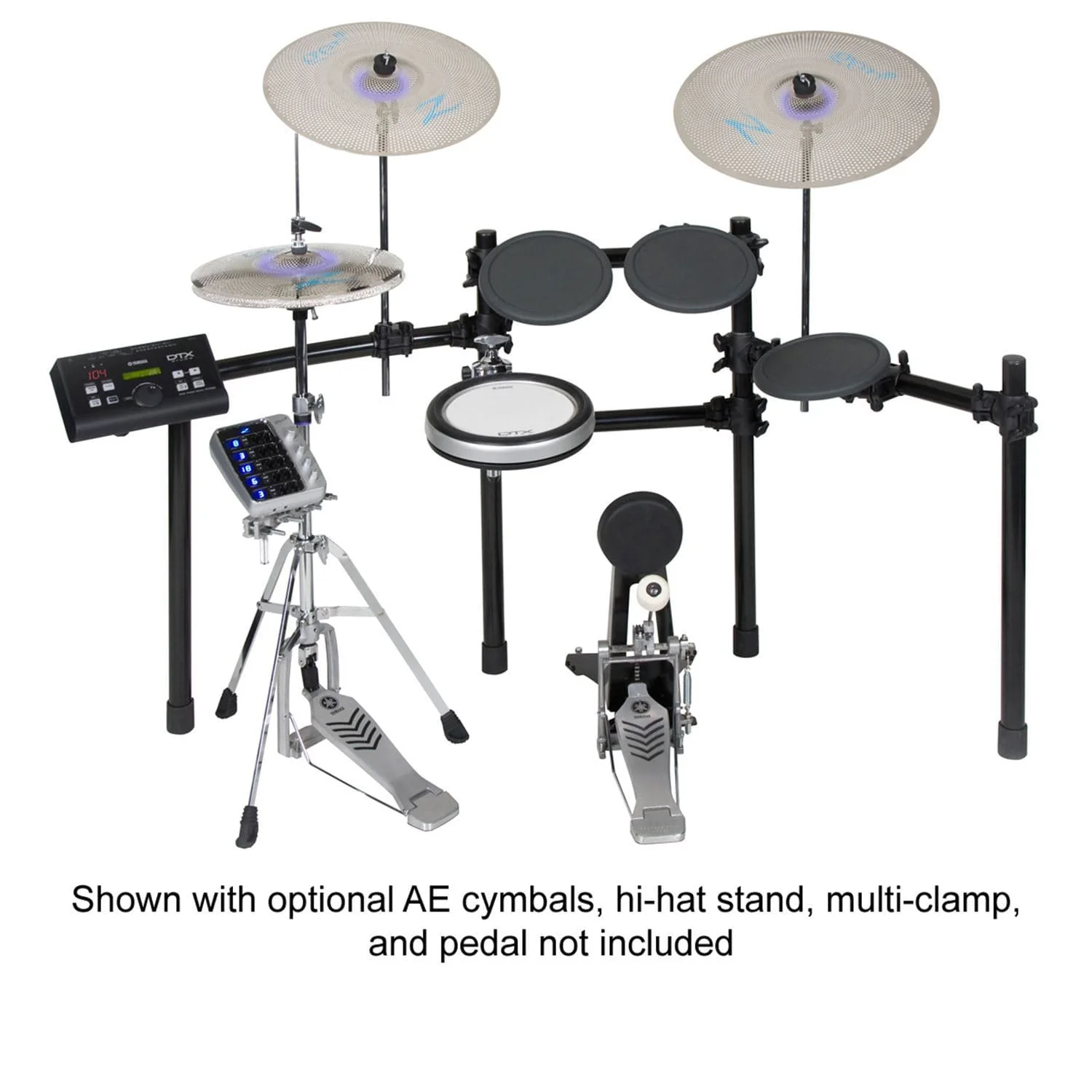

Yamaha DTX520SP Electronic Drum Kit

This kit has all the benefits of the DTX500 module including Yamaha drum samples, play-along songs, and comprehensive groove tools. The DTX-PAD snare provides superior stick feel and allows head, rimshot, and cross-stick voices in each of the three zones for realistic expression. The DTX520SP includes a pad set (DTP520P), drum trigger module (DTX500) and rack system (RS500). Because this configuration does not include cymbals or hi-hat it is perfect when adding electronics to your acoustic kit or for use with the gen16 AE Cymbal box sets. Trigger and audio cables not included.

• Bass Drum Pedal: No
• DTX-PAD: Snare
• Snare diameter: 8"
• 3-zone cymbals: not included in shell pack
• Real Hi-Hat System: not included in shell pack

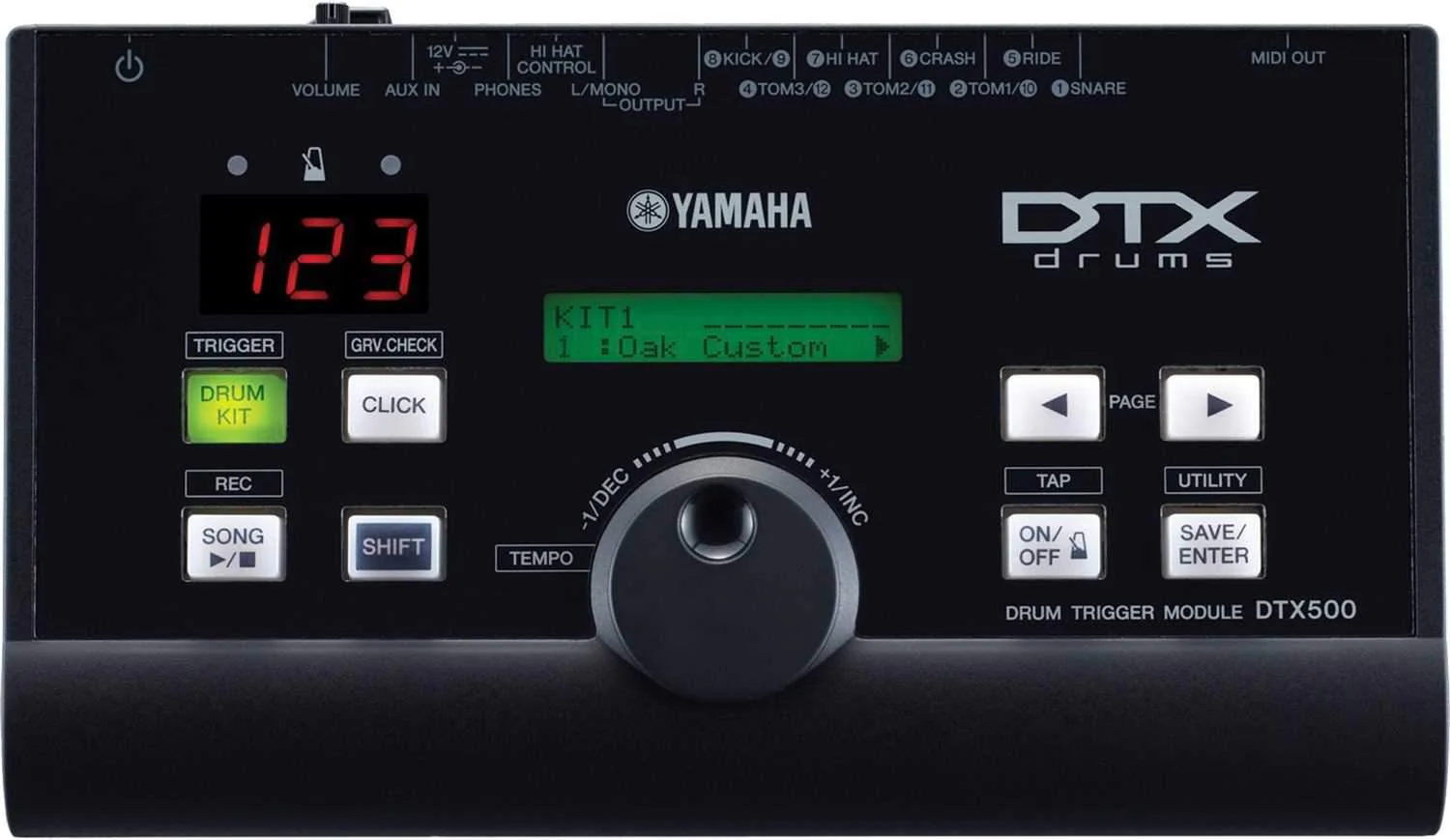

• Trigger Module: DTX500
• Rack System: RS500
• Pad Set: DTP520P (PAD SET) includes: XP80, TP65 x 3, KP65.

• Width: 252 mm (9-15/16 inch)
• Height: 147 mm (5-13/16 inch)
• Depth: 52 mm (2-1/16 inch)
• Weight: 898 g (2 lbs)

• Maximum Polyphony: 32 notes
• Voices: Drum and percussion: 427, Melodies: 22
• Effects: Reverb: 19, Master EQ: 2 bands
• Drum kits: Preset: 50, User: 20

• Note Capacity: Approx. 16,000 notes
• Note Resolution: 96 ppq (parts per quarter note)
• Song recording type: Real-time replace
• Song tracks: 1 track
• Songs: Demo: 3, Practice: 41, Pad: 19, User: 20
• Click: Tempo: 30 to 300 BPM, Tap Tempo supported.
• Beat: 1/4 to 9/4
• Timing: Accent, Quarter note, Eighth note, Sixteenth note, Triplet
• Training Functions: Measure break, Groove check, Rhythm gate

Connectors: OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger Inputs 1, 5, 6, 7 (Standard stereo phone, L: Trigger Input, R: Rim Switch), Trigger Inputs 2, 3, 4, 8 (Standard stereo phone, L: Trigger Input, R: Trigger Input), HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), MIDI IN/OUT
