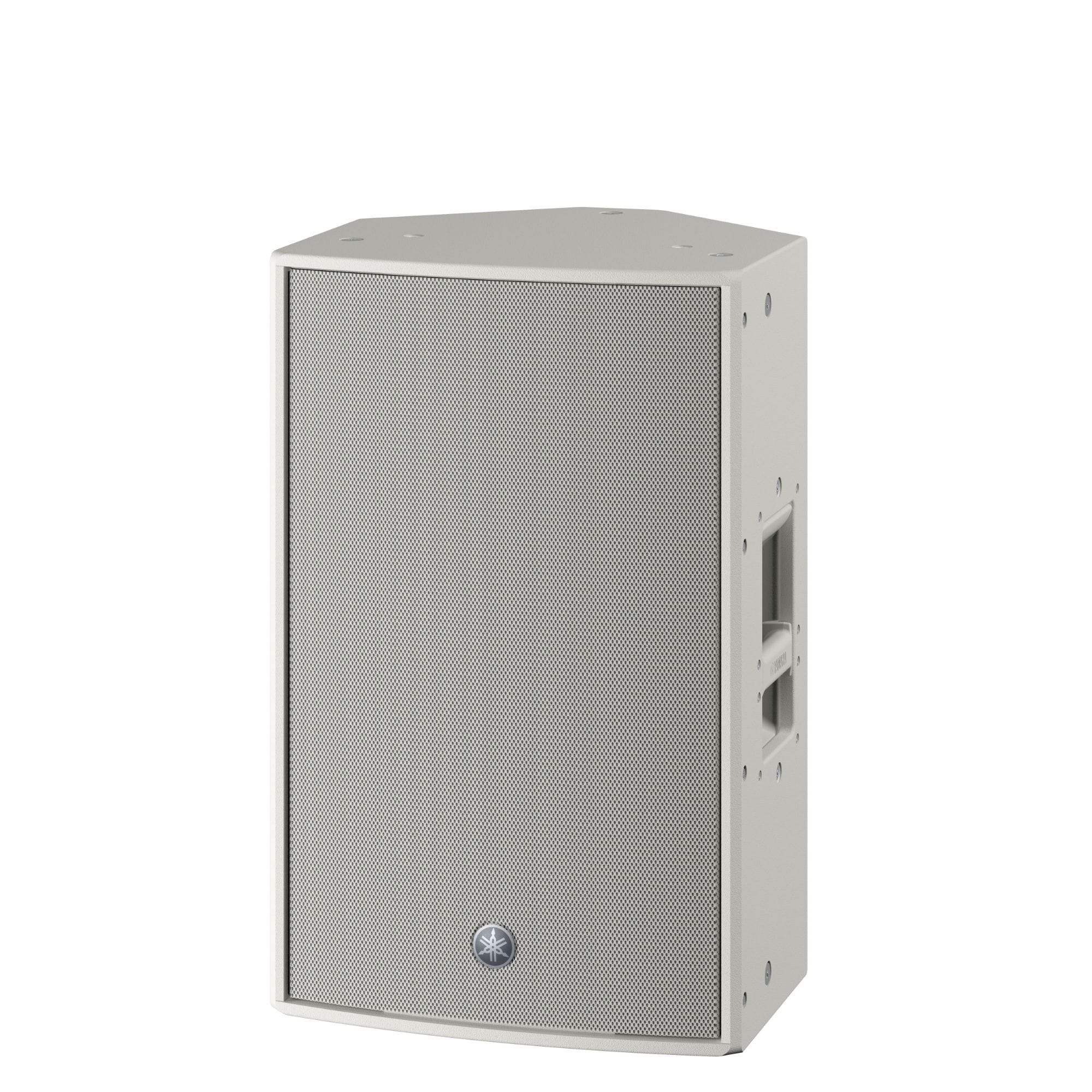

Yamaha CZR12 Passive PA Speaker 800W Power Handling, with 12" Woofer & 2" Tweeter

The CZR12 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR12 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

Features:

• 2-way loudspeaker with a 2” HF and a 12" LF
• Features Yamaha's own Wide Dispersion CD Waveguide Horn
• High power 800W(PGM) power handling and Bi-amp capable
• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Dual-angle pole socket
• Optional speaker cover (SPCVR-DZR12)
• Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement

Specifications:



• Speaker Type: 2-way Speaker, Bass-reflex
• Frequency Range (-10dB): Passive: 43 Hz - 20 kHz
• Coverage Area: H90ﾟ x V60ﾟ Rotatable Constant Directivity Horn
• Floor Monitor Angle: 50° Symmetrical
• Components LF: 12" Cone, 3" Voice Coil, Neodymium magnet
• Components HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 2.0 kHz

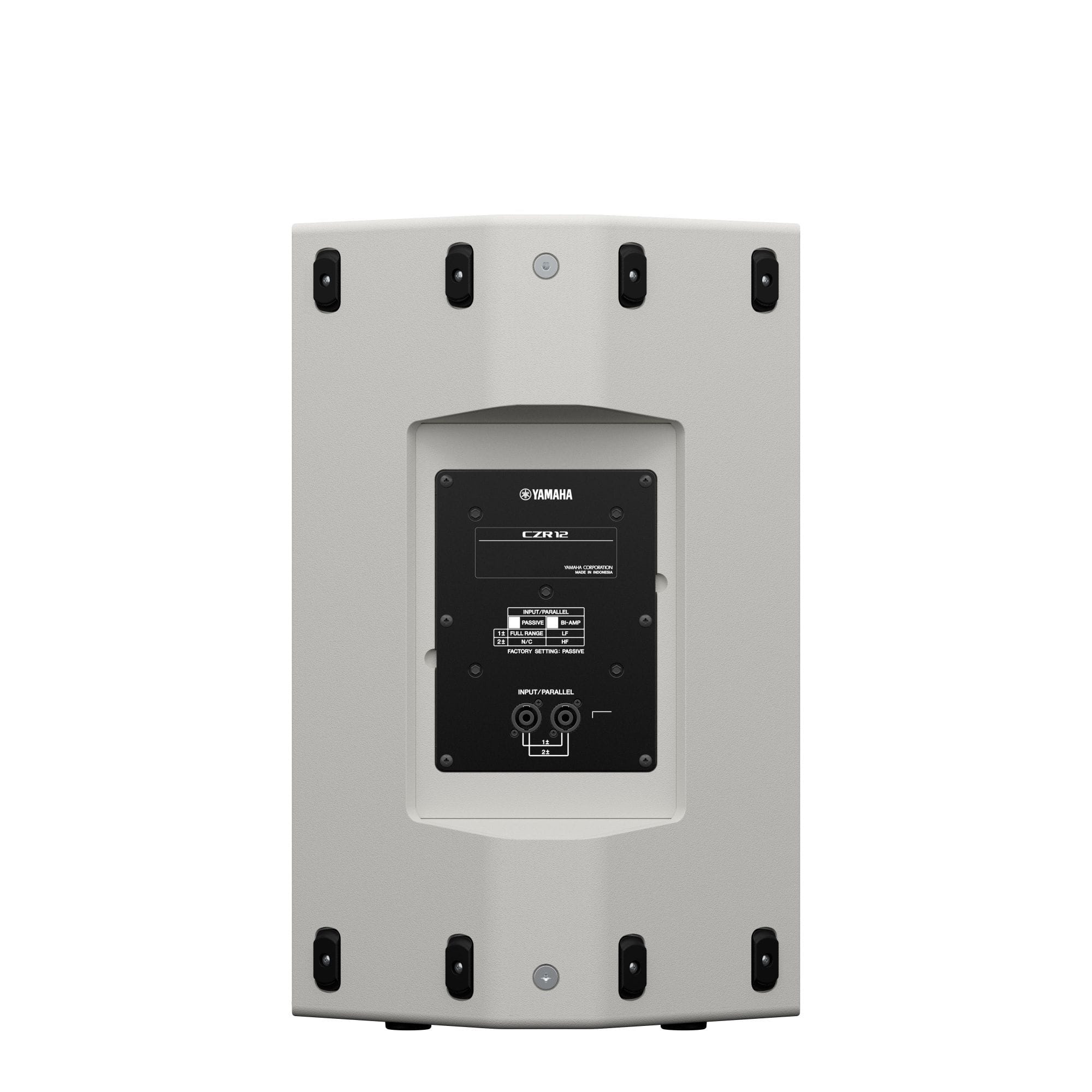

• I/O Connectors: SpeakON NL4MP x 2 (Parallel)
• Handle: Aluminium die-cast, Side x2
• Pole Socket: Φ35 mm x2 (0° or -7°)
• Rigging: M10 x 12
• Dimensions (WxHxD): 16.1" x 25.4" x 15.5"
• Weight: 18.0 kg (39.7 lbs)

Nominal Impedance:



• Passive: 8Ω, Bi-amp
• LF: 8Ω
• HF: 16Ω

Power Rating

• NOISE: Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
• PGM: Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
• PEAK: Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W

SPL

• Sensitivity (1W; 1m on axis): Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL
• Peak (Calculated): Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL
