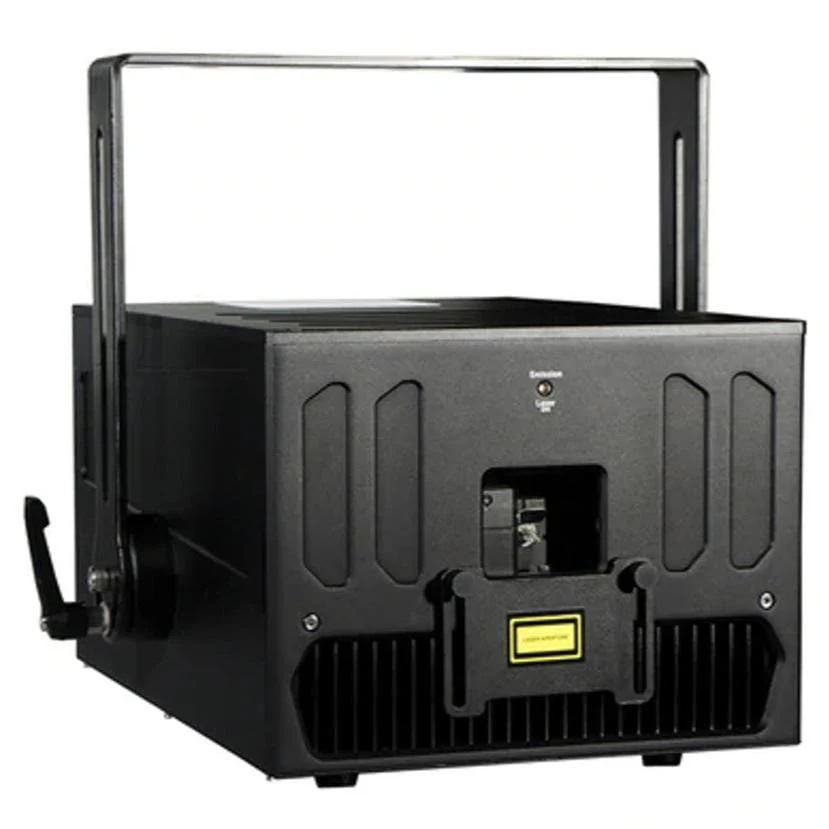

X-Laser Skywriter HPX MF-30 30-Watt RGB Laser with FB4

The Skywriter HPX 30W is engineered to outmatch the competition, by offering superior brightness, superior control and superior value. Skywriter models are perfect for large-scale professional touring and install applications. With the ultimate in RGB color mixing technology and total control (via X-Laser’s Mercury), the Skywriter HPX 30W provides incredible laser effects.

Features:

• 30W full RGB
• Fully sealed optical deck
• 20K precision graphics
• High power, high value
• FB4 compatible
• Ideal for large venues, touring acts and large production companies
• Series of external fans keep the components and diodes cool
• Produces more than 1,000 colors with additive analog RGB color mixing
• Eligible for the X-Laser EZ Variance Kit (view accessories)

Specifications:

• Control: X-Laser FB4 integrated
• Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 20K PPS at 8 degrees
• Settings interface: FB4 LED
• Wavelengths: 638nm red, 520nm green, 450nm blue
• Beam source: Direct-injection diode modules
• Color modulation: Analog via FB4, 1,000+ colors
• Beam divergence: 1-2 mRad
• Cooling: External heat sink and fan system
• FDA/IEC hazard class: Class 4
• International safety: IEC 60825-1 ed. 2007
• FDA/CDRH: 21CFR1040.10 and 1040.11(c)
• Canadian safety: CSA C.22.2 No. 60950-1
• EU safety: EN 60825-1, EN 60950
