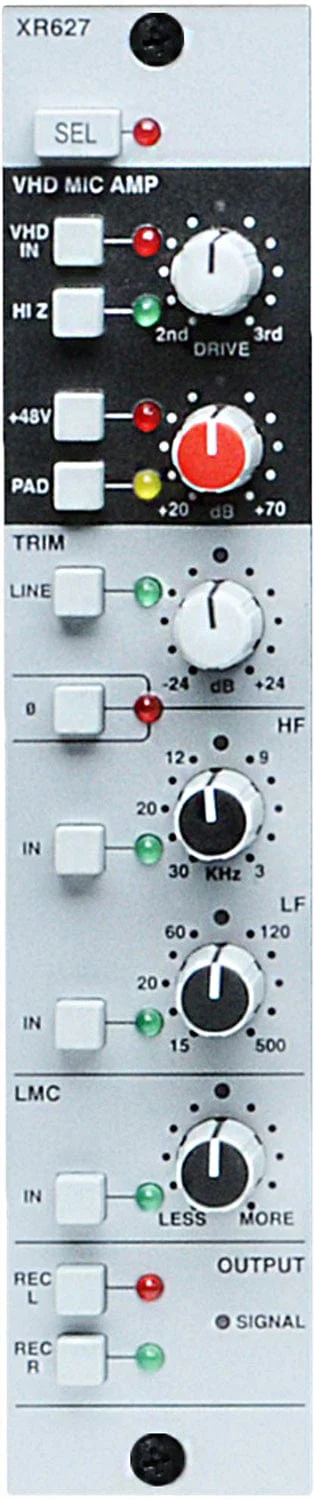

SSL X-Rack VHD Mic Pre Module with LMC

The X-Rack VHD Mic Amp Module from Solid State Logic is a single channel microphone/line preamp and part of the X-Rack modular system. It includes a unique Variable Harmonic Drive (VHD) system that can blend in various amounts of 2nd or 3rd harmonic distortion to the input signal.

Features:

• Electronically balanced ultra-high bandwidth microphone input with +20dB to +70dB gain control
• Hi-Z and Pad Switches on microphone amplifier input
• Dedicated XLR line input
• Variable Harmonic Drive circuit adds a controllable blend of 2nd or 3rd order harmonic distortion
• Dedicated Trim control after the VHD stage
• Classic "Listen Mic Compressor" with fixed attack and release curve, ideal for drums
• High- and low-pass filters

Specifications:

• Number of Channels: Single
• Inputs:
  • 1 x XLR Microphone
  • 1 x XLR Line
• Output: 1 x XLR
• Phantom Power: 48V
• Multi Function: No
• Gain Range: +20dB to +70dB
• Maximum Output Level: >+26dBu
• Frequency Response: 20Hz to 20kHz, +/-0.3dB (-3dB at 50kHz)
• Noise: EIN: <-126dB @ maximum gain
• Dimensions: 1.4 x 7.9 x 6.75" (35 x 200 x 171mm)
• Weight: 9.5 oz (260 g)
• Specialties: 20dB pad
