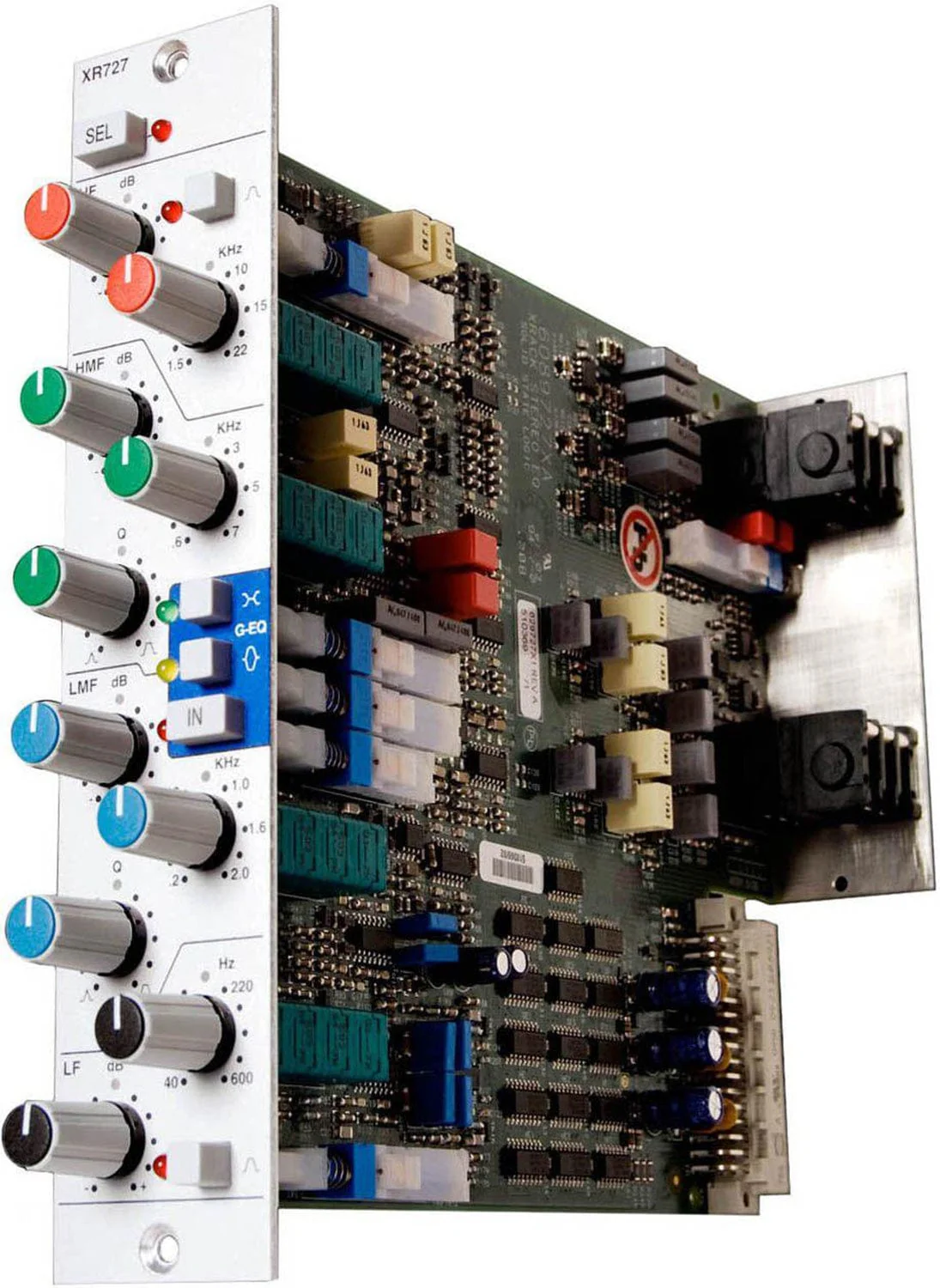

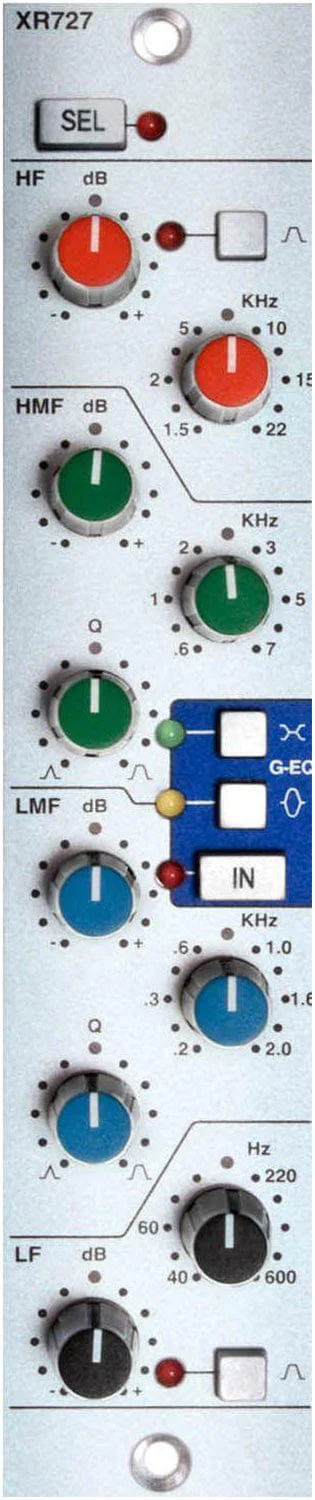

SSL X-Rack Stereo EQ Module

The X-Rack Stereo EQ Module from Solid State Logic is a 4-band stereo version of SSL's console Channel EQ module, and requires the use of an X-Rack or Mynx enclosure. Designed for users of Digital Audio Workstations and other audio/post applications, the EQ can be combined with any number of other modules to achieve a scalable system that features the legendary SSL sonic signature.

Features:

• Stereo version of the XL 9000 K Channel Equaliser as used on Duality and AWS consoles
• "Selective Mode" E and G characteristic switching, which enables independent switching of high- and low-bands and mid-bands between E or G curves
• High- and low-bands switchable between shelving and fixed Q Bell curves
• EQ IN switch for A/B comparison
• Rear panel connections on balanced TRS Jack
• TotalRecall status LEDs

Specifications:

• Filter Type: Parametric and shelving
• Number of Channels: Stereo
• Inputs: 2 x 1/4" TRS phone
• Outputs: 2 x 1/4" TRS phone
• Maximum Input Level: Not specified by manufacturer
• Frequency Bands:
  • HF Shelving: 1.5kHz to 22kHz, variable
  • LF Shelving: 40Hz to 600Hz, variable
  • HMF Parametric: 600Hz to 7kHz, variable
  • LMF Parametric: 200Hz to 2.0kHz, variable
• Bandwidth:
  • HF Shelving: Q = 2.5
  • LF Shelving: Q = 2.5
  • HMF Parametric: Q = variable from 0.7 to 2.5 (may also vary with gain)
  • LMF Parametric: Q = variable from 0.7 to 2.5 (may also vary with gain)
• Range (Boost/Cut): +/-20dB
• Maximum Output Level:
  • +26dBu (+4dBu operating level)
  • +13.5dBV (-10dBV operating level)
• Frequency Response: 20Hz to 20kHz, +/-0.5dB (-3dB at 90kHz)
• Dynamic Range: Not specified by manufacturer
• Noise:
  • <-70dBu (+4dBu operating level)
  • <-72dBV (-10dBV operating level)
• Dimensions: 1.4 x 7.9 x 6.8" (35 x 200 x 171mm)
• Weight: 9.5 oz (260g)
• Specialties: The LF and HF bands have variable turnover frequency with switchable bell/shelving and selectable response curves
