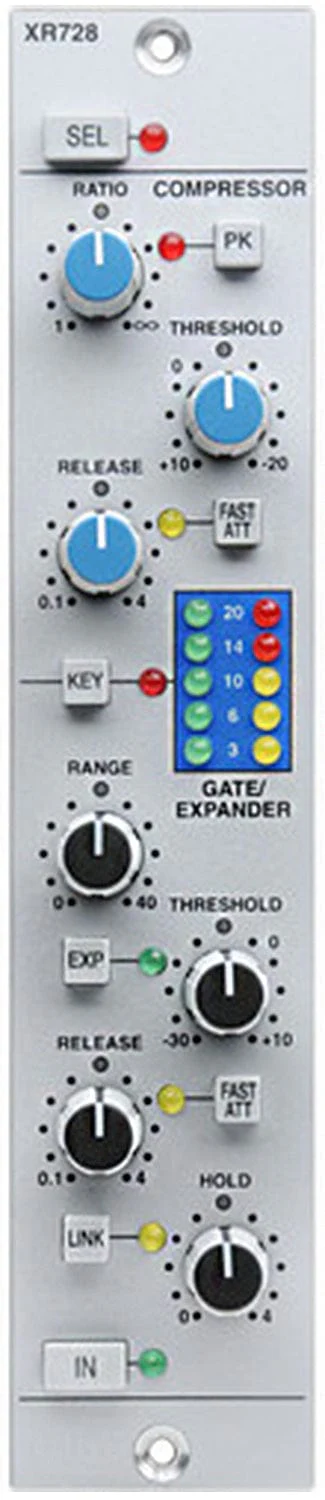

SSL X-Rack Stereo Dynamic Module.

The X-Rack Stereo Dynamics Module from Solid State Logic is an expansion module designed for the X-Rack rack system. The module is a stereo version of the SSL channel dynamics. It features independent compressor/limiter and expander/gate circuits to provide familiar Superanalogue level control tools for recording and mixing.

Features:

• Designed for the X-Rack rack system
• Independent compressor/limiter and expander/gate circuits provide familiar Superanalogue level control tools for recording and mixing
• The compressor can switch between RMS and Peak sensing, and also offers a Hard Knee mode to provide a wide range of levelling control with dedicated gain reduction metering
• The secondary circuit functions as either a noise gate or an expander to enhance creative sound design possibilities
• The module has a +4dBu operating level and offers balanced stereo line 1/4" input and output connectors
• A 1/4" mono external key input allows multiple modules to be linked

Specifications:

• Compressor:
  • Ratio: 1 to Infinity, Variable
  • Threshold: +10dB to -30dB, Variable
  • Attack Time: Auto-Sensing, Switchable to 1mS
  • Release Time: 0.1 to 4 seconds, Variable
• Expander:
  • Ratio: 0 to 40dB, Variable
  • Threshold: -30dB to +10dB, Variable
  • Attack Time: Auto-Sensing, Switchable to 150µS
  • Hold Time: 0 to 4 seconds, Variable
  • Release Time: 0.1 to 4 seconds, Variable
• Total Harmonic Distortion (THD):
  • < 0.01% at 1kHz (+10dBu)
  • Fast Attack Mode: < 0.3% at 1kHz, < 0.05% at 10kHz
  • Slow Attack Mode: < 0.03% at 1kHz, < 0.05% at 10kHz
• Headroom: > +26dBu
• Frequency Response: 20Hz - 20kHz ±0.2dB, -3dB at 150kHz
• Operating Temperature: 41 to 86°F (5 to 30°C) (20 to 80% Relative Humidity)
• Dimensions: 6.75 x 1.4 x 10.9" (171 x 35 x 275mm) (Including Knobs and Connectors)
• Weight: 9.5 oz (260g)
