SSL X-Rack Dynamics Module

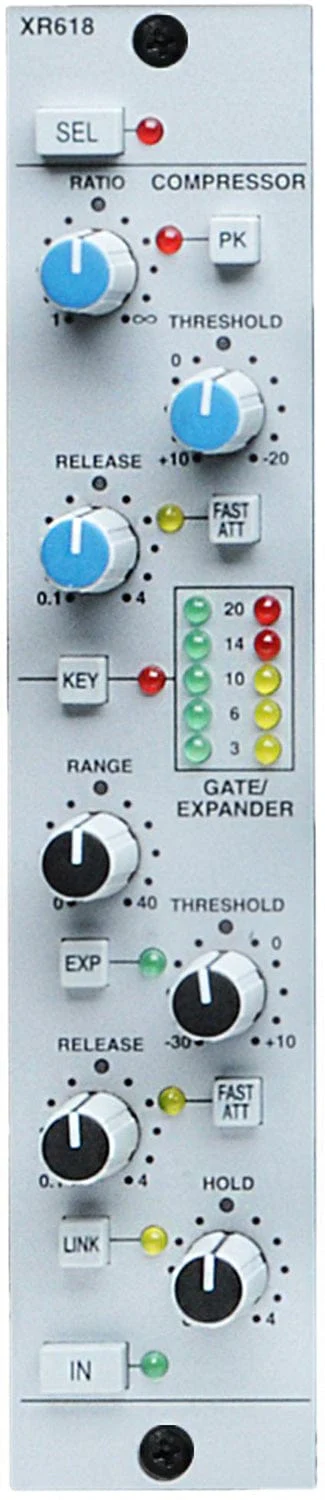

The X-Rack Dynamics Module, XR 618 from Solid State Logic provides a single channel of dynamics for an X-Rack or Mynx enclosure. The unit was designed around the same SuperAnalogue circuitry as used in SSL's XL 9000 K console, and provides compression, limiting, expansion, and gating.

Features:

• Single channel, modular dynamics processor based around SSL's XL 9000 K SuperAnalogue console circuitry
• Comprises a compressor/limiter and a gate/expander, both of which use the same gain element
• "Key" side chain input on the rear panel of the unit allows for external control of the dynamic process
• The side chain control signals of multiple modules can be linked
• When two (or more) Dynamics sections are linked, whichever section has the most gain reduction will control the other section
• Dual five-LED ladders display gate/expander functioning

Specifications:

• Function: Variable Compressor/limiter and expander/gate
• Number of Channels: Single
• Inputs:
  • 1 x XLR Main
  • 1 x XLR Key Input
• Outputs: 1 x XLR
• Maximum Input Level: Not specified by manufacturer
• Compression Threshold: +10dB to -30dB, variable
• Compression Ratio :1 to infinity (limit)
• Attack Time: Normally auto sensing, switchable to 1mSec
• Release Time: Variable from 0.1 to 4 seconds
• Gate Threshold: -30dB to +10dB, variable
• Gate Rate:
  • Attack: Normally auto-sensing, switchable to 150µs
  • Hold: Variable from 0 to 4 seconds
  • Release: Variable from 0 to 4 seconds
• Maximum Output Level: +26dBu
• Make-up Gain: No
• Frequency Response: 20Hz to 20kHz, +/-0.2dB (-3dB at 130kHz)
• Dynamic Range: Not specified by manufacturer
• Noise: THD + N (+10dBu applied): < 0.01% at 1kHz (all pots anti-clockwise and switches "out" except for Dynamics "in")
• Dimensions: 1.4 x 7.9 x 6.75" (35 x 200 x 171mm)
• Weight: 9.5 oz (260 g)
• Specialties: When turned fully clockwise, the range control allows for a gate depth of 40dB
