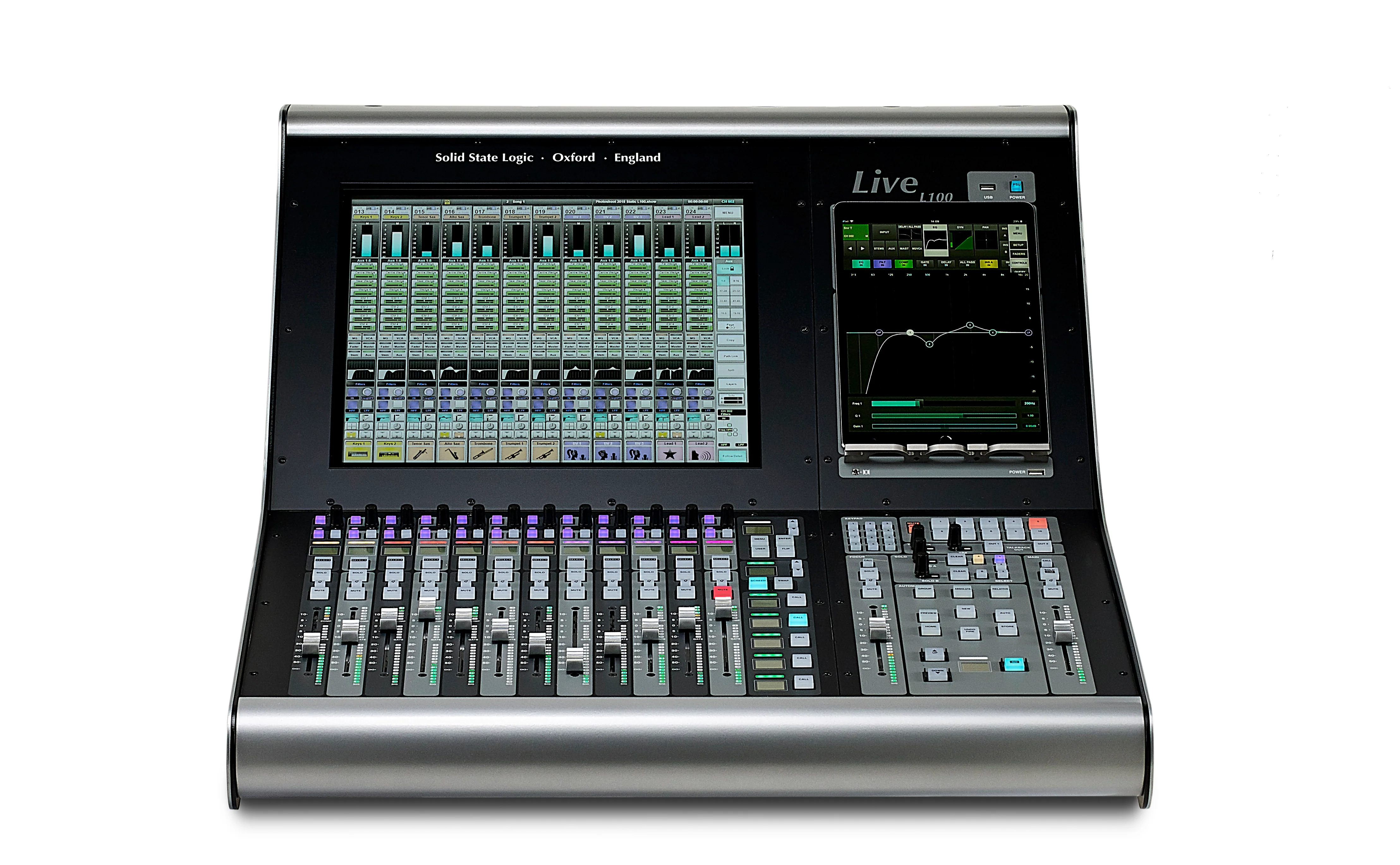

SSL L100 Plus

The L100 Plus offers up to 96 input channels with a matrix of 4 x 32 inputs and 12 outputs.

This console features 472 inputs and 472 outputs alongside it has 128 mix paths at 96 kHz.

 The L100 also features its next-generation of OCP technology.

Features:

• 128 Paths
• 96 Input Channels
• 24 Stem Groups
• 48 Auxes
• 6 Masters
• 4 x 32 Inputs / 12 Outputs Matrix
• 12 VCAs
• 48 FX Slots
• 96kHz or 48kHz- Sample Rate

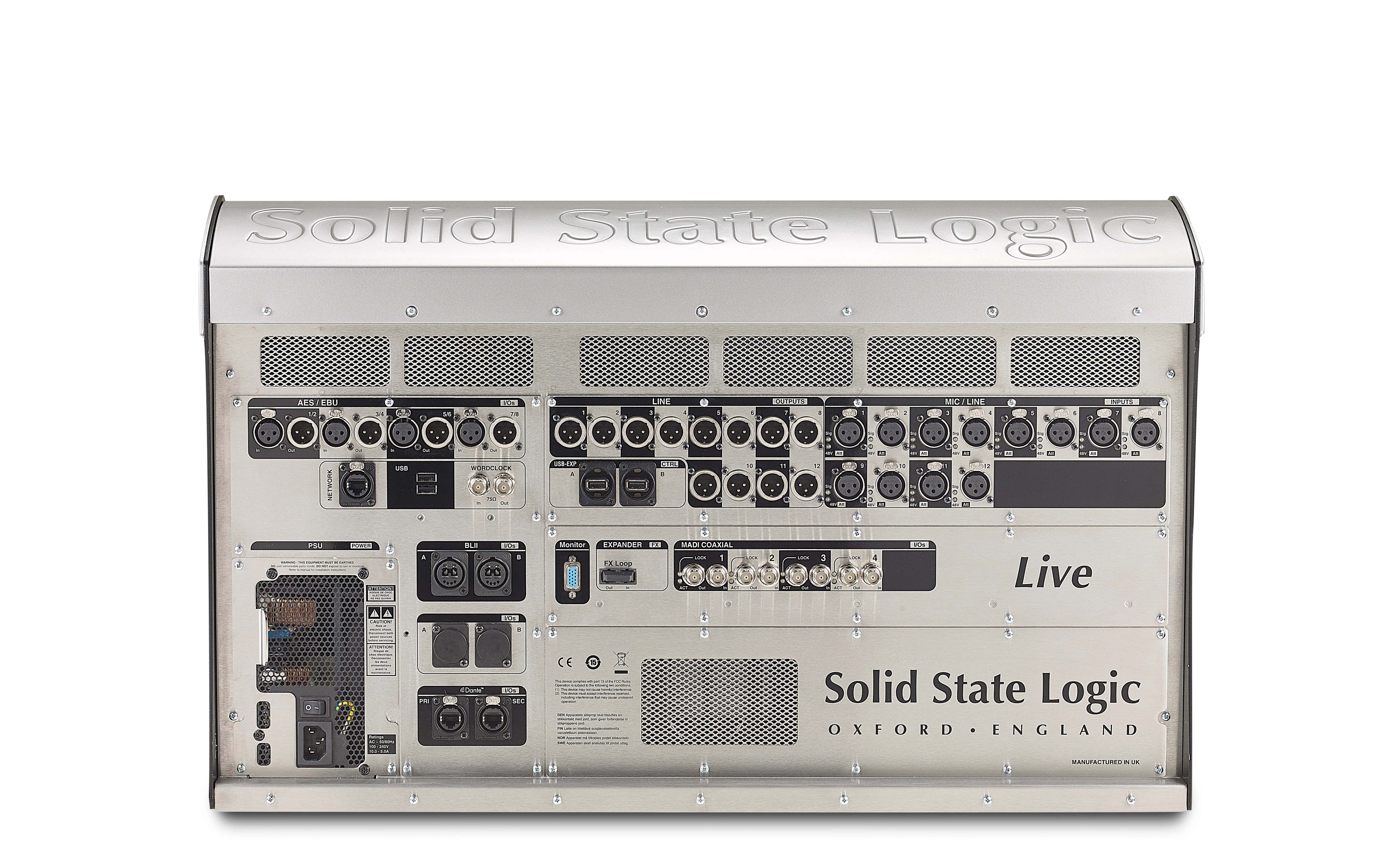

• 12 mic/line, 2 TB, 3.5mm input, 12 line out, 2x headphone- Local Analogue I/O
• 4 Pairs (with SRC)- Local AES/EBU I/O
• 4 Coax MADI Ports
• Optical in/out x 1- MADI FX Loop
• 1 Optional Redundant Pair (Usage restricted to SSL Blacklight II)
• 1 Optional Redundant Pair (Usage restricted to  SSL X-Light)
• Opt. 32x32 Redundant Pair- Local DANTE @ 96 kHz

• Up to 472 in/out- Maximum I/O @ 96kHz

I/O Racks:

• SSL SB 32.24 - Dante Analogue Stagebox
• SSL SB 16.12 - Dante Analogue Stagebox
• SSL SB 8.8 - Dante Analogue Stagebox
• SSL SB i16 - Dante Analogue Stagebox
• SSL X-Light Bridge
• SSL BL II-Bridge
• SSL MADI-Bridge - MADI to DANTE Interface

• SSL ML 32.32 - MADI Analogue Stagebox
• SSL D 32.32 - MADI AES/EDU Digital Stagebox
• SSL BL II.D - Blacklight II Concentrator
