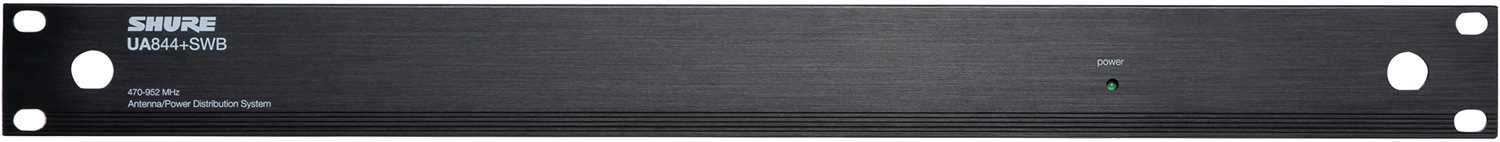

Shure UA844+SWB/LC UHF Active Splitter w DC Cables

Wideband UHF (470-952 MHz) Five-Way Active Antenna Splitter and Power Distribution System, external power supply. For QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers.

UA844+SWB/LCWideband Antenna Distributor with five push-on DC cables and no antenna cables.

The Shure Model UA844+SWB is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+SWB system can support up to five wireless receivers. A maximum of five UA844+SWB systems may be used in a two-tiered configuration.

The UA844+SWB/LC option comes with the four push on DC cables and no antenna cables. It is recommended for use with the BLX (BLX4R only) and QLX-D wireless systems. To connect the receiver antenna ports to the UA844+SWB/LC, use the BNC-BNC antenna cables supplied with each BLX (BLX4R only) or QLX-D wireless systems.

UA844+/LC (less cable) models includes:

• 1 UA844+SWB Antenna/Power Distribution System
• 1 PS60 power supply
• 4 Non-locking DC power cables (for QLXD4, SLX4, BLX4R)
• Two 22 in. BNC cables
• Two 6 ft. BNC cables
• 2 Bulkhead adaptors
• 1 Rack mount Hardware kit
• 1 Literature Package

Features:

• Five-way RF signal output
• Support QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
• Front-mounting antenna hardware
• Rack-mounting hardware
• 4 DC power feeds and for receivers (15V, 2.5A max)
• DC outputs for antenna bias (12V, 300mA max)
