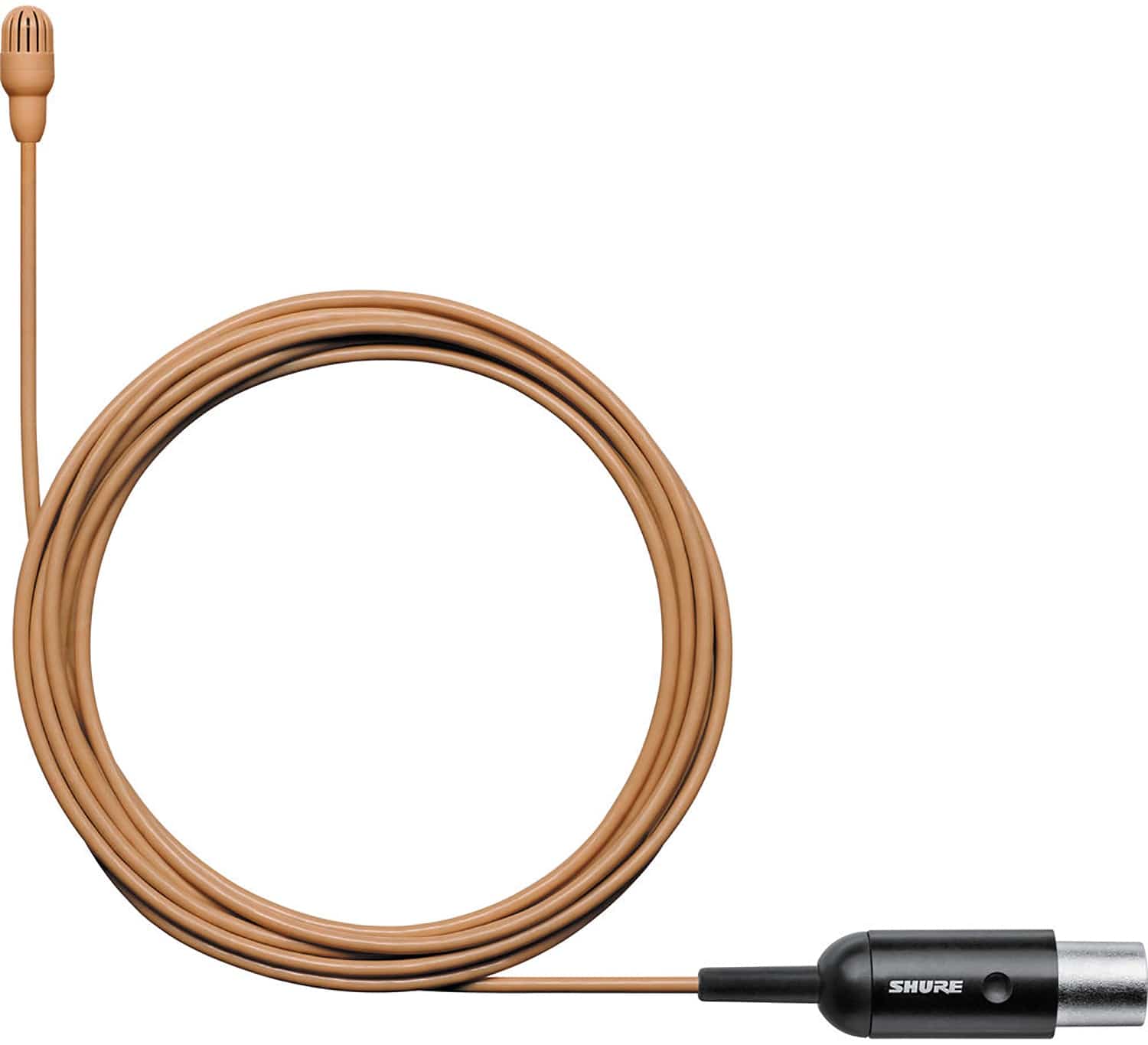

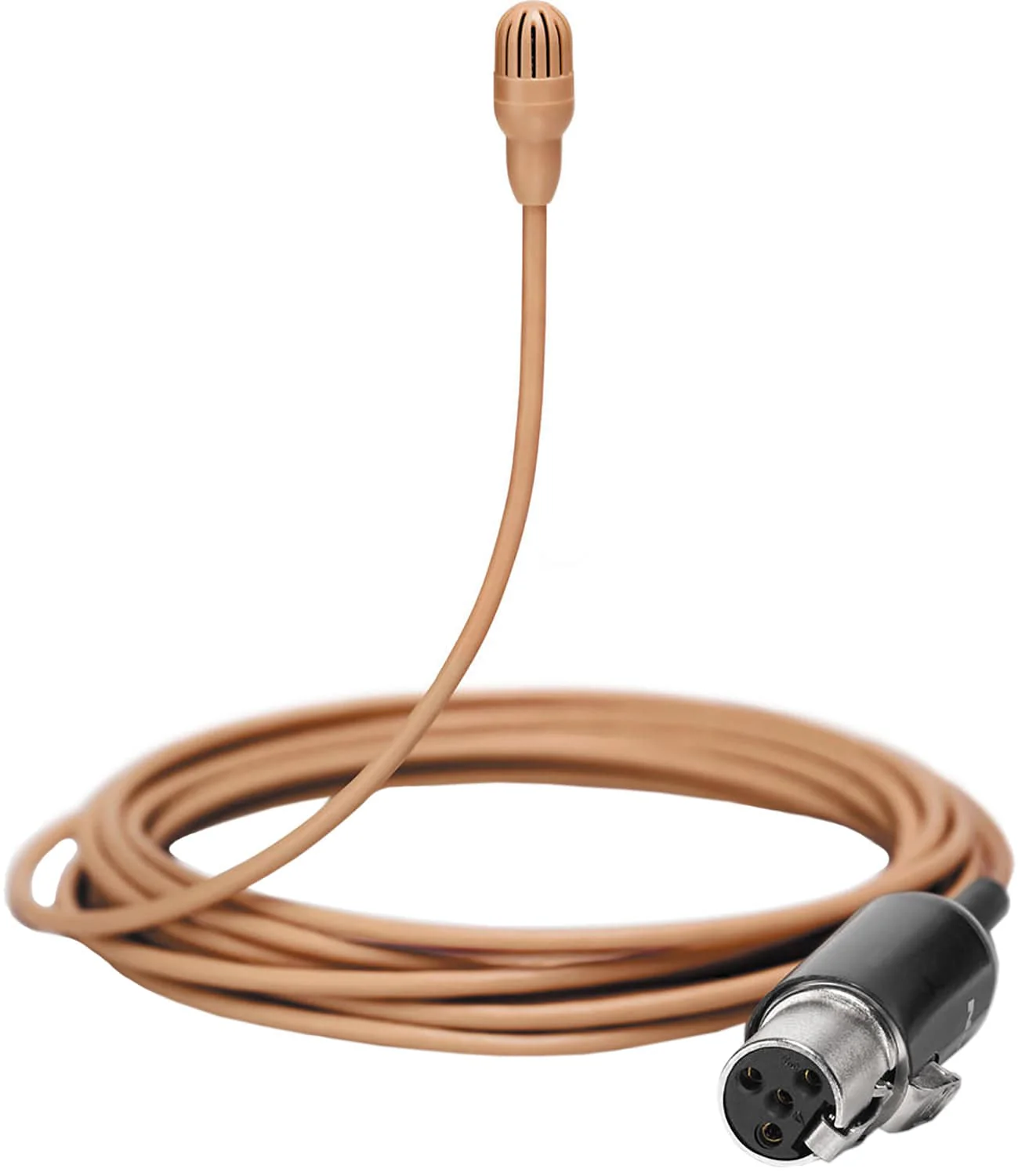

Shure TL47C/O-MTQG TwinPlex Subminiature Omnidirectional Lavalier Microphone with MTQG Plug - Cocoa

The expressively natural sounding TwinPlex™ TL47 is available with connector options for most bodypack transmitters, color options that meet numerous situational needs, and mounting choices for all professional applications. The low sensitivity can handle the most critical acoustic environments without distortion, and the 1.6 mm paintable cable stands up to the most demanding use. With extensive solutions for any application, it’s the go-to line for flexibility.

Features:

• With a variety of colors and connectors, the TL47 is ideal for nearly any application
• Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
• Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
• Best-in-class low self-noise and dynamic range for cleaner audio production
• Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic nanoscopic coating
• Paintable 1.6 mm cable that is immune to memory effect and kinks
• Dual redundant ground in cable serves as secondary shield for longevity
• Sound signature: Natural
• Sensitivity: Low
• Colors: Cocoa
• Connectors: MTQG/TA4F
• Accessories: Available with or without accessories

Specifications:

• Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity: -45.0 dBV (5.62 mV) at 1kHz
• Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
• Signal-To-Noise Ratio: 69.5 dB
• Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
• Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
• Dynamic Range: 117.5 dB typical
• Microphone Current Draw: 120 to 240 μA, typical
• Bias Voltage Recommended Operating Voltage: 5 VDC
• Housing: Molded ABS
• Polarity: Positive pressure at diaphragm leads to positive voltage with respect to ground
• Cable Diameter: 1.6 mm
• Cable Length: 66 in. (1.67 m)
• Microphone Length: 13.5 mm
• Microphone Diameter: 5.6 mm
• Net Weight with Cable: 12.0 g (0.42 oz.)
