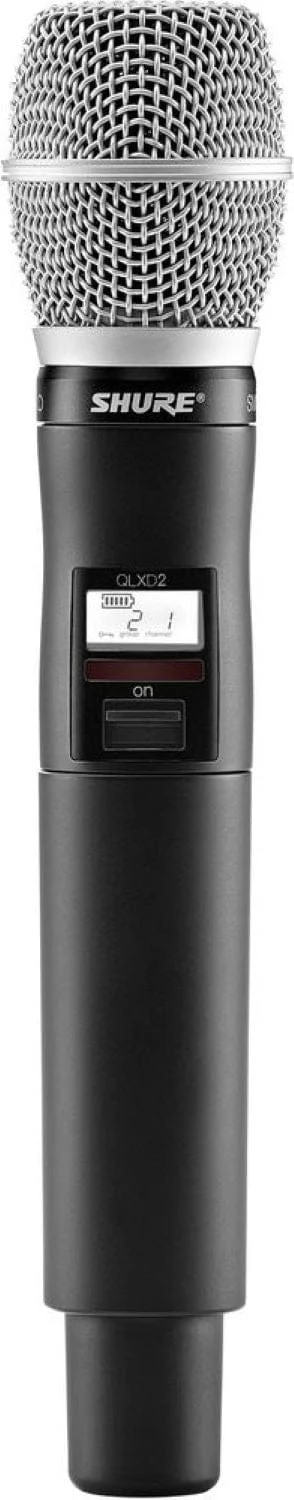

Shure QLXD2/SM86 Handheld Transmitter with SM86 Capsule - V50 Band

The Shure QLXD2/SM86 is a digital handheld wireless microphone transmitter compatible with QLX-D receivers. It comes equipped with an SM86 cardioid condenser capsule that features a frequency response tailored for clear vocal reproduction. The cardioid polar pattern helps to isolate the main sound source while minimizing unwanted background noise.

Features:

• For QLX-D Receivers
• SM86 Cardioid Condenser Mic Capsule
• Interchangeable Capsule Design
• 1680 Selectable Frequencies
• 1/10mW RF Output Power
• Backlit LCD
• Adjustable Gain Control
• Secure AES-256 Encryption
• Networked Intelligent Charging
• 9-Hr AA Batteries

Specifications:

• RF Frequency Band: V50 (174 to 216 MHz)
• RF Bandwidth: 42 MHz
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 330' / 100.6 m
• Sample Rate/Resolution: 48 kHz / 24-Bit
• Latency: < 2.9 ms
• Encryption: AES 256
• Modulation: Proprietary
• Transmitter:
  • Transmitter Type: Handheld
  • RF Output Power: 1 / 10 mW
  • Audio I/O: No
  • Gain Range: 0 to 21 dB (3 dB Steps)
  • Frequency Response: 30 Hz to 20 kHz
  • Sync Method: IR
  • Antenna: 1x 1/4 Wave
  • Power Requirements: Battery
  • Battery Type:
    • 2x AA (Included)
    • 1x Shure SB900A (Not Included, Replaceable)
  • Approx. Battery Life: 9 Hours (Alkaline)
  • Display & Indicators: 1x Backlit LCD (Channel, Group, RF Output Power)
  • Housing: Aluminum
  • Dimensions: 2 x 10.1" / 51 x 256 mm
  • Weight: 12.2 oz / 347 g (without Batteries)
• Microphone:
  • Microphone Type: Handheld Capsule
  • Sound Field: Mono
  • Capsule: Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 50 Hz to 20 kHz
  • Maximum SPL: 147 dB SPL
  • Sensitivity: -54.5 dBV/Pa
  • Dynamic Range: 124 dB
