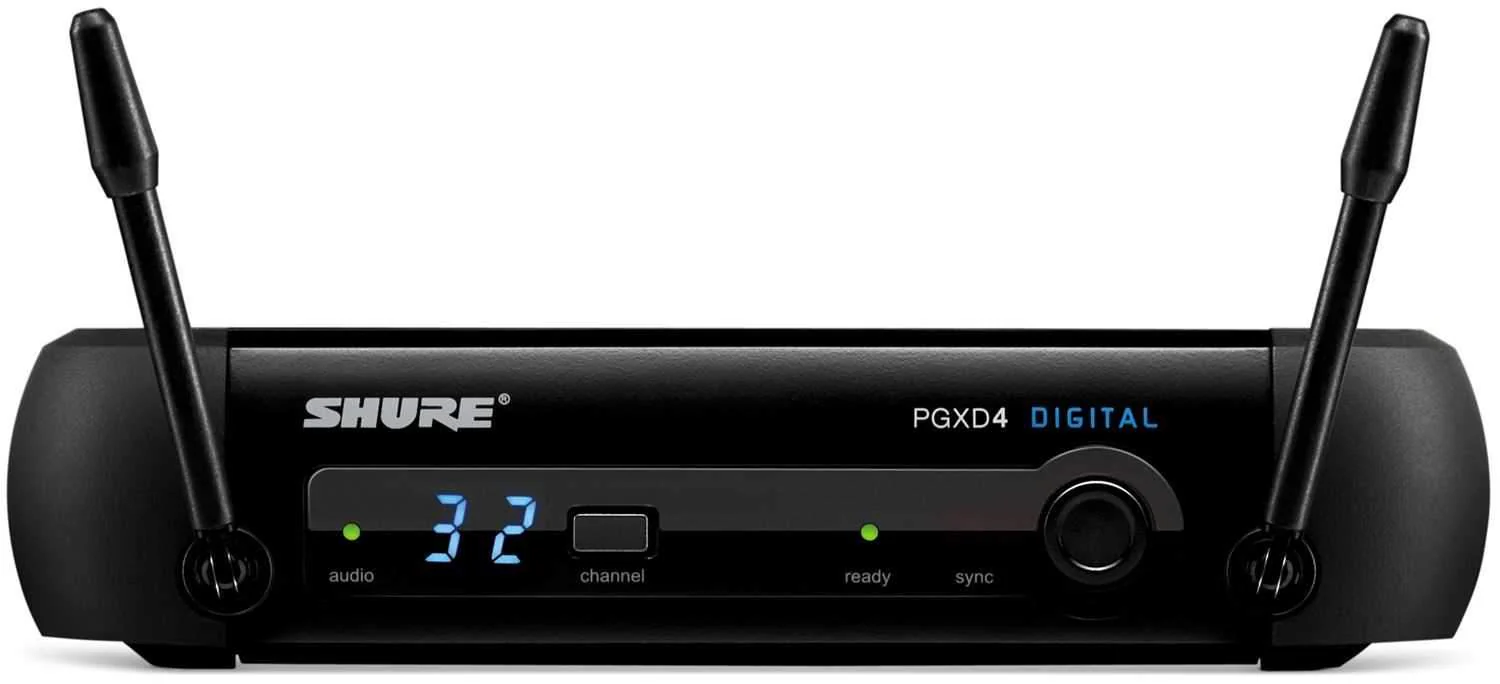

Shure PGXD4 Digital Diversity Receiver

The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent receivers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.

Features:

• 24-bit / 48kHz digital technology for incredibly accurate sound
• Automatic frequency selection locates a clear channel instantly
• One-touch sync automatically syncs the transmitter and receiver
• True digital diversity for rock-solid wireless signal reliability
• Up to 5 compatible channels per frequency band
• 1/4" and XLR audio outputs
• Included padded carrying case for portability and protection

Dimensions

40 mm H X 181 mm W X 104 mm D (1.6 x 7.125 x 4.1 in.)

Weight

289 g (10.2 oz.)

Housing

ABS

Audio Output Level

• (ref. ± 38 kHz deviation, 1 kHz tone)
• XLR connector (into 3000 O load): -2.5 dBV
• 1/4 inch connector (into 10000 O load): +10 dBV

Impedance

• XLR: 50 O
• 1/4 inch: 50 O

Sensitivity

-102 dBm @ 10-5 BER

Image Rejection

> 70 dB, typical

XLR Output

• Impedance balanced
• Pin 1: Ground (cable shield)
• Pin 2: Audio
• Pin 3: No Audio

Audio LED

• Red: 2 dB below clip, Amber: 12 dB below clip,
• Green: 50 dB below clip

Power Requirements

12-18 Vdc at 150 mA, supplied by external power supply

Pin Assignments

• XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4")
• TRS: Tip=audio, Ring=no audio,Sleeve=ground
