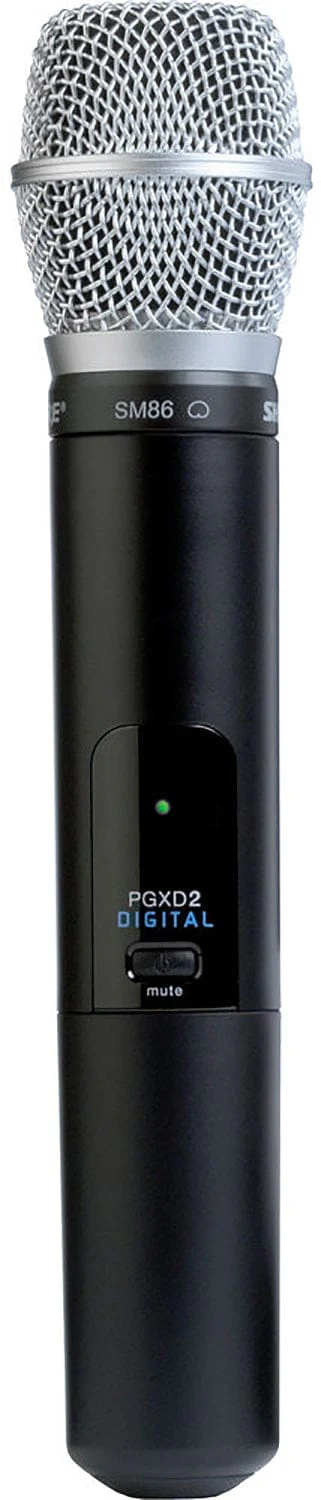

Shure PGXD2/SM86 Handheld Wireless Microphone Transmitter - X8 Band

The Shure PGXD2/SM86 is a digital wireless handheld microphone transmitter compatible with PGXD4 receivers and equipped with an interchangeable SM86 condenser cardioid microphone capsule. The unit provides up to 9 hours of continuous use with two AA batteries at a range up to 200'.

Features:

• For PGXD4 Receiver
• SM86 Cardioid Condenser Capsule
• Interchangeable Capsule Design
• Power/Mute Button
• Adjustable Gain Control
• 9 Hours on AA Batteries

Specifications:

• Max Operating Range: 196.9' / 60 m (Line of Sight)
• Sample Rate/Resolution: 48 kHz / 24-Bit
• Encryption: No
• Transmitter:
  • Transmitter Type: Handheld
  • RF Output Power: 10 mW
  • Audio I/O: No
  • Muting: Off/On Switch
  • Gain Range: 10 dB
  • Sync Method: IR
  • Antenna: 1 x Internal (Handheld)
  • Power Requirements: Battery
  • Battery Type: 2 x AA (Included)
  • Approx. Battery Life: 9 Hours
  • USB/Lightning Connectivity; No
  • Display & Indicators: 1 x LED (Battery Status, Mute, Sync)
  • Housing: ABS
• Microphone:
  • Microphone Type: Handheld Capsule
  • Sound Field: Mono
  • Capsule: Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 50 Hz to 18 kHz
  • SNR: 71 dB A-Weighted
  • Equivalent Noise Level: 23 dB
  • Maximum SPL: 147 dB SPL
  • THD: 1%
  • Sensitivity: -50 dBV/Pa
  • Dynamic Range: 124 dB A-Weighted
  • Length: 9.53" / 242 mm
  • Diameter: 1.42" / 36 mm
  • Weight: 10 oz / 284 g
• Packaging Info:
  • Package Weight: 1.5 lb
  • Box Dimensions (LxWxH): 17.4 x 12.6 x 4.4"
