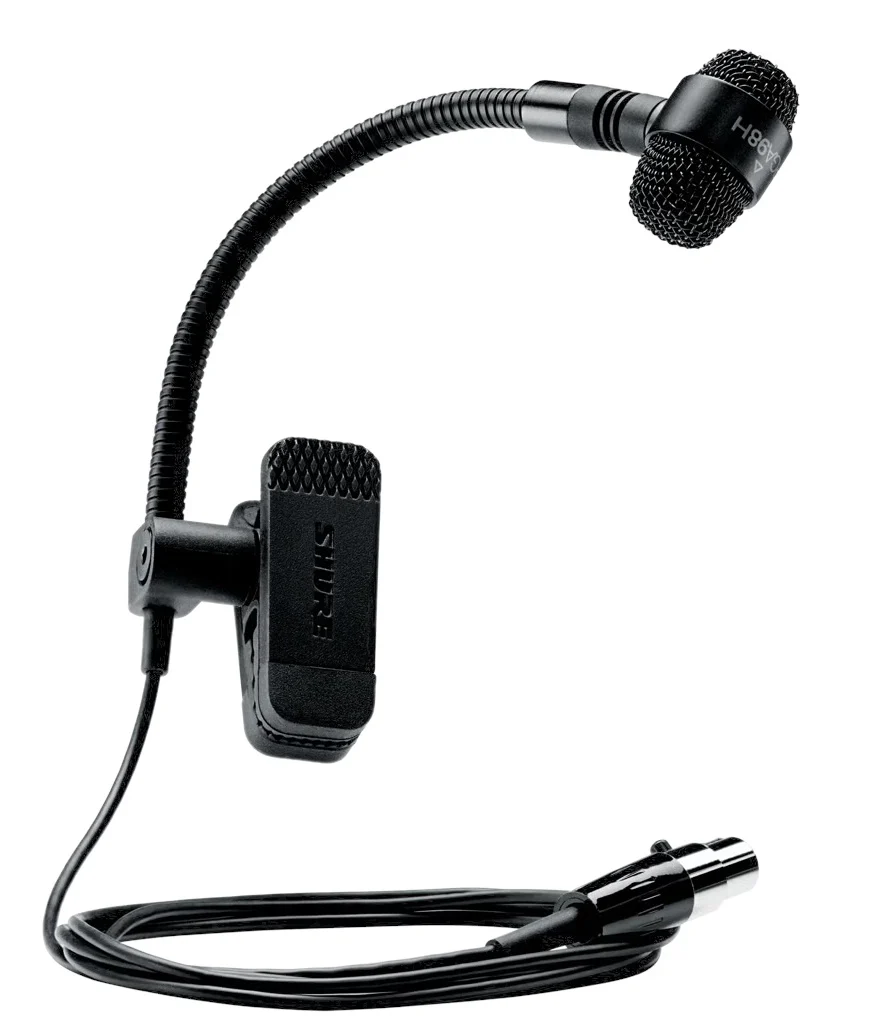

Shure PGA98H Cardioid Condenser Instrument Clip Microphone

The PGA98H is a professional quality wind instrument microphone with an updated industrial design that features a black metallic finish and grille offering an unobtrusive visual presence. Legendary Shure quality construction ensures exceptional performance in rigorous environments.

Additional features include a tailored microphone cartridge design for clear reproduction of wind instrument sound sources.

Features:

• Tailored microphone cartridge design for clear reproduction of wind instrument sound sources.
• Flexible gooseneck design makes accurate positioning quick and easy
• Integrated horn clamp for quick and easy mounting

• Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
• Updated industrial design with black metallic finish and grille for unobtrusive visual presence

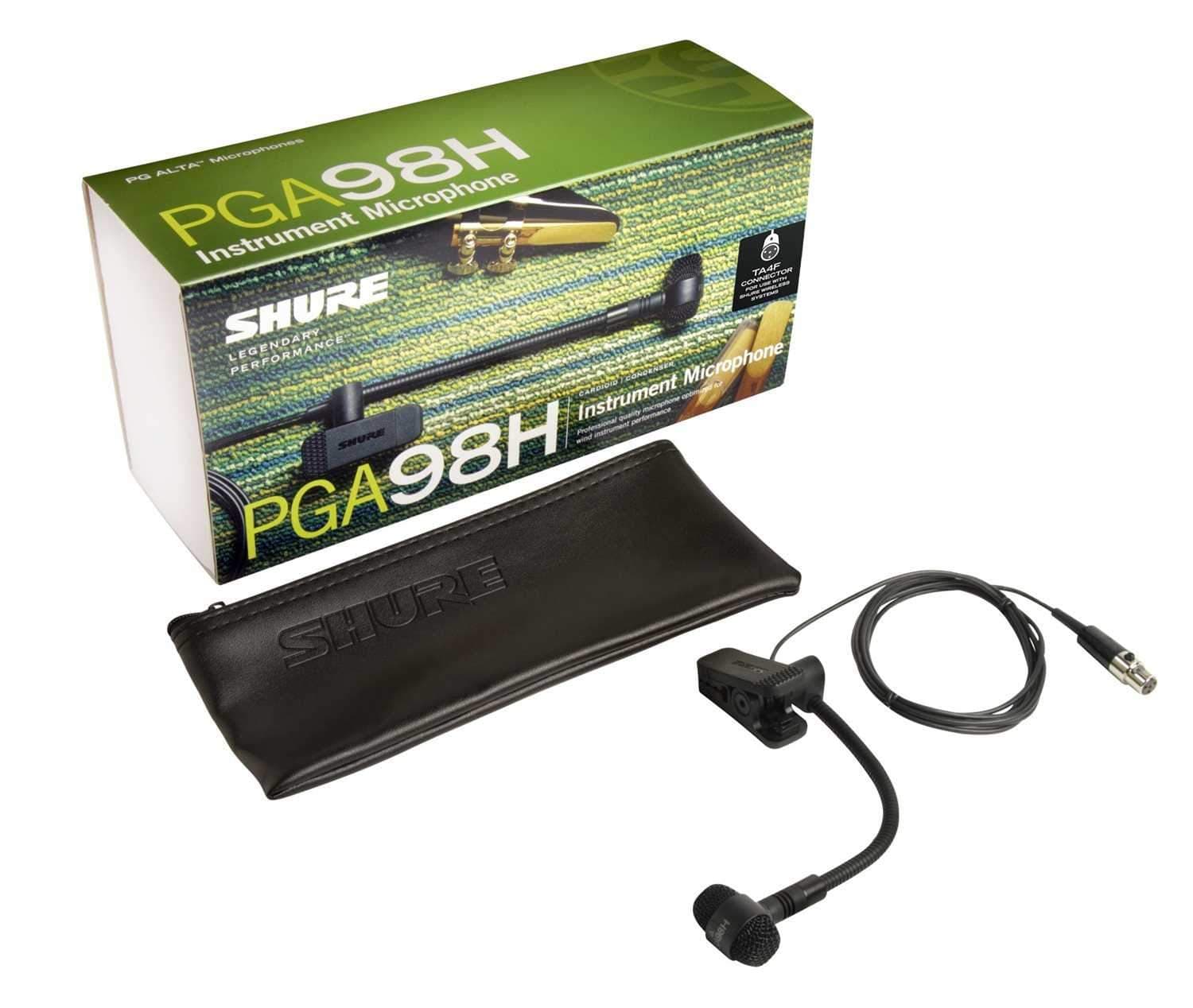

• Zipper pouch included for additional protection during storage or transport
• Legendary Shure quality design and construction for exceptional performance in rigorous environments
• Includes TA4F connector for use with wireless bodypack systems (PGA98H-TQG, no preamplifier provided)

Specifications:

• Type: Electret condenser
• Frequency Response: 60 to 20,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 850 ohms
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: 210 g (8 oz)
• Connector: TA4F connector

• Housing: Cast Zinc
• Power Requirements: 11–52 VDC phantom power (2 mA)
