Shure MVi Digital Audio Interface

Delivering the convenience of a professional sound studio on the go, the MOTIV MVi Portable Digital Audio Interface connects any standard XLR microphone or ¼" plug guitar, bass, or keyboard to any Mac, PC, iPhone, iPod, iPad or Android device for seamless, high-quality audio capture. Equipped with 5 built-in DSP preset modes (Speech, Singing, Flat, Acoustic Instrument, Loud), the MVi includes a unique onboard touch panel control for quick access to gain, mute and headphone volume adjustments in real time. A portable, low-profile footprint with all-metal construction that is designed, built and rigorously tested by Shure to ensure reliable performance in any environment.

Features:

• Apple MFi (Made for iPhone/iPod/iPad) Certified for direct connection to any iOS device without the need for any additional
• adapters or connection kits
• Discrete JFET Class A buffered instrument preamplifier input for exceptional tone and clarity
• Supplies 12-48v phantom power (12v–iOS/48v–USB)
• 5 DSP Preset Modes (Speech, Singing, Flat, Acoustic Instrument, Loud)
• Automatically adjusts EQ, Compression and Limiting for optimal results

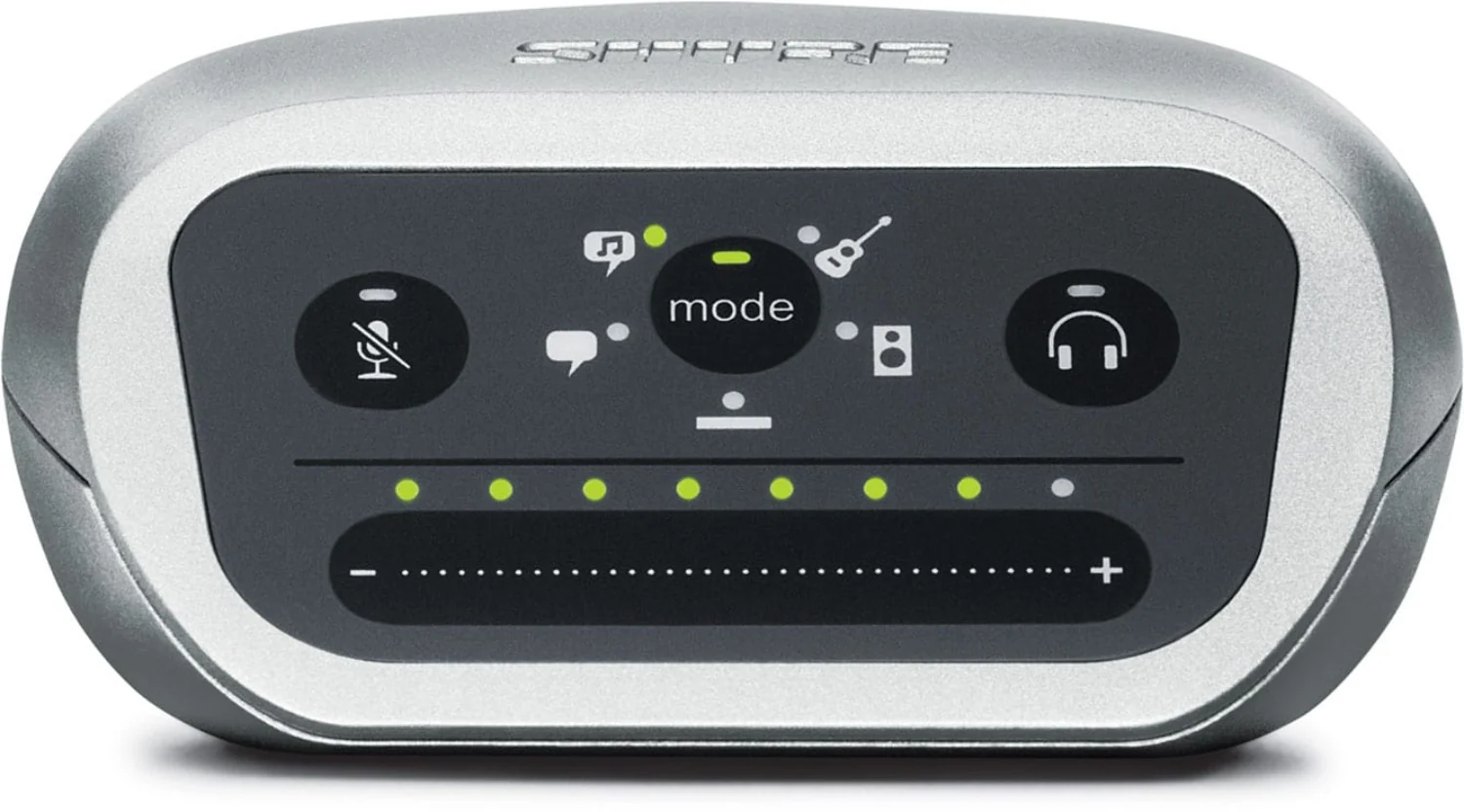

• Front panel touch controls for mode selection, headphone volume, microphone gain, and mute
• Built-in headphone output for real-time monitoring

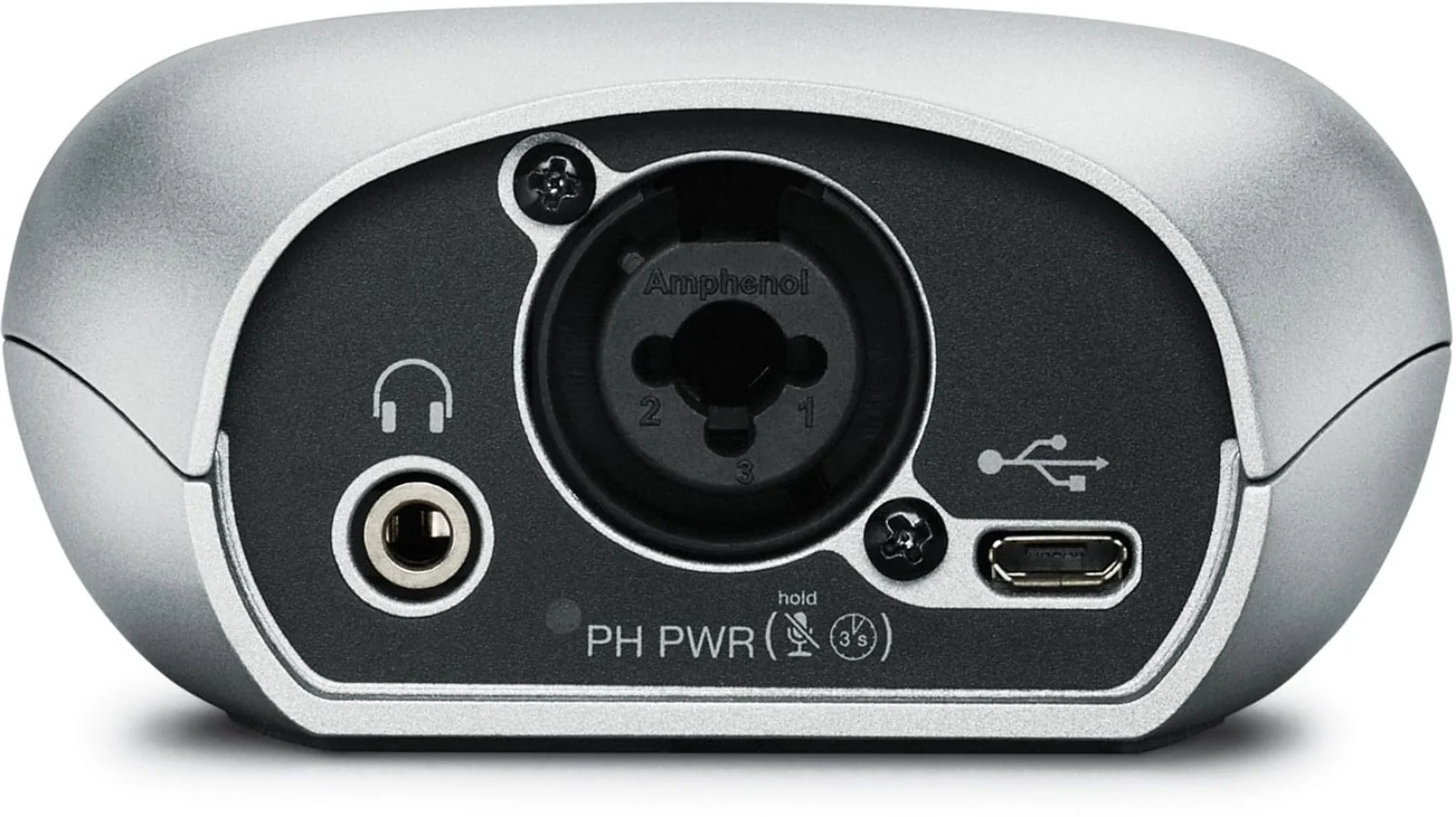

• Combo XLR or 1/4" jack connects XLR microphone or ¼" plug guitar/bass/keyboard

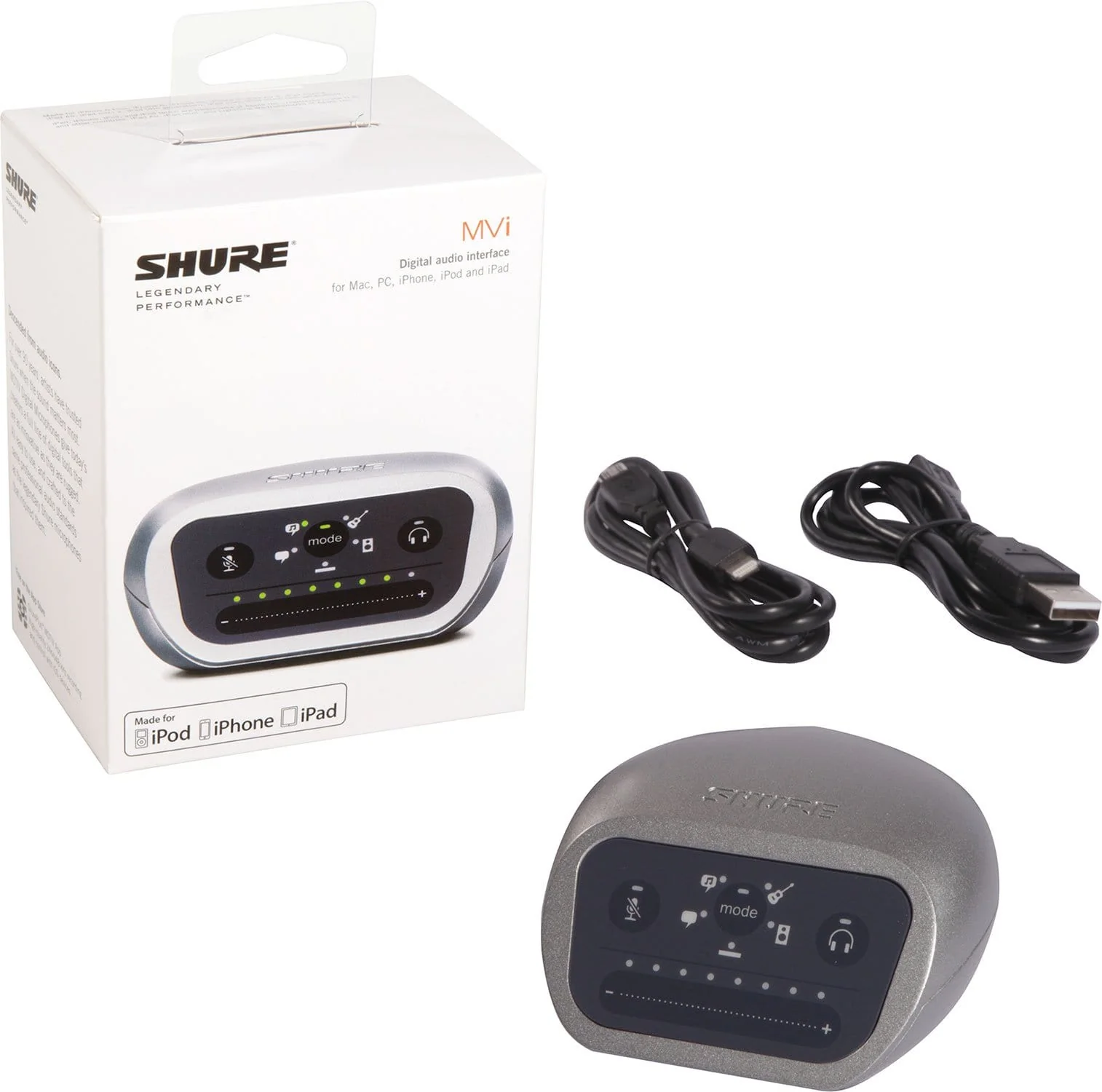

• Includes one (1) Micro-B-to-USB cable and one (1) Micro-B-to-Lightning® cable
• All-metal construction designed, built and rigorously tested by Shure

Specifications:

• MFi Certified
• DSP Modes (Presets): Speech/Singing/Acoustic/Loud/Flat
• Input: Combination XLR and 1/4" (6.35 mm) TRS
• Input Impedance: 3-pin XLR: >2 kΩ; 1/4" TRS: >1 MΩ
• Bit Depth: 16-bit/24-bit
• Sampling Rate: 44.1/48 kHz
• Frequency Response at minimum gain, flat mode: 20 Hz to 20,000 Hz
• Adjustable Gain Range: 3-pin XLR: 0 to +36 dB; 1/4" TRS: +9 dB
• Maximum Input Level: 3-pin XLR: 0 dBV; 1/4" TRS: +9 dBV
• Headphone Output: 3.5 mm (1/8")
• Power Requirements: Powered through USB or Lightning connector
• Phantom Power: USB: +48 VDC; iOS: +12 VDC
• Input Mute
• Housing: All-metal construction
• Weight: 310.0 g (10.93 oz.)
• Dimensions: 42 × 84 × 72 mm H × W × D
• Cable: Includes one (1) Micro-B-to-USB cable and one (1) Micro-B-to-Lightning cable

System Requirements:

Windows:

• Windows 7
• Windows 8
• 64 MB minimum RAM
• USB 2.0

Macintosh:

• OSX Lion 10.7
• OSX Mountain Lion 10.8
• OSX Mavericks 10.9
• OSX Yosemite 10.10
• 64 MB minimum RAM
• USB 2.0

iOS 7.0 and higher:

• iPhone 5
• iPhone 5c
• iPhone 5s
• iPhone 6
• iPhone 6 Plus
• iPod touch 5th generation
• iPad 4th generation
• iPad Air
• iPad
• Air 2
• iPad Mini 1st generation
• iPad Mini 2nd generation
• iPad Mini 3rd Generation

MOTIV™ Digital Microphones and Recording Solutions are compatible with Android devices that support USB Audio Class 2.0 and Micro-B OTG (On-The-Go) connectivity. Not all Android devices are compatible. Android is a trademark of Google Inc.
