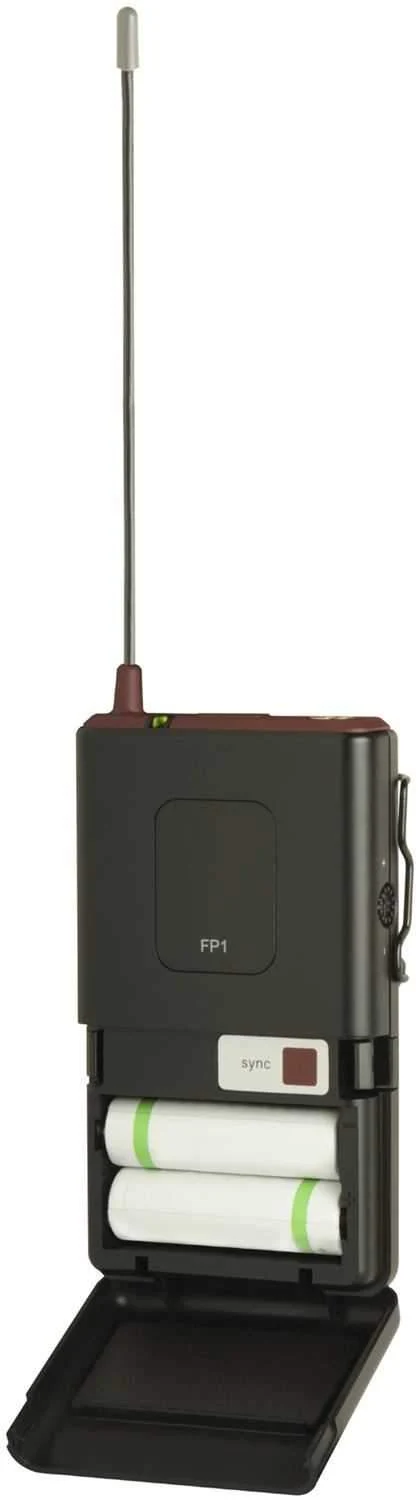

Shure FP1 Wireless Bodypack Transmitter

The FP1 Bodypack Transmitter features a lightweight and durable design for use with TA4F-connection microphones including lavaliers and headsets.

Ideal for use with FP Wireless and SLX Wireless.

FP Wireless Systems feature patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

• Automatic transmitter setup that instantly syncs the transmitter to the receiver frequency
• LED indicator for control lockout, IR RF sync, and low battery
• Audio input gain for adjustment of audio level
• 4-Pin microphone input jack for use with lavaliers or headset microphones with TA4F connectors

• Gain Adjustment Range: -10 to +20 dBV
• Input Impedance: 1 Mohm
• RF Output Power: 10 to 30 mW (varies by region)
• Pin Assignments: TA4M; 1: ground (cable shield); 2: + 5 V Bias; 3: audio; 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
• Dimensions: 108 mm x 64 mm x 19 mm (H x W x D)
• Weight: 81 g (3 oz.), without batteries
• Housing: Molded polycarbonate case
• Power Requirements: 2 AA batteries, 1.5 V
• Battery Life: Up to 12 hours (alkaline)
