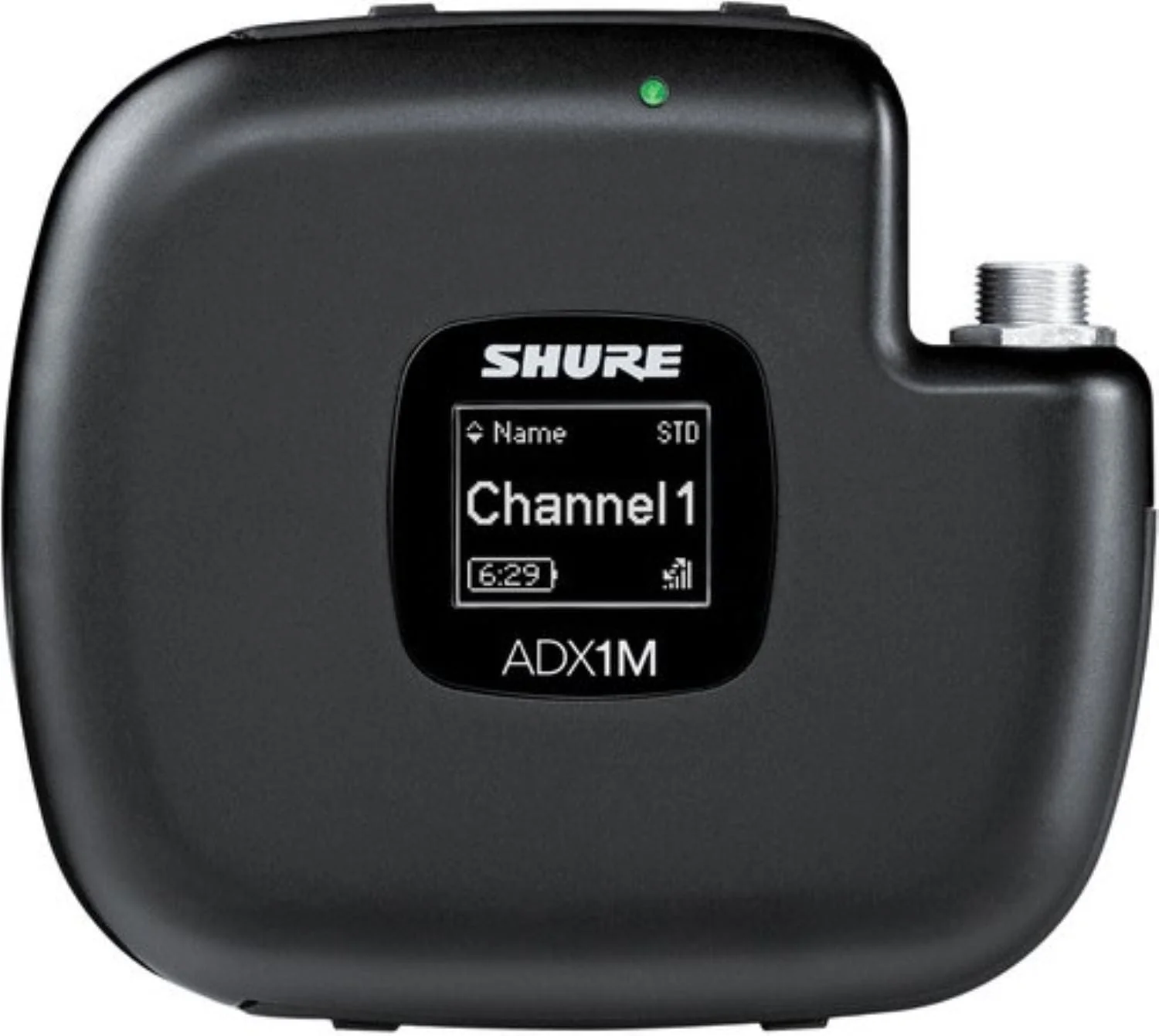

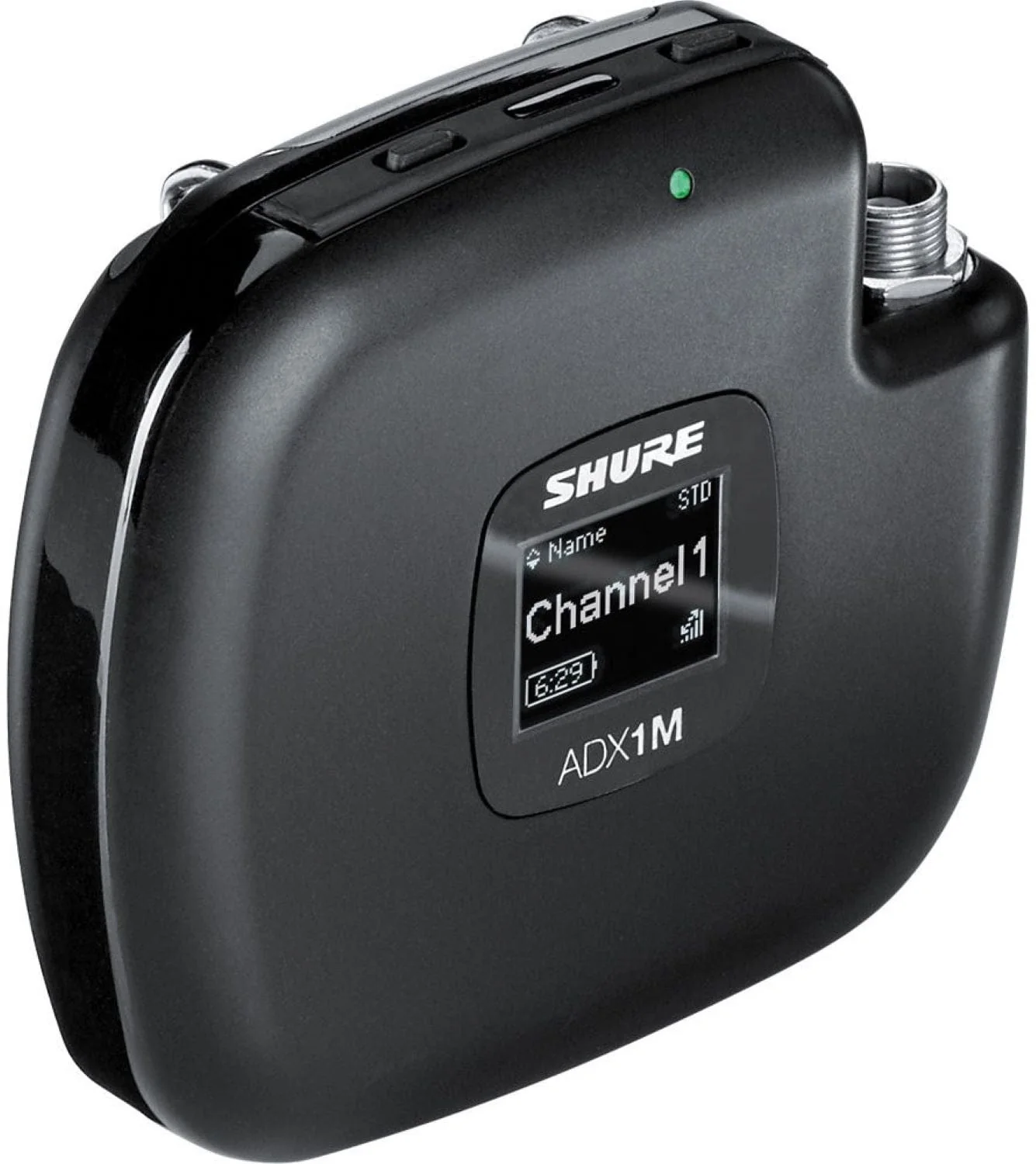

Shure Axient ADX1M Micro Bodypack Transmitter - X55 Band

ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink® remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeabilty. Membrane switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments.

Features:

• Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
• High-contrast OLED display
• Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
• Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
• Ultem® PEI construction for heat resistance and durability

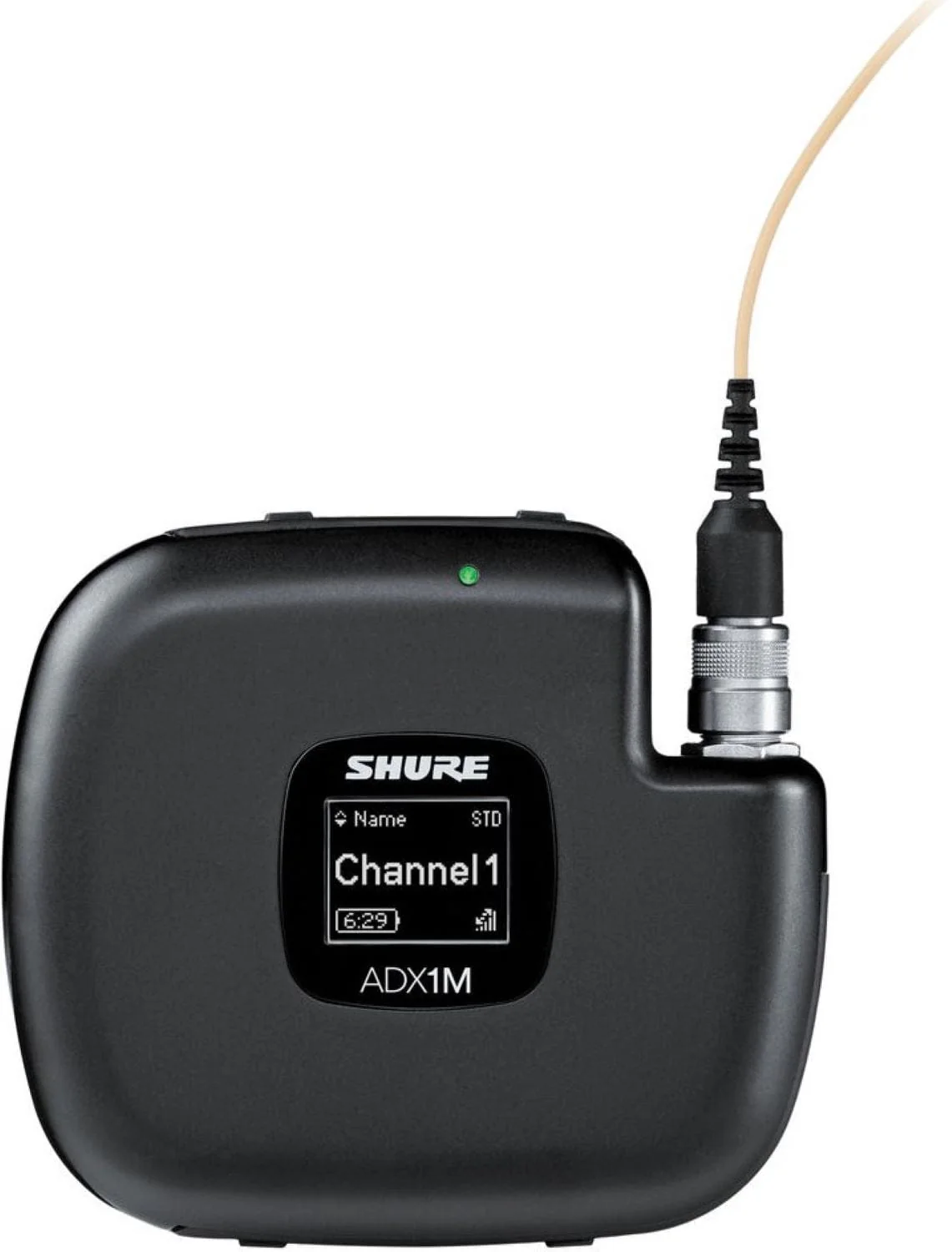

• Recessed LEMO connector
• Sealed buttons and LEMO connection for protection against sweat and moisture ingress
• Two transmission modes:
  • Standard for optimal coverage
  • New High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission
• Up to 7 hours of runtime with SB910M rechargeable batteries

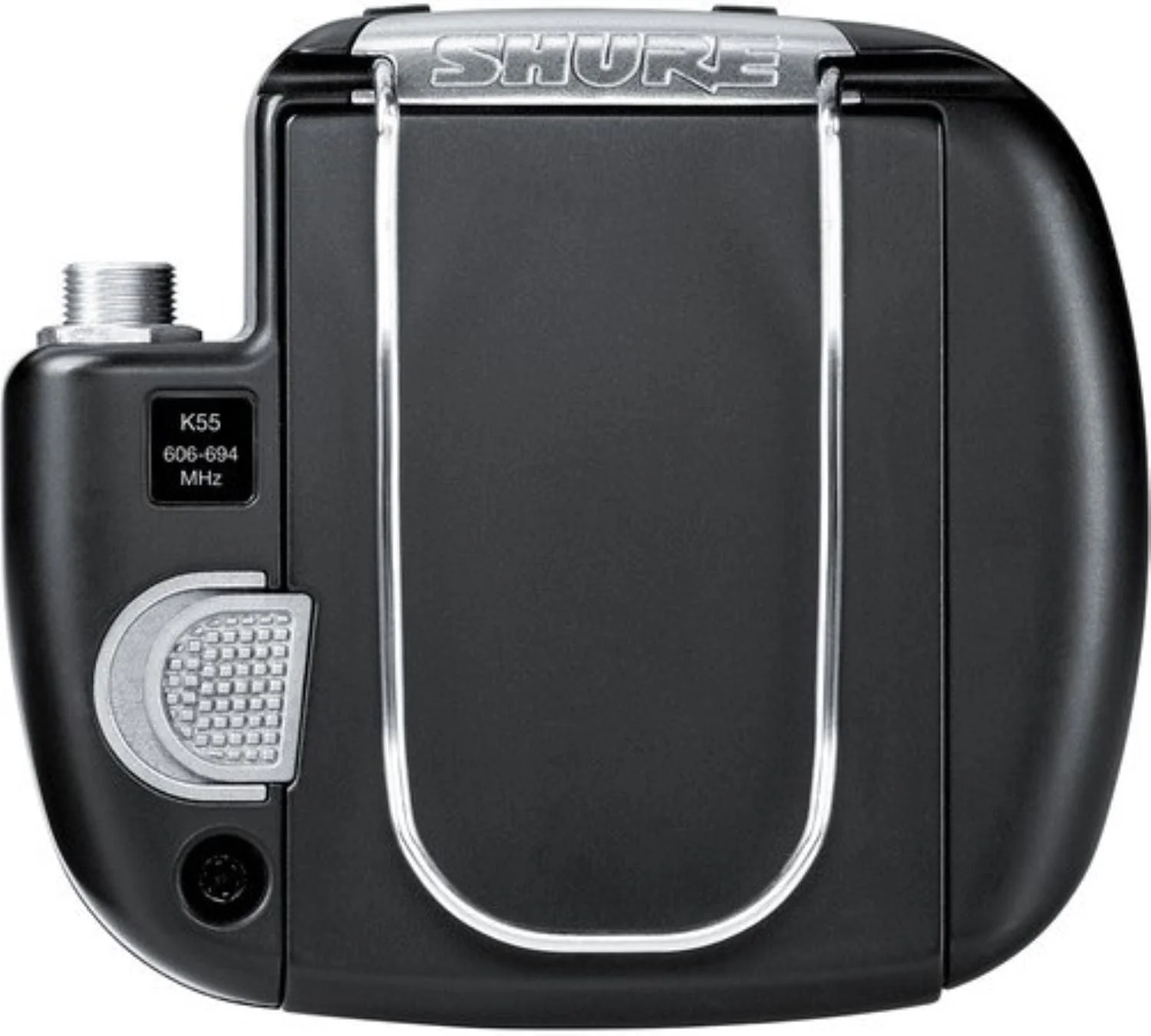

• Detachable belt clip

Specifications:

• Gain Offset Range: –12 to 21 dB (in 1 dB steps)

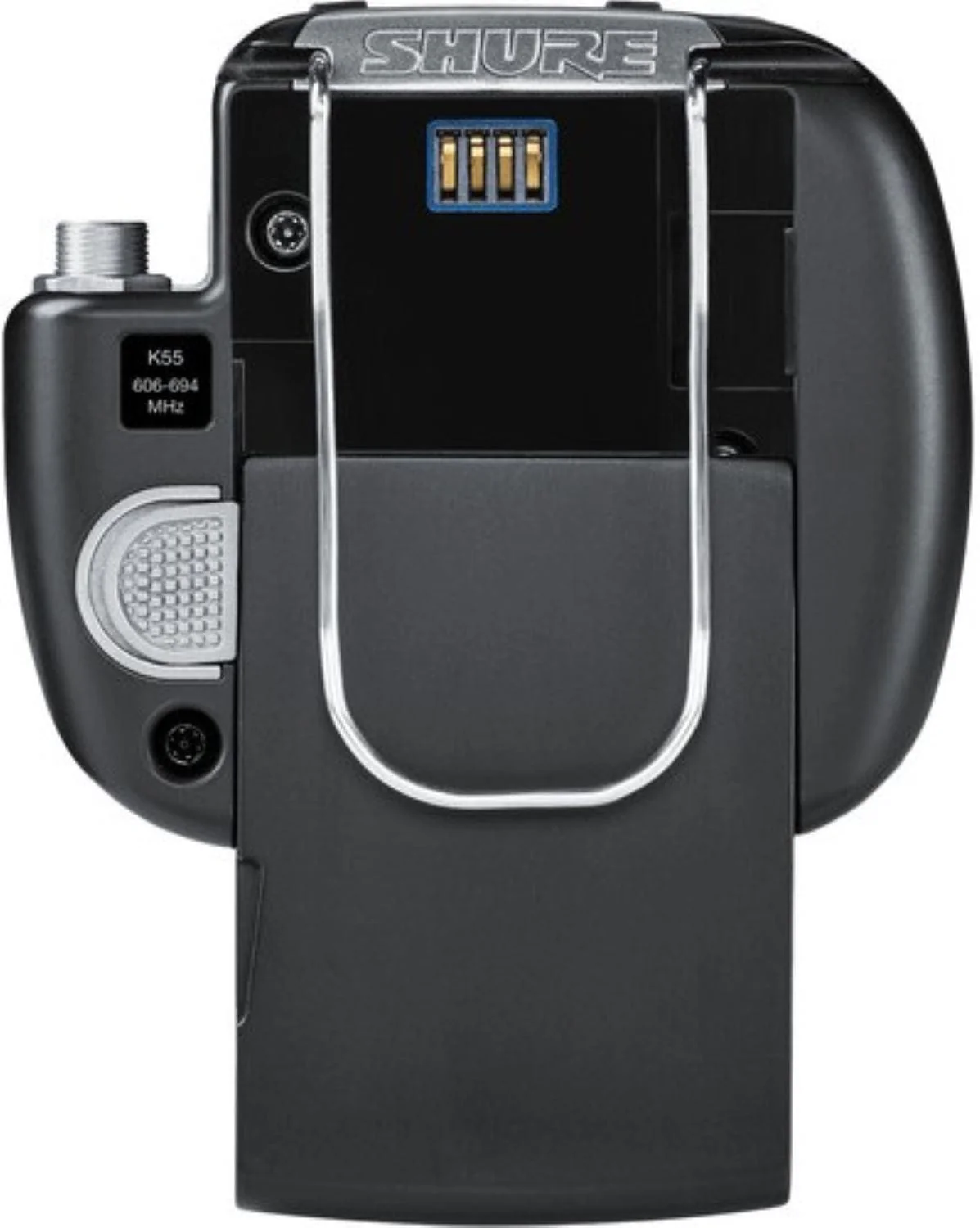

• Battery Type: Shure SB910M Rechargeable Li-Ion
• Battery Run Time @10 mW: up to 7 hours
• Dimensions (H × W × D):
  • 2.4 × 2.7 × 0.7 in
  • (60.4 × 68.0 × 18.0 mm)
• Weight: 2.4 oz (68 g) without battery
• Housing: Ultem® (PEI)
• Audio Input:

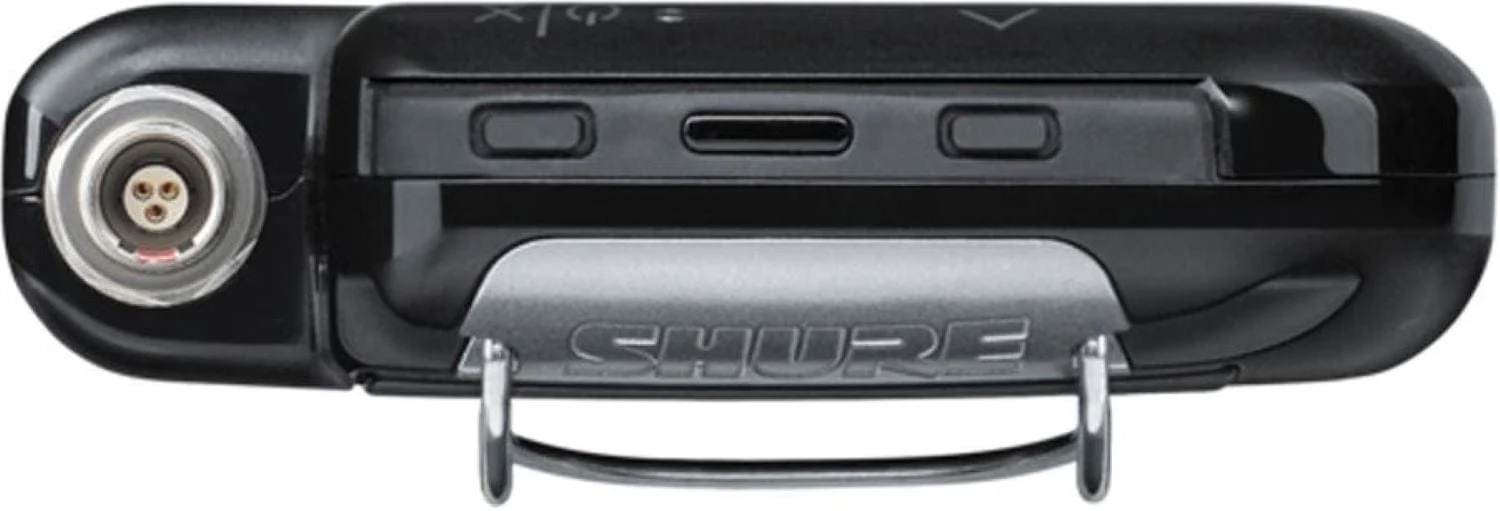

  • Connector: LEMO3 Connector
  • Configuration: Unbalanced
  • Impedance: 8.2 kΩ
  • Maximum Input Level 1 kHz at 1% THD: Pad Off: 8.5 dBV (7.5 Vpp)
  • Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥20: –120 dBV A-weighted, typical
• RF Output:
  • Antenna Type: Integrated Helical
  • Impedance: 50 Ω
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Axient Digital Proprietary
  • Power: 2 mW, 10 mW, 20 mW
  • Specific Absorption Rate (SAR): <0.24 W/kg
• Available Model:
  • Axient Digital Showlink® -Enabled
  • Micro Bodypack Transmitter, LEMO3 Connector
• Frequency Band: 941 to 960 Mhz
