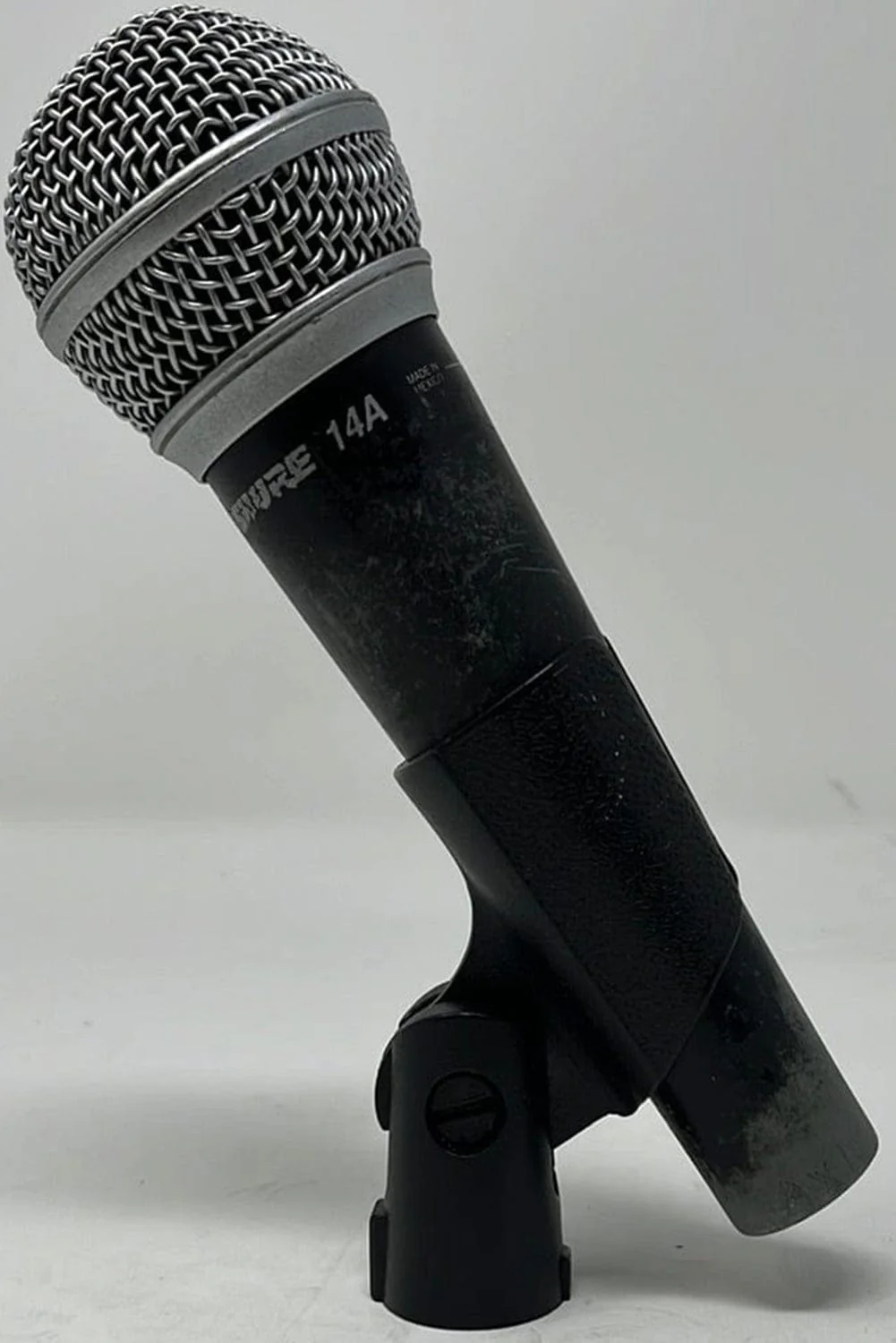

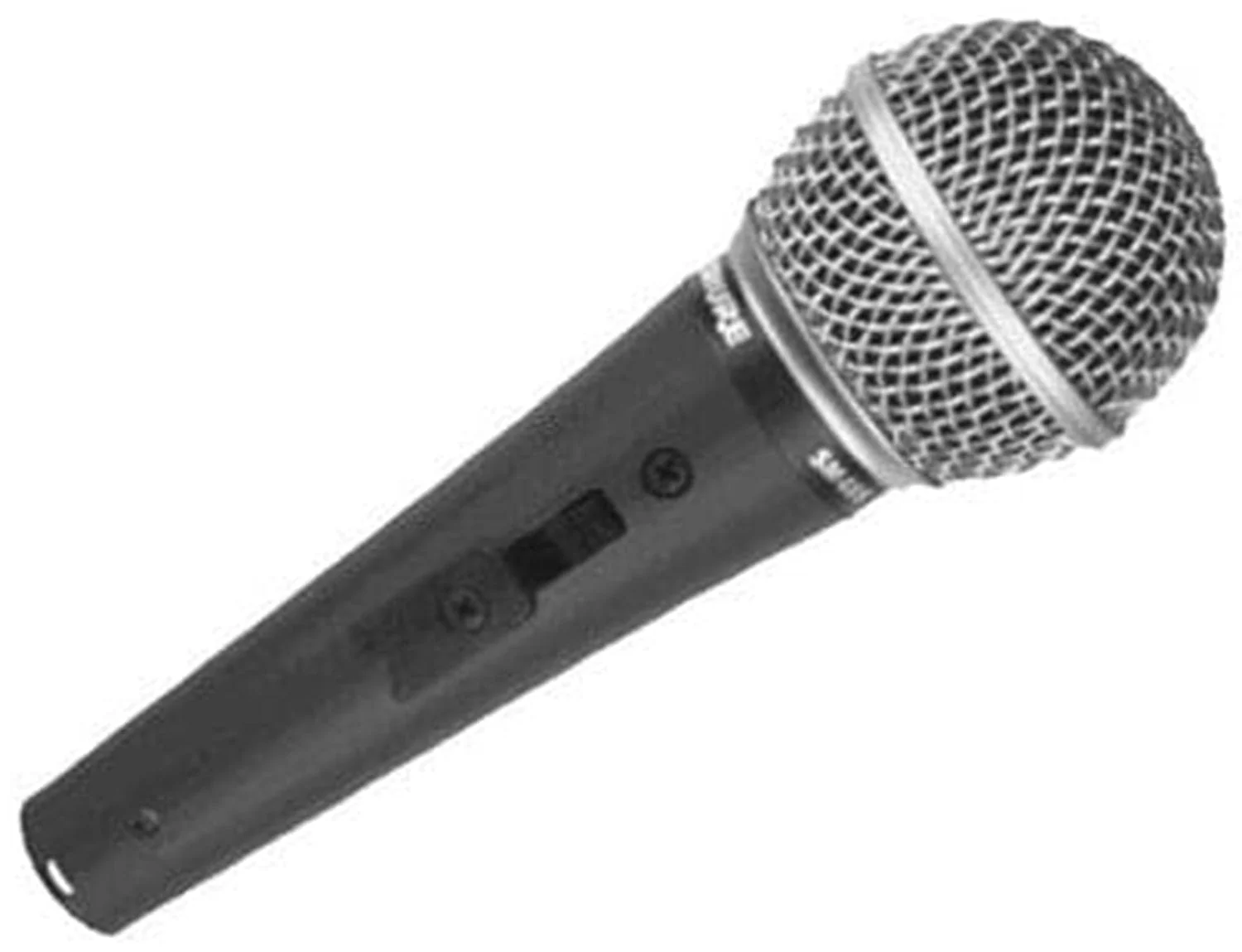

Shure 14A Handheld Dynamic Microphone

The 14A microphone can be used for karaoke, in sound reinforcementor recording, to pick up voices or instruments, indoors or outdoors.

Features

• Tailored frequency response provides vocal intelligibility and crispness
• Neodymium magnet for high signal-to-noise ratio
• Shock mount reduces handling noise
• Cardioid (unidirectional) pickup pattern suppresses feedback
• Locking On/Off switch

Specifications

• Type
• Dynamic
• Frequency Response
• 80 to 14,000 Hz
• Pickup (Polar) Pattern
• Cardioid (unidirectional)
• Impedance (Z)
• Low, rated 150
• Output Level (at 1 kHz)
• Open Circuit Voltage: –56.0 dBV/Pa (0.16 mV) (1 Pa = 94 dB SPL)
• Polarity
• Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3.
• Connector
• Three-pin professional audio connector (male XLR)
• Switch
• Built–in locking On/Off switch, with lockplate. To lock switch On, loosen screw, push lockplate forward, then tighten screw.
• Weight
• 255 g (9 oz)
• Certifications
• Conforms to European Union directives, eligible to bear CE marking; meets European Union EMC Immunity Requirements (EN 50082–1: 1992).
