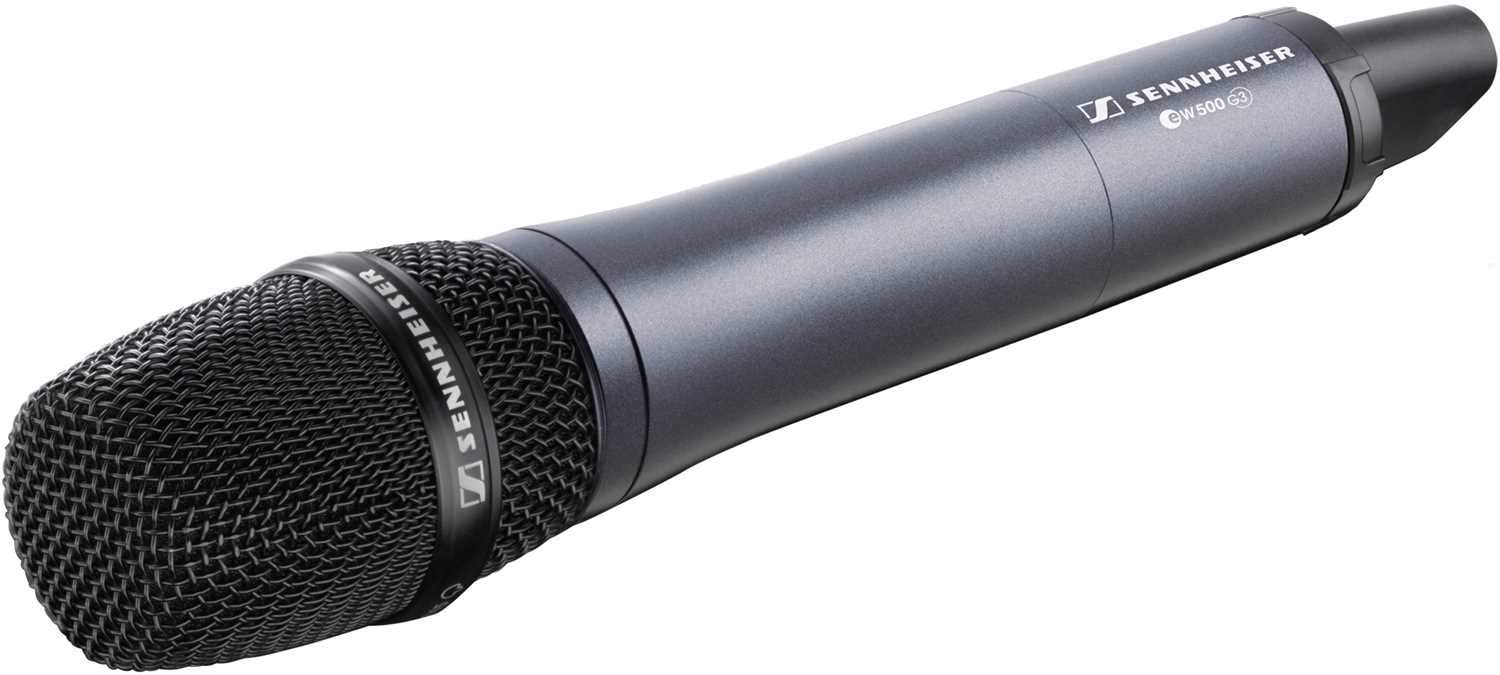

Sennheiser SKM 500-945 G3 Handheld Transmitter A1

Super-cardioid microphone/transmitter with impressive sound. Clear, prominent voice reproduction. Highest feedback rejection. User-friendly menu operation with backlit graphic display. Auto-Lock function.

The SKM 500 hand-held transmitter features high RF transmission power for extra-reliable reception. Even more impressive is the sound of the super-cardioid microphone capsule which is highly feedback-resistant. Built-in charging contacts can charge the optional rechargeable battery by simply placing the mic on the optional charger. With German-engineered components from stage-tested technology, the SKM 500-945 G3 is made for performances that leave a lasting impression.

What's in the box

• 1 SKM 500-945 G3 handheld transmitter (dynamic, super-cardioid)
• 1 MZQ 1 microphone clip
• 1 protective pouch
• 2 batteries
• 2 batteries
• Operating instructions

Features:

• Sturdy metal housing
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 32 compatible frequencies
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization via infrared interface from receiver
• User-friendly menu operation with more control options
• Illuminated graphic display
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Battery indicatation in 4 steps, also shown on receiver display
• Easy-exchangeable microphone modules from evolution series
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Wide range of accessories adapts the system to any requirement

Specifications:

• Frequency range: 470 - 516 MHz
• Dimensions: Ø 50 x 265 mm
• Frequency response (Microphone): 80 - 18000 Hz
• Transducer principle (Microphone): dynamic
• Compander: HDX
• Presets: max. 32
• Sound pressure level (SPL): 154 dB(SPL) max.
• THD, total harmonic distortion: < 0,9 %
• Weight: 450 g
• AF sensitivity: 1,6 mV/Pa
• RF frequency range: 516...865 MHz
• RF output power: 10/30 mW
• Transmission/receiving frequencies: 1680
• Switching bandwidth: 42 MHz
• Peak deviation: +/- 48 kHz
• In compliance with: ETS 300422, ETS 300445, CE, FCC
• Operating time: > 8 h
• Powering: 2 x 1,5V (AA)
