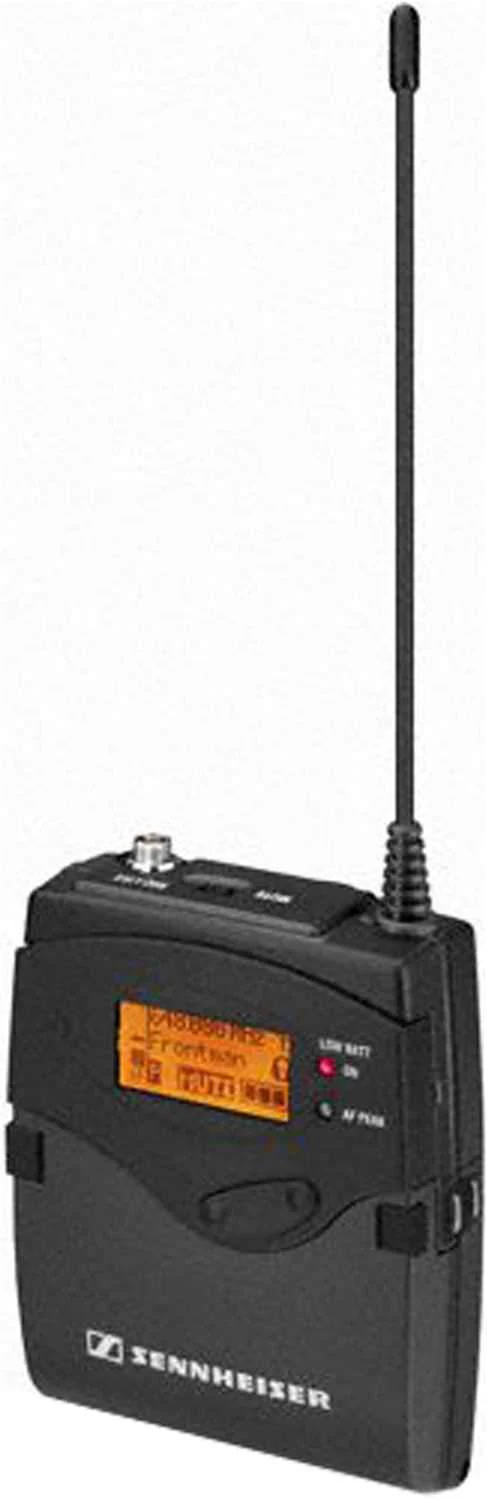

Sennheiser SK 500 G3 Bodypack Transmitter G
Sennheiser SK 500 G3 Bodypack Transmitter G
High-quality, robust bodypack transmitter with switchable HF output power. Greater choice of usable channels when switched to 10 mW output. User-friendly menu operation with backlit graphic display. Metal housing.
More usable systems per range. As the pros have known for years, having the option of lowering a transmitter's RF output power helps immensely when simultaneously operating a large number of wireless systems. This transmitter also features wireless sync to link up to a compatible G3 receiver automatically with a push of a button. The revised backlit display provides a wealth of useful information at a glance, even on the darkest of stages.
Features:
- Sturdy metal housing
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 32 compatible frequencies
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface from receiver
- User-friendly menu operation with more control options
- Illuminated graphic display
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter features battery indicatation in 4 steps, also shown on receiver display
- Programmable Mute function
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
Specifications:
- Frequency range: 566-608MHz
- Frequency response (Microphone): 80 - 18000 Hz
- Compander: HDX
- Audio-XLR connector: 3,5 mm jack
- THD, total harmonic distortion: < 0,9 %
- Signal-to-noise ratio: > 115 dB(A)
- RF frequency range: 516...865 MHz
- RF output power: 10/30 mW
- Transmission/receiving frequencies: 1680
- Switching bandwidth: 42 MHz
- Peak deviation: +/- 48 kHz
- In compliance with: ETS 300422, ETS 300445, CE, FCC
- Input voltage range: 1,8 V line
- Transmitter
- Dimensions: 82 x 64 x 24 mm
- Weight: ~ 160 g
- Operating time: > 8 h
