Sennheiser ew 112 G3 Wireless Lavalier Mic G

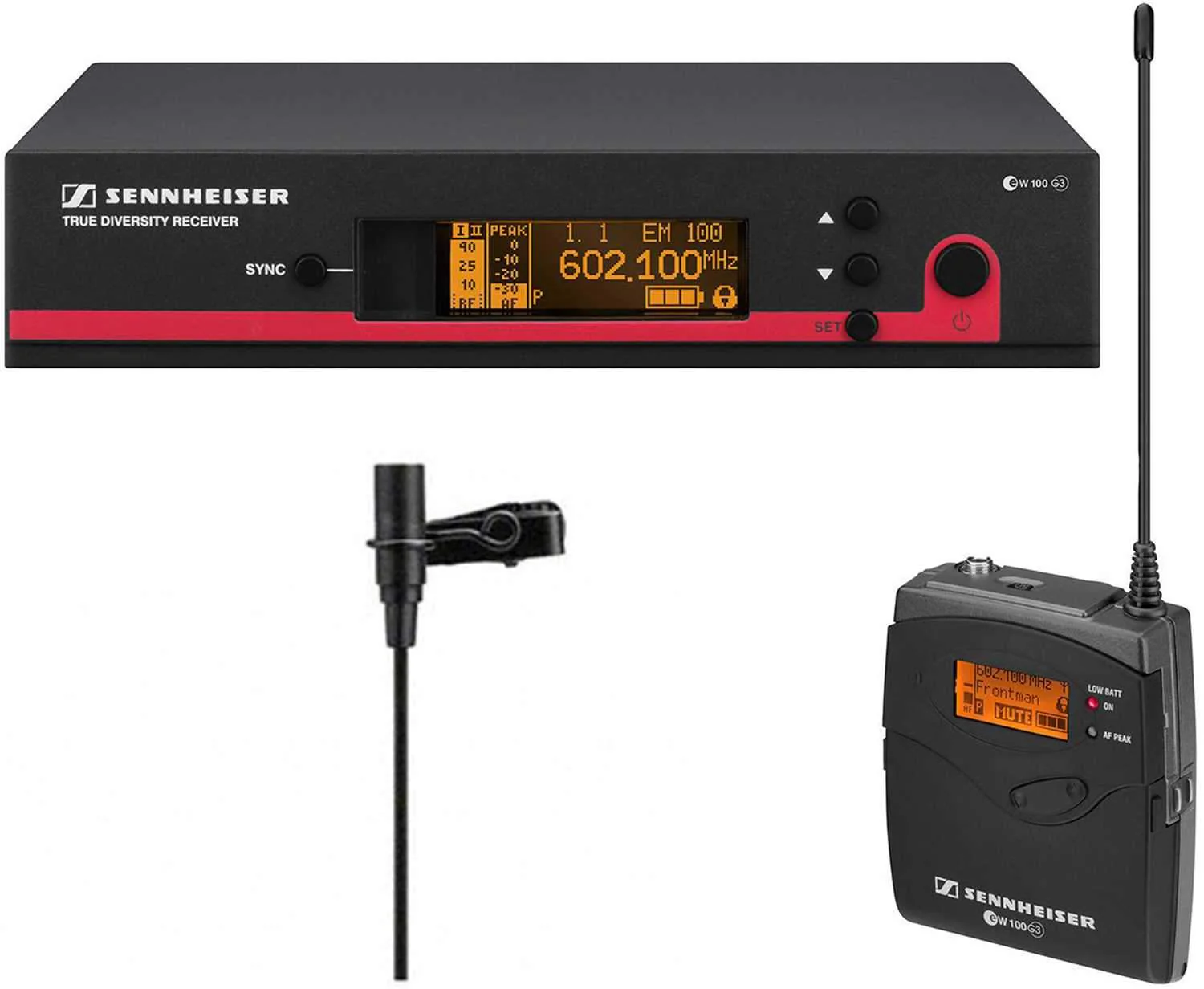

Presentation set for optimum speech intelligibility: Unobtrusive ME 2 omnidirectional clip-on microphone, robust SK 100 G3 body pack transmitter, EM 100 G3 true diversity receiver for highest reception quality.

Make your presentations come to life. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small. The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation - not on purchasing batteries. Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.

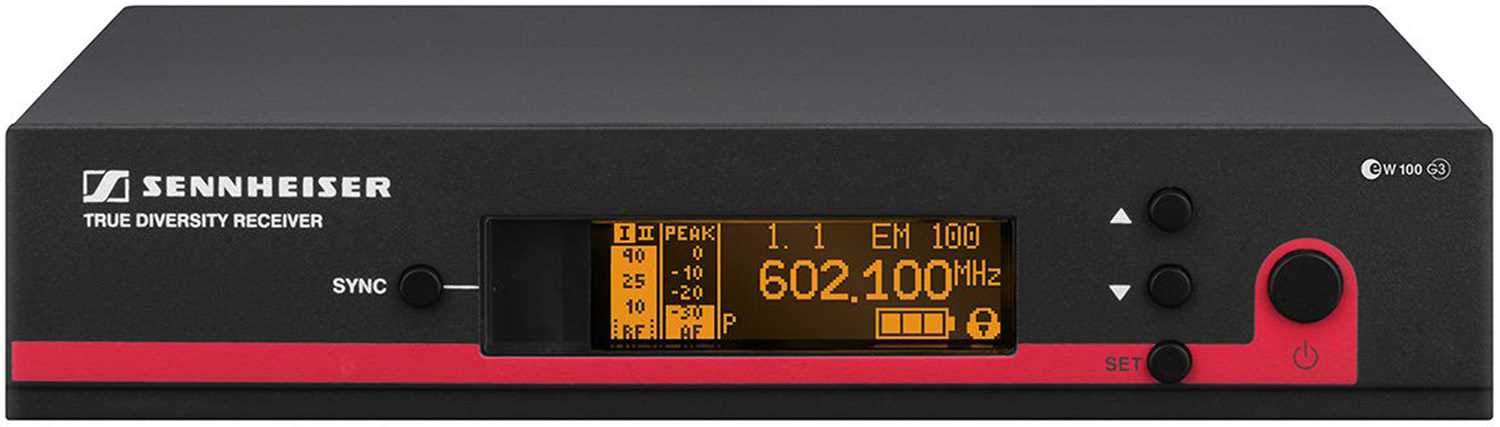

• 1 EM 100 G3 rack-mount receiver

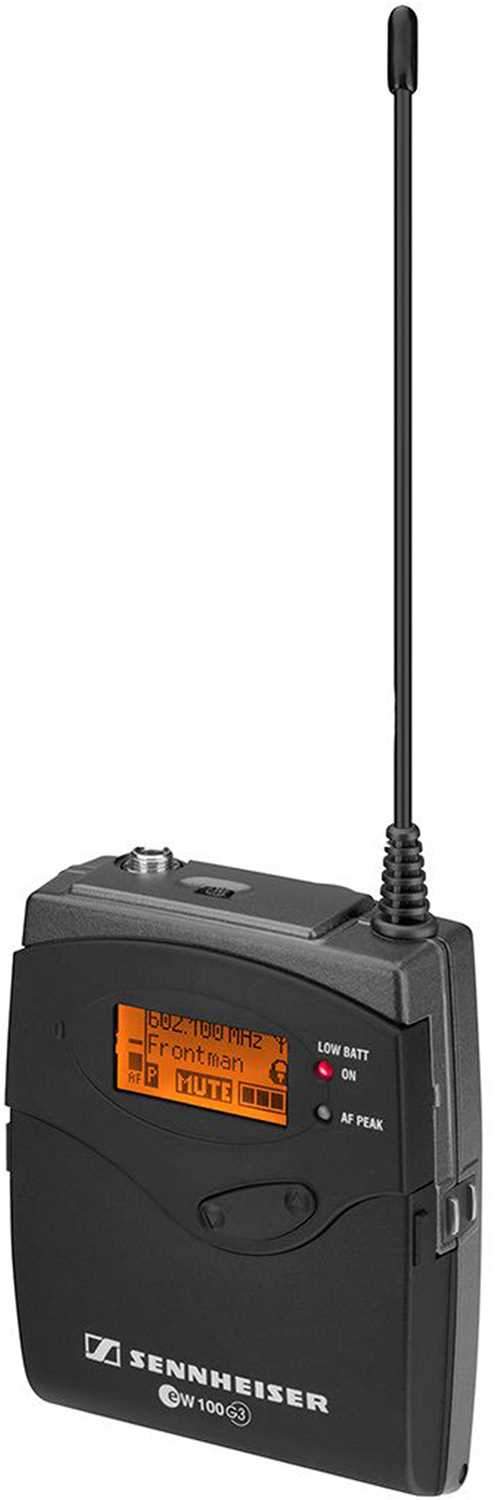

• 1 SK 100 G3 bodypack transmitter


• 1 ME 2 clip-on microphone (omnidirectional pick-up pattern)


• 1 NT 2 power supply unit


• 2 antennas


• 2 stacking elements


• 2 AA batteries


• Operating instructions

Features:

• Sturdy metal housing (transmitter and receiver


• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception


• Enhanced frequency bank system with up to 12 compatible frequencies


• High-quality true diversity reception


• Pilot tone squelch for eliminating RF interference when transmitter is turned off


• Automatic frequency scan feature searches for available frequencies


• Enhanced AF frequency range


• Increased range for audio sensitivity


• Wireless synchronization of transmitters via infrared interface


• User-friendly menu operation with more control options


• Illuminated graphic display (transmitter and receiver)


• Auto-Lock function avoids accidental changing of settings


• HDX compander for crystal-clear sound


• Transmitter feature battery indicatation in 4 steps, also shown on receiver display


• Programmable Mute function


• Integrated Equalizer and Soundcheck mode


• Contacts for recharging BA 2015 accupack directly in the transmitter


• Wide range of accessories adapts the system to any requirement

Specifications:

• Frequency Range: 566 - 608 MHz


• Compander: HDX


• Presets: 12


• Frequency response: 25 - 18.000 Hz


• THD, total harmonic distortion: < 0,9 %


• Signal-to-noise ratio: > 110 dB(A)


• RF frequency range: 516 - 865 MHz


• Transmission/receiving frequencies: 1680


• Switching bandwidth: 42 MHz



Receivers True Diversity



• Dimensions: 212 x 202 x 43 mm


• Weight: ~ 900 g


• Antenna connector: 2 BNC, 50 ?


• Audio output level: unbalanced: Jack : +12 dBu max


• Audio output level: balanced: XLR : +18 dBu max



Transmitter



• Dimensions: 82 x 64 x 24 mm


• Weight: ~ 160 g


• RF output power: 30 mW


• Operating time: typ. 8 h


• Power supply: 2 x 1,5 V (AA)


• Input voltage range: 1,8 V line



Clip-on microphone



• Microphone: permanent polarized 130 dB(SPL) max.


• Sound pressure level (SPL): 130 dB(SPL) max.


• AF sensitivity: 20 mV/Pa
