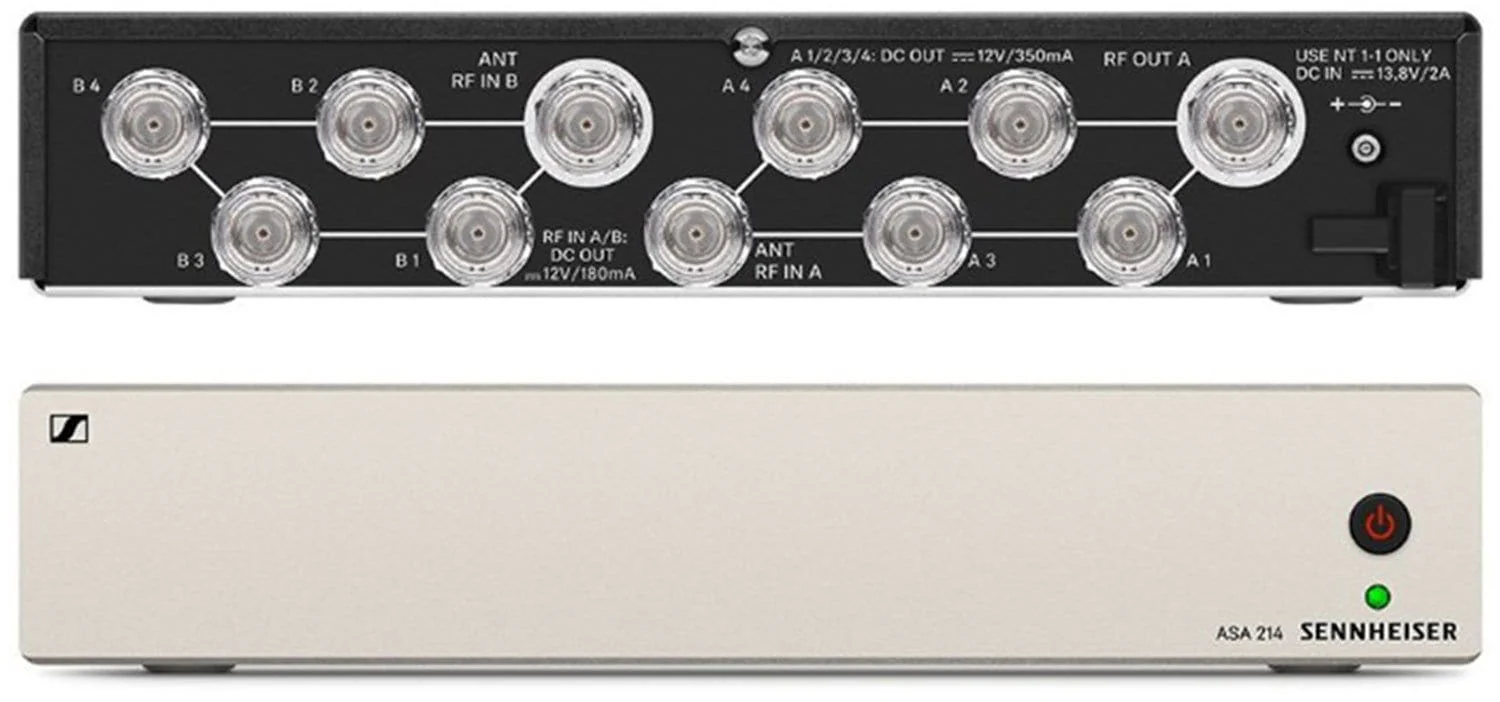

Sennheiser ASA214-UHF Antenna Splitter for EW G

The ASA 214 active antenna splitter is built in a full metal housing and ships with 8 BNC cables included. The splitter runs up to 4 receivers of the ew series with one antenna. The UHF-Version includes the NT 1-1 power supply with EU, UK and US adapters, while the ASA 214-1G8 includes the NT 1-1 with EU, UK and AU adapters.

Features:

• Compatible with G4 and G3 systems
• Power supply via BNC cables for EM 300-500 / EM 100 receivers. No additional power supply needed
• Up to 4 true diversity receivers can be used with two external antennas
• Full metal housing

Specifications:

• Impedance: 50 Ω
• Dimensions: approx. 212 x 168 x 43 mm
• Weight: approx. 1090 g
• Power consumption: max. 2.0 A with connected receivers and boosters
• Storage temperature: -20°C - +70°C
• Operating temperature : -10°C - +55°C
• Power supply: 13,8 V DC (with NT 1-1 mains unit)
• Antenna connector: BNC
• Frequency range: 470-870 MHz (UHF), 1785-1800 MHz (1G8)
• Operating relative humidity: 5 - 95 %
