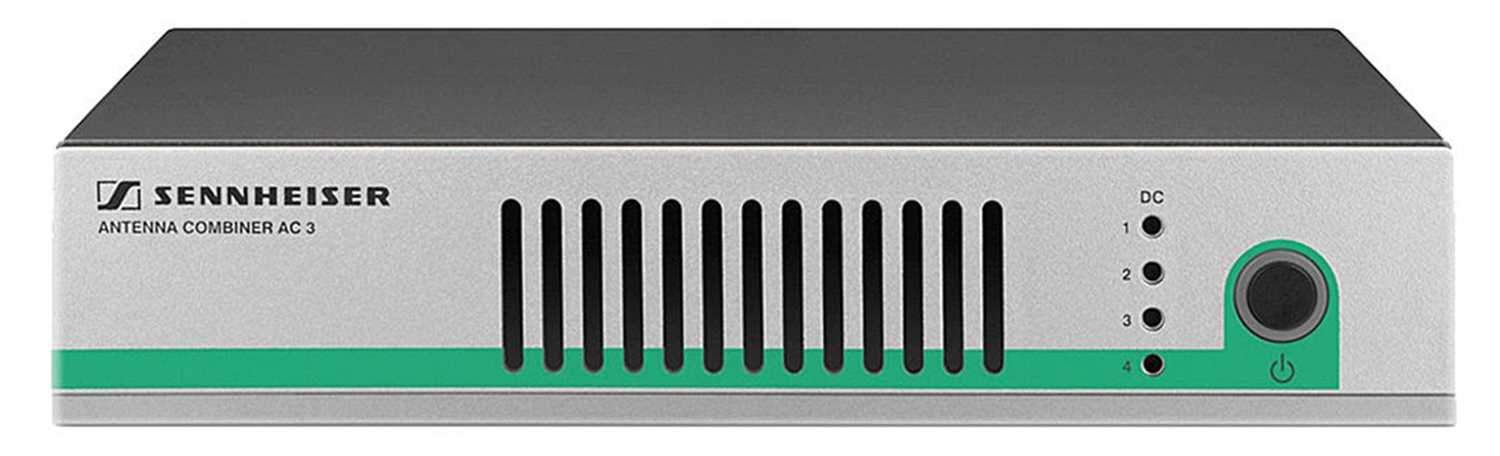

Sennheiser AC3/NT Antenna Combiner for EW Series

Operates up to four wireless monitoring transmitters from the ew series using one shared antenna.

Power is supplied to the SR 300 IEM G3 transmitters over the BNC cables, eliminating separate power supplies for the transmitters

Active antenna combiner with DC power distribution for IEM transmitters, includes required NT3-1-US power supply and four 20" BNC cables.

Technical Data:

• Impedance: 50 Ohm
• RF frequency range: 500 - 870 MHz
• Operating voltage (stand alone): 13,8 V DC
• Transmission loss: 0 dB

What's in the box?

• 1 AC 3 antenna combiner
• 4 BNC cables
• Operating instructions
• 1 NT3-1-US Power Supply
