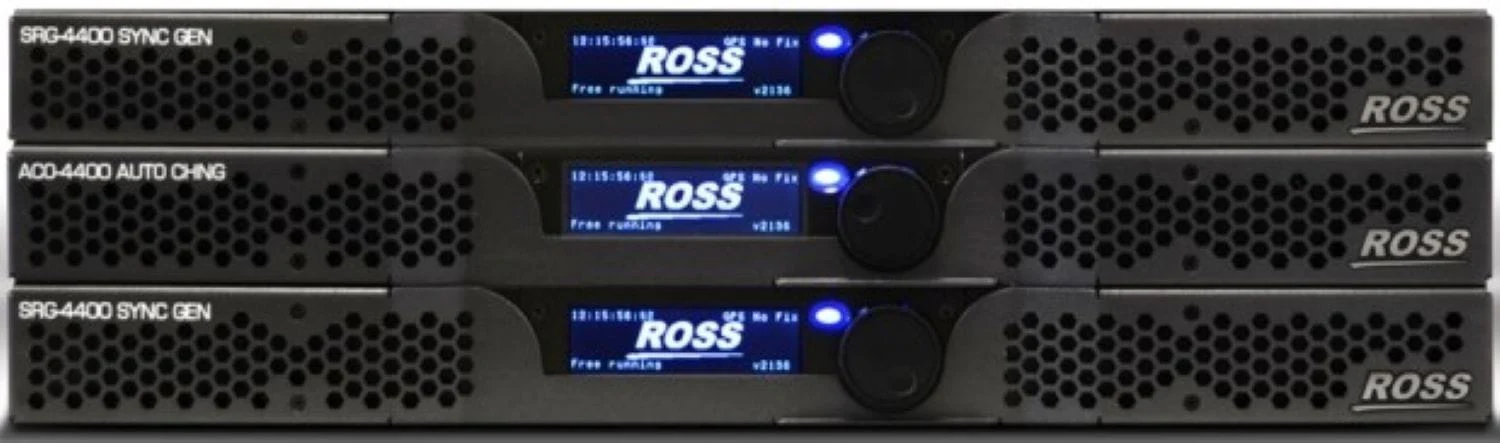

Ross SRG4400 Master Reference and Signal Test Generator

The SRG-4400 is a 1RU state of the art master reference and 3G/HD/SD SDI test signal generator designed to exacting specifications. The SRG-4400 is the ideal choice for supplying all of the required reference timing and test signals needed in today’s complex broadcast facilities. It provides all the reference (Color Black, Tri-Level Sync), timing and test signals, including LTC and VITC, together with analog audio, AES audio and Wordclock/DARS, needed to satisfy any application in PAL, NTSC, SD SDI, HD SDI, & 3G SDI and mixed standard installations.

Features:

• 4 independent pairs of Black-Burst / Tri-level Sync Reference output
• 2 independent pairs of 3G/ HD/ SD SDI Black and Test Pattern Outputs (with embedded audio)
• AES digital audio outputs
• Composite analog video Test and Black outputs
• DARS (Digital Audio Reference) outputs
• LTC Outputs
• Word Clock outputs
• NTP Time Synchronization
• GPS Time Synchronization
• IP Based Control and Monitoring via DashBoard

Specifications:

• Rack Units (Height): 1
• Input Impedance: 75 ohm
• Output Impedance: 75 ohm
• Operating Temperature (Maximum): 104 F
• Operating Temperature (Minimum): 32 F
• Signal Generator Type - Audio
• Signal Generator Type - Video
• Tester Format - Standalone Component (Box)
