RME TCO HDSP Time Code Option

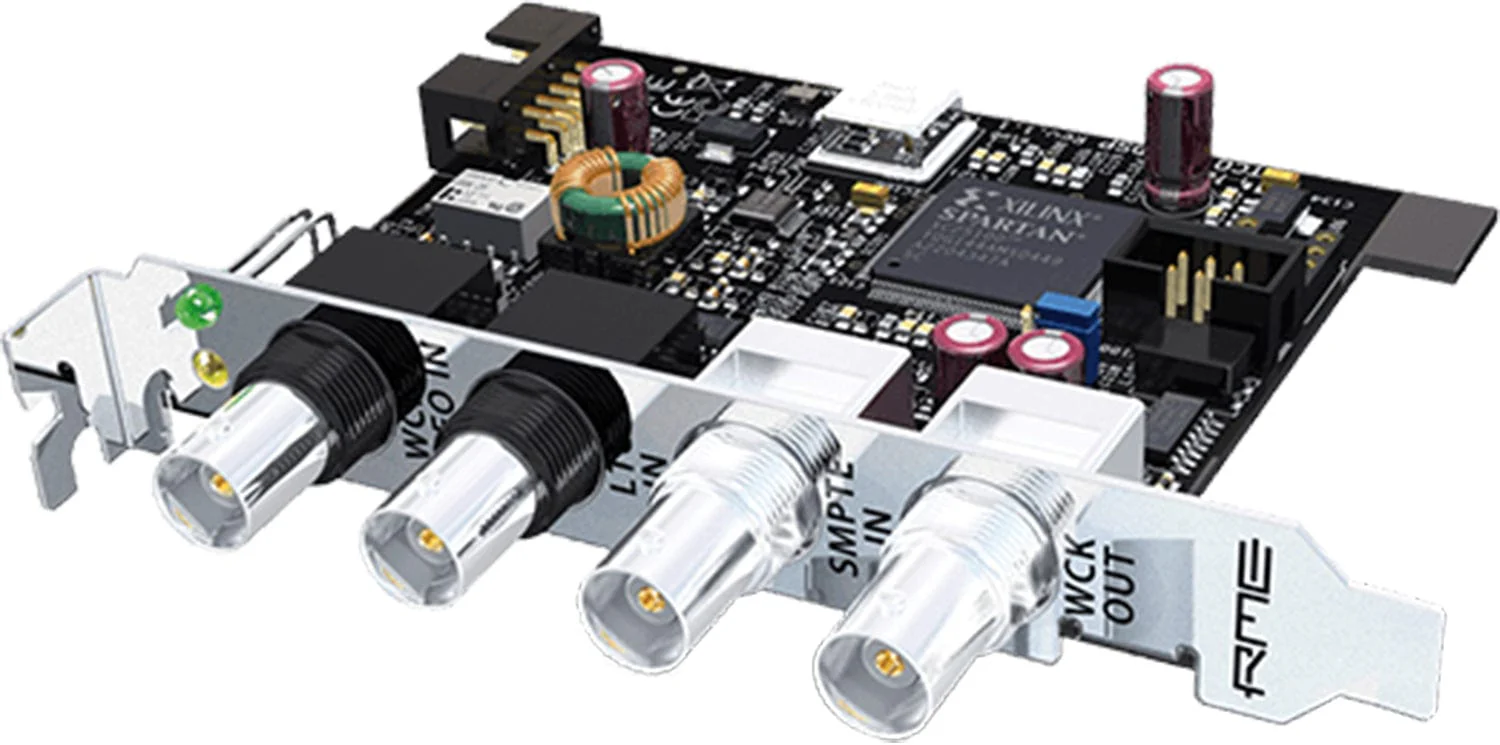

The TCO-HDSP from RME is a time code option card for the HDSP AES-32 and HDSP 9632. When installed, it can receive input from LTC sources, from Pal and NTSC video, or Wordclock. The option is a user installable item and does not require a free PCI slot on the computer's motherboard.

Specifications:

• Form: Expansion Card
• Connector Type:
  • Input:
    • 1 x BNC LTC In
    • 1 x BNC Video In
    • 1 x BNC Wordclock In
  • Output:
    • 1 x BNC LTC Out
    • 1 x BNC Wordclock Out
• Dimensions: 4 x 3" (98 x 75 mm)
• Application: Provides synchronization for SMPTE and video
• Packaging Info:
  • Box Dimensions (LxWxH): 14 x 11 x 5"
