RME HDSPEMADI MADI 64 Channels Audio Interface

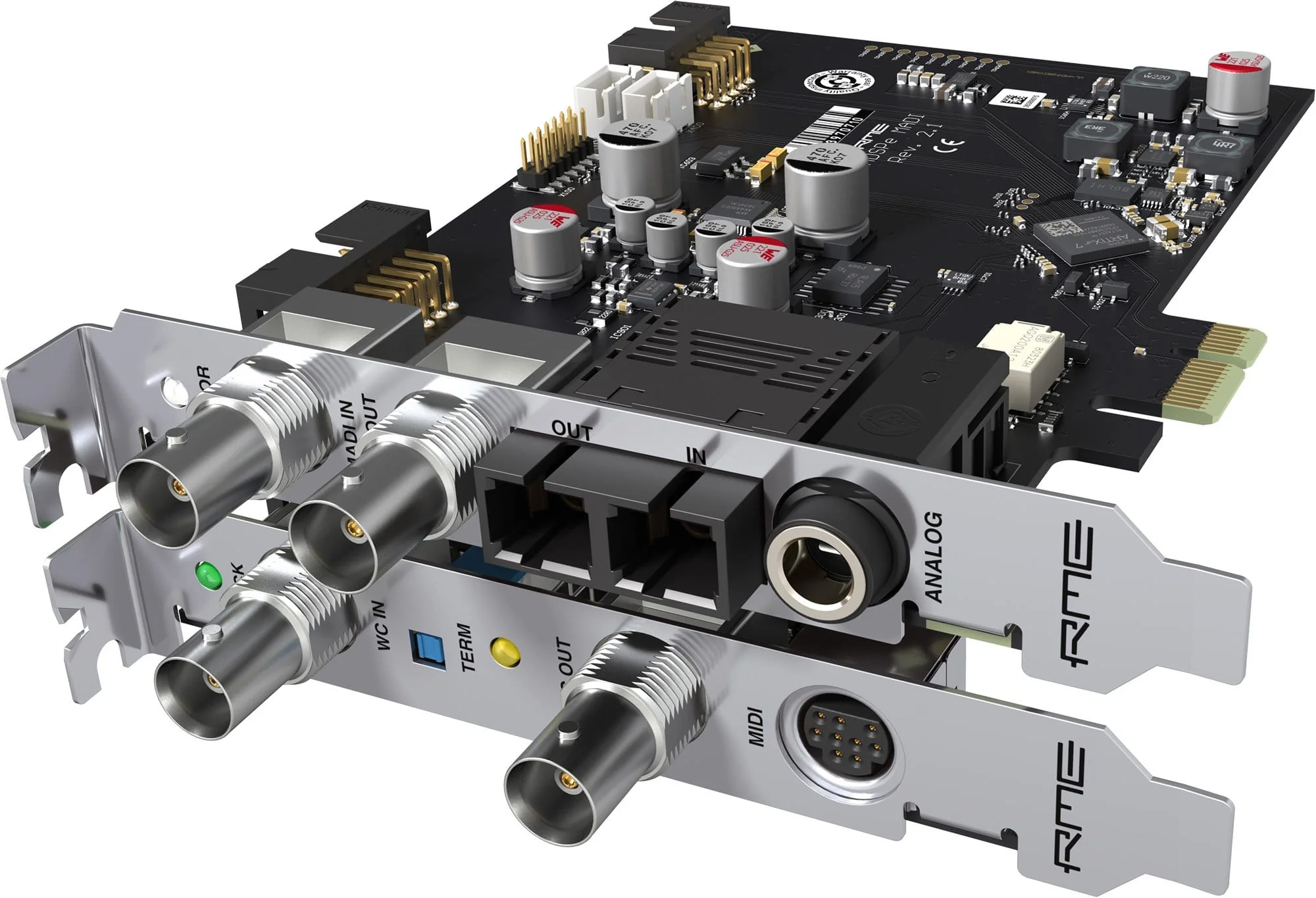

The HDSPe MADI is RME's both inexpensive and outstanding PCI Express card with MADI interface. HDSPe MADI is based on the award-winning HDSP MADI card, and represents the new top model of this world-wide successful card line.

Features:

• MADI optical patchbay and router
• MADI coaxial/optical or vice versa converter and splitter
• MADI redistributor, patchbay and router
• TotalMix can be completely remote controlled via MIDI. Furthermore, the hardware delivers RMS and peak level meters for full control over 192 audio channels at minimal CPU load.

Specifications:

• 1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
• 2.5 Gbps line speed
• Packet-based full-duplex communication (up to 500 MB/s transfer rate)
• All settings changeable in real-time
• Automatic and intelligent master/slave clock control
• Sync sources: MADI coaxial, MADI optical, word clock, internal
• Varipitch: by input signal or word clock
• Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/word clock)
• Sample rate range: MADI: 32 kHz - 96 kHz, word clock: 27 kHz - 200 kHz
• Jitter: < 1 ns, internal and all inputs
• Jitter sensitivity: PLL operates even at 100 ns Jitter without problems
• Comes with DIGICheck: the ultimate measurement, analysis and test tool

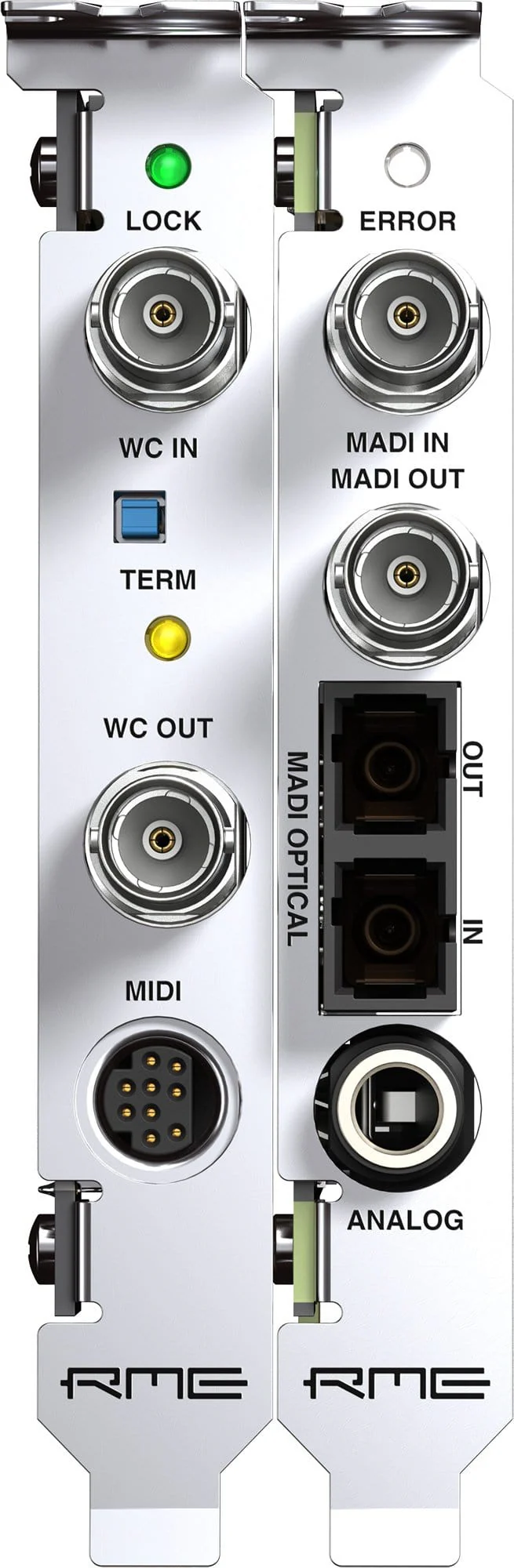

• Input MADI optical, MADI coaxial (BNC), 2 x MIDI, word clock (BNC)
• Output MADI optical, MADI coaxial (BNC), 2 x MIDI, word clock (BNC), stereo analog line/phones
• Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination
• Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
• MIDI input and output: via four 5-pin DIN jacks
