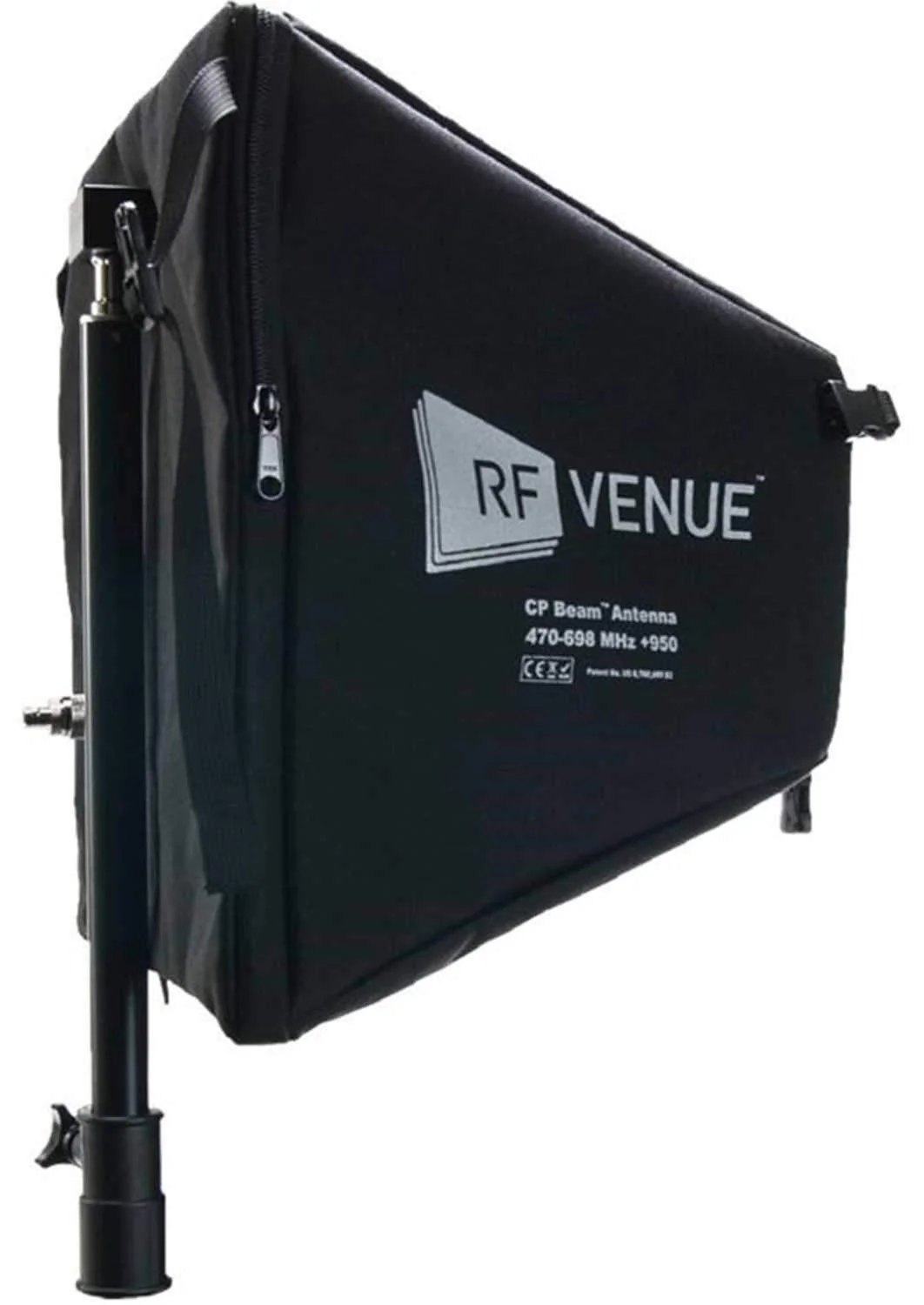

RF Venue CP Beam High Gain Folding Antenna

The CP Beam™ antenna is a high performance, directional UHF antenna in a lightweight, portable package. Unlike other bulky helicals that require flight cases, the CP Beam is quickly deployed and stowed - fitting in a 2RU rack drawer and weighing just 2.5 lbs. 9 dBd of gain makes it an ideal choice for long range applications. Widely used on major concert tours for monitoring and comms, the CP Beam connects to any brand IEM, wireless mic, or UHF intercom.

Features:

• lightweight circularly polarized beam antenna designed to be used with IEMs, wireless microphone systems, and other UHF communication devices
• Operating frequency: 470–698 MHz
• Bandwidth: 228 MHz
• Average return loss: -13.15 dB
• Impedance: 50?
• Pattern type: Beam
• Polarization: RHCP
• Beam width: 63°
• F/B ratio: -10 dB
• F/S ratio: -12 dB
• Beam width: 70°
• F/B ratio: -9 dB
• F/S ratio: -12 dB
• Squint: < 2 dB
• Gain: 9 dBd
• Length: 355mm
• Height: 355mm
• Weight: 1100g
• Mount threads: 1/4-20, 3/8-16, 5/8-27
• Operating temperature: -23°C–54°C
• Color: Black fabric
• Connector(s): N female (BNC supplied)
