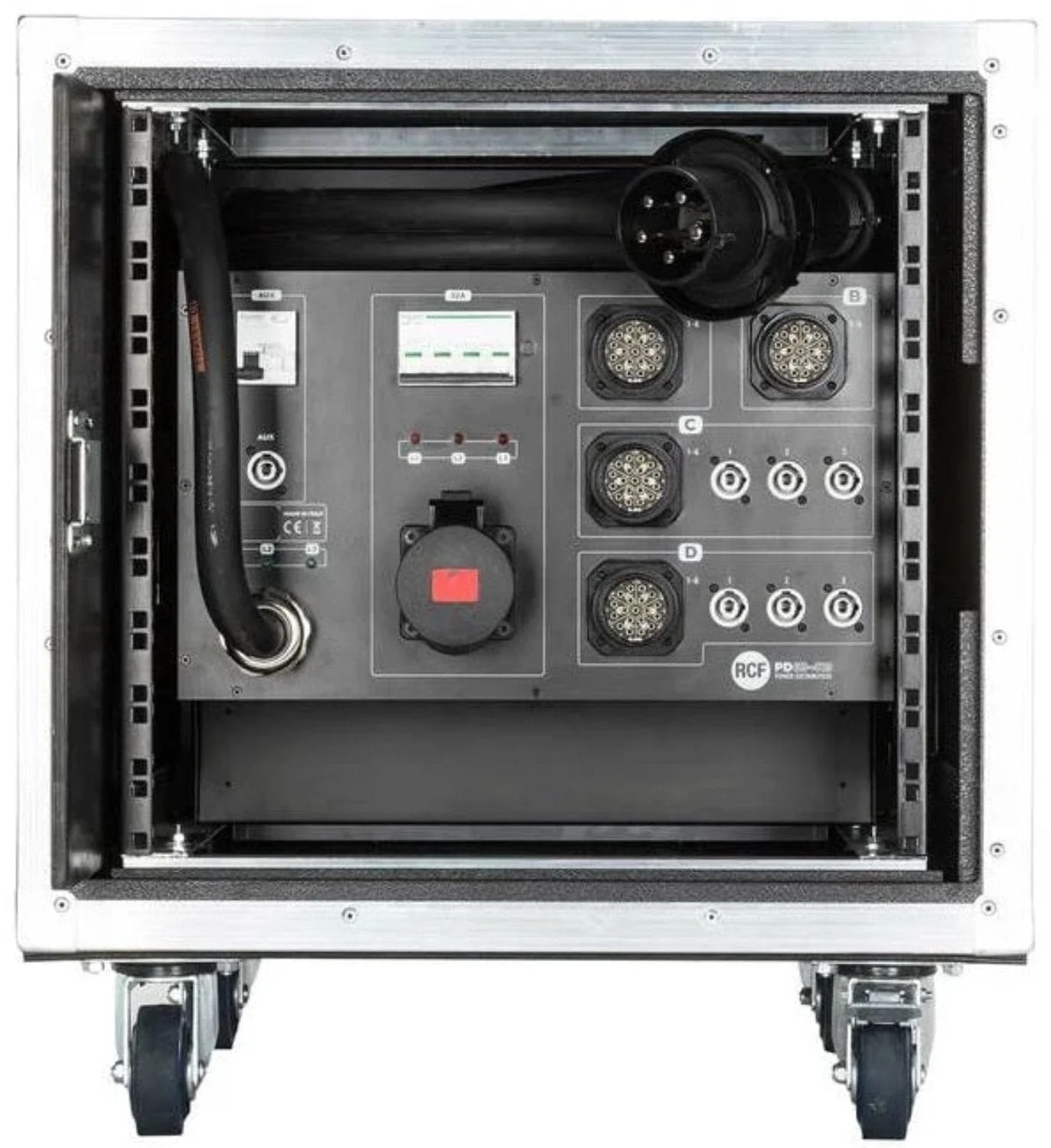

RCF PR 63 Power Distribution Rack with with LKS Connectors

The Power Rack PR-63 features the PD 63 A-419 power distribution with a 63 A Cekon power input with 5 m fixed cable. The three-phase power is distributed in a 32 A Cekon output, 4 x LKS19 output, 6 x Powercon output, 1 Powercon auxiliary output to power the CR 16-ND Control Rack. All outputs are equipped with individual RCBOs (Residual Current-operated Circuit-Breaker with Overcurrent protection) for maximum reliability. In case of damage, only the faulty output is missed while the rest of the system continues to function.

Features:

• 63 Ampere Cekon power input with 5 m cable
• 32 Cekon outputs
• 4 x LKS 19 outputs
• 6 x Powercon outputs + 1 Powercon auxiliary output
• 24 x individual power line RCBOs
• 32 Ampere and Auxiliary individual front RCBOs
• Tour Grade flight case construction

Specifications:

• Power Input Connectors 63 Ampere Cekon with 5m Cable
• Outputs:
  • Connector 32 Cekon, 4 x LKS 19
  • Powercon Outputs 6 + 1 Auxiliary
  • Individual Power line RCBOs 24
• Standard compliance CE marking: Yes
• Size Weight: 65.8kg / 145.06lbs
• Shipping information:
  • Package Height: 570mm / 22.44 inches
  • Package Width: 610mm / 24.02 inches
  • Package Depth: 630mm / 24.8 inches
  • Package Weight: 68.2kg / 150.36lbs
