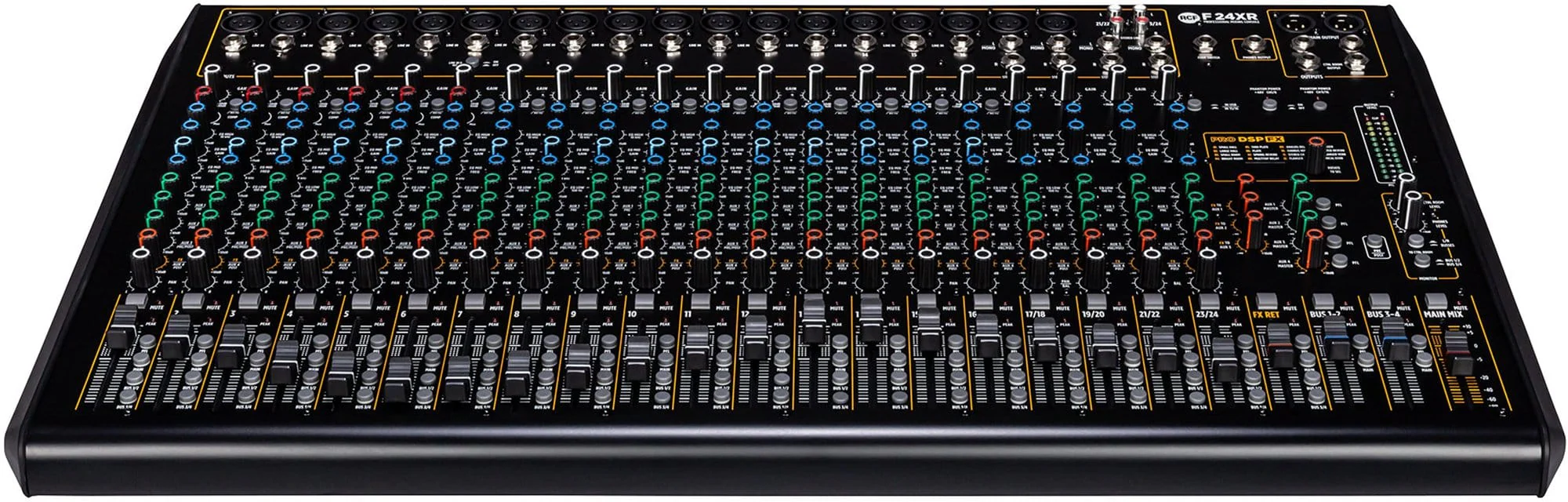

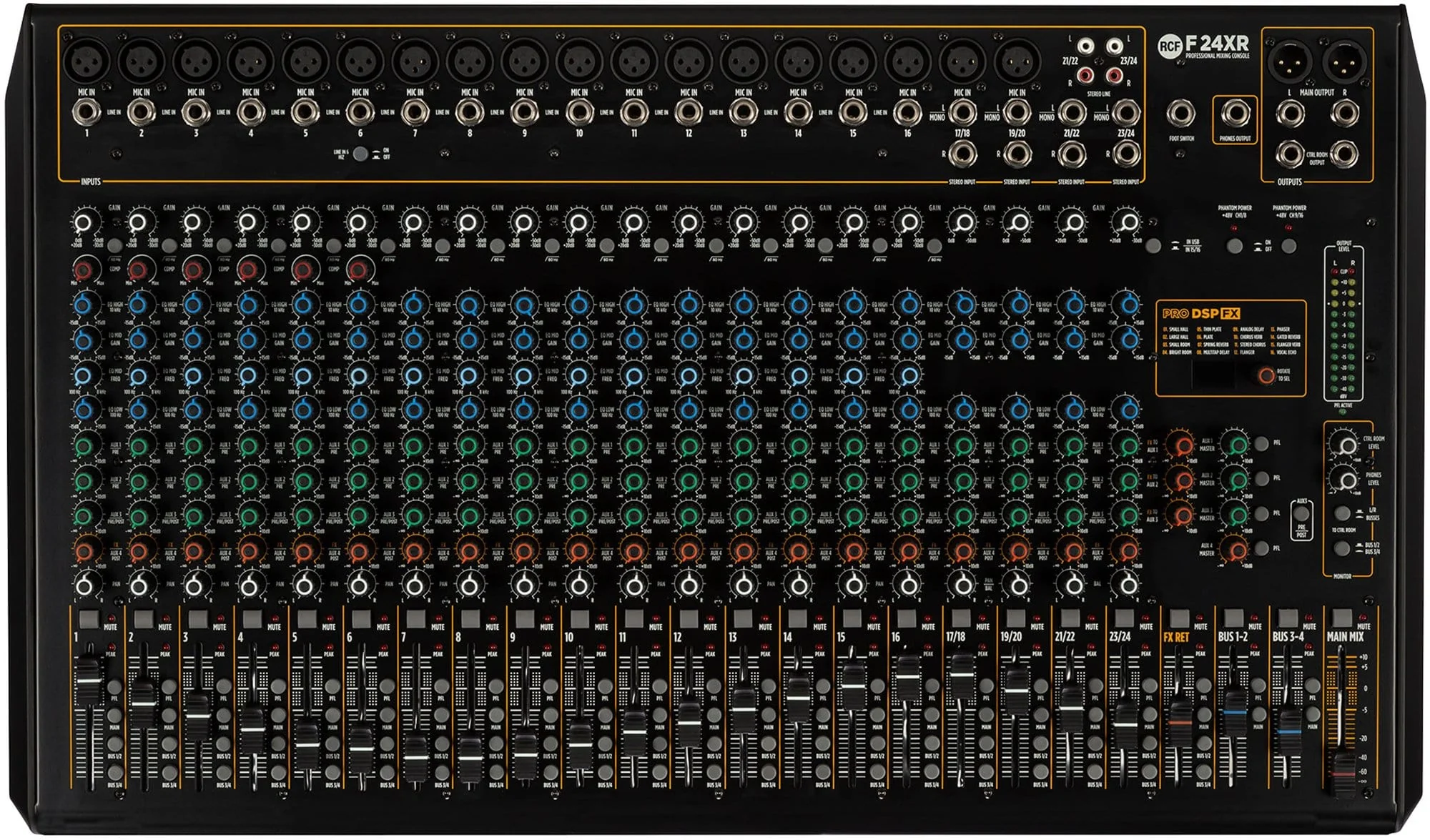

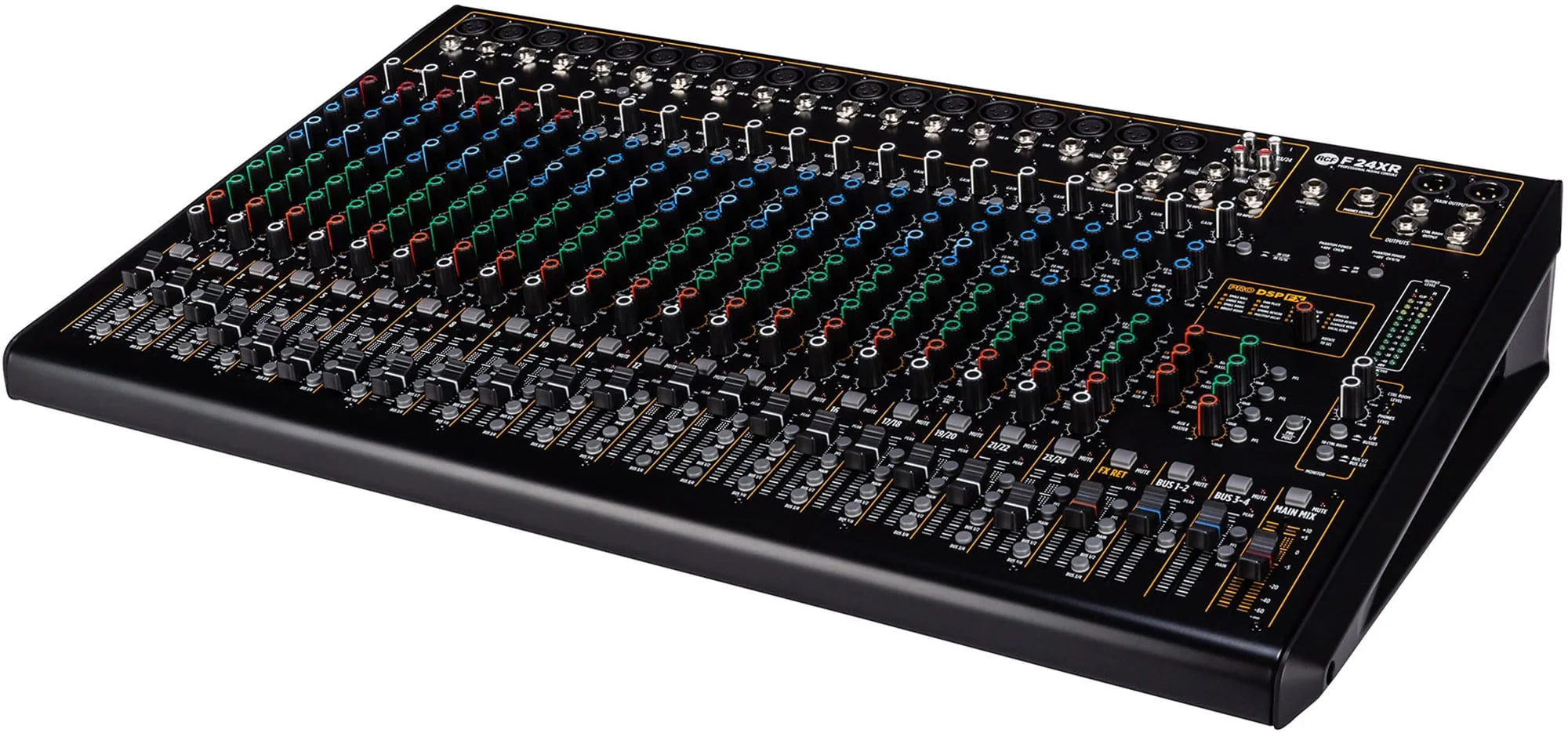

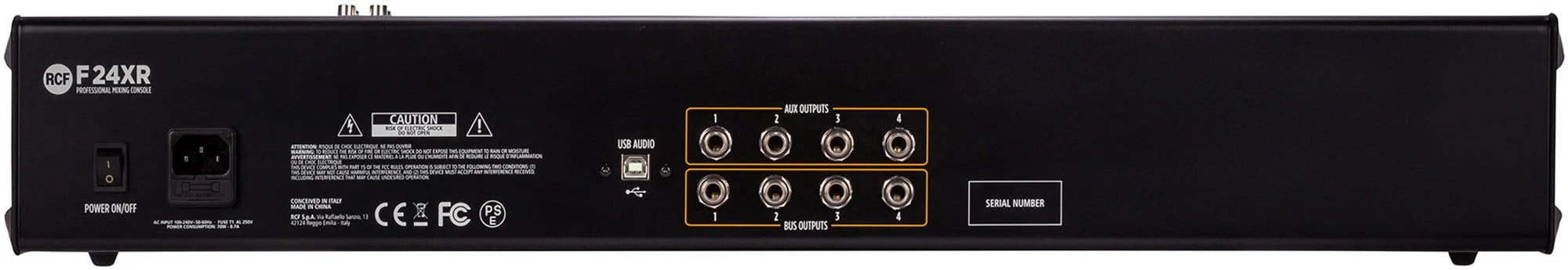

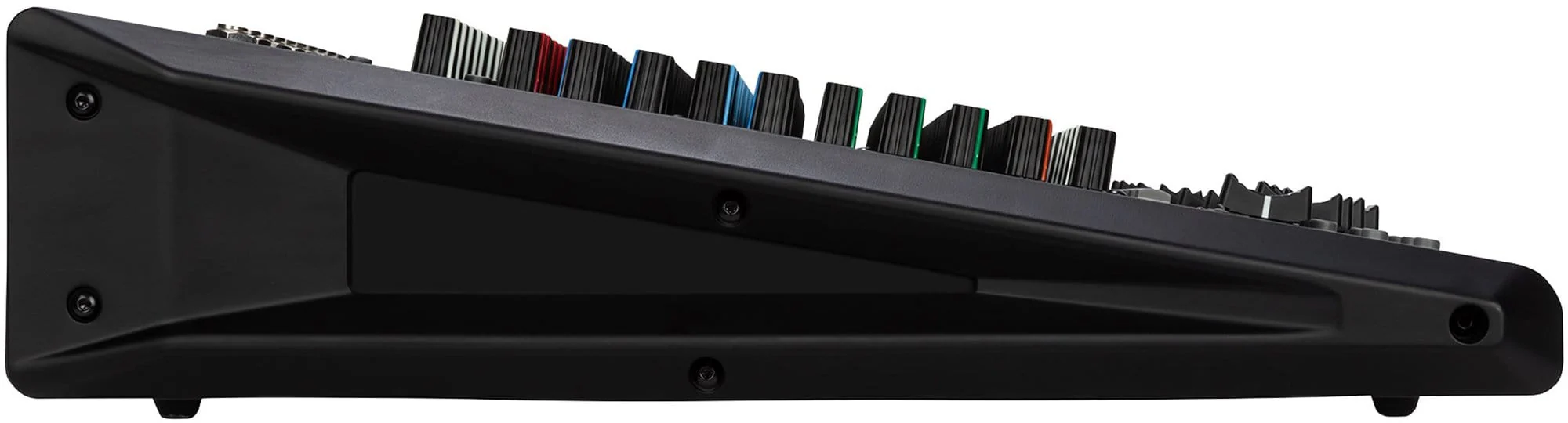

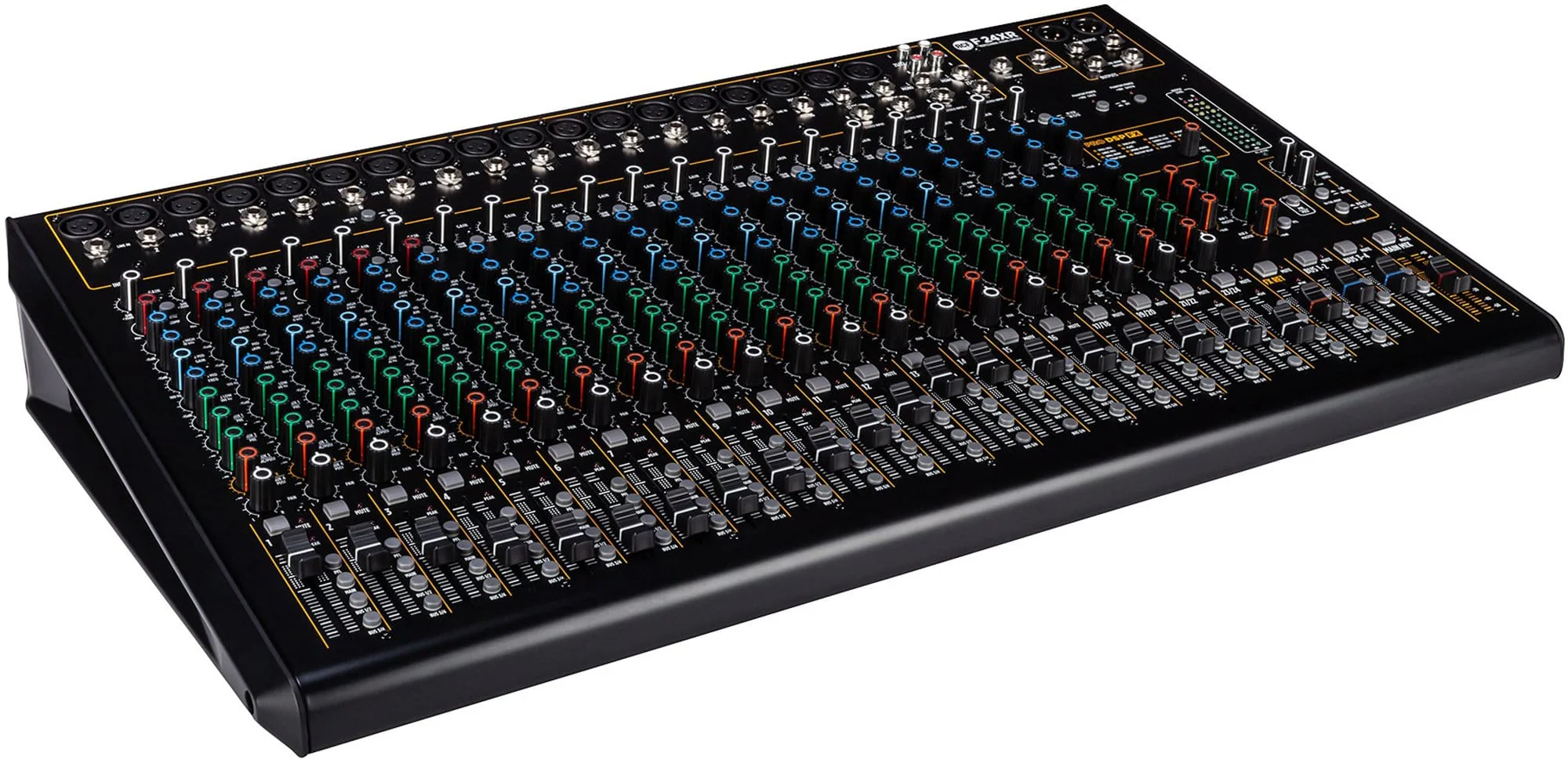

RCF F24-XR 24 Channel Mixer with FX and Recording

The F 24XR features 18 mic preamp inputs, 16 mono line inputs, 4 stereo line inputs, multi-FX, 6 single control compressors, stereo recording and playback via USB port, balanced main output (Stereo XLR + TRS) . The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.

Features:

• Sturdy Metal Chassis
• PRO DSP FX onboard with 16 presets
• Stereo Recording and Playback via USB ports
• Balanced main output audio path from input to output
• 6 single control compressors
• Mono channels provided with 3-band EQ, with selectable mid frequency
• Robust, compact and attractive design.
• Designed and Engineered in Italy
• Internal Universal Power Supply
• 60 mm faders

Specifications:

• Electrical specifications
  • Frequency Response: 20 Hz ÷ 20 kHz
  • THD+N, 20dB gain, 0dBu out (% A-Weighted): <0,02% A-Weighted
  • Power supply: Internal
  • Voltage requirements: 100 V - 240 V
  • Power consumption (W): 70 W
• Inputs
  • Gain Range: 0 dB ÷ -50 dB
  • Gain Selection: 20 dB ÷ -30 dB
  • HI-Z Line Inputs Impedance (MOhm): 1 Mohm
  • HI-Z Line Inputs: 1
  • Input Noise Level (dBu A-Weighted): -124 dBu A-Weighted
  • Mic Inputs Impedance (KOhm): 14 kohm
  • Line: 16
  • Line Input Impedance (kOhm): 21 kohm
  • Low Cut: 80 Hz
  • Mic: 18
  • Phantom Power +48V: Yes
  • Stereo Line: 4
  • Stereo Line Gain Selection: 20 dB ÷ -30 dB
  • Stereo Line Input Impedance: 14 kohm
• Outputs
  • Main MIX: 1
  • Control Room: Yes
  • FX Send: 1
  • AUX Send: 3
  • AUX output: 4
  • Group Out: 2
  • Phones: 1
• Outputs specifications
  • Main Out Level (dBu): 28 dBu
  • Aux Out Level (dBu): 28 dBu
  • Group Out Level (dBu): 28 dBu
  • Phones Out impedance (Ohm): 150 ohm
  • Phones Out Level (dBm): 10 dBm
• Compressors
  • RCF Compressors: n°6 Single Control Compressors on Channels 1 to 6
• EQ
  • Input Channels EQ: 1 Semi Parametric / 2 Shelving
  • Description:
  • High: +/-15 dB @ 10 kHz Shelving
  • Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell
  • Low: +/-15 dB @ 100 Hz Shelving

Auxiliary sends

• AUX: 2 PRE / 1 PRE/POST
• FX POST: 1

Internal Effects

• Send Effects: 1

USB audio

• Type: B
• Play trk: 2
• Rec trk: 2
• Supported Sample Rate (kHz): 44.1, 48.0 kHz

Other features

• Footswitch: Yes

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: Metal
• Color: Black

Size

• Depth: 406 mm / 15.98 inches
• Height: 107 mm / 4.21 inches
• Weight: 9.5 kg / 20.94 lbs
• Width: 720 mm / 28.35 inches

Shipping informations

• Package Depth: 524 mm / 20.63 inches
• Package Height: 201 mm / 7.91 inches
• Package Weight: 12.5 kg / 27.56 lbs
• Package Width: 759 mm / 29.88 inches
