RCF EVOX-8 Powered Portable PA system

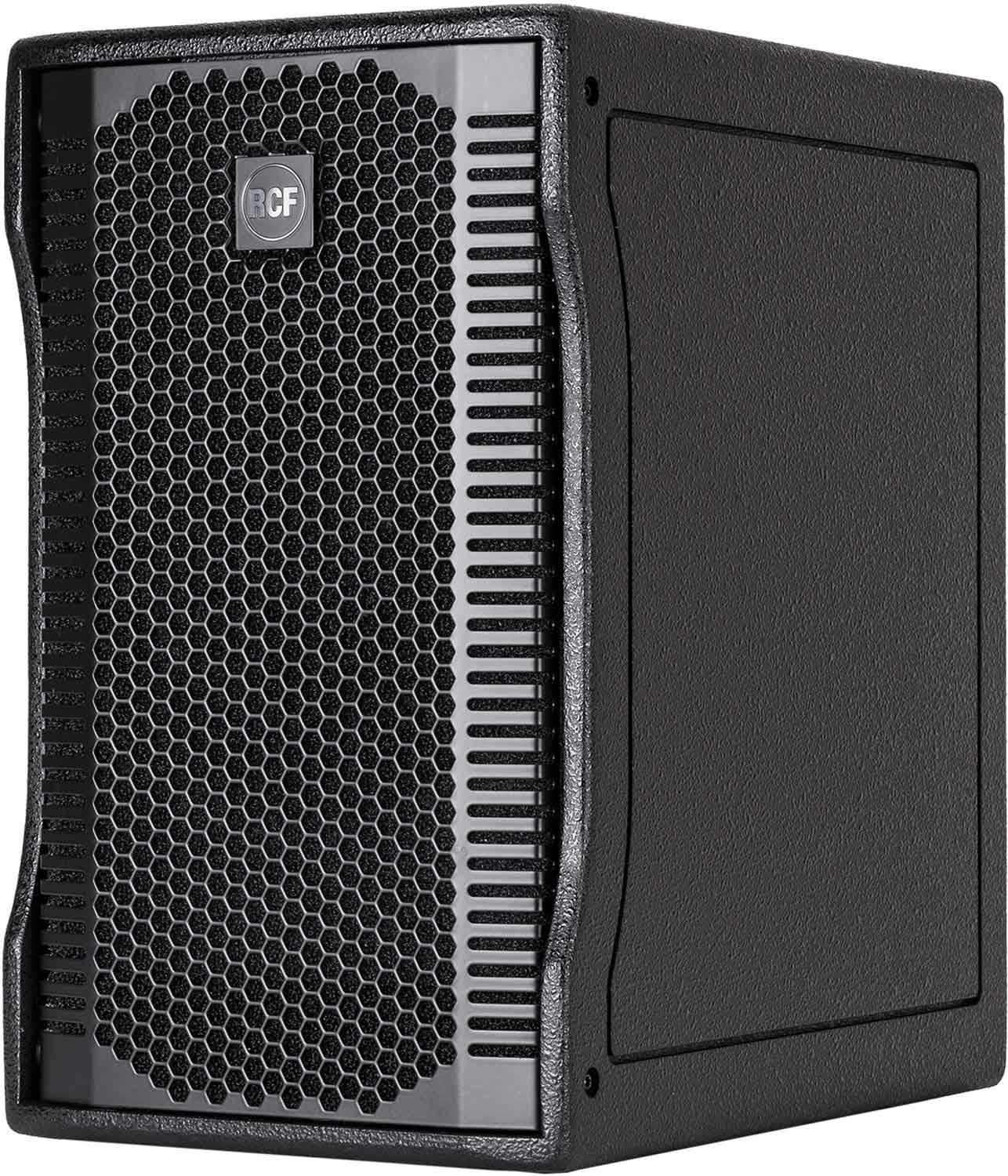

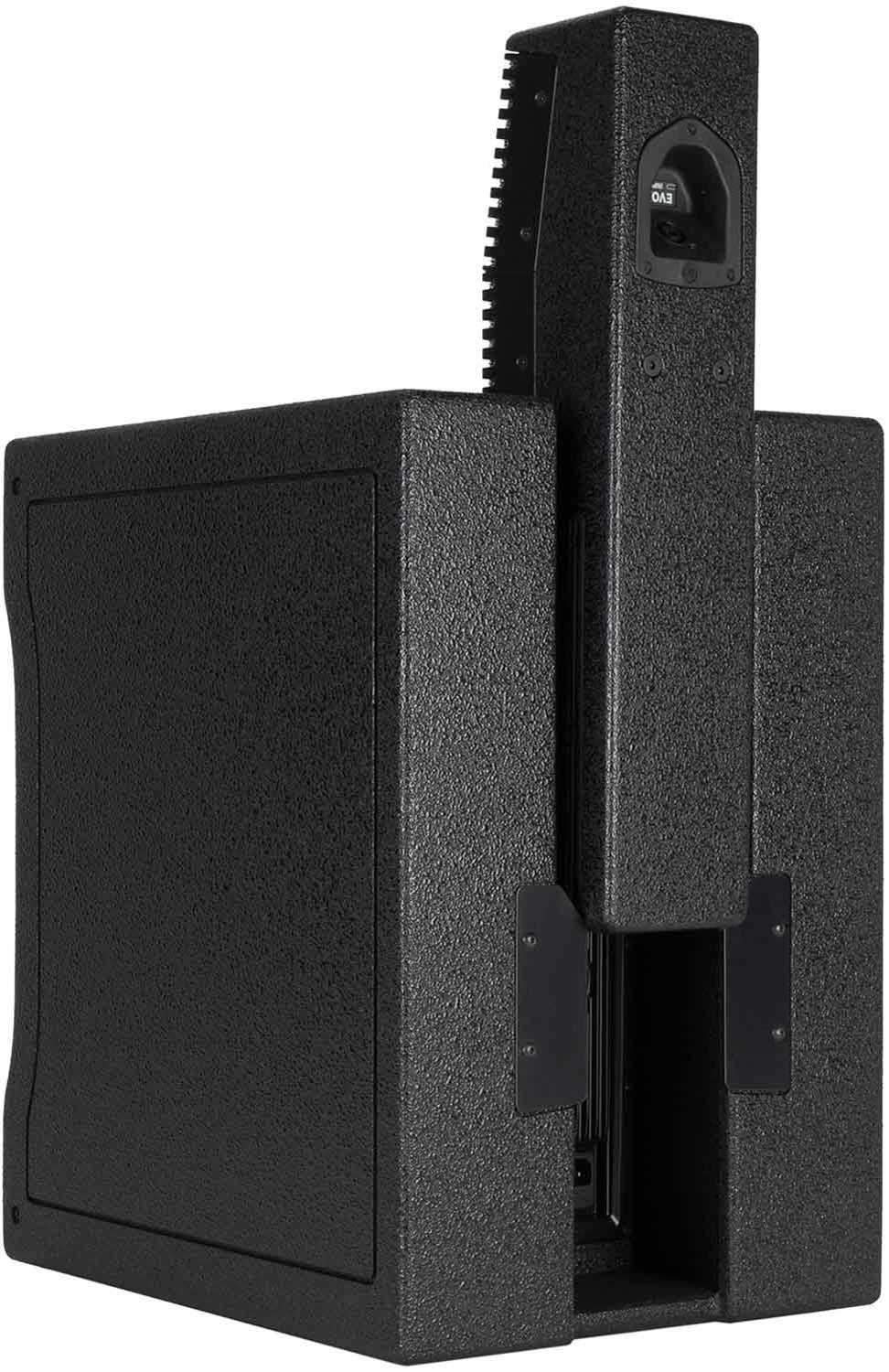

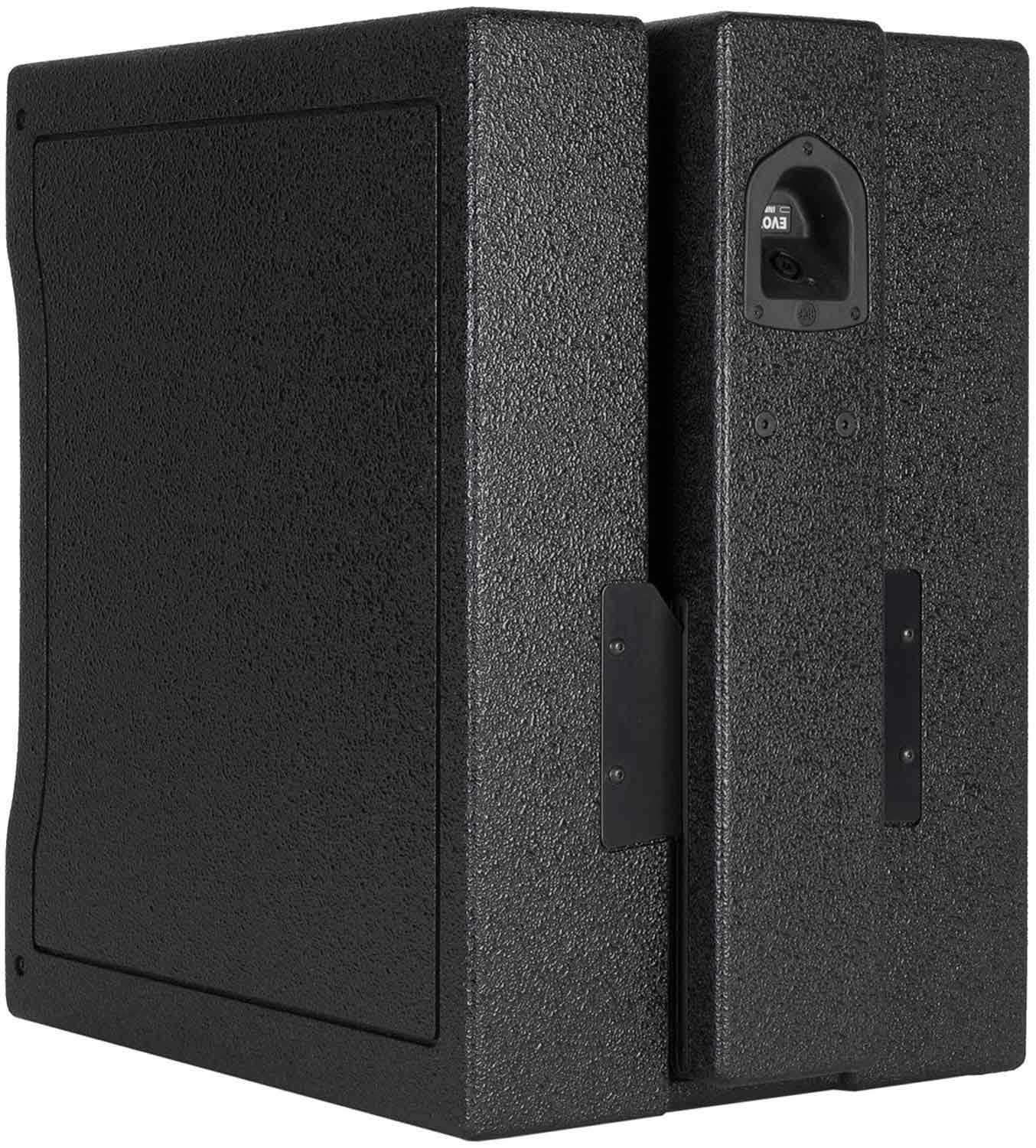

Evox 8 is a portable compact size sound reinforcement system. Evox 8 combines the quality and reliability of RCF transducers with a very high amplification power. The system features eight 2.0" full range transducers in the line source satellite and a deep sounding 12" woofer in a bass reflex enclosure. The system is designed to be the perfect high output solution for live music and DJs. The unique vocal attitude and SPL make Evox 8 the perfect tool for larger presentations, corporate events and congresses.

Features:

• 1400 Watt
• 128 dB max SPL
• 40 Hz 20 kHz frequency response
• 12" Woofer, 2.5" v.c.
• 8 x 2" Ultra compact fullrange, 1.0 v.c.
• 120° x 30° slightly tilted pattern control
• Innovative DSP processing

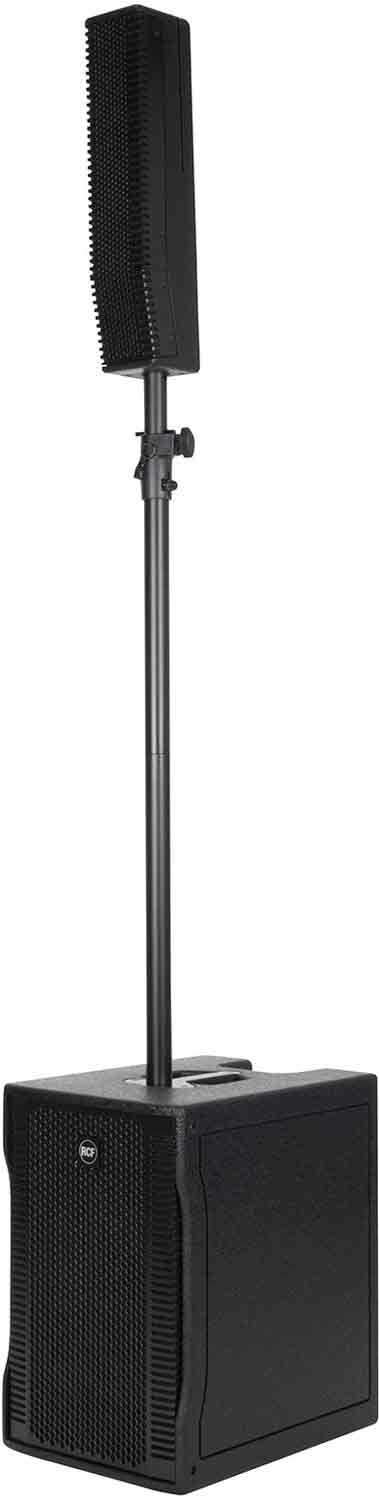

• Pole mountable, easy set-up and transportation

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 8 x 2", 1.0" v.c.
• Woofer: 12", 2.5" v.c.

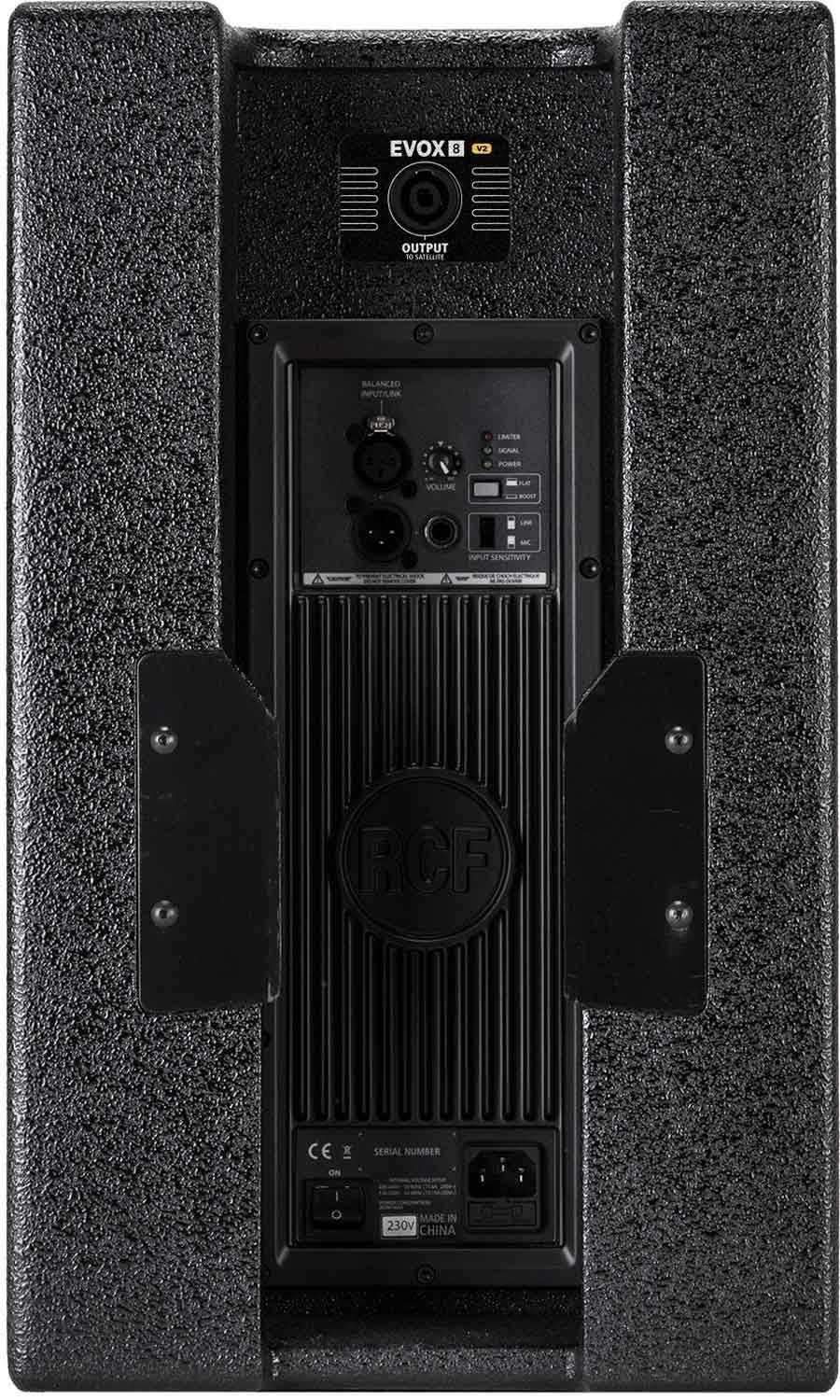

INPUT/OUTPUT SECTION

• Input connectors: Jack-XLR male
• Output connectors: XLR female
• Input sensitivity: -2 dBu / + 4 dBu

PROCESSOR SECTION

• Crossover frequencies: 220 Hz
• Protections: thermal, rms
• Limiter: Soft limiter
• Controls: Volume, EQ, phase, xover

AMPLIFIER SPECIFICATIONS

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: VDE connector

CABINET

• Cabinet Material: Baltic birch plywood
• Hardware: 2 x M6
• Handles: 1 top
• Pole Mount/Cap: Yes
• Colour: black

PHYSICAL SPECIFICATIONS

• Height: 530/20.86 mm/inch
• Width: 346/13.62 mm/inch
• Depth: 459/18.10 mm/inch
• Net Weight: 23.8/50.70 kg/lbs
