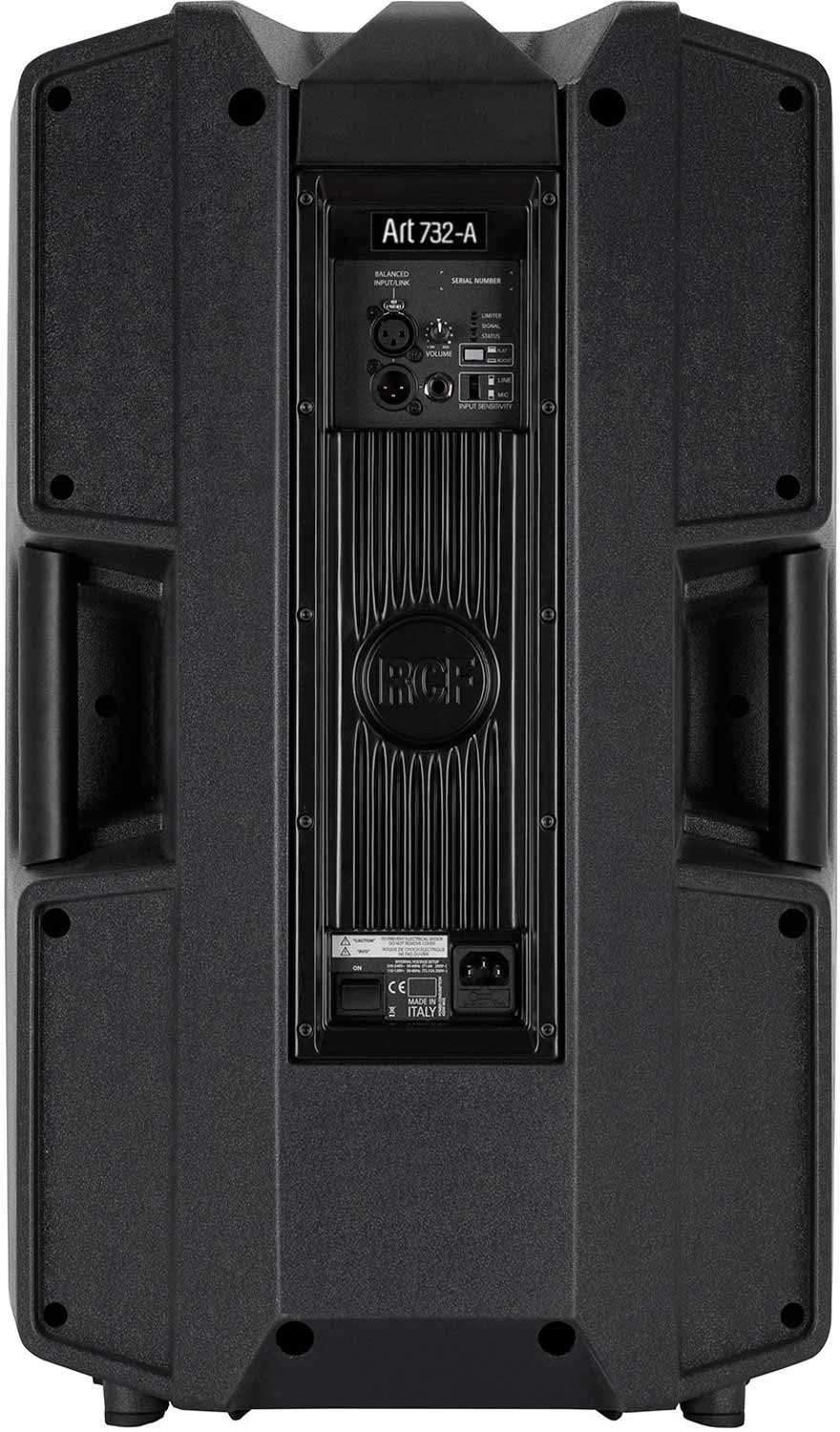

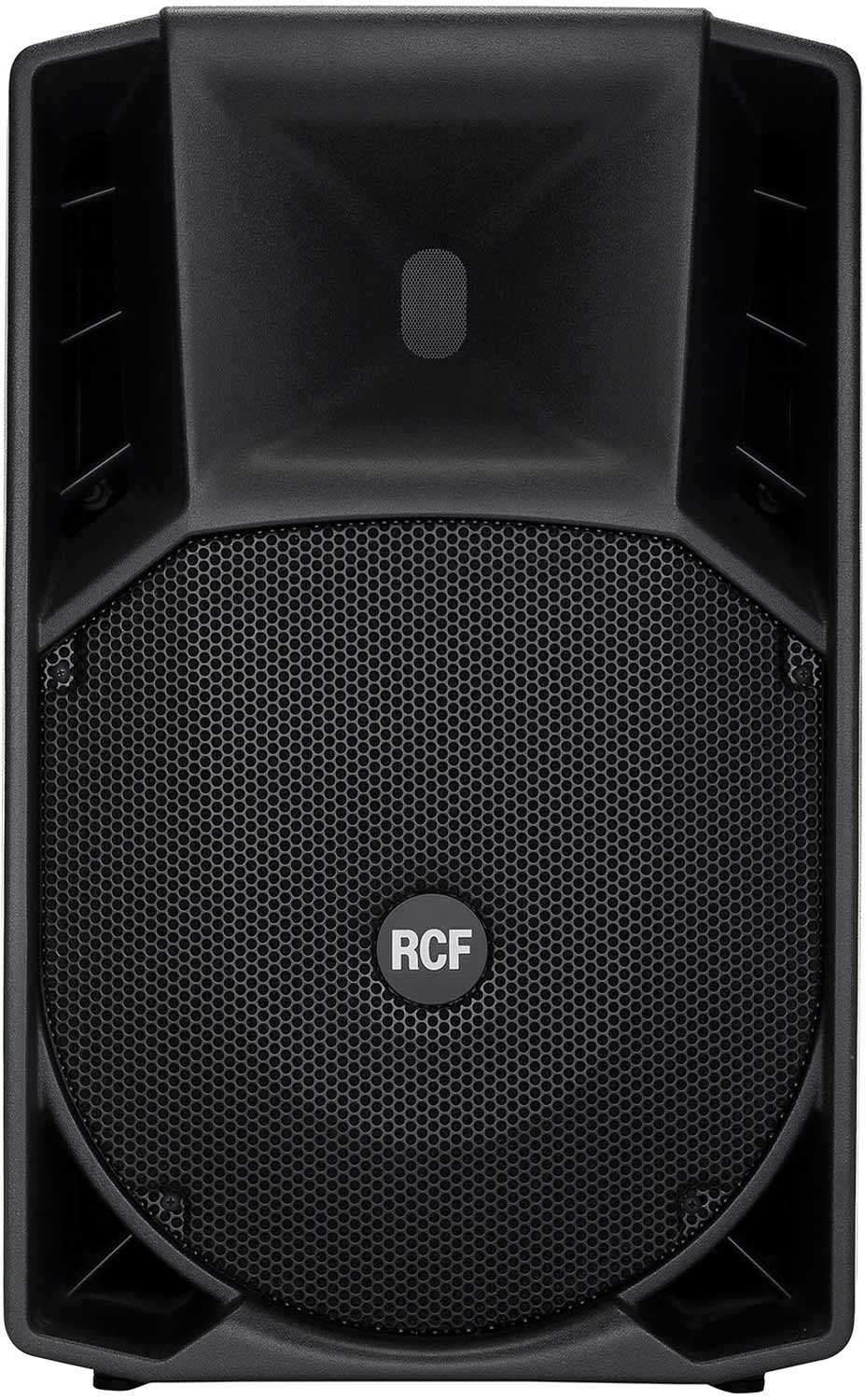

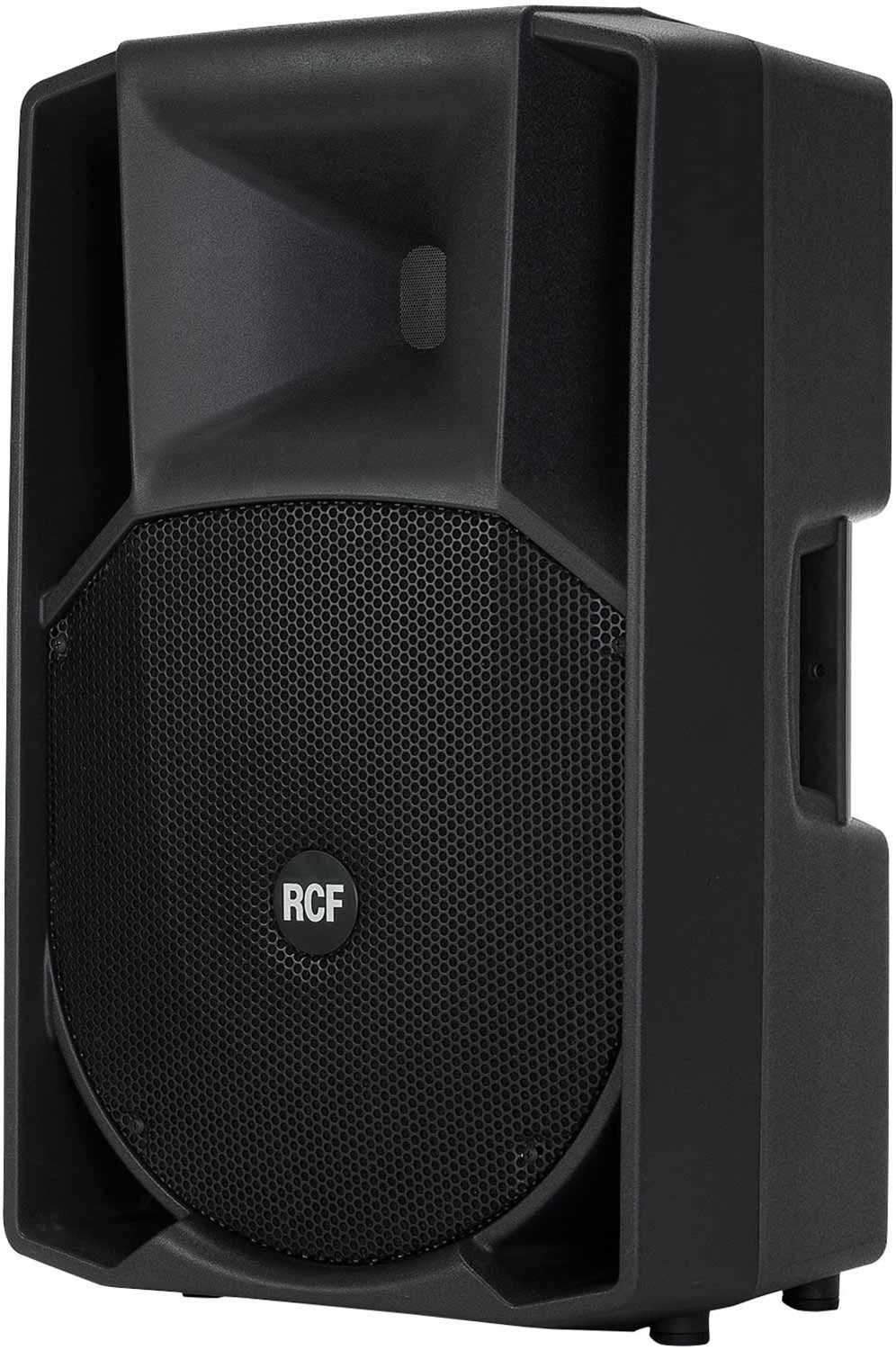

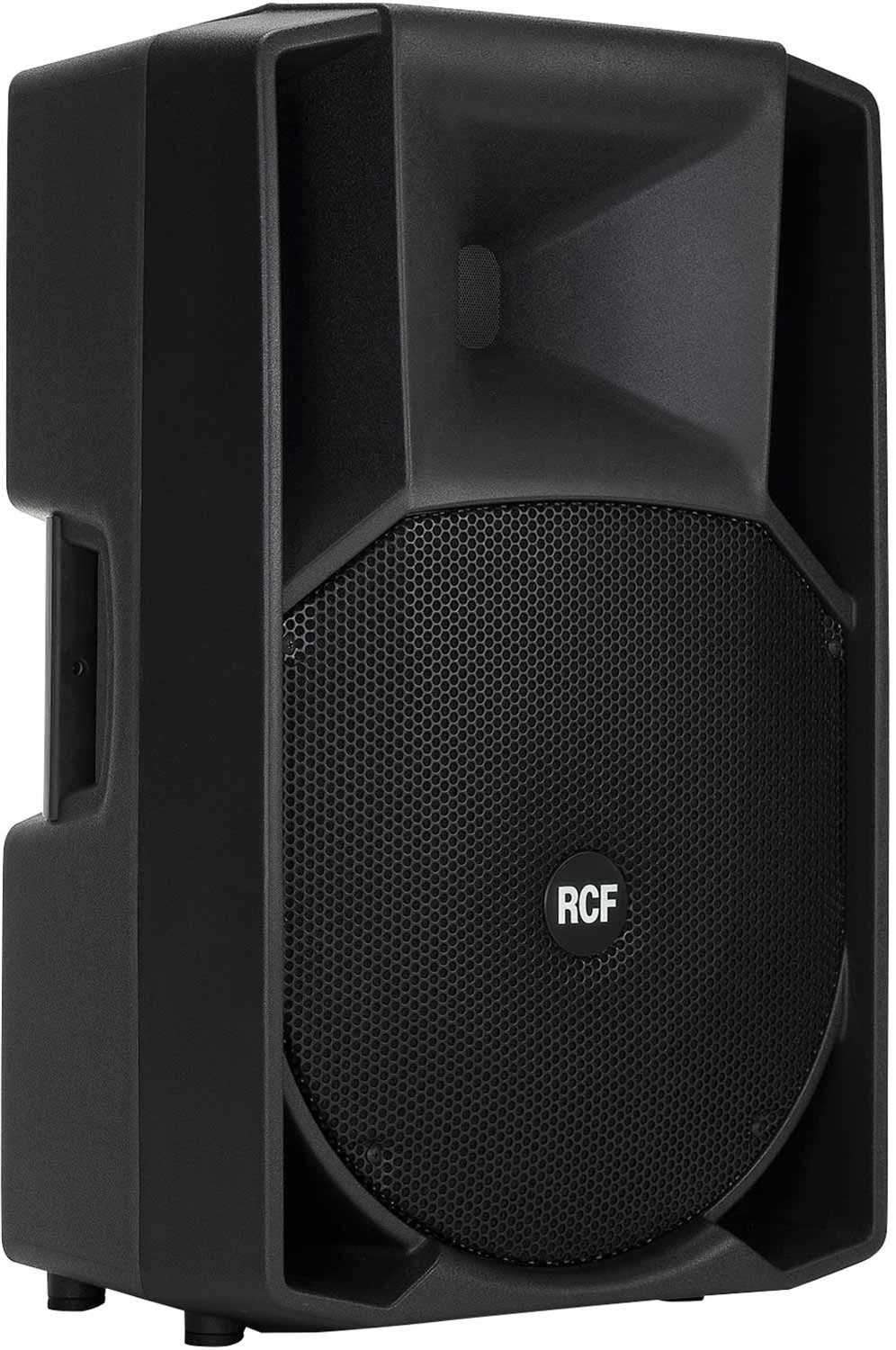

RCF ART-732-A Powered 2-Way 12-Inch Speaker

The ART 732-A is a unique product in its category. The titanium dome, 3.0" voice coil, neo compression driver offers a unique vocal clarity and sound projection. The 12" woofer guarantees a linear response and a precise, deep low frequency control. The transducers are built using the most advanced assembly technologies. The amplifier delivers 1400 Watt and is controlled by a DSP that takes care of crossover, equalization, phase alignment, soft limiting and speaker protections.

• 1400 W Peak, 700 Watt RMS digital amplifier
• 131 dB max spl
• 90 x 60, Wide dispersion constant directivity horn
• 12" woofer, high power 2.5" voice coil
• 1.4" HF neodymium driver, titanium dome, 3.0" voice coil
• PFC power factor correction
• DSP Processing

• Frequency Response -3 dB: 50 Hz + 20000 Hz
• Max SPL: 131 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°
• Compression Driver: 1.4", 3.0" v.c.
• Woofer: 12", 2.5" v.c.

• Input signal: Bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

• Crossover frequencies: 900 Hz
• Protections: Thermal, rms
• Limiter: Soft limiter
• Controls: Volume, EQ shape
• AMPLIFIER SPECIFICATIONS
• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection / forced
• Connections: VDE connector in

• Cabinet Material: Composite PP
• Hardware: 2xM10 flying p.
• Handles: 2 side, 1 top
• Pole Mount/Cap: Yes
• Colour: Black

• Height: 637 / 25.07 mm/inch
• Width: 384 / 15.11 mm/inch
• Depth: 363 / 14.29 mm/inch
• Net Weight: 17.7 / 39.0 kg/lbs
