RANE DRZH Level Control and 7-Position Selector

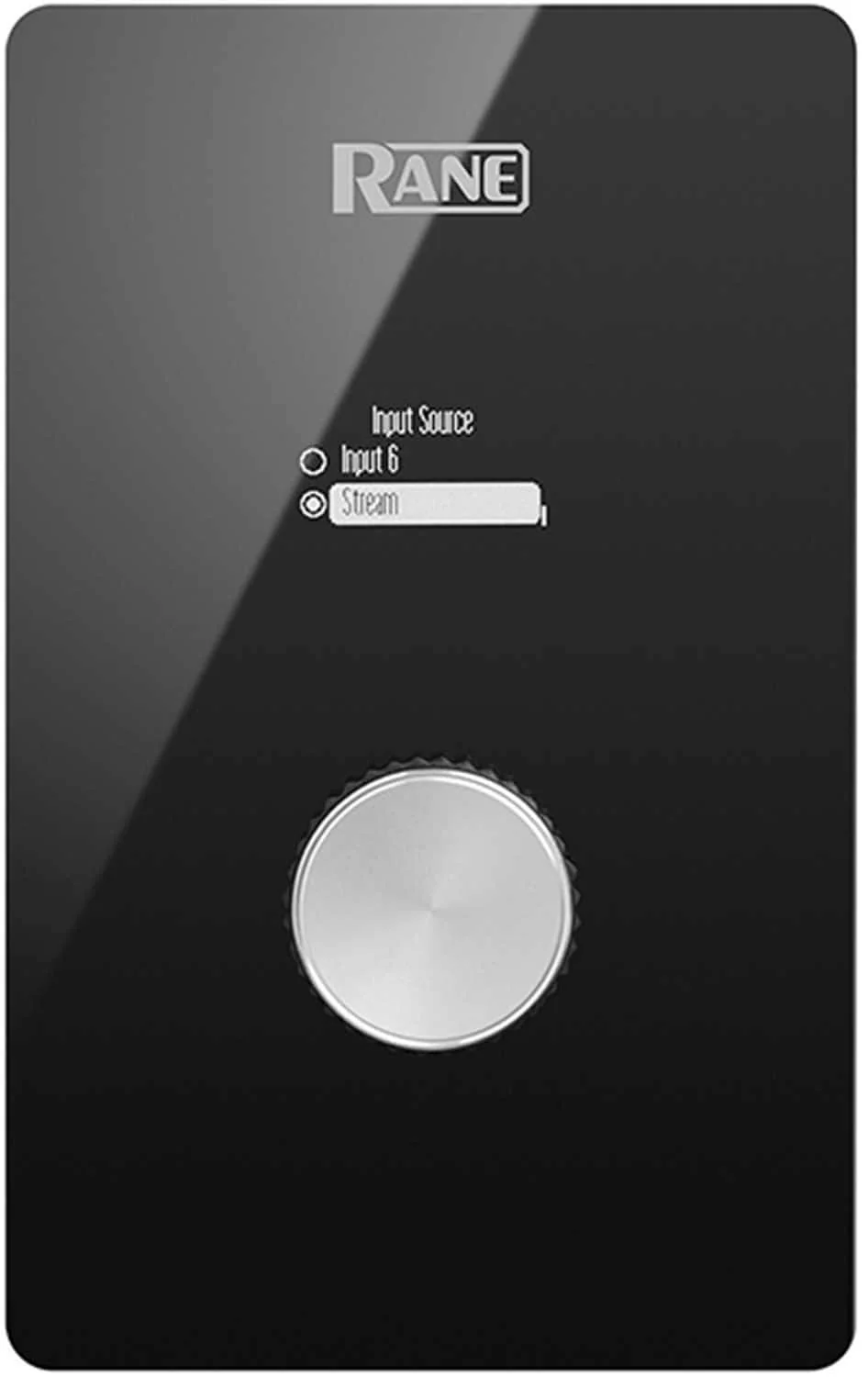

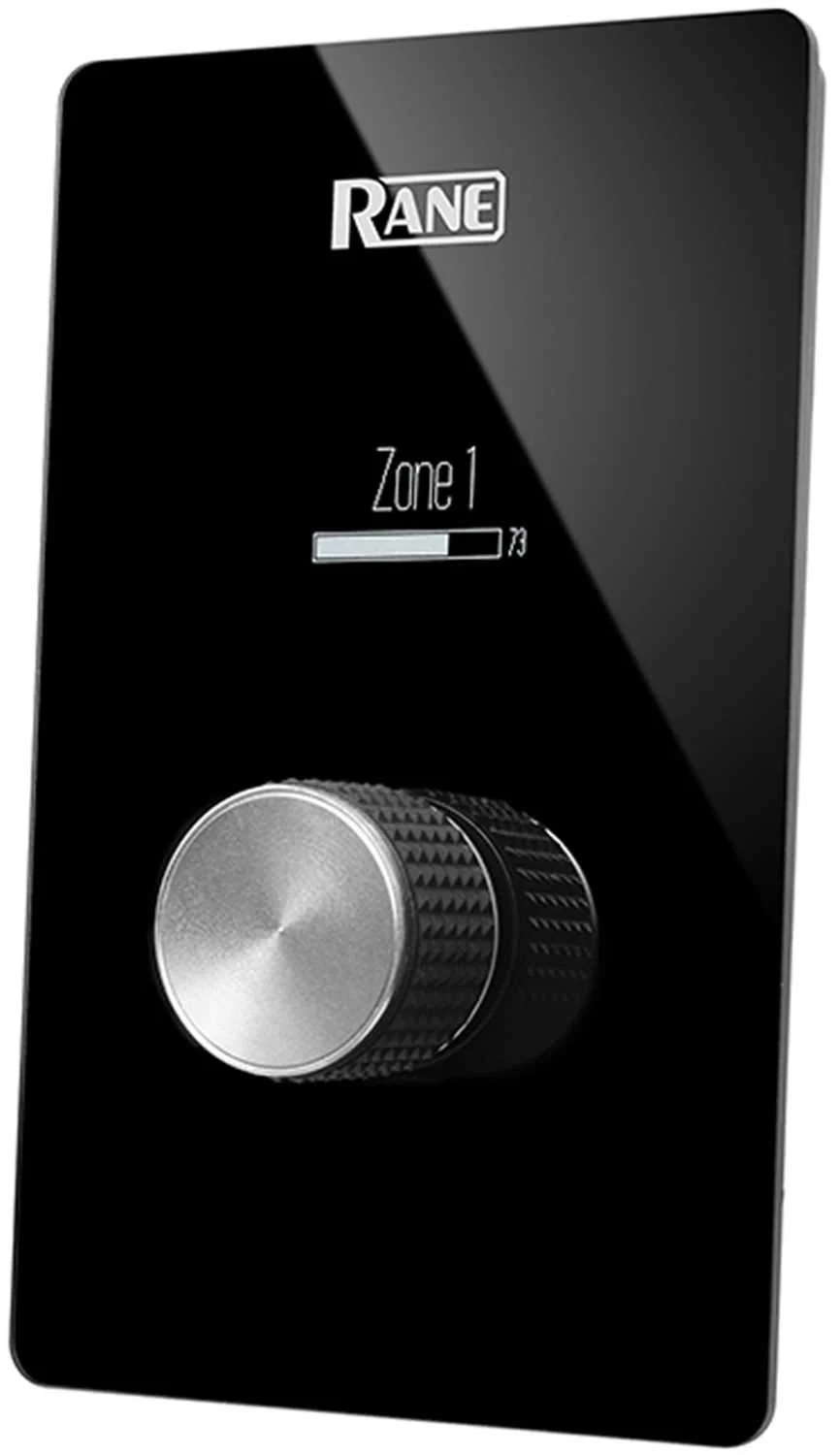

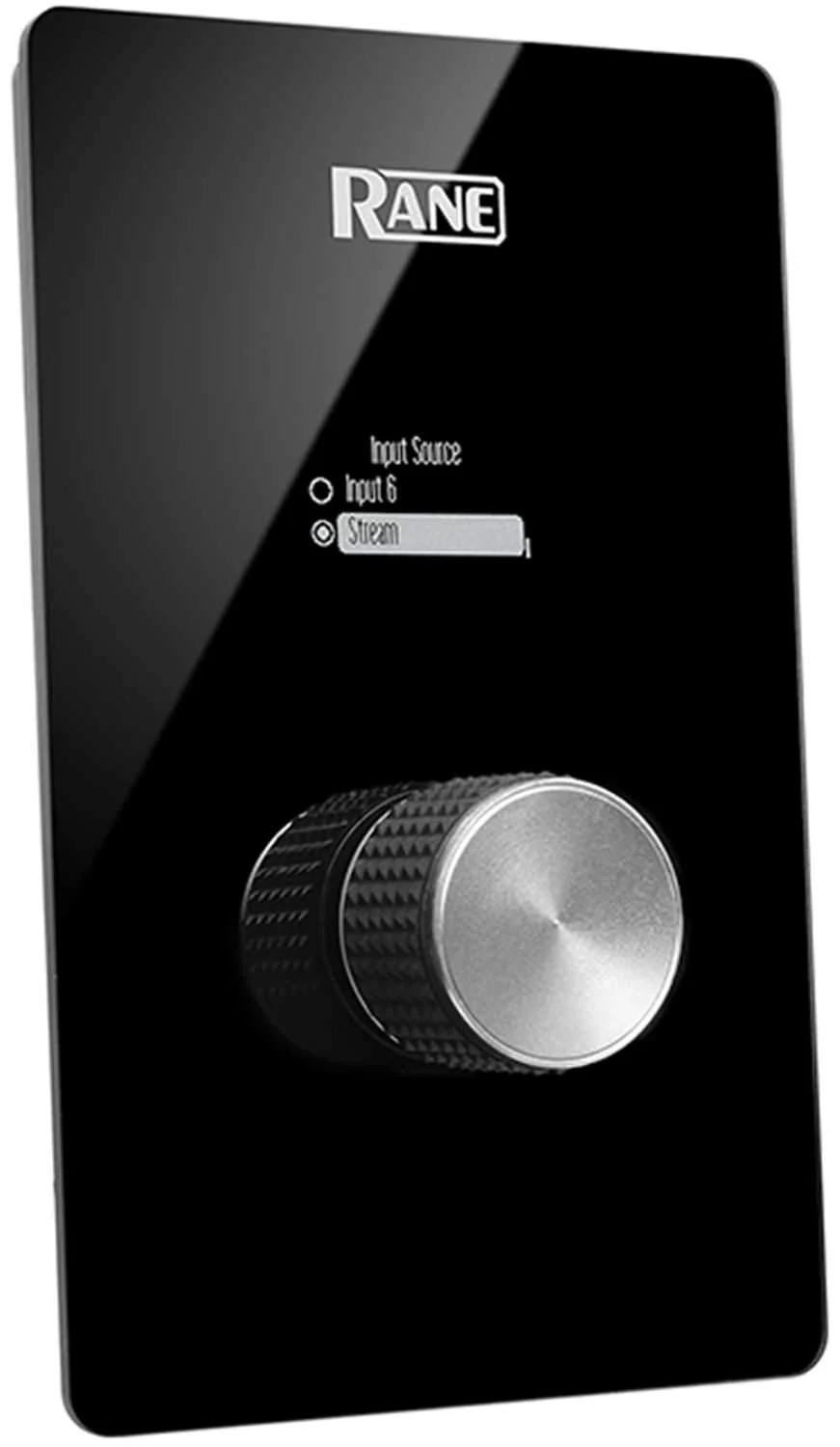

The DRZH is a wall-mounted digital remote (DR) for use with all Rane multiprocessors, including the new Zonetech audio processor. The DRZH features source selection and level control through the use of a single knob. It has a sleek black glass design, and the OLED display is easy to read in any environment.

In the box:

• DRZH
• Mounting Screws
• Safety & Warranty Manual
• User Guide

Features:

• Zonetech – Halogen Remote Audio Device
• Level control
• Source selection

Specifications:

• Display:
  • 1.1" x 0.6" / 26.7 x 15.5 mm (width x height)
  • 1.2" / 30.9 mm (diagonal)
  • 128 x 64 pixel resolution
  • Monochrome, white on black

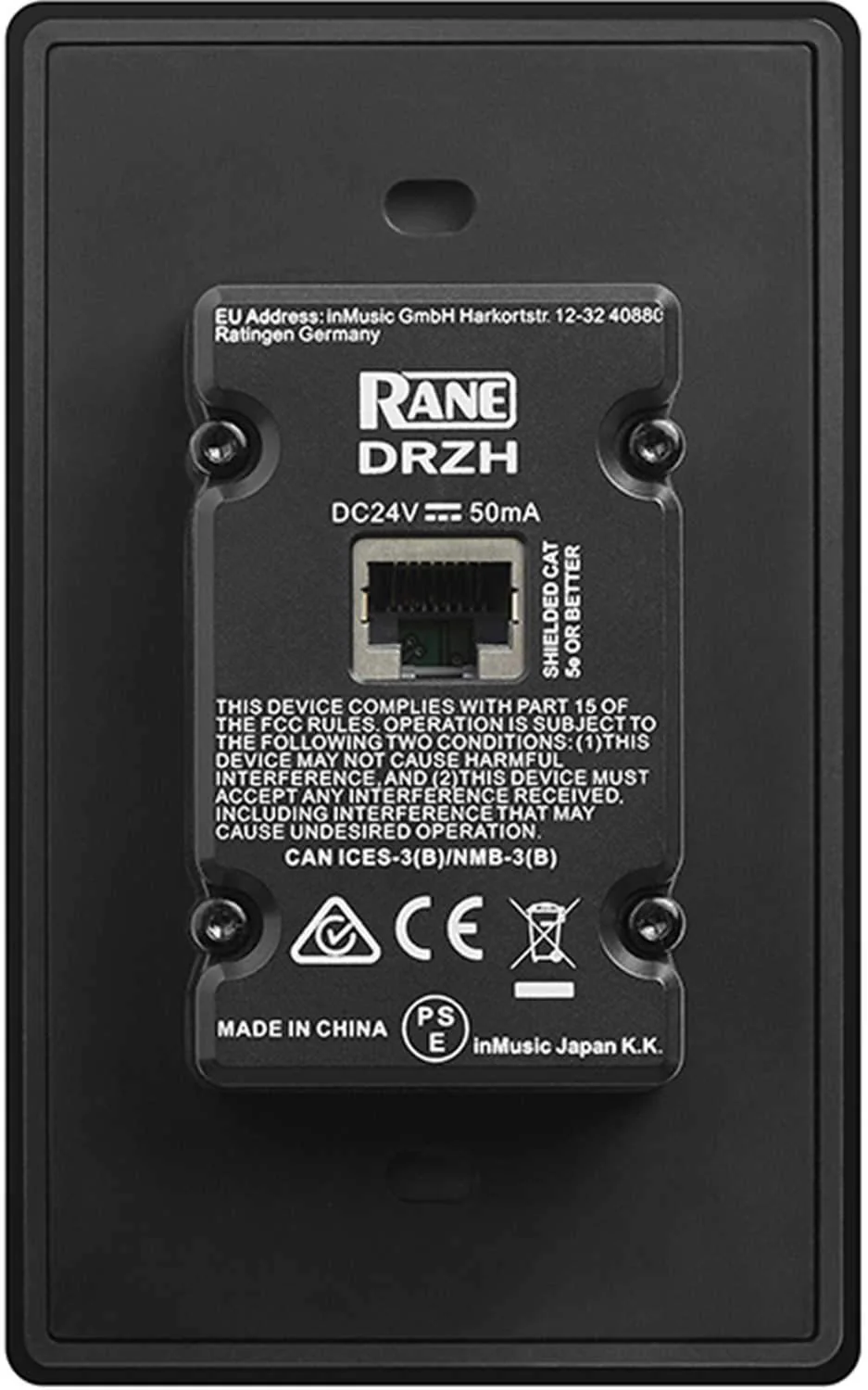

• Connectors: (1) Ethernet / RJ45 port
• Power
  • Connection: Ethernet / RJ45 port
  • Voltage: 24V
  • Consumption: 1.2 W
• Dimensions (width x depth x height): 3.0" x 2.0 x 4.7" / 75 x 50 x 120mm
• Weight: 0.3 lb / 150 g
