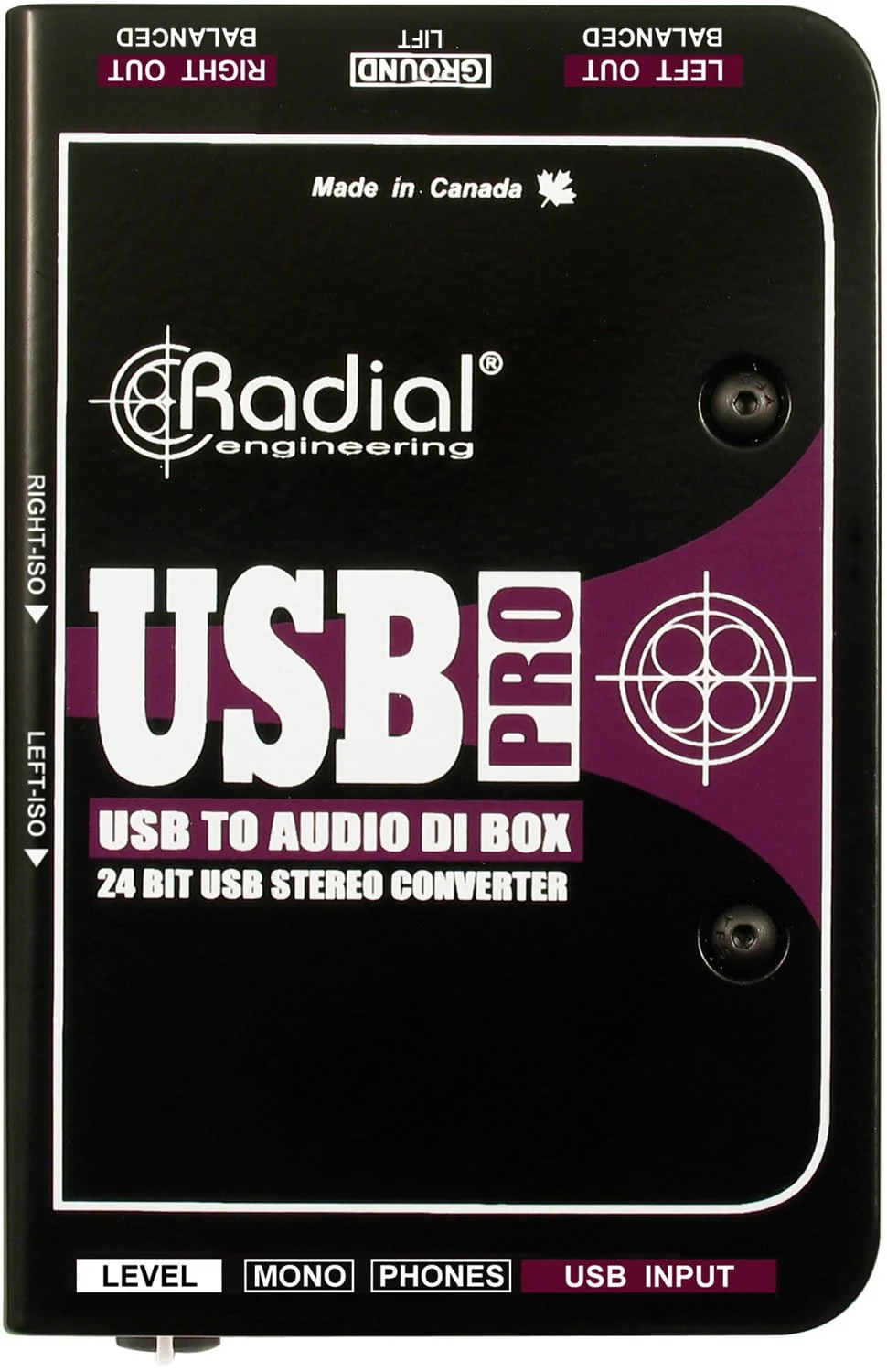

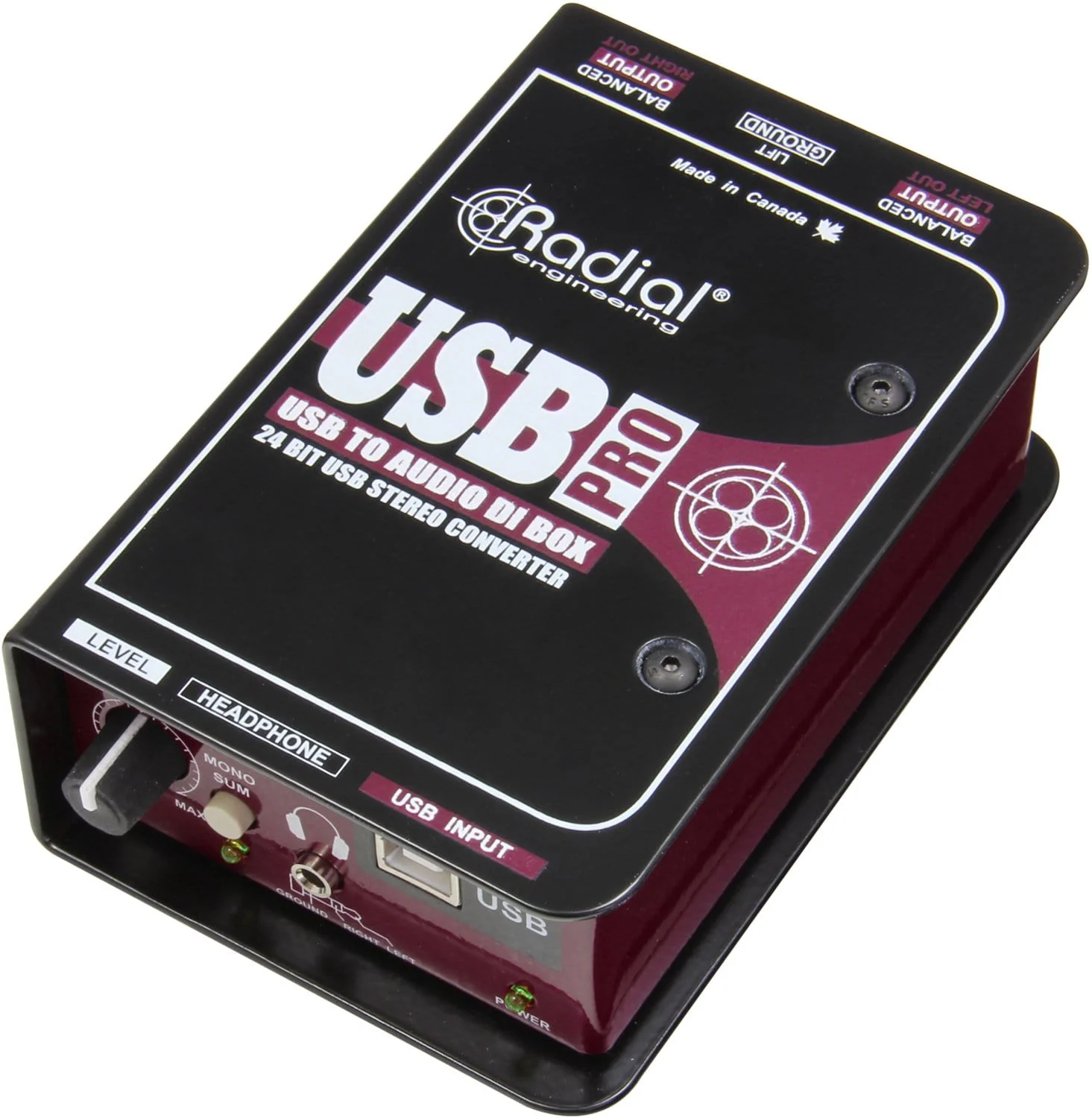

Radial Engineering USBPRO Digital Input Direct Box

The USB-Pro is a high-resolution stereo digital audio converter and direct box that is designed to connect to any computer and seamlessly convert digital audio tracks to a pair of balanced analog outputs.

Features:

• High Performance 24bit/96kHz digital audio converter
• Plug & Play, no drivers required

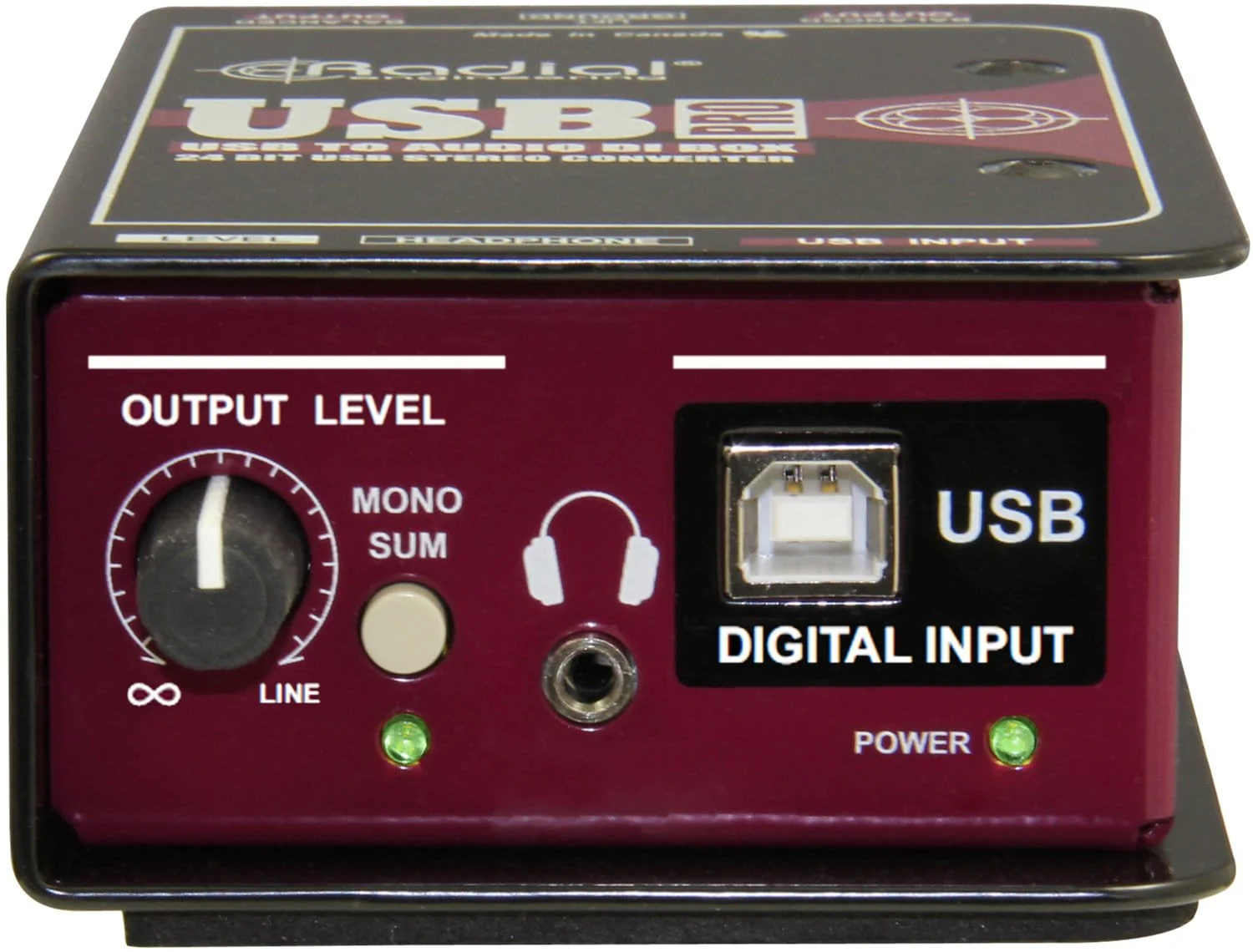

• 3.5mm headphone output to test signals

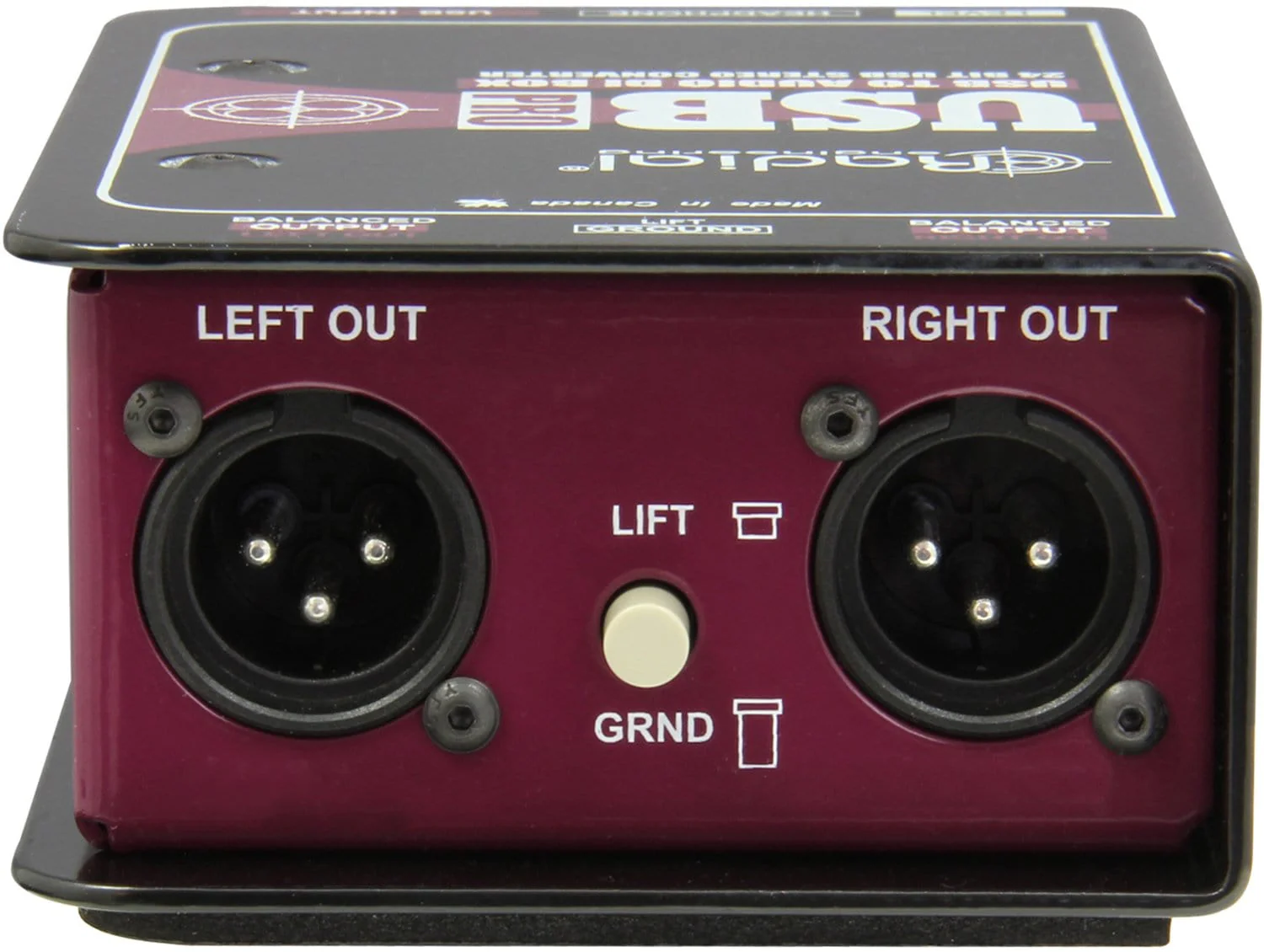

• Balanced XLR outputs to feed a mixer or PA

Specifications:

• Audio circuit type: DAC with balanced outputs
• Compatible with: Windows XP/Vista/Win7/Win8/Win10 and Mac OS
• Supports: WDM, MME, CoreAudio, DirectSound, WASAPI and .WAV
• Sampling rates: Set by computer OS 44.1/48/88.2/96kHz; 16/24bits
• Frequency response: 5Hz - 40kHz (30Hz - 18kHz with isolation)
• Total harmonic distortion: <0.01%
• Dynamic range: 90dB
• XLR output impedance: 250 Ohms
• Stereo channel separation: 75dB
• XLR configuration: Pin 1 ground, Pin 2 (+), Pin 3 (-)
• USB bus power: 525mA maximum
• USB connector: Type-B USB input
• Construction: 14-gauge steel chassis and outer shell
• Finish: Powder coating
• Warranty: Radial 3-year, transferable
