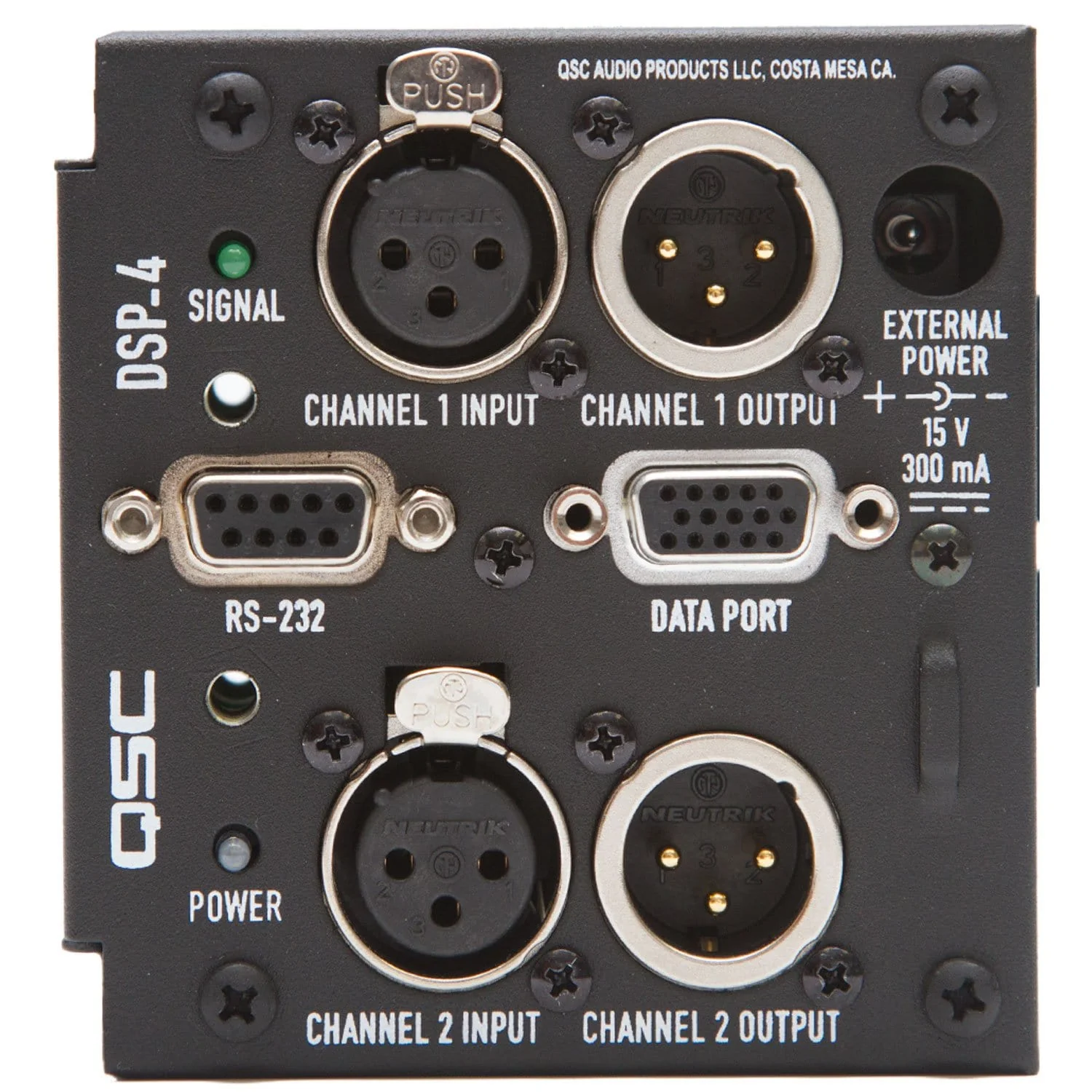

QSC DSP-4 2 Channel Digital Signal Processor

• Two independent channels of DSP
• 48kHz, 24-bit converters
• No turn on pops or zipper noise
• If the memory or hardware fails, unit turns on muted to prevent driver damage
• Host interface via RS-232 or QSControl Audio Network System via CM16a Amplifier Network Monitor
• Electronically balanced XLR inputs
• Contact closure to trigger preset changes
• Post-DSP output signal for daisy-chaining
• Peak and RMS meter displays with clip indication
• DataPort pass-through compatible with QSControl
• Selectable input sensitivity: 1.5, 4, 9, 18 Vrms; (6, 14.5, 21.5, 27.5 dBu; 3.5, 12, 19, 25 dBV)
• Output signal gain (to be released)
