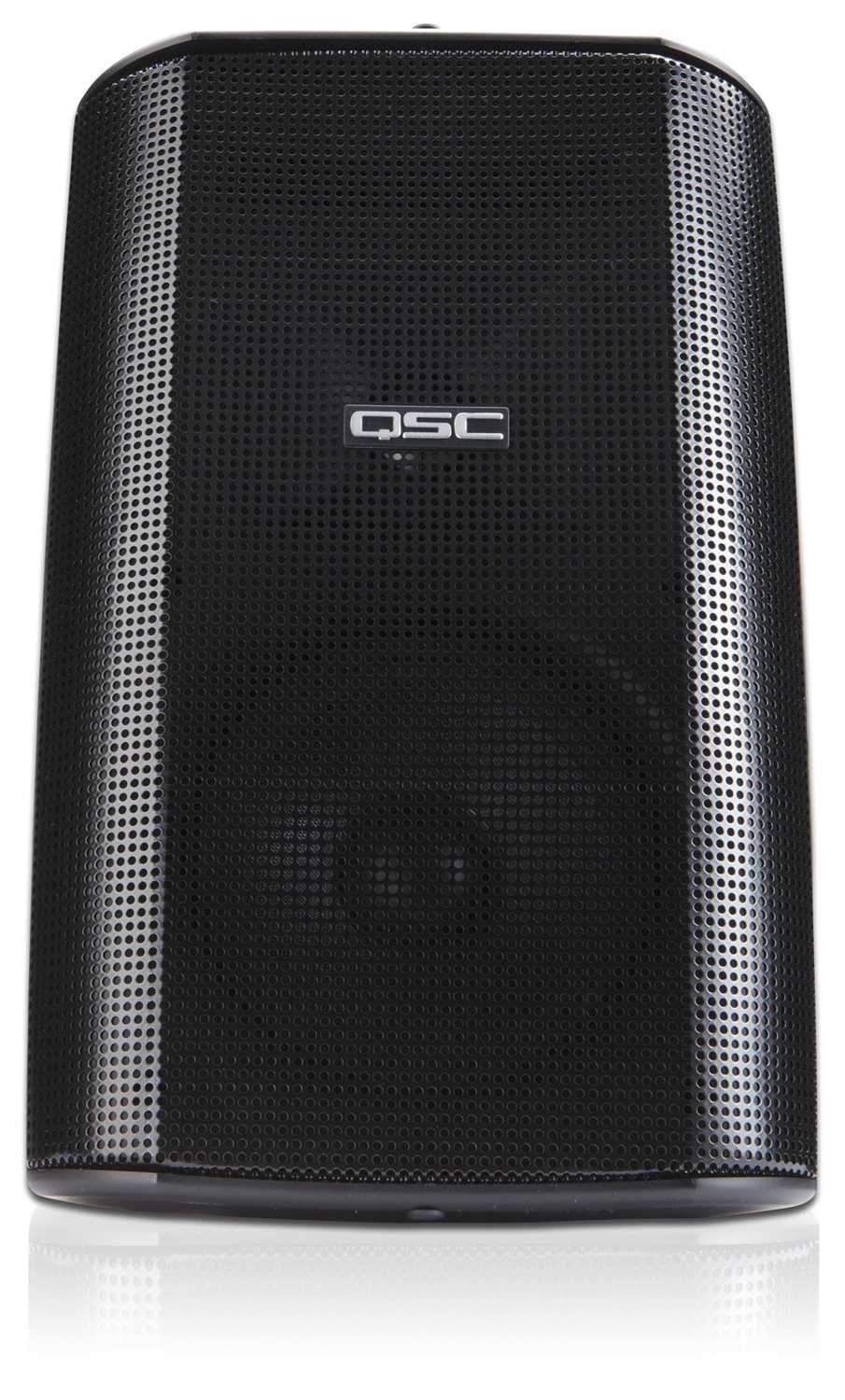

QSC ADS52 5.25-Inch Installation Speaker Black (EA)

Features:

• 5.25 inch, 2-way design - in a lightweight, contemporary styled multipurpose enclosure
• Magnetically shielded LF transducer - ideal for use near video monitors
• Flexible ball mount assembly included - for convenient installation

Specifications:

Configuration

• Compact two way, ported enclosure

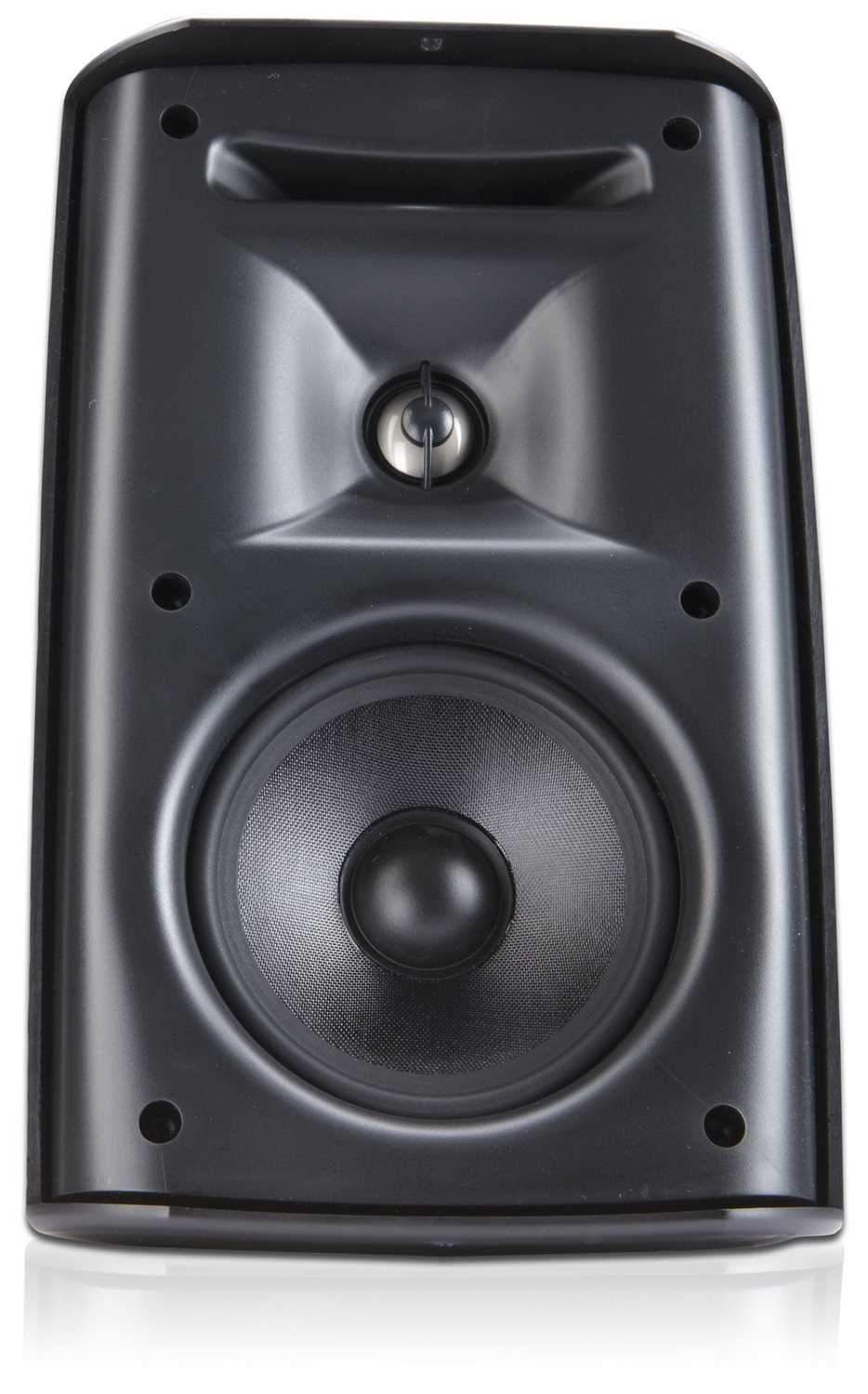

Transducers

• Low Frequency Transducer: 5.25" shielded, weather-resistant
• High Frequency Transducer: 1" neodymium tweeter

Frequency Range

• Frequency Response (±3 dB): 75 Hz - 19 kHz
• Useable Frequency Range (-10 dB): 60 Hz - 20 kHz
• *All frequency ranges specified refer to measured free field response (full space, 4pi)

Maximum Output

• Continuous: 104 dB SPL
• Peak: 110 dB SPL
• *Calculated using specified power capacity and system sensitivity. 6 dB peak-to-average signal ratio assumed.

Nominal Impedance

• 8 ohms

Power Rating

• 60 W (IEC, 100 hours)
• Continuous IEC specified test signal

Recommended Max Amp Power

• 120 W RMS

Sensitivity

• 86.5 dB, 2.83 V at 1 m, free field (4 pi)
• Based on nominal impedance, measured in full-space.

Enclosure

• Material
• Injection molded, weather resistant, high impact polystyrene

Finish

• Black

Weather Resistance

• Yes

Grille

• Heavy duty powder coated aluminum

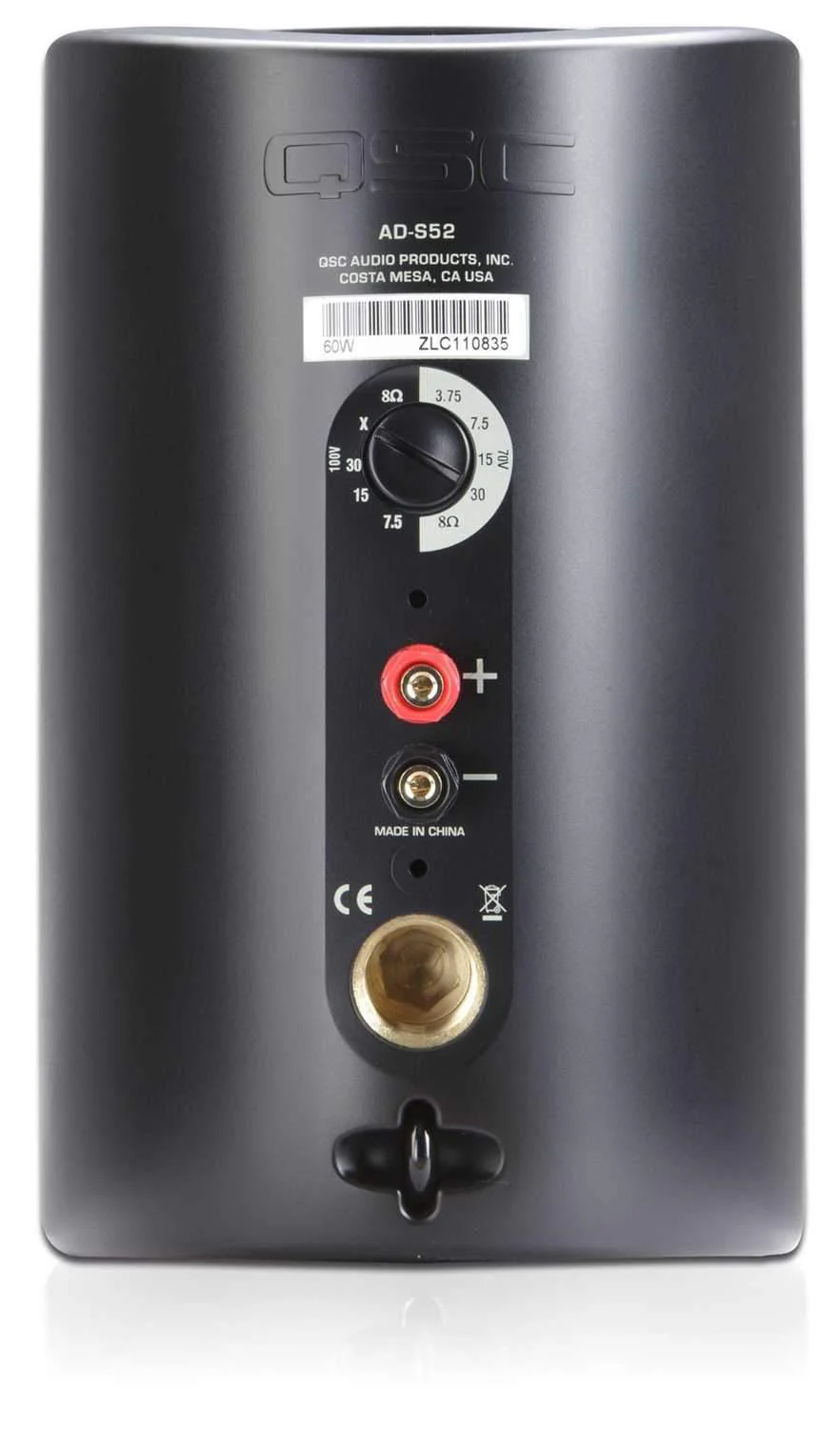

Connectors

• Pair of 5-way binding posts

Mounting Hardware

• Included ball mount assembly; available optional yoke mount

Product Dimensions (H x W x D)

• 11.28" x 7.02" x 9.33" (286.5 mm x 178.3 mm x 211.6 mm)

Weight

• 15 lbs. (6.8 kg) net
