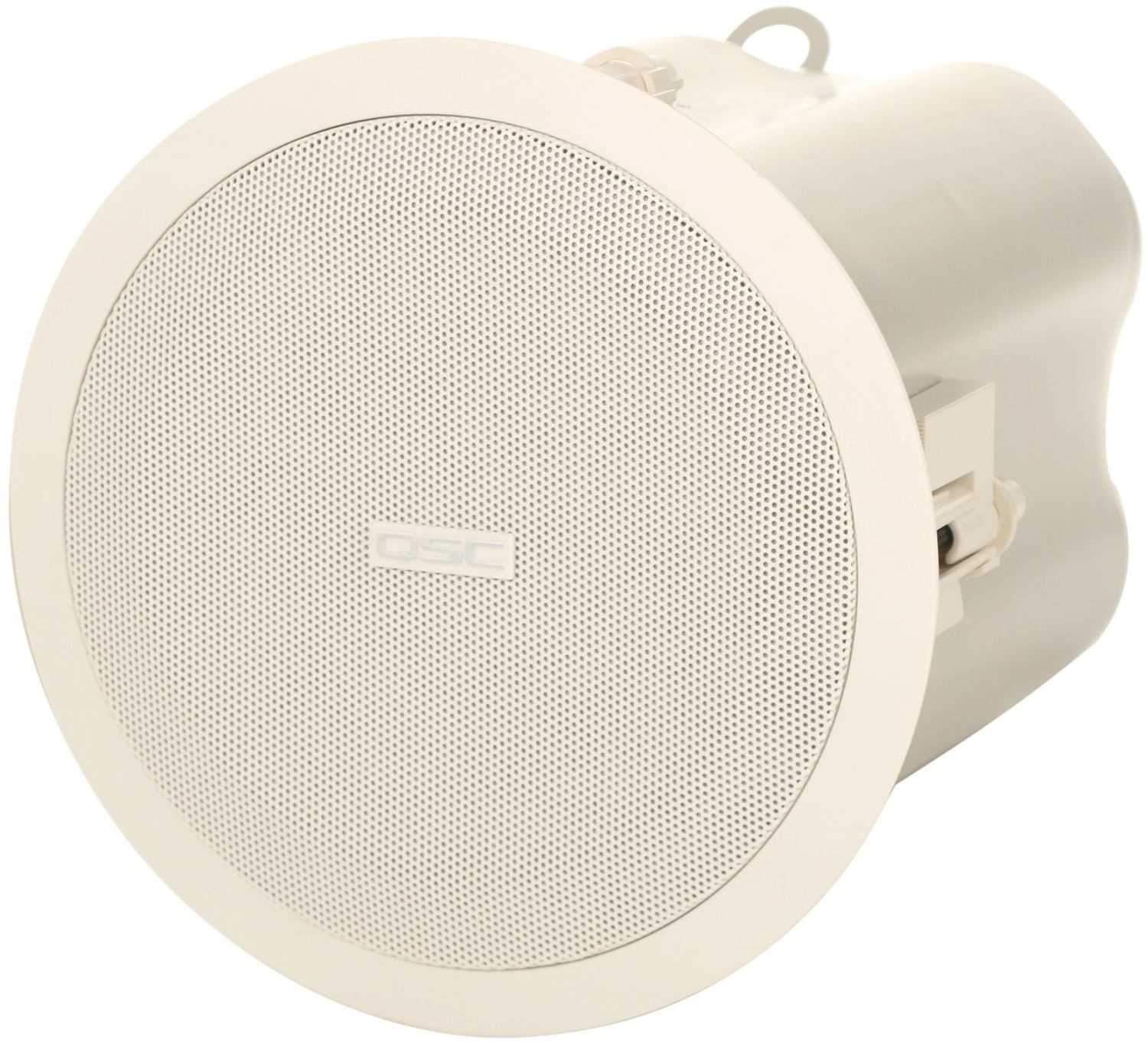

QSC AD-C42T-WH 4-in 2-way Ceiling Speaker - White

The AcousticDesign Series of installation loudspeaker products from QSC Audio expands with the AD-C42T ceiling mount loudspeaker system. Designed for background and general purpose audio playback, the AD-C42T is compact and acoustically matched to the entire AD Series. Rated for 40 watts continuous power handling and able to take up to 160 watt peaks, the compact AD-C42T is suitable for a wide variety of ceiling installations.

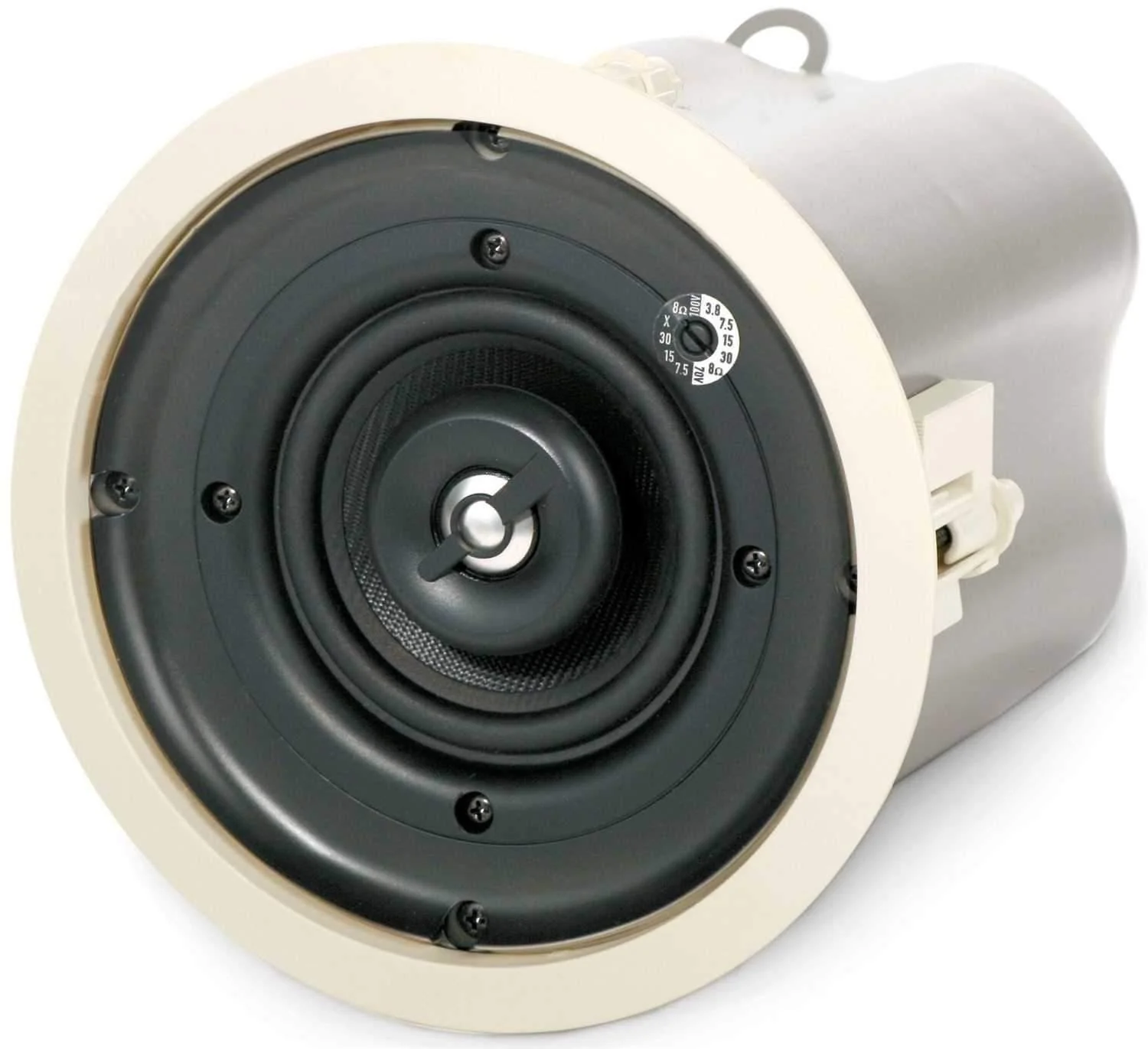

The 4" woofer is equipped with a polypropylene cone for protection in humid environments. The driver features a synthetic rubber surround and in its sealed enclosure is optimized to deliver useable low-frequency extension below 70 Hz. The high frequency device is a co-axial, post mounted 0.75" dome tweeter with a titanium diaphragm and a cloth surround. The coaxial post is mounted slightly off center in relation to the low-frequency driver in order to lessen the destructive interference often found with axisymmetric post mounted coaxial systems. The conical dispersion of the AD-C42T is 100° and sensitivity measures 88 dB SPL.

The baffle and mounting tabs are molded from high-impact polystyrene. The rear enclosure is a heavy gauge, powder coated steel. The attractive aluminum grille is backed with an acoustically transparent white cloth. On the rear of the enclosure is an input cup that features a conduit attachment point plus an additional knockout for daisy-chain wiring. Input signal connection is made with a high temperature resistant ceramic screw terminal for compliance with European safety standards.

The AD-C42T is factory shipped with C-rings and tile rails for installation. New construction rings (AD-NC4) and mud rings (AD-MR4) are also available separately. The AD-C42T is equipped with a 70/100 V transformer with multiple taps and an 8 ohm bypass.

Features:

• 4" polypropylene cone woofer
• 0.75" titanium dome tweeter
• 40 watt continuous power handling, 160 watt peak
• 70/100 V multi-tap transformer with 8 ohm bypass
• C-ring and tile rails included

Specifications:

• Configuration: Compact 2-way, sealed enclosure
• Transducers
• Low-frequency: 4" (10 cm) weather resistant, polypropylene cone woofer
• High-frequency: 0.75" titanium dome tweeter
• Frequency Range:
• Frequency Response (-6 dB): 72 Hz - 20 kHz
• Useable Frequency Range (-10 dB): 60 Hz - 20 kHz
• Maximum Output:
• Calculated Peak Output: 110 dB SPL
• Calculated Continuous Output: 104 dB SPL
• Nominal Impedance: 8 ohms switchable
• Power Rating
• RMS Power Handling: 40 W (100 hours IEC)
• Recommended Max Amp Power: 80 W RMS
• Sensitivity: 88 dB, 2.83 V, 1 m, free space (4pi)

Transformers:

• Type: Custom low distortion laminated core, wide bandwidth design
• Taps: 70 V: 30, 15, 7.5, 3.8 W / 100 V: 30, 15, 7.5 W / 8 ohms selected by switch
• Environmental: Exceeds Mil Spec 810 for humidity, salt spray and dust;
• IEC 60529 IP-X3 splash rating
• Agency Rating: Listed UL1480, UL2043 safe for use in air handling spaces;
• Transformer is Listed UL1876; Compliant BS/EN 60849 safety standards

Enclosure

• Material: Injection molded, high impact polystyrene baffle on a steel enclosure
• Finish: White (paintable)
• Grille: Painted aluminum
• Connectors: Ceramic block or 4-pin Euro terminals in fire protective sub-chamber
• Mounting Hardware: Rails and C-ring for ceiling tile installation
• Weight (Net): 6.1 lb (2.7 kg)
