PreSonus Temblor T10 10-Inch Powered Subwoofer

To hear what’s really going on at the bottom of your mixes, you need a subwoofer that speaks the truth. The Temblor T10 let you take charge of the low-frequency foundation of your mix with a combination of quality components and design, plenty of inputs and outputs, and extensive user controls not normally available in this price range.

Features:

Main components

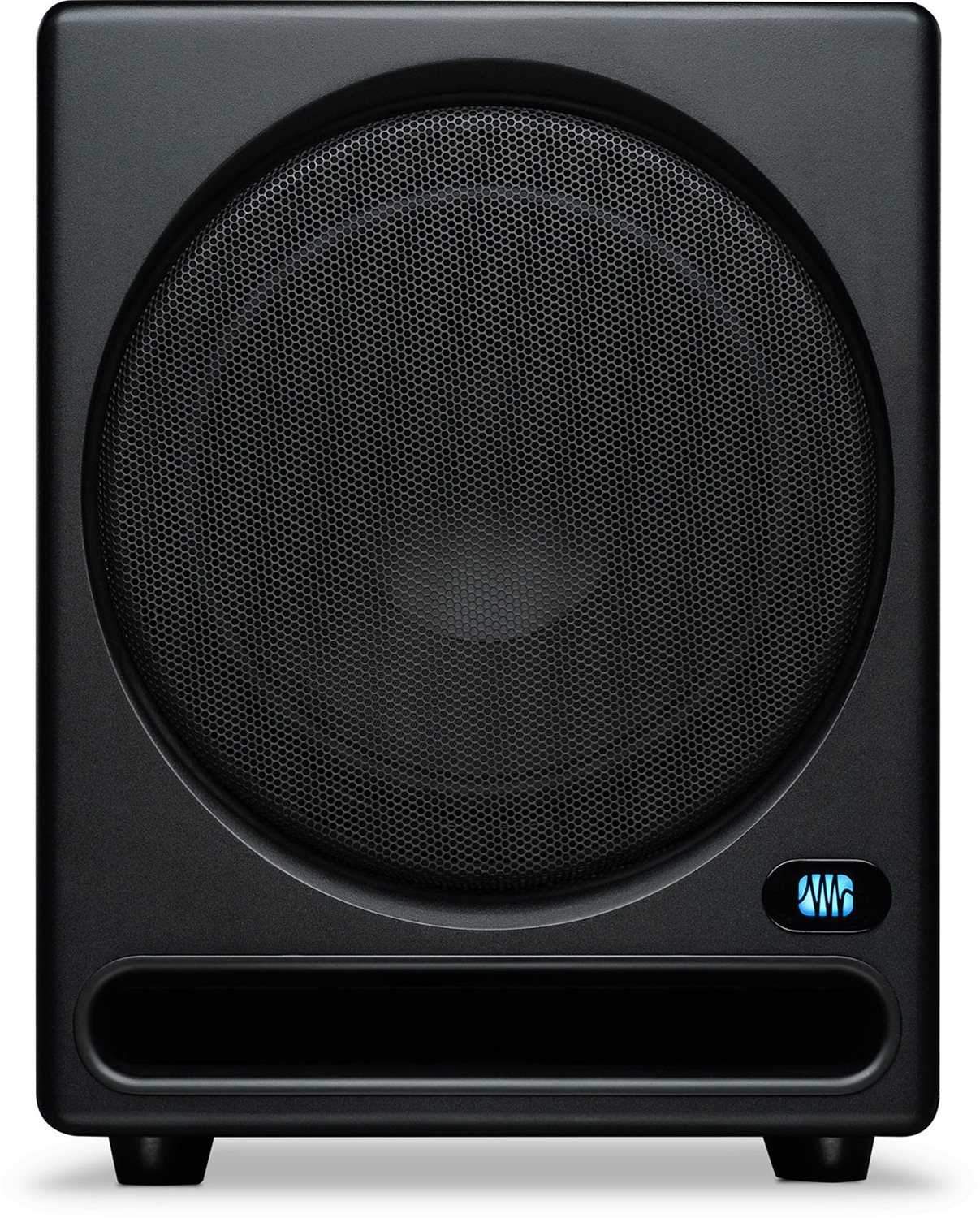

• T10: 10-inch, front-firing, glass-composite low-frequency transducer
• T10: Front-firing, bass-reflex acoustic port

Controls and filters

• Input gain control (-30 dB to +6 dB, continuously variable)
• Continuously variable lowpass filter (50 Hz to 130 Hz)
• Built-in crossover
• Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
• T10: Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
• Polarity invert
• T10: Ground-lift switch

Power and safety

• T10: 250 watt, Class AB amplification
• Internal damping and heat sink
• Integrated rubber feet for stable placement

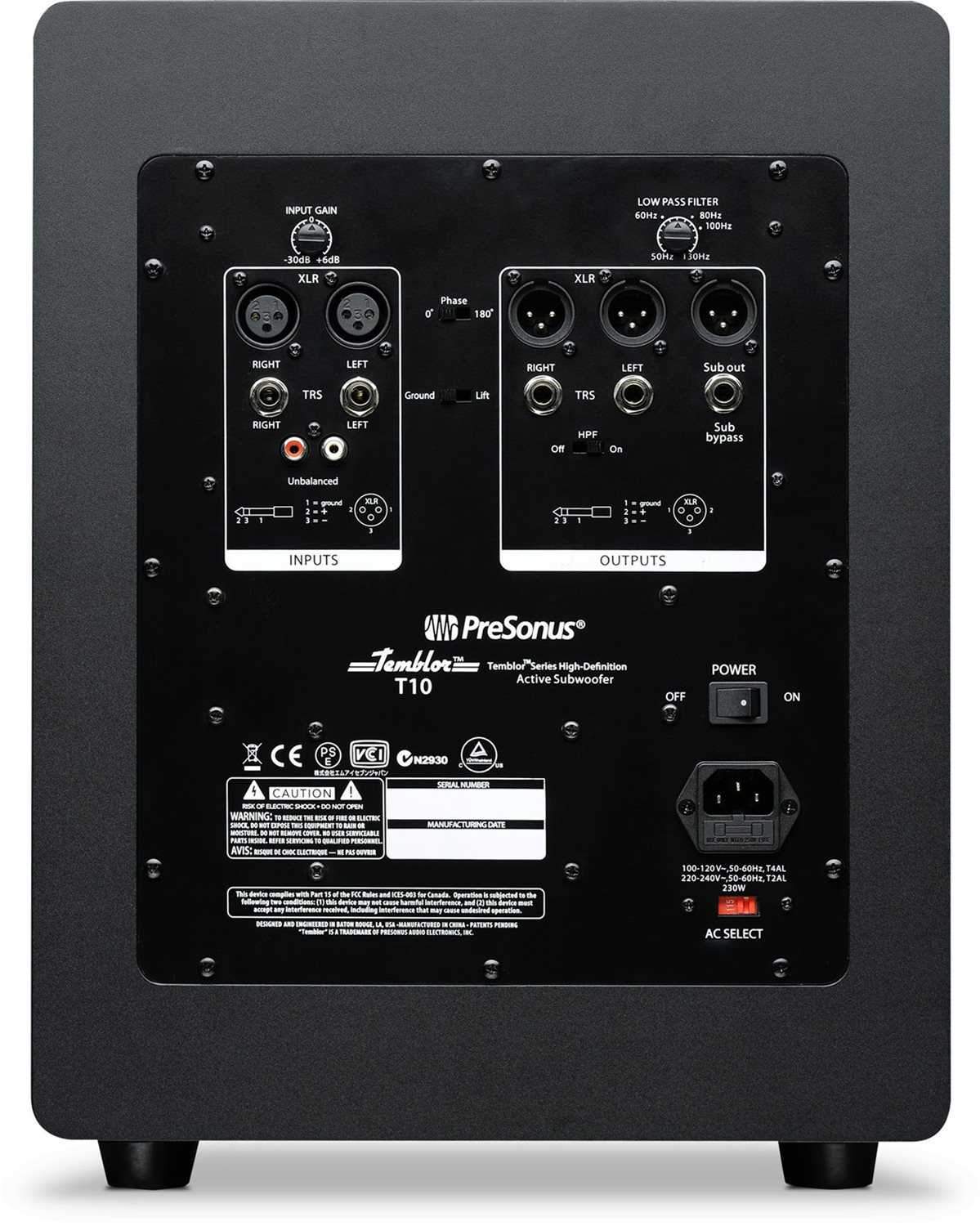

Inputs and outputs

• T10: Left and right, balanced XLR and 1/4" TRS and unbalanced RCA main inputs
• T10: Left and right balanced XLR and 1/4" TRS outputs
• T10: XLR subwoofer output for connecting a second T10

Specifications:

Inputs

• 2- Balanced XLR
• 2- Balanced 1/4" TRS
• 2- Unbalanced RCA

Outputs

• 2- Balanced XLR (full range with 80 Hz HPF option)
• 2- Balanced 1/4" TRS (full range with 80 Hz HPF option)
• 1- Balanced XLR (Sub Out)

Performance

• Frequency Response: 20 Hz – 200 Hz
• Low Pass Filter Frequency: 50 – 130 Hz (variable)
• Signal-to-Noise Ratio: >98 dB (A weighted)
• THD: 0.019% at power <160W
• Amplifier Power: 250W peak, 170W RMS
• Power Consumption: 230W
• Amplifier Type: Class AB
• Peak SPL at 1m: 113 dB
• Woofer: 10" glass-composite, front-firing
• Acoustic Port: Front-firing bass reflex

User Controls

• Input Gain Range: -30 to +6 dB
• Polarity Switch: 0° or 180°
• Low Pass Filter Control: 50 Hz to 130 Hz
• Ground Lift Switch: On/Off
• High Pass Filter Switch: On/Off
• Bypass Footswitch: On/Off

Protection

• RF interference
• Output-current limiting
• Over-temperature
• Turn-on/off transient
• Subsonic filter

External mains fuse

• Power: 100-120V ~50/60 Hz or 220-240V ~50/60 Hz
• Cabinet: Vinyl-laminated MDF
• Physical:
• Width: 12.6" (320 mm)
• Depth: 15.75" (400 mm)
• Height: 15.75" (400 mm)
• Weight: 39.46 lbs (17.9 kg)
