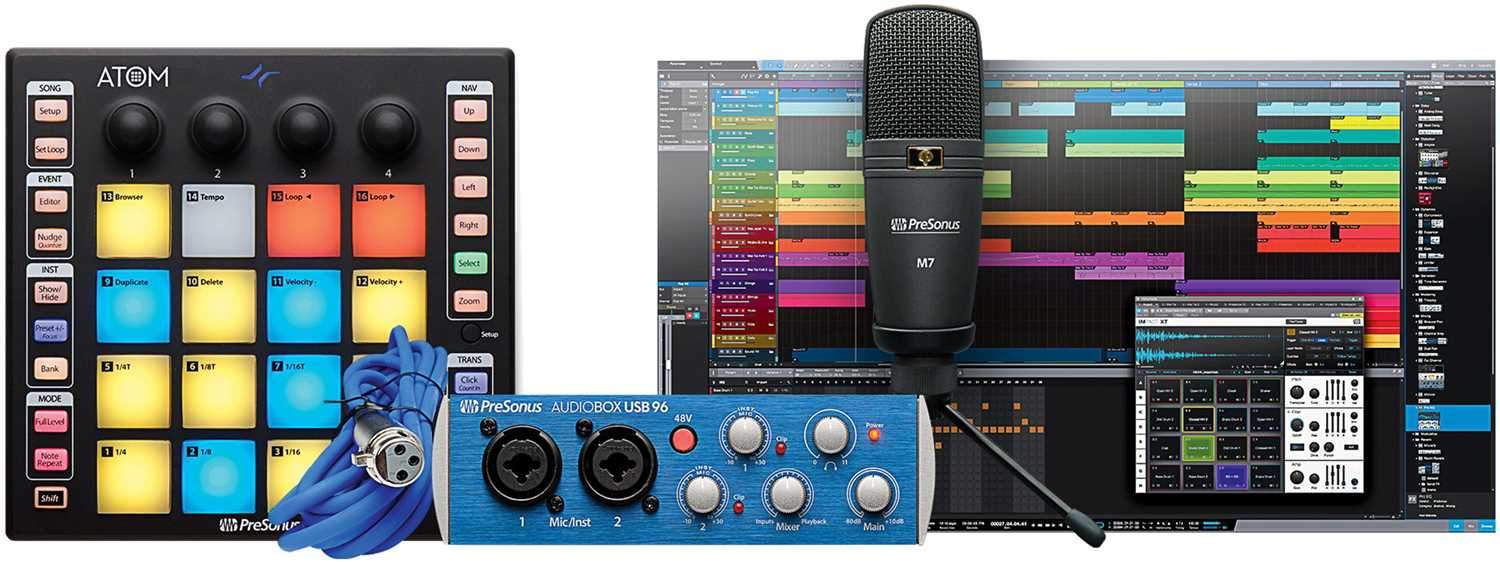

PreSonus Atom Producer Lab Complete Production Kit

Get started making beats and producing tracks today with this complete, all-in-one music production kit that includes the versatile ATOM™ pad controller, AudioBox USB® 96 audio interface, Studio One® Artist and Ableton® Live Lite production software, and an M7 large-diaphragm condenser microphone.

Complete, all-in-one music production kit featuring the PreSonus® ATOM pad controller, which offers flexible control of virtual instruments and real-time triggering of samples and loops; the AudioBox USB 96 audio interface and M7 large-diaphragm condenser microphone to record vocals and custom samples; powerful yet easy-to-use Studio One® Artist production software; Ableton® Live Lite; Studio Magic Plug-in Suite; and MVP Loops content custom-designed for ATOM.

Get started making beats and producing tracks today with this complete, all-in-one music production pack. The ATOM Producer Lab provides everything you need to create music, record vocals, and more—right out of the box. Capture a beat whenever creativity strikes with PreSonus®’ ATOM. Record vocals and create your own sample library with the AudioBox USB® 96 audio interface and the M7 large-diaphragm condenser microphone. Record, produce, and mix it all with Studio One® Artist, Ableton® Live Lite, and a bonus sound library curated by the hitmakers at MVP Loops for amazing results.

Features:

• Complete, all-in-one music production kit

ATOM USB pad controller for making beats, playing virtual instruments, and triggering samples and loops (with cable)

• 16 full-size velocity- and pressure-sensitive, RGB LED pads
• 8 assignable pad banks with selectable pad velocity curves and pad pressure thresholds
• 20 assignable buttons
• 4 endless rotary encoders
• MIDI "keyboard" mode, Note Repeat mode, and Full Velocity mode (application dependent)
• Includes MVP Loops content custom-curated for ATOM

AudioBox USB® 96 audio/MIDI interface with cable

• 24-bit resolution, up to 96 kHz sampling rate
• 2 combo mic/instrument inputs
• 48V phantom power for M7 condenser microphone
• Zero-latency monitoring via internal mixer
• USB 2.0 bus-powered

Studio One® Artist production software

• Elegant single-window work environment
• Powerful drag-and-drop functionality
• Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
• Instantly configures to PreSonus ATOM and AudioBox USB® 96 interface
• 31 Native Effects and 5 virtual instrument plug-ins
• Includes Studio Magic Plug-in Suite, an outstanding collection of virtual instruments and effects
• 6+ GB of third-party resources
• Compatible with macOS® and Windows®

Ableton® Live Lite production software

• Live’s essential workflows, instruments and effects
• No setup required with ATOM pad controller

M7 large-diaphragm studio condenser microphone

• Mic cable included
• Mic-stand adapter
• Cloth carry bag included?

Specifications:

Computer system requirements:

Below are the minimum computer-system requirements for Atom with Studio One 4 or later:

Mac

• Mac® OS X 10.11 or higher (64-bit only)
• Intel® Core® 2 Duo processor (Intel Core i3 or better recommended)

Windows

• Windows® 7 (SP1 + platform update), Windows 8.1, or Windows 10 (64-bit only)
• Intel Core Duo or AMD® Athlon™ X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)

Mac and Windows Systems

• 4 GB RAM (8 GB or more recommended)
• USB 2.0 port
• Internet connection (needed for software installation and activation)
• Monitor with 1366 x 768 resolution (high-dpi monitor recommended)
• 40 GB hard-drive space
• Universal Control 2.9 or later (for firmware updates)
• Studio One 4.1+ required for native integration

Atom Technical Specifications

Input

• Connection Type: USB 2.0 (bus-powered)

Pads, Buttons, and Knobs

• 16 full-size velocity- and pressure-sensitive, RGB LED pads
• 20 assignable buttons
• 4 endless rotary knobs
• 1 Setup button

Dimensions

• Height: 0.82" (20.75 mm)
• Depth: 7.68" (195 mm)
• Width: 7.95" (202 mm)
• Weight: 1 lb. (0.45 kg)

AudioBox USB 96 Technical Specifications

Microphone Preamp

• Type: XLR Female Balanced
• Frequency Response (±3.0 dB): 20 Hz to 20 kHz
• Input Impedance (Balanced): 1200?
• THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.008%
• S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz): > 95 dB
• Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB
• Gain Control Range (± 1 dB): 0 dB to 35 dB
• Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): -3 dBu
• Phantom Power (±2 VDC): +48 VDC

Instrument Input

• Type: ¼" TS Female Unbalanced
• Input Impedance: 0.5 M?

Line Outputs

• Type: ¼" Balanced
• Output Impedance: 51?

Headphone Output

• Type: ¼" TRS Active Stereo
• Maximum Output: 60 mW/Ch @ 60? Load
• Frequency Response (±1.0 dB): 20 Hz - 30 kHz

MIDI I/O

• Type: Dual 5-pin Female DIN

Digital Audio

• ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
• DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
• Bit Depth: 24
• Reference Level for 0 dBFS: +4 dBu
• Internal Sample Frequency Selections (kHz): 44.1, 48, 88.2, 96
• Power: USB 2.0 bus-powered

Physical

• Dimensions: 1/3U (steel chassis)
• Height: 5.5" (139.7 mm)
• Depth: 1.75" (44.45 mm)
• Width: 5.5" (139.7 mm)
• Weight: 5 lbs (2.27 kg)

M7 Microphone Specifications

General

• Type: Large-diaphragm condenser microphone
• Element: Electret
• Polar Pattern: Cardioid
• Frequency Response: 40 Hz - 18 kHz
• Sensitivity: -39 dBV/pa (12.2 mV/pa)
• Rated Impedance: 200?
• Equivalent Input Noise (EIN): 20 dB
• Maximum SPL: 136 dB SPL
• Phantom Power Required: +12 to +52 VDC, 3 mA
• S/N Ratio: 74 dB
• Dynamic Range: 11 dB
• Current Consumption: 3.5 mA

Physical

• Diameter: 2.13" (54 mm), maximum
• Length: 6.69" (170 mm)
• Weight: 11.3 oz. (320g)

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
